Description
Cable Techniques CTBX4 Overview

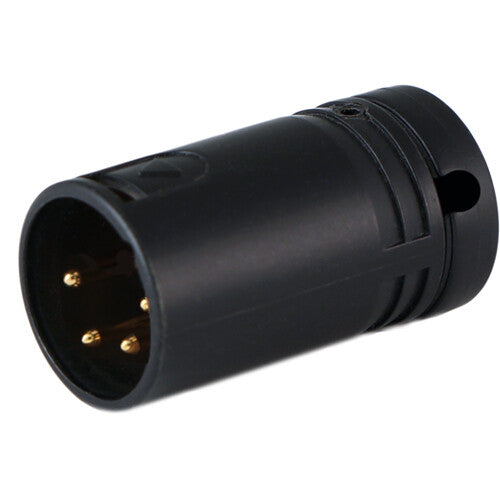

With its space-saving design, the Cable Techniques Low-Profile Right-Angle XLR 4-Pin Male Connector with Adjustable Exit (Standard Outlet) is ideal for use on portable recorders and field mixers in audio bags. Its standard cap has a cable outlet that accommodates cabling with diameters up to 3.8mm while offering 120 degrees of adjustment swing around the 3 o'clock and 9 o'clock positions, allowing perfect placement in an array of configurations. This variant features gold pins, a black shell, and a black cap. Optional caps in other colors can be used to create color-coded connector.
Low-Profile Connector
- Low-profile right-angle XLR 4-pin male connector
- A-Shell adjustable multi-angle cable exit (120° around 3 o'clock or 9 o'clock)
- Matte black shell with gold pins
- Black cap, can be color-coded with the addition of an optional color cap (red, blue, green, yellow, orange, white, gray, purple, or brown)
Standard Cap
- Standard cap accepts cable diameters up to 3.8mm
Cable Compatibility
- Compatible with Cable Techniques low-profile bulk cable and popular slim cable models such as Belden 1804A, Mogami W2901, W3031, W2697, and Sommer Isopod SO-F22
In the Box
- Cable Techniques Low-Profile Right-Angle XLR 4-Pin Male Connector with Adjustable Exit (Standard Outlet)
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Cable Techniques CTBX4Specs
| Connector |
Low-Profile XLR 4-Pin Male (Right-Angle Connector)
|
| Cable Outlet |
Up to 0.1" / 3.8 mm
|
| Angle Adjustment |
30 to 150° and 210 to 330° (120° Adjustment Swing)
|
| Contact Plating |
Gold
|
| Dimensions |
1.4 x 0.7" / 35 x 18 mm
|
| Weight |
1.2 oz / 34 g
|
Packaging Info
| Package Weight |
0.055 lb
|
| Box Dimensions (LxWxH) |
3.85 x 2.75 x 0.8"
|
