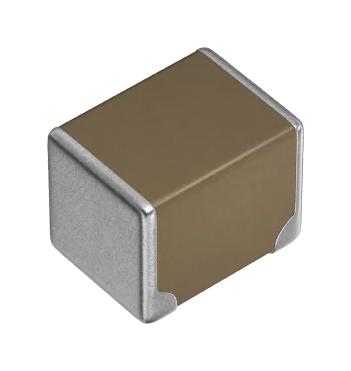

TDK CNC6P1X7R1E226M250AE SMD Multilayer Ceramic Capacitor 22 µF 25 V 1210 [3225 Metric] ± 20% X7R CNC Series

CNC series multilayer ceramic chip capacitors (commercial grade, soft termination (low resistance type)). TDK multilayer ceramic chip capacitor low resistance type soft termination commercial grade CNC series is a product which conductive resin layers are included in terminals. It differs from conventional soft termination C series whose overall surface of copper is covered with the resin layers, the resin layers are covering only board mounting side. As a result, the current can pass outside the resin layers having slightly high resistance and so low electric resistance has been realized. Typically used for fail-safe design in battery line, prevention of ceramic body cracks by board bending.

• Low electric resistance by applying the resin layers to only board mounting side

Other details

Brand	TDK
Part Number	CNC6P1X7R1E226M250AE
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
Manufacturer Catalogue EN
