Description
Cranborne Audio CA-500ADAT Overview
- 1Description
- 2Expand Your Studio, Expand Your Sound
- 3ADAT Simplicity, 500 Series Possibilities
- 4Beyond ADAT
- 5Deep 500 Series Integration
- 6Expandable with 500R8
- 7Tech Details

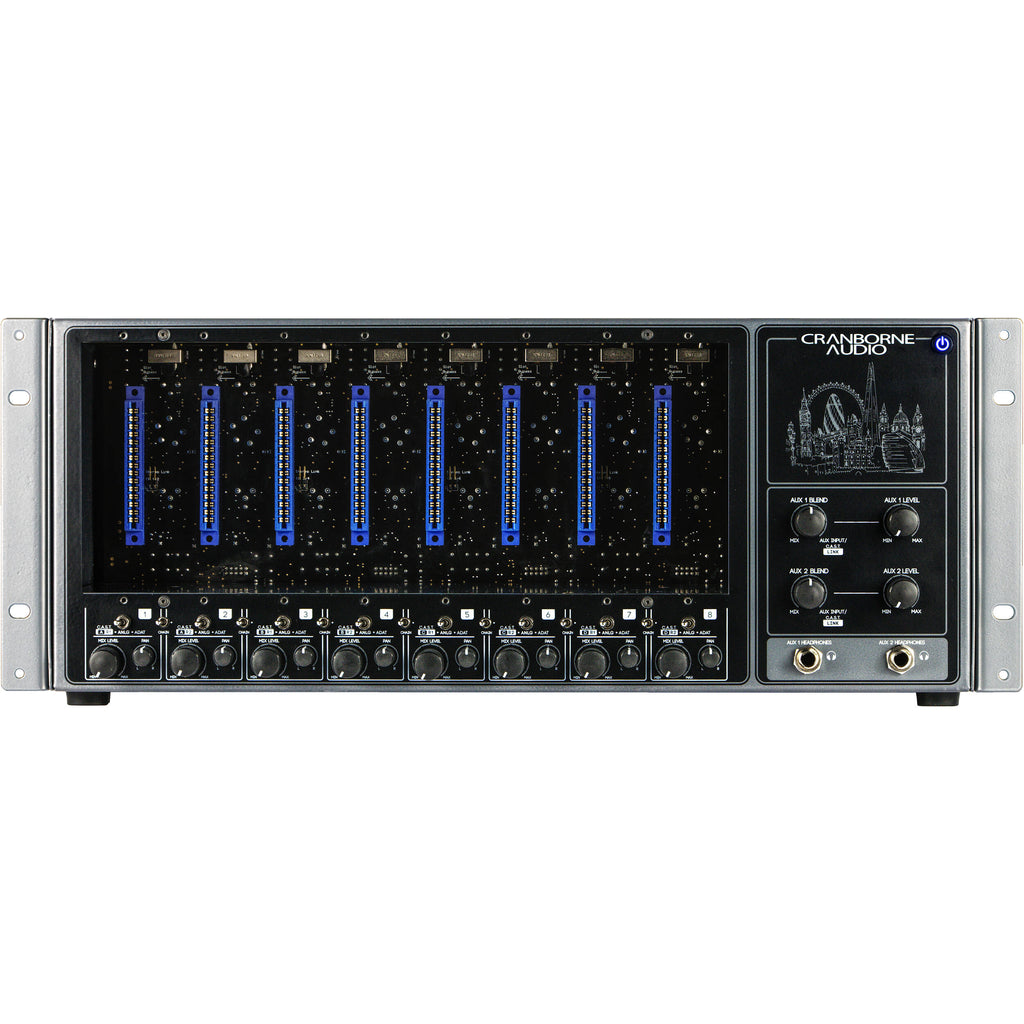

Expand Your Studio, Expand Your Sound
Connect the
500ADAT from
Cranborne Audio to the ADAT expansion ports on your audio interface and incorporate 500 series modules into your studio's tracking and mixing capabilities. The versatile unit functions as an 8-slot 500 series rack, 8-channel ADAT expander, analog summing mixer, and zero-latency artist mixer built into a 4 RU chassis.
ADAT Simplicity, 500 Series Possibilities
- Transform your ADAT-equipped audio interface into an analog powerhouse by adding 8 channels of expansion at up to 96 kHz or 4 channels of expansion at 192 kHz.
- The 500ADAT combines a high-current 8-slot 500 series chassis with digital conversion and ADAT, a powerful and accessible way to get your favorite 500 series modules into your tracking and mixing digital workflow.
- The unit features essential functions that unite digital and analog production workflows, such as an 8-into-2 analog summing mixer, zero-latency artist mixer with 2 reference-quality headphone outputs, and true ADAT & SMUXII/IV transmission.
Beyond ADAT
Seriously High-Powered Headphone Amps
Drive your headphones with 500ADAT's reference-quality headphone amplifier with enough power to drive low-impedance headphones with plenty of headroom and a linear frequency response to below 1 Hz. The two headphone outputs feature independent blend and level controls.
Zero-Latency Artist Mixer
Get your hands back onto the mix by using 500ADAT's two aux busses to create pristine-sounding analog artist mixes that can be blended with DAW playback, and sent to your musicians with zero-latency, physical level/pan controls per channel, and aux input blend controls.
Discrete Summing Mixer
Give your mix the final bit of analog character and send instrument groups and stems back-through your 500 series modules and into the discrete analog summing mixer to be sent back into your DAW.
Deep 500 Series Integration
Configurable Front End
Mix and match your 500 series modules to find the best combinations during recording, and mixing to help create your own signature analog sound.
Enough I/O for Any Hardware
The 500ADAT is designed to integrate with all of your analog and digital hardware. Patch in the 500ADAT with your own converter or integrate your 19" rack gear with dedicated TRS insert jacks per slot.
Source Select
Re-patch your 500ADAT at a flick of a switch. Dedicated source select switches for each 500 series slot adjusts the signal routing to send analog, C.A.S.T. or USB sources through each of your modules.
No Modules? No Problem
Bypass unused 500 series slots using 500ADAT's dedicated slot-bypass switch and you can use all of the available analog paths for recording whilst you continue to build your 500 series collection.
Expandable with 500R8
More Recording Channels
- When you want more 500 series connectivity, you can use up to two 500ADATs with some interfaces or pair the 500ADAT with the 500R8 (available separately). Connect the 500R8 and 500ADAT together via ADAT, and now you have 16 channels of 500 series modules to work with during recording and mixing. Whilst 500ADAT offers the same performance as 500R8, any third-party ADAT expander is also compatible.
- Play back instrument groups/stems into all 16 available 500 series slots for summing using the C.A.S.T. link connector.
Tech Details
8 Channel A/D-D/A Converter
- 8-in/8-out at 44.1 to 48 kHz
- 8-in/8-out at 88.2 to 96 kHz
- 4-in/4-out at 176.4 to 192 kHz
High-Performance A/D-D/A Conversion
- Dynamic range: 121 dB A-weighted, AES17 method, 20 Hz to 20 kHz
- Frequency response: -1 dB, 2.2 Hz to >80 kHz
- THD+N: <0.00032% (-110 dB) at -4 dBFS, 20 Hz to 40 kHz, 1 kHz, A-weighted
- Max I/O level: +24 dBu
Master Reference-Quality Internal Clock
- <0.5ps of jitter
- Dedicated word clock input and output via BNC
- External sync options using word clock BNC or ADAT
Analog Summing Mixer
- 8-into-2 analog summing mixer with +26.5 dBu of headroom and balanced 1/4" jack outputs
- C.A.S.T. link port for increasing summing mixer to 16-into-2 using Cranborne Audio 500ADAT
High-Current 8-Slot 500 Series Rack
- 250mA current per-slot with 2A total for all slots
- XLR inputs, XLR line outputs, and TRS inserts (pre-ADC) per 500 series slot
- Module source switching options to send analog, USB, or external C.A.S.T. signals through your favorite 500 series modules
- Module bypass switches per-slot allowing 500ADAT to be used without 500 series modules inserted.
C.A.S.T. Compatible
C.A.S.T. ports per channel for relocating analogue I/O around studio using passive or active C.A.S.T. breakout boxes via standard shielded Cat 5
24V, 5A External Locking Power Supply
External power supply for improved analog audio performance and heat dissipation
Designed and Engineered in the UK
Each and every 500ADAT is extensively tested by a team of dedicated engineers to ensure reliability and consistency.
In the Box
- Cranborne Audio 500ADAT 8-Slot 500 Series Rack and ADAT Expander
- External Power Adapter
- IEC Cable
- 16 x Module Fixing Screw (Crosshead, 4-40 Thread Size)
- Allen Key (2.5mm)
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Expand Your Studio, Expand Your Sound
- ADAT Simplicity, 500 Series Possibilities
- Beyond ADAT
- Deep 500 Series Integration
- Expandable with 500R8
- Tech Details
Cranborne Audio CA-500ADAT Specs

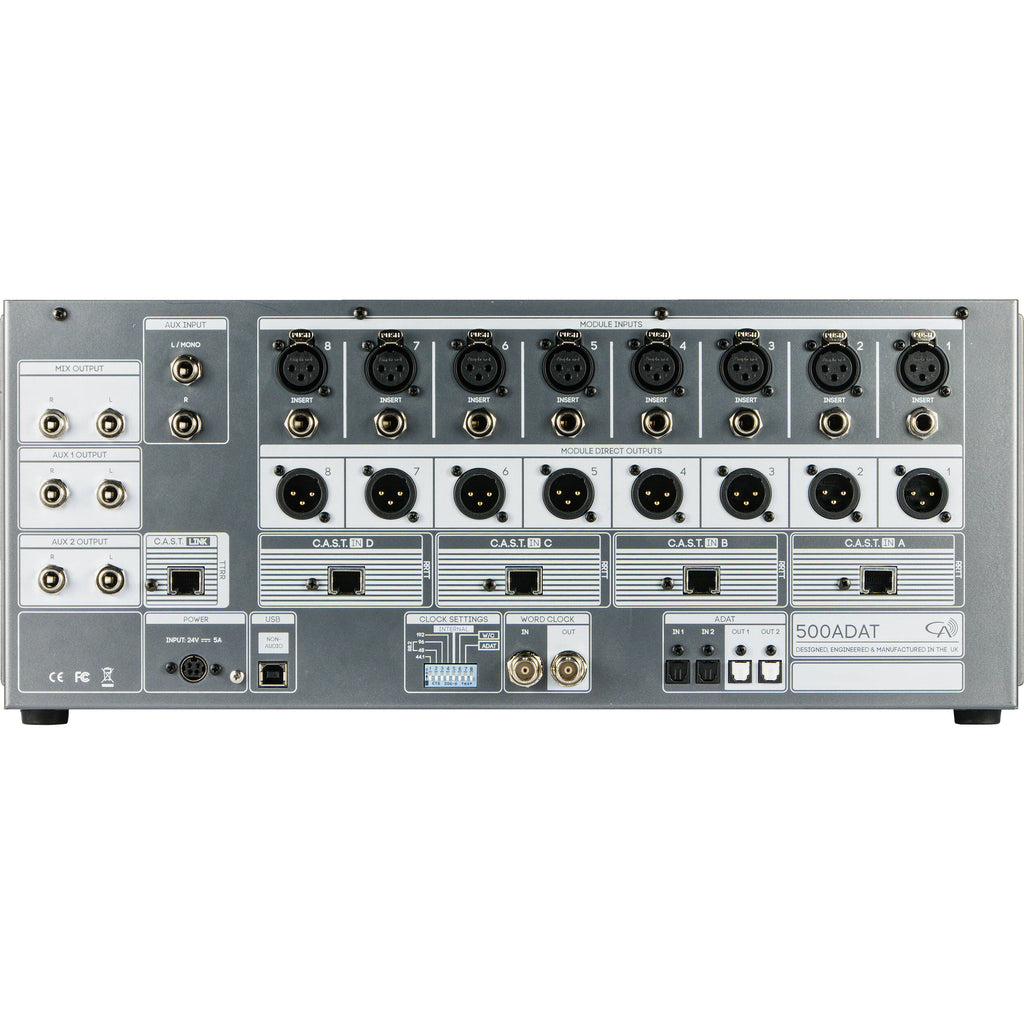

Inputs / Outputs
| USB I/O |
1 x USB-B Female Input/Output
|
| Audio I/O |
8x XLR 3-Pin Input
8x XLR 3-Pin Output 8x 1/4" TRS Input/Output 2x 1/4" TRS Output (Mix Output) 2x 1/4" TRS Output (Aux 1 Output) 2x 1/4" TRS Output (Aux 2 Output) |
| A/D Conversion |
Test Signal Path: XLR Input - 500 Series A/D Converter - APx555 (ASIO)
Frequency Response: -1 dB, 2.2 Hz to >80 kHz; -0.05 dB, 20 Hz to 20 kHz THD+N: <0.00032% (-110 dB) at -4 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted; <0.00065% (-104 dB) at -1 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted THD: <0.00014% (-117.5 dB) at -8 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted; <0.00023% (-113 dB) at -4 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted; <0.0006% (-105 dB) at -1 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted Dynamic Range: 121 dB A-Weighted, AES17 Method, 20 Hz to 20 kHz Maximum Input Level: +24 dBu |
| Audio D/A Converter |
Test Signal Path: 500 Series D/A Converter - Insert Send - APx555 (ASIO)
Frequency Response: -1 dB, <1 Hz to >61 kHz; -0.05 dB, 20 Hz to 20 kHz THD+N: <0.0003% (-110.5 dB) at -4 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted; <0.0004% (-108 dB) at -1 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted THD: <0.00014% (-117.5 dB) at -8 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted; <0.00018% (-115 dB) at -4 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted; <0.00036% (-109 dB) at -1 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted Dynamic Range: 121 dB A-Weighted, AES17 Method, 20 Hz to 20 kHz Max Output Level: +24 dBu |
| Jitter |
<0.5 ps
|
| Line Outputs |
(Aux 1+2, Mix)
Test Signal Path: Aux Input - Line Outputs - APx555 (Line In) Connection Type: 1/4" Jack, Impedance Balanced Output Impedance: 150 Ohms Balanced, 75 Ohms Unbalanced Max Output Level: <+22 dBu Frequency Response:-1 dB, 1.4 Hz to >80 kHz THD+N: <0.003% at +18 dBu, 1 kHz Dynamic Range: 105 dB A-Weighted, AES17 Method, 20 Hz to 20 kHz Noise Floor: <-93 dBu A-Weighted, 20 Hz to 20 kHz, (Unity Gain) |
| Summing Mixer |
Test Signal Path: XLR Input - Summing Mixer Bus (Unity) - Mix Output - APx555 (Line In)
Frequency Response: -1 dB, 2.25 Hz to >80 kHz; -3 dB, 1.2 Hz; -0.5 dB, 3 Hz THD+N: <0.0007% at +23 dBu (-1 dBFS), 1 kHz THD: <0.0003% at +14 dBu (-10 dBFS), 1 kHz; <0.0004% at +20 dBu (-4 dBFS), 1 kHz; <0.00055% at +23 dBu (-1 dBFS), 1 kHz Dynamic Range: 108 dB A-Weighted, AES17 Method, 20 Hz to 20 kHz Noise Floor (A/D 9-10): -108 dBFS A-Weighted, 20 Hz to 20 kHz Max Contribution Level: +28 dBu Pan Law: -4 dB Noise Floor (Mix Output): -90 dBu, A-Weighted, No Channels Routed; -89.5 dBu, A-Weighted, 1 Channel Routed (Unity)-84 dBu, A-Weighted, 8 Channels Routed (Unity) |
| Headphone Output |
Test Signal Path: Aux Input - Headphone Output - APx555 (Line In)
Frequency Response: -1 dB, <1 Hz to >70 kHz THD: <0.0006% (-104.4 dB) at 20 dBu, 1 kHz, A-Weighted, 300-Ohm Load THD+N: <0.00085% (-101.4 dB) at 20 dBu, 1 kHz, A-Weighted, 300-Ohm Load Output Impedance: 0.33 Ohms Output Wattage: 250 mW x 2 at 600 Ohms, 1 kHz; 650 mW x 2 at 220 Ohms, 1 kHz; 1.21 W x 2 at 100 Ohms, 1 kHz; 1.21 W x 2 at 100 Ohms, 1 kHz Dynamic Range: 114.5 dB A-Weighted, AES17 Method, 20 Hz to 20 kHz, 300-Ohm Load Noise Floor: -93.5 dBu A-Weighted, 20 Hz to 20 kHz, 300-Ohm Load |
| Analog Path Phase Performance |
Test Signal Path: XLR Input - Empty 500 Series Slot - Summing Mixer Bus (Unity) - Mix Output - APx555 (Line In)
Phase: <1.5° at 20 Hz, <11° at 20 kHz Test Signal Path: XLR Input - Camden 500 Preamp (Mic Mode, 6 dB Gain) - Summing Mixer Bus (Unity) - Speaker A Output - APx555 (Line In) Phase: <3° at 20 Hz, <13.5° at 20 kHz (Preamp Mic Mode, 6 dB Gain) |
| Digital Round-Trip Performance |
Test Signal Path: 500 Series D/A Converter - 500 Series A/D Converter - APx555 (ASIO)
Dynamic Range: 118 dB A-Weighted, AES17 Method, 20 Hz to 20 kHz THD+N: <0.0004% (-108 dB) at -4 dBFS, 20 Hz to 40 kHz, 1 kHz, A-Weighted |
| 500 Series Power |
500 Series Slot Current: 250 mA per Rail
Total Available 500 Series Slot Current: 2 A |
Power
| Power Source |
AC Input (Included)
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| DC Input Power |
24 VDC at 5 A
|
| Power Consumption |
120 W
|
| Operating Current |
2 A (Maximum)
|
Environmental
| Operating Temperature |
33 to 86°F / 1 to 30°C
|
| Storage Temperature |
-4 to 122°F / -20 to 50°C
|
Physical
| Mounting |
Side: 2 x Rack Ears
|
| Color |
Gray
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
18.9 x 8.6 x 7.3" / 481 x 219 x 185 mm
|
| Weight |
15.4 lb / 7 kg
|
Packaging Info
| Package Weight |
16.62 lb
|
| Box Dimensions (LxWxH) |
21.9 x 13.6 x 11"
|
