- Quad Charger with XLR DC Output
- Simultaneous Charging at 2.5A a Channel
- Carry Handle
- Rubberized Feet
- On/Off Switch
- LED Status Indicators
- 100-240 VAC Power Input
- XLR Cable Included

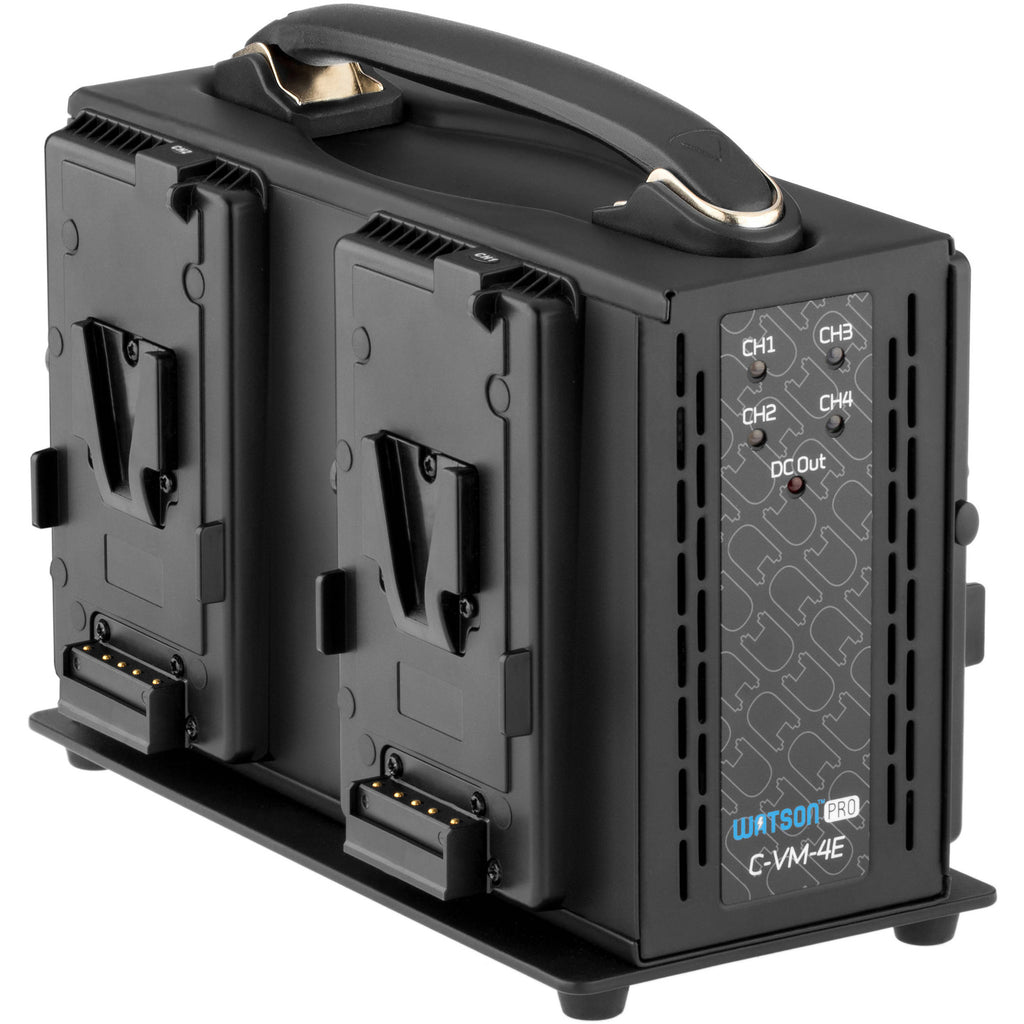

Offering an efficient charging/powering solution in a portable design, this Watson Pro Quad Position Li-Ion Charger provides simultaneous charging for up to four lithium-ion V-mount batteries and features a 4-pin XLR power output. It has a comfortable carry handle for easy transport, and an On/Off switch and LED status indicators for convenient management. This charger delivers 2.5A per channel when charging multiple batteries and the same when charging a single battery.
The 4-pin XLR power output can be used to power select cameras from an AC power outlet, and an XLR cable is included, giving you everything you need to make full use of this charger. The charger supports 100-240 VAC power input, so it can be used worldwide with the right plug adapters (sold separately).
- Key Features
-
- Simultaneous charging for up to four V-mount lithium-ion batteries at 2.5A per channel
- 4-pin XLR DC power output supplies 15V and 4.0A from an AC outlet
- Carry handle
- Rubberized feet
- On/Off switch
- LED status indicators
- 100-240 VAC power input
- XLR cable included
- Approx. Charge Times
- The following figures are for charging a single battery or two or more:
4.4Ah
2.7 hours
6.6Ah
4.0 hours
8.8Ah
5.3 hours
11.0Ah
6.6 hours
13.2Ah
7.9 hours
UPC: 847628592469
| Mount Type | V-mount |
| AC Input | 100-240 V, 50-60 Hz, 3.8 A |
| Output Charging Power | 16.8 V, 2.5 A per channel or when charging a single battery |
| 4-Pin XLR DC Output | 15 V, 4.0 A from AC power outlet
*The XLR output function is active when the unit is switched from "Charger" to "DC Out" on the back |
| Operating Temperature | 14 to 95°F (-10 to 35°C) |
| Storage Temperature | -4 to 131°F (-20 to 55°C) |
| Dimensions | 6.5 x 4.5 x 9.5" (16.5 x 11.4 x 24.1 cm) |
| Weight | 6.3 lb (2.9 kg) |
| Packaging Info |
| Package Weight | 8.65 lb |
| Box Dimensions (LxWxH) | 11.339 x 8.74 x 7.638" |
In the Box
Watson Pro Quad Position Li-Ion Simultaneous Battery Charger (V-Mount)
- AC Power Cable
- 4-Pin XLR Cable
- Limited 1-Year Warranty
