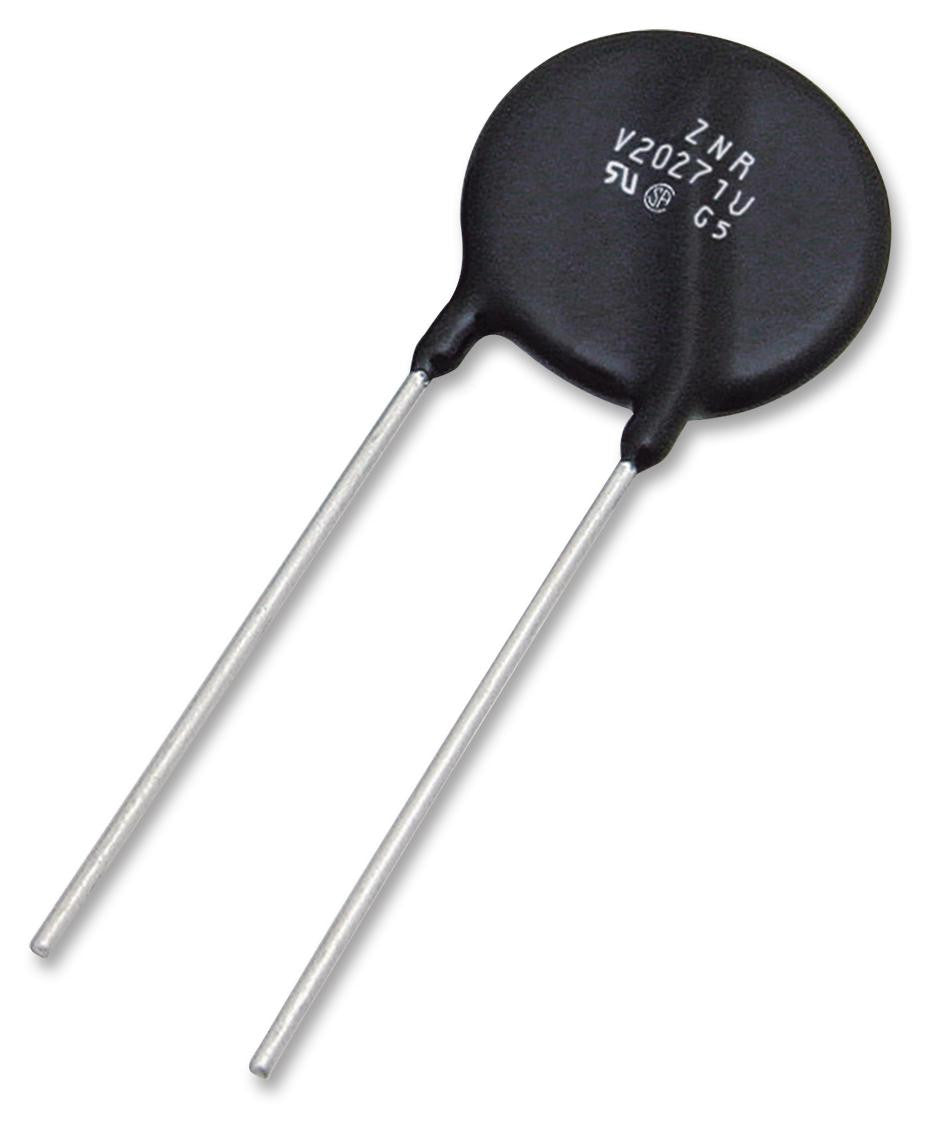

This is a TVS Varistor, 275 V, 350 V, ZNR V Series, 710 V, Disc 7mm, High Surge Current product from PANASONIC ELECTRONIC COMPONENTS with the model number ERZV07D431
Product details
| Voltage Rating V AC |
275V |
| Voltage Rating V DC |
350V |
| Product Range |
ZNR V Series |
| Clamping Voltage Vc Max |
710V |
| Varistor Case Style |
Disc 7mm |
| Varistor Type |
High Surge Current |
| Peak Surge Current @ 8/20µs |
1.75kA |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
| Peak Energy (10/1000uS) |
40J |
| Automotive Qualification Standard |
- |
Other details
| Brand |
PANASONIC ELECTRONIC COMPONENTS |
| Part Number |
ERZV07D431 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
