The TPD4E02B04 is a bidirectional TVS ESD protection diode array for USB Type-C and HDMI 2.0 circuit protection. The TPD4E02B04 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4).
- IEC 61000-4-2 Level 4 ESD protection
- IEC 61000-4-4 EFT protection
- IEC 61000-4-5 Surge protection
- DC breakdown voltage: 5.5V (Minimum)
- Ultra low leakage current: 10nA
- Low ESD clamping voltage: 8.8V at 5A TLP
- Supports high speed interfaces up to 10Gbps
- Industrial temperature range: -40?C to +125?C
- Easy Flow Through routing package
Other details
| Brand |
TEXAS INSTRUMENTS |
| Part Number |
TPD4E02B04DQAR |
| Quantity |
Each (Supplied on Cut Tape) |
| Product Change Notice EN |
 |

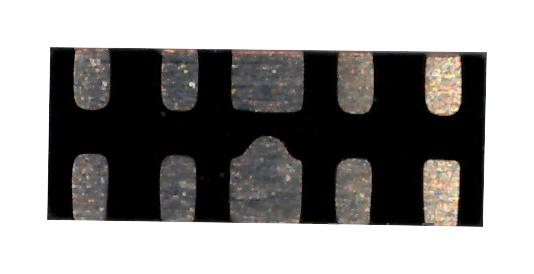

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
