Description

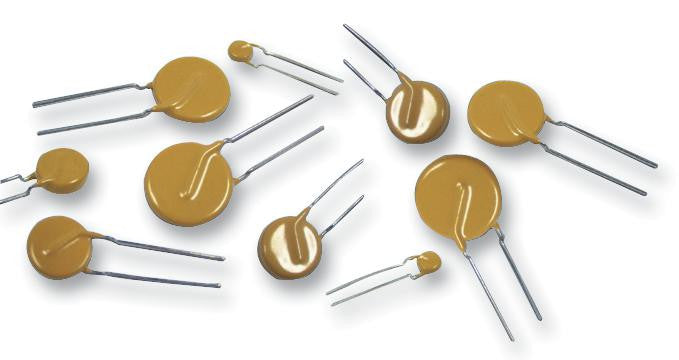

This is a TVS Varistor, 25 V, 31 V, WE-VD Series, 86 V, Disc 5mm, Transient Current product from WURTH ELEKTRONIK with the model number 820552501
Product details
| Voltage Rating V AC | 25V |
| Voltage Rating V DC | 31V |
| Product Range | WE-VD Series |
| Clamping Voltage Vc Max | 86V |
| Varistor Case Style | Disc 5mm |
| Varistor Type | Transient Current |
| Peak Surge Current @ 8/20µs | 100A |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 125°C |
| Peak Energy (10/1000uS) | 1.2J |
| Automotive Qualification Standard | - |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 820552501 |
| Quantity | Each |
| Technical Data Sheet EN |  |
