Description

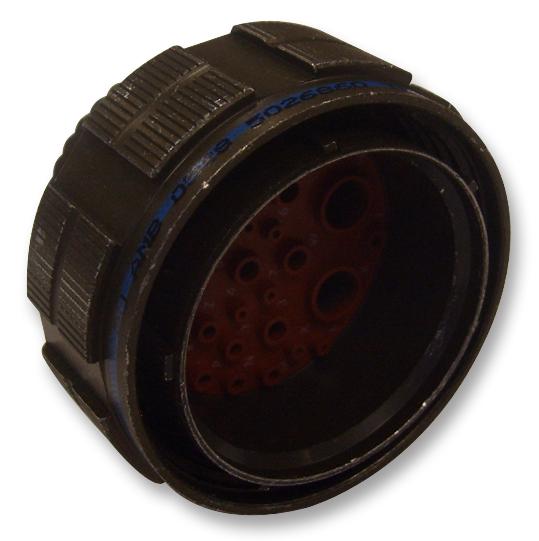

The D38999/26MH35PN from Amphenol is MIL-DTL-38999 Series III straight plug with 100 contacts. MIL-DTL-38999 Series III connectors are available in wide range of shell materials and finishes with 48, 500, 1000 and 2000 hour salt spray plating exposure. These connectors offer high density contact arrangements in a miniature circular shell and combines high coupling durability. It is designed to withstand the extreme shock, exposure and vibration.
- High reliability, moisture and corrosion resistant
- Outstanding EMI, RFI shielding protection
- 500 mating cycles, high durability versions are available with 1500 mating cycles
- Operates at extreme temperature range of -65°C to +200°C
- Minimum insulation resistance is 5000Mohm (under 500VDC)
- Scoop proof to eliminate the possibility of contact damage
- IP67 environmental protection
- Self locking connector system, triple start threaded coupling
- Composite body material with electroless nickel plating
- Copper alloy crimp pin contacts with gold plating
Applications
Aerospace, Defence, Military, Industrial
Product details
| Military Specification: MIL-DTL-38999 Series III |
| Circular Connector Shell Style: Straight Plug |
| No. of Contacts: 100Contacts |
| Circular Contact Type: Crimp Pin |
| Coupling Style: Threaded |

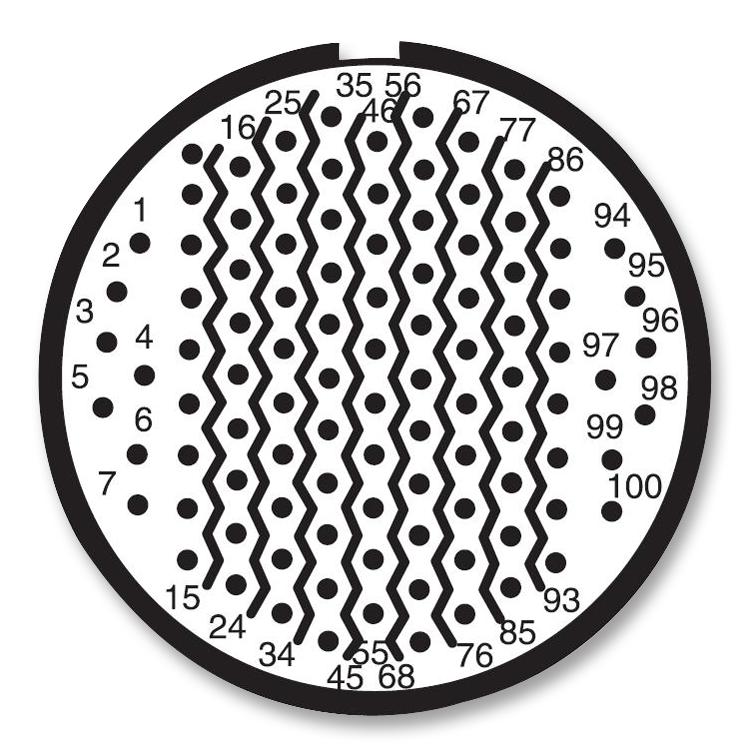

| Insert Arrangement: 23-35 |
| Connector Body Material: Composite Body |
| Connector Body Plating: Electroless Nickel |
| Contact Material: Copper Alloy |
| Contact Plating: Gold |
| Insert Rotation: N |
| Service Class: General Duty |
| Product Range: MIL-DTL-38999 III |
Other details
| Brand | AMPHENOL INDUSTRIAL |
| Part Number | D38999/26MH35PN |
| Quantity | Each |
| Technical Data Sheet EN |  |
