Description
The MCP7940M-I/P is an I²C� Real-time Clock/Calendar (RTCC) tracks time using internal counters for hours, minutes, seconds, days, months, years and day of week. Alarms can be configured on all counters up to and including months. For usage and configuration, the MCP7940M supports I²C communications up to 400kHz. The open-drain, multi-functional output can be configured to assert on an alarm match, to output a selectable frequency square wave or as a general purpose output. The MCP7940M is designed to operate using a 32.768kHz tuning fork crystal with external crystal load capacitors. On-chip digital trimming can be used to adjust for frequency variance caused by crystal tolerance and temperature.
- On-chip digital trimming/calibration - ±1PPM resolution, ±129PPM range
- Dual programmable alarms
- Versatile output pin - Clock output with selectable frequency
- 1.2µA at 3.3V Operating from VCC, low typical timekeeping current
- 64-byte SRAM User memory
- 2-wire serial interface, I²C� compatible
Applications
Industrial, Clock & Timing, Industrial, Automotive
Warnings
ESD sensitive device, take proper precaution while handling the device.
Product details
| Operating Temperature Min | -40°C |
| Clock IC Type | RTC |
| Operating Temperature Max | 85°C |
| No. of Pins | 8Pins |
| Product Range | - |
| Automotive Qualification Standard | AEC-Q100 |
| Supply Voltage Min | 1.8V |
| Clock IC Case Style | DIP |
| IC Interface Type | I2C |
| Clock Format | HH:MM:SS |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| Date Format | DD:MM:YYYY |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | MCP7940M-I/P |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

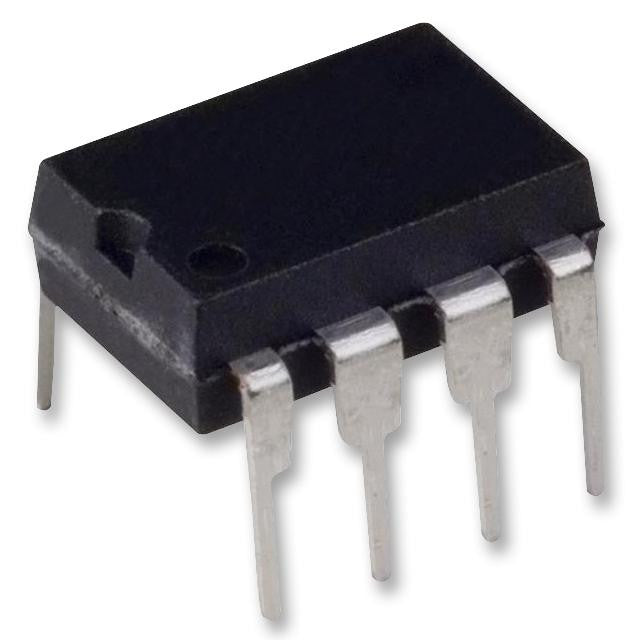

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
