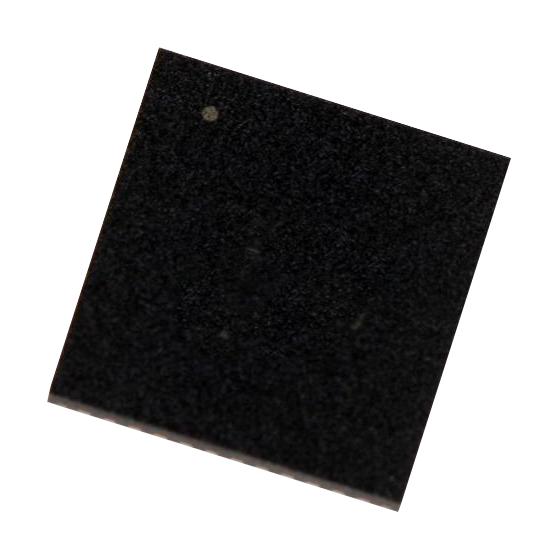

9VRS4420DKLFT is a main clock for avoton and rangley microserver in 48 pin VFQFPN package. It is driven with a 14.31818MHz crystal and generates a variety of clocks, including two DIF clocks suitable for Ethernet applications. An SMBus interface allows full control of the device.
- DIF outputs run in power-down, supports Wake-On-LAN
- 25MHz output can run in power down; supports Wake-On-LAN
- Selectable spread % on SRC, PCI, supports margining
- External 14.318MHz crystal; supports tight ppm
- CLKREQ# pins, support SRC power management
- LP-HCSL clock outputs, reduced power and board space
- LP-HCSL outputs internally terminated to 85R differential impedance; reduced board space
- Extended high commercial (0 to +85°C) operating range
- DIF cycle-to-cycle jitter < 85ps
- SRC/SATA cycle-to-cycle jitter < 85ps, SRC(6:1) and DIF(1:0) are PCIe Gen1-3 compliant
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Other details
| Brand |
RENESAS |
| Part Number |
9VRS4420DKLFT |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
| Product Change Notice EN |
|
