Texas Instruments CDCLVC1310RHBR Clock Buffer Level Translator 200 MHz 3.135 V to 3.465 10 Outputs VQFN-32

The CDCLVC1310RHBR is a highly versatile clock Fan-out Buffer can distribute to ten low-jitter LVCMOS clock outputs from one of three inputs, whose primary and secondary inputs can feature differential or single-ended signals and crystal input. Such a buffer is good for use in a variety of mobile and wired infrastructure applications. When the input is an illegal level, the output is at a defined state. Pin programming easily configures the CDCLVC1310. The overall additive jitter performance is 25fsRMS (typical).

• High-performance crystal buffer with ultra-low noise
• Device inputs consist of primary, secondary, and crystal inputs and manually selectable
• Differential and single-ended input frequencies supported are up to 200MHz
• Synchronous and glitch-free output enable is available
• 10 Single-ended LVCMOS outputs
• LVCMOS Outputs Operate up to 200MHz
• 30ps Typical output skew
• Green product and no Sb/Br

Applications

Wireless, Communications & Networking, Medical, Imaging, Video & Vision, Portable Devices, Test & Measurement, Audio

Other details

Brand	TEXAS INSTRUMENTS
Part Number	CDCLVC1310RHBR
Quantity	Each (Supplied on Cut Tape)

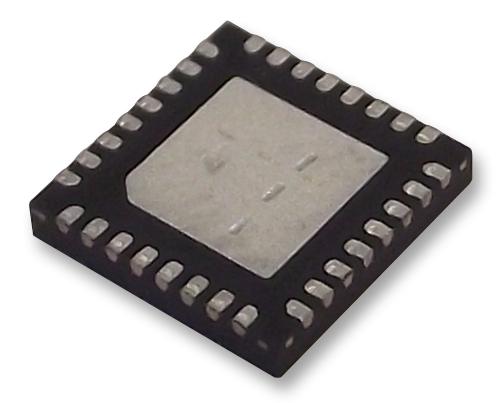

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
