Texas Instruments TLC556IN Timer Oscillator & Pulse Generator IC Dual Lincmos 2.1 MHz Astable 3 V to 18 DIP-14

The TLC556IN is a monolithic Timing Circuit fabricated using the TI LinCMOS� process, which provides full compatibility with CMOS, TTL and MOS logic and operates at frequencies up to 2MHz. Accurate time delays and oscillations are possible with smaller, less-expensive timing capacitors than the NE556 because of the high input impedance. Power consumption is low across the full range of power supply voltages. Like the NE556, the TLC556 has a trigger level approximately one-third of the supply voltage and a threshold level approximately two-thirds of the supply voltage. These levels can be altered by use of the control voltage terminal. When the trigger input falls below the trigger level, the flip-flop is set and the output goes high. If the trigger input is above the trigger level and the threshold input is above the threshold level, the flip-flop is reset and the output is low. The reset input can override all other inputs and can be used to initiate a new timing cycle.

• Very low power consumption
• Capable of operation in astable mode
• CMOS Output capable of swinging rail to rail
• High output-current capability
• Output fully compatible with CMOS, TTL and MOS
• Low supply current reduces spikes during output transitions
• Functionally interchangeable with the NE556, has same pin-out

Applications

Automotive, Industrial

Other details

Brand	TEXAS INSTRUMENTS
Part Number	TLC556IN
Quantity	Each

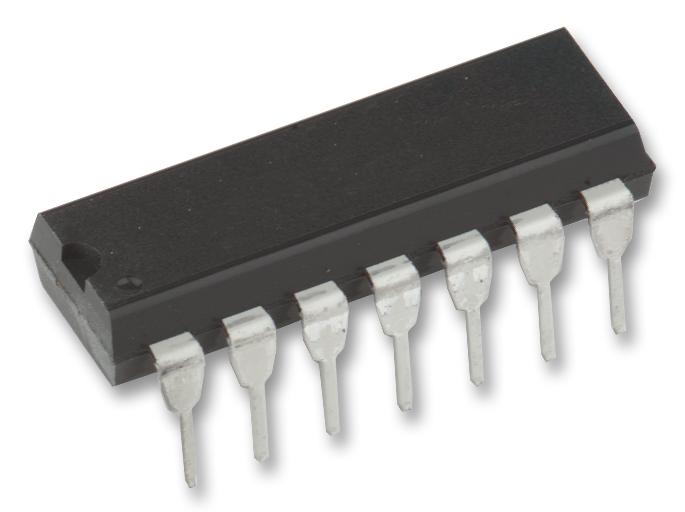

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
