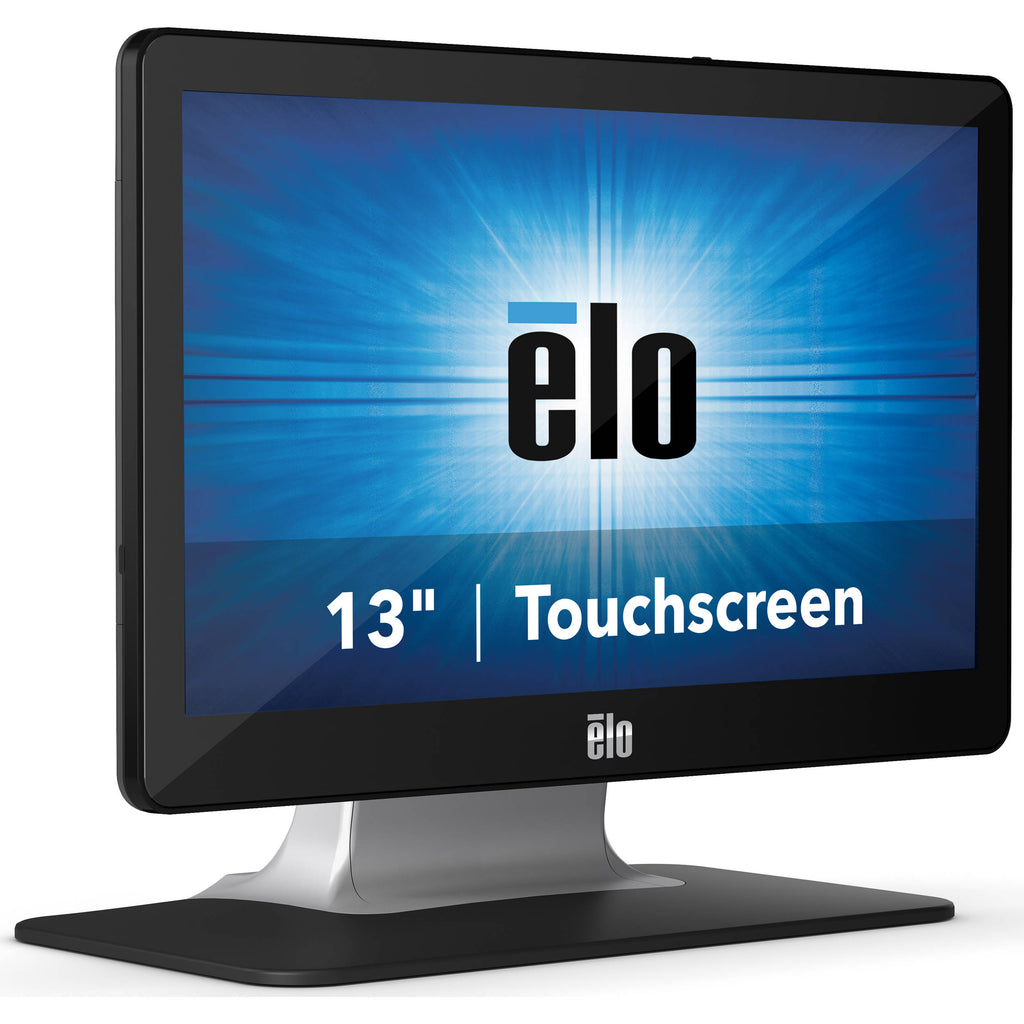

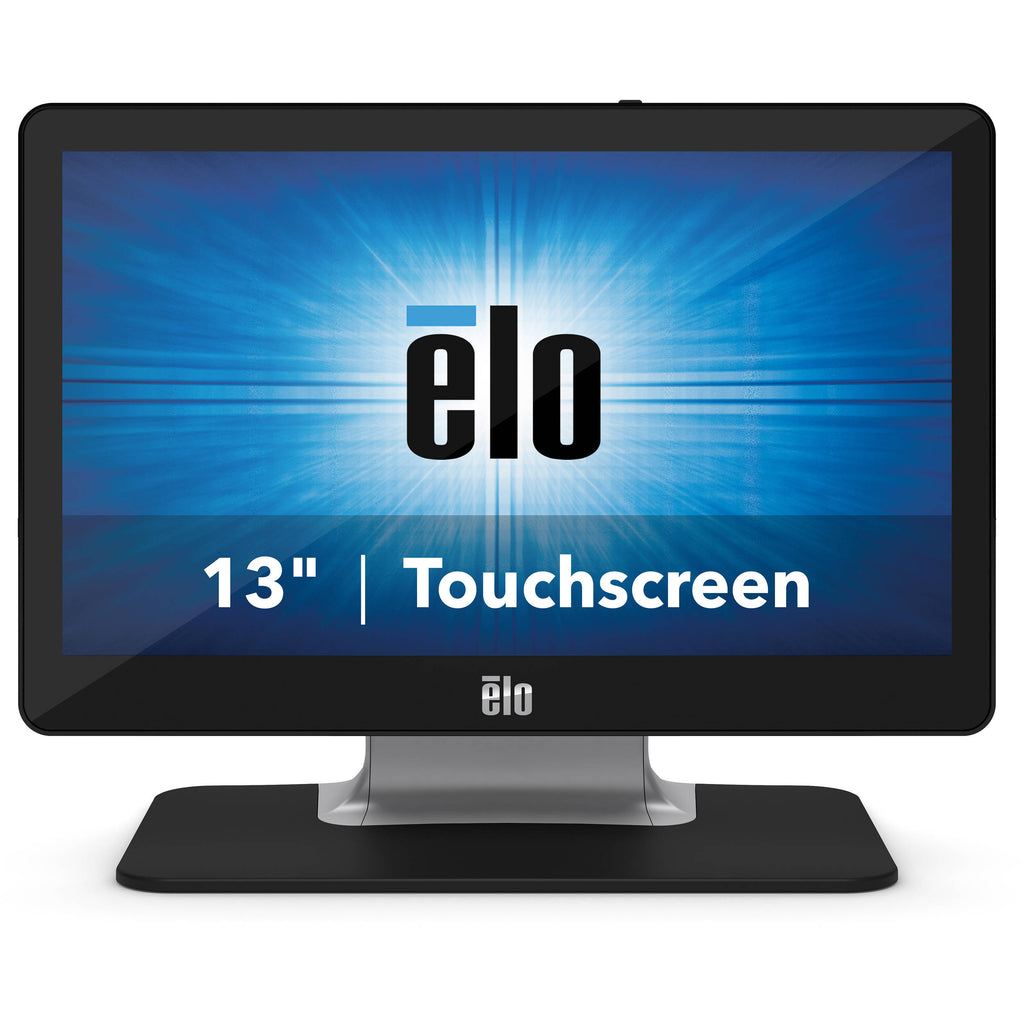

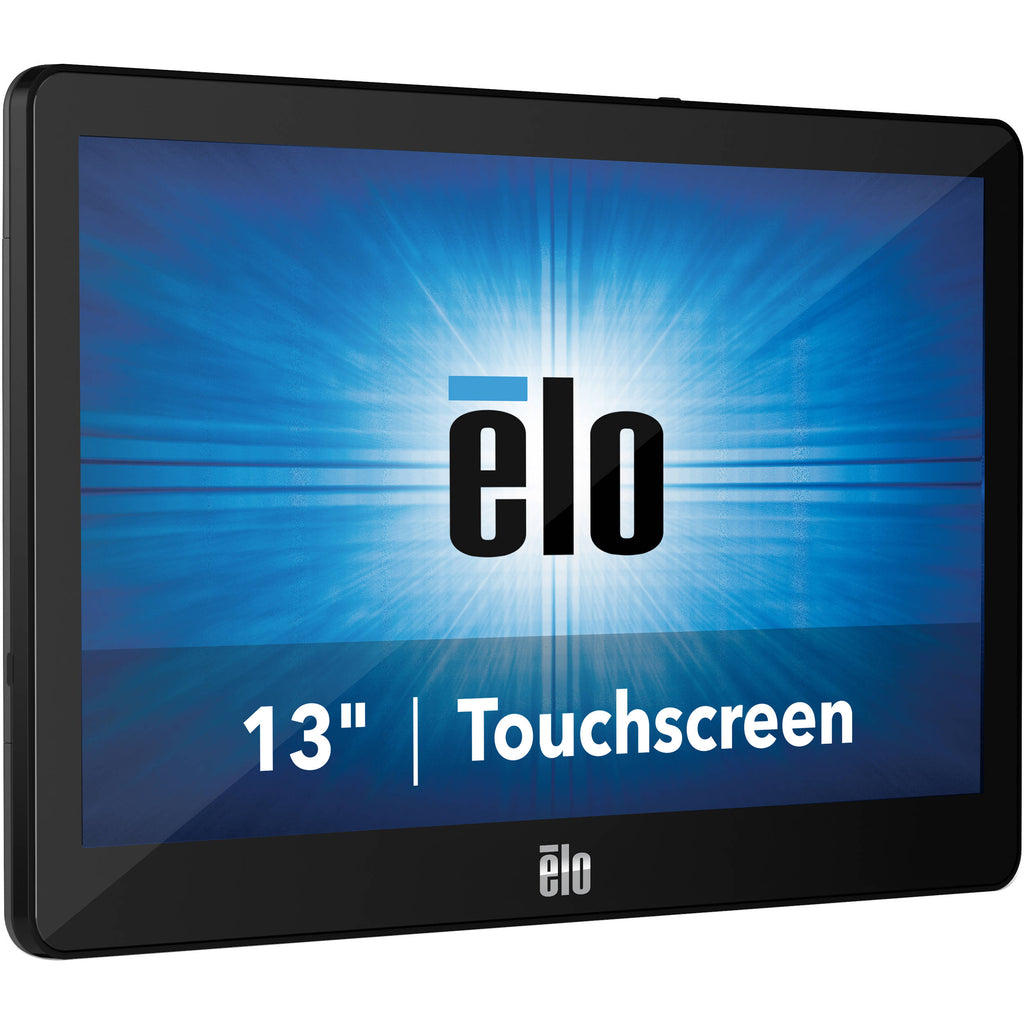

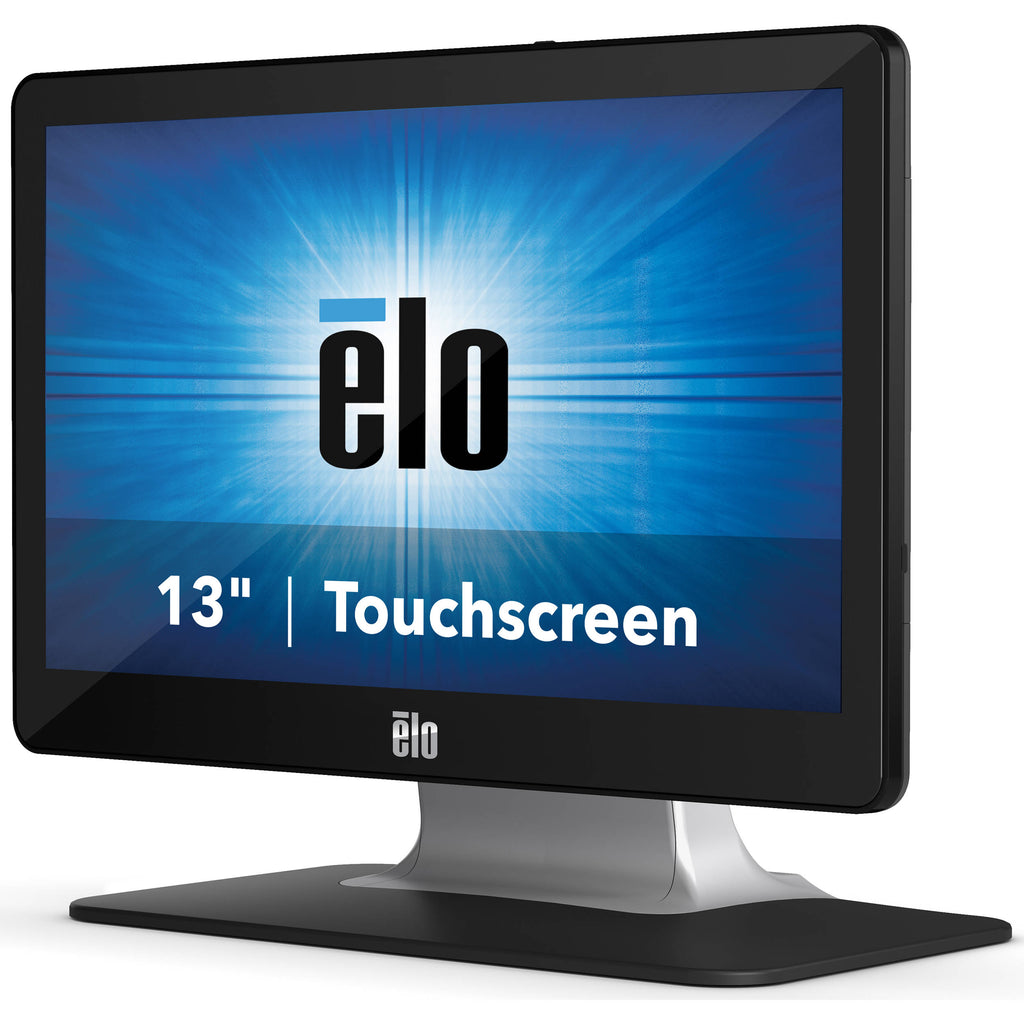

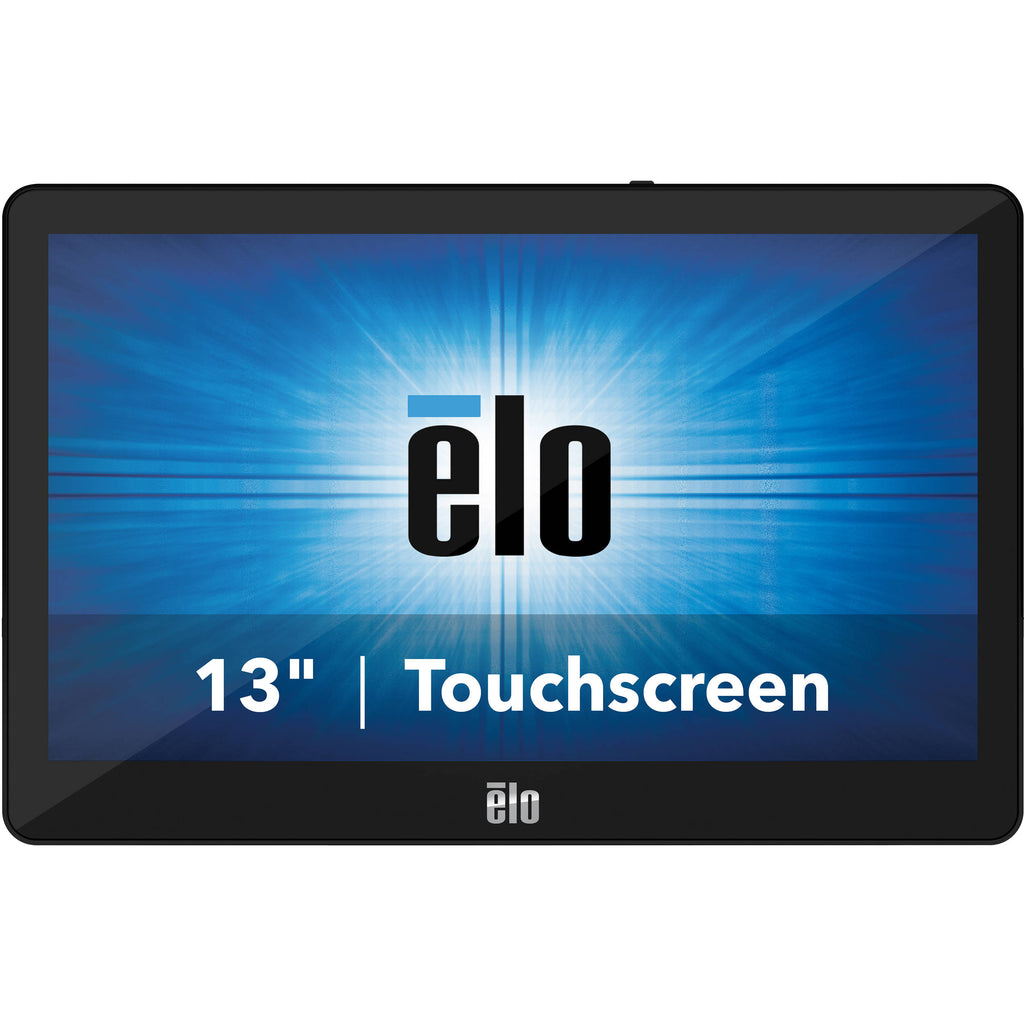

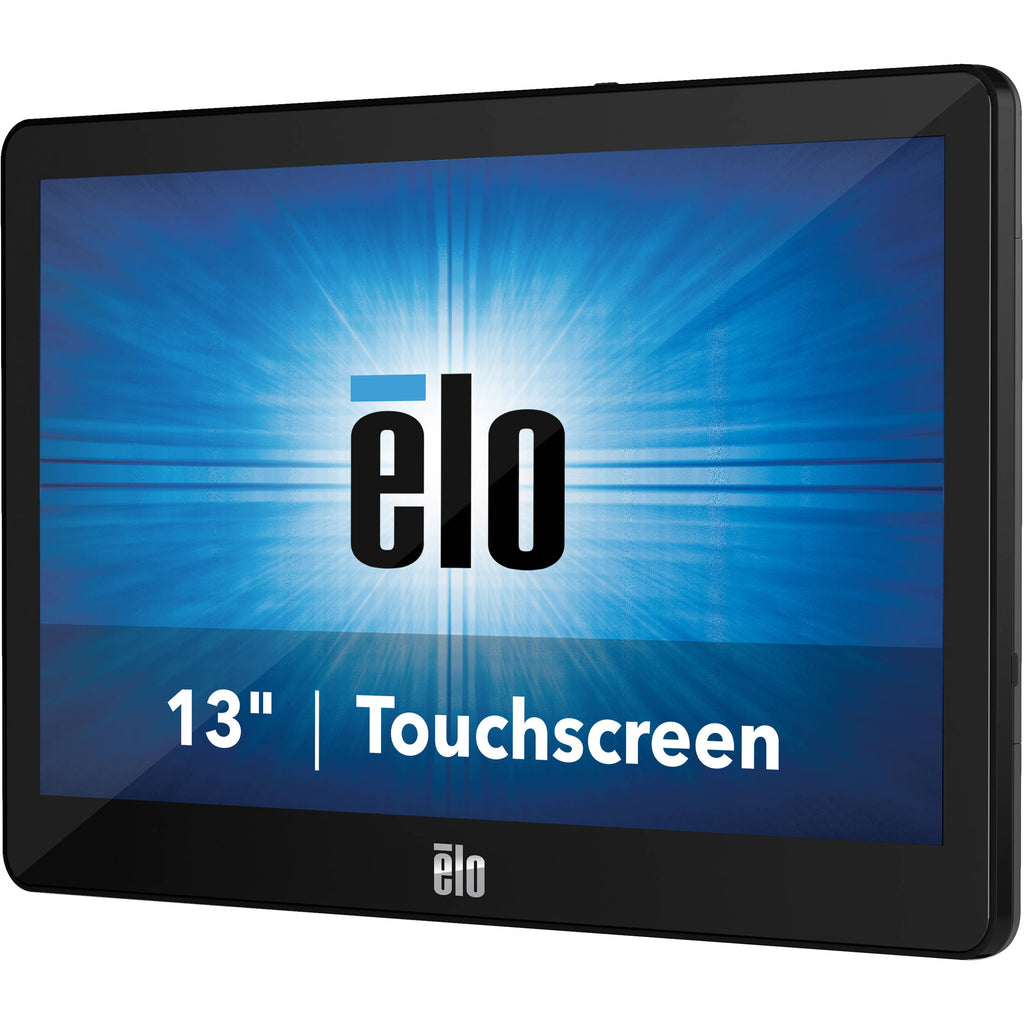

Elo Touch 1302L 13" Class Full HD POS Touchscreen Display

Full HD (1920 x 1080) Native Resolution

Up to 10-Point Touchscreen

Projected Capacitive Touchscreen

270 cd/m² Typical Brightness

Add a touchscreen display to your point-of-sale or other installation with the Elo Touch 1302L 13" Class Full HD POS Touchscreen Display . It has a native resolution of 1920 x 1080 with a typical brightness rating of up to 270 cd/m² and a contrast ratio of 800:1 to help colors and text appear clear and legible in most installation settings. The display is equipped with HDMI, USB Type-C, and VGA inputs for integration with various systems. The USB Type-C port can be used for power, video, and touch signals to enable single-cable installation. The display features an IK07 impact resistance rating and the front panel has an IPX1 ingress protection rating.

Single Cable Connection The 1302L provides a USB Type-C interface that transmits touch, video, and power, reducing the number of cables required to just one for simplified installation and servicing. If your computer isn't equipped with USB Type-C, you can use HDMI or VGA for the video connection. Multi-Use Design The 1302L can be used as a traditional POS terminal or a customer-facing display, or both. It's all well-suited for use in hospitality, government, restaurant, and industrial installations. Do More with Elo Edge Connect With the Elo Edge Connect system, a variety of optional peripherals are available, including EMV cradles, barcode scanners, and MSR, with the ability of installing up to four to each 1302L, letting you create a custom solution. Accessories can be added and moved or removed as your needs change. Flexible Mounting The 1302L can be mounted with any 75 x 75mm VESA-compatible mount for simple installation nearly anywhere. Additional Features

• On-screen display with lockout option
• USB Type-C or AC adapter power source
• Up to 50,000-hour MTBF
• IPX1 ingress protection on front side

Screen Size (Diagonal)	13.3"
Resolution	1920 x 1080
Supported Display Resolutions	Minimum: 640 x 480 / 60 Hz Maximum: 1920 x 1080 / 60 Hz
Panel Type	TFT LCD
Bit Depth / Color Support	8-Bit (16.7 Million Colors)
Brightness	270 cd/m² (Typical)
Viewing Angle (H x V)	170 x 170°
Screen Area	11.57 x 6.51" / 293.76 x 165.24 mm
Aspect Ratio	16:9
Contrast Ratio	800:1
Response Time	25 ms

Primary Connectivity Location	Display
Input Ports	1 x HDMI 1.3 Audio, Video 1 x 15-Pin VGA Video 1 x 1/8" / 3.5 mm Audio
USB Ports	1 x USB (Version Unspecified) Type-C - Video/Control/Power 1 x USB (Version Unspecified) Micro-B (Top) 1 x USB (Version Unspecified) Micro-B (Bottom) 2 x USB (Version Unspecified) Micro-B (Side)

Touchscreen Technology	Projected Capacitive
Multi-Touch Points	10
Surface Treatment	Anti-Glare

Built-In Speakers	Yes, 2 x 1 W
Speaker Configuration	2-Channel

Supported Languages

English French German Italian Japanese Simplified Chinese Spanish Traditional Chinese

Power Consumption	Operational: 9.8 W Standby: 1.4 W
AC Input Power	100 to 240 VAC, 50 / 60 Hz
DC Input Power	12 VDC

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C
Operating Humidity	20 to 80%
Storage Humidity	10 to 95%
Certifications	FCC, UL, as per Manufacturer

Wall Mounting	75 x 75mm
IK Rating	IK07
Dimensions	8.3 x 12.8 x 1.0" / 211.3 x 326.1 x 25.1 mm
Weight	2.69 lb / 1.22 kg
