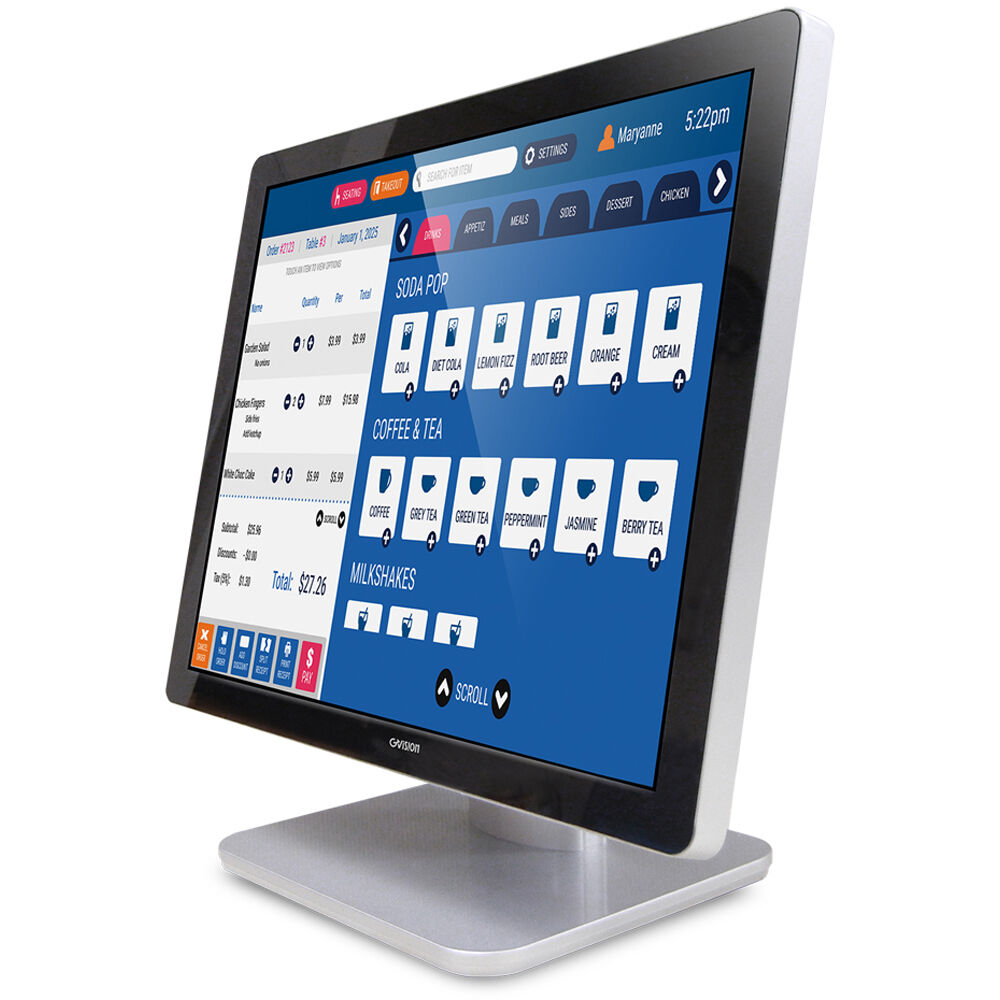

SXGA (1280 x 1024) Native ResolutionUp to 10-Point TouchscreenProjected Capacitive Touchscreen215 cd/m² Typical Brightness Add a touchscreen display to your point-of-sale or other installation with the GVision USA D19ZH 19" Class SXGA Desktop/POS Touchscreen Display . It has a native resolution of 1280 x 1024 with a brightness rating of up to 215 cd/m² and a contrast ratio of 1000:1 to help colors and text appear clear and legible in most installation settings. The display is equipped with HDMI, DVI, and VGA inputs for integration with various systems. A USB port transmits touchscreen data from the display to your computer. The display is dust- and water-resistant to facilitate installation in various settings.
- 10-point, zero pressure multitouch technology (depends on OS/browser/software)
- Metal enclosure
- Water- and dust-resistant
- Optional speakers available separately
| Screen Size (Diagonal) | 19" |
| Resolution | 1280 x 1024 |
| Panel Type | TFT LCD |
| Brightness | 215 cd/m² (Typical)
250 cd/m² (Maximum) |
| Viewing Angle (H x V) | 170 x 160° |
| Screen Area | 14.8 x 11.9" / 376.3 x 301.1 mm |
| Aspect Ratio | 5:4 |
| Contrast Ratio | 1000:1 |
| Response Time | 5 ms |
| Backlighting Technology | LED |
| Primary Connectivity Location | Display |
| Input Ports | 1 x HDMI Audio, Video
1 x DVI Video
1 x 15-Pin VGA Video |
| USB Ports | 1 x USB (Version Unspecified) Type-B - Touchscreen Control |
| Lighting Lifespan | 50000 Hours |
| Touchscreen Technology | Projected Capacitive |
| Multi-Touch Points | 10 |
| Hardness Rating | 7H |
| Power Consumption | Maximum: 20.0 W
Standby: < 0.5 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| DC Input Power | 12 VDC |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Operating Humidity | 20 to 80% |
| Storage Humidity | 10 to 90% |
| Wall Mounting | 100 x 100mm |
| Glass Thickness | 0.1" / 2 mm |
| Dimensions | 16.8 x 15.7 x 8.7" / 425.9 x 399.2 x 220.0 mm |
| Weight | 15.9 lb / 7.2 kg |
In the Box
- GVision USA D19ZH 19" Class SXGA Desktop/POS Touchscreen Display
- VGA Cable
- USB Cable
- AC Adapter
- Power Cable
- Limited 3-Year Warranty
