Description

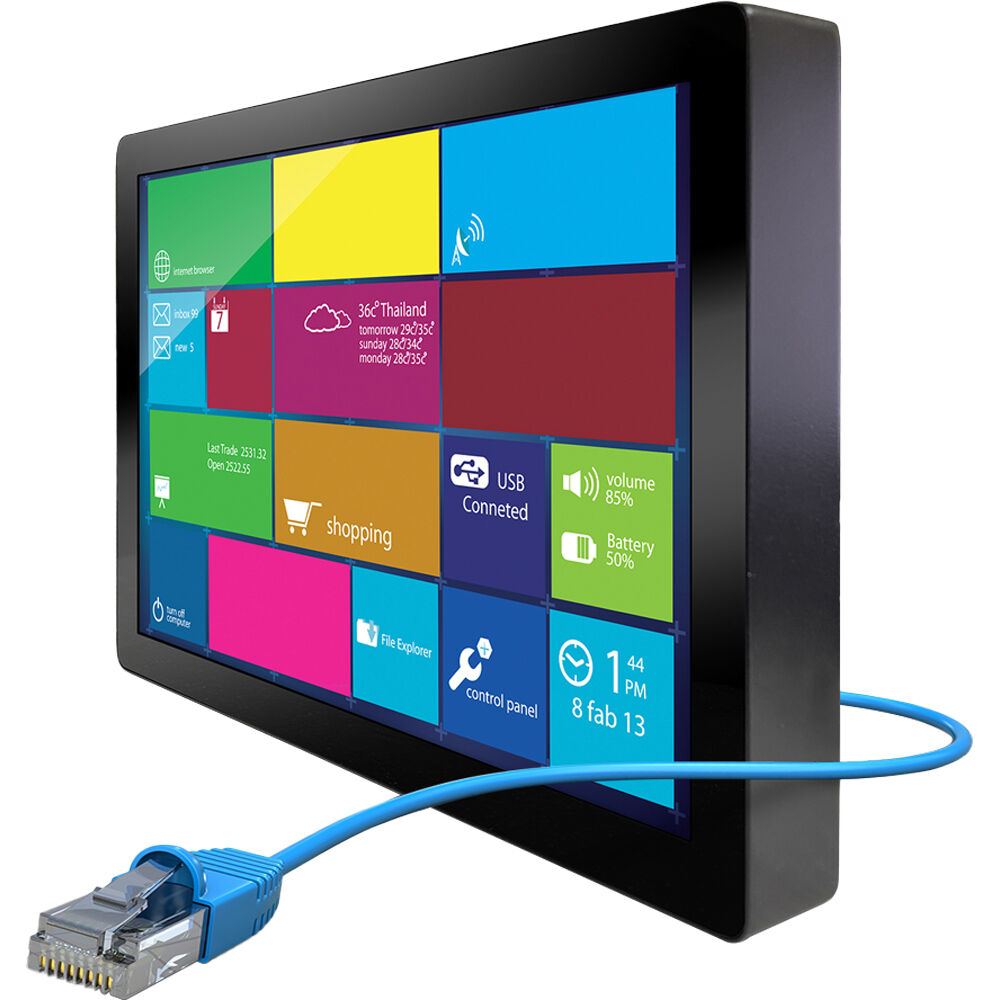

GVision USA PE10ZJ-OR-45PTD Overview
Upgrade your conference room, server room, or point-of-sale location with the GVision USA PE10ZJ-OR-45PTD 10" WXGA Touchscreen PoE Monitor. The PE10ZJ-OR-45PTD allows you to connect a computer via HDMI or load content via USB and micro-SD inputs. This is a 350 nits bright monitor, capable of 24/7 operation.
PoE is a technology that deliver's DC power to devices over ethernet cabling, reducing extra cables while providing more flexibility. GVision's 10.1" monitor with built-in Android 11 is specially designed to operate 24/7, and is equipped with PoE, allowing more flexibility to meet your needs.
Additional Features
- Built-In ANDROID 11 OS / RK3566 Quad Core 64 Bit CPU
- 4GB RAM / 32GB On-Board EMMC 5.1 High-Speed Storage
- 10-Points PCAP Touch Technology
- Interface: HDMI / Micro SD / RJ45 (PoE) / USB-A
- Protectable Front Glass / Metal Housing
UPC: 801706068178
In the Box
- GVision USA PE10ZJ-OR-45PTD 10" WXGA Touchscreen PoE Monitor
- DC12V / 2A Power Adapter
- AC Power Cord
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
GVision USA PE10ZJ-OR-45PTDSpecs
Key Specs
| Display Size |
10.1"
|
| Native Resolution |
1280 x 800
|
| Maximum Brightness |
350 nits / cd/m2
|
| Touchscreen Technology |
Projected Capacitive
|
| Inputs |
1x HDMI
|
| Outputs |
1x 1/8" / 3.5 mm (Headphone)
|
| Wireless |
No
|
| USB I/O |
1x USB-A 2.0
1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Built-In Speakers |
Yes, 2x 5 W
|
| Media Card Reader |
1x microSD (Unspecified Type)
|
Display
| Display Size |
10.1"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:10
|
| Display Orientation |
Landscape
|
| Native Resolution |
1280 x 800
|
| Maximum Brightness |
350 nits / cd/m2
|
| Lighting System |
Direct LED
|
| HDR Support |
No
|
| Contrast Ratio |
800:1
|
| Response Time |
25 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
16.7 Million Colors (8-Bit)
|
| Viewing Angle (H x V) |
170 x 170°
|
| Screen Area |
8.54 x 5.3" / 216.96 x 135.6 mm
|
| Pixels Per Inch (ppi) |
149 ppi
|
Surface
| Touchscreen Technology |
Projected Capacitive
|
| Multi-Touch Points |
10
|
| Hardness Rating |
6H
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
1x HDMI
|
| Outputs |
1x 1/8" / 3.5 mm (Headphone)
|
| HDCP Support |
Yes
|
| Wireless |
No
|
| USB I/O |
1x USB-A 2.0
1x USB-A 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
1x RJ45 (Unspecified Ethernet)
|
| Multi-Input Support (PIP/PBP) |
No
|
Speaker
| Built-In Speakers |
Yes, 2x 5 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
Android 11
|
| Processor |
Rockchip RK3566
|
| CPU |
Quad-Core: Up to 1.8 GHz Cortex A55
|
| Storage |
32 GB
|
| RAM |
4 GB
|
| Mobile App Compatible |
No
|
| Media Card Reader |
1x microSD (Unspecified Type)
|
| Built-In Mic |
No
|
Electrical
| Input Power |
12 VDC at 5 A
100 to 240 VAC, 50 / 60 Hz |
| Power Adapter Type |
External
|
General
| Operating Conditions |
32 to 140°F / 0 to 60°C
|
| Storage Conditions |
14 to 140°F / -10 to 60°C
|
| Certifications |
TAA
|
| Mounting-Hole Pattern |
75 x 75 mm
|
| Material of Construction |
Glass, Metal
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
9.7 x 6.5 x 1.4" / 245.8 x 164.4 x 35 mm
|
