| ₹ 51950.0 includes GST and import duties. | |
| B2B customers can avail ₹ 7922.38 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
LG SM3G Overview
- 1Description
- 2High-Performance System on Chip with webOS
- 3Multiple Inputs with Failover Function
- 4Remote Monitoring and Control System Compatibility
- 5SuperSign CMS
- 6SuperSign Control and Control+
- 7Wireless Content Sharing
- 8Real-time Promotion
- 9Wireless Access Solution
- 10Real-time Care Service with LG ConnectedCare

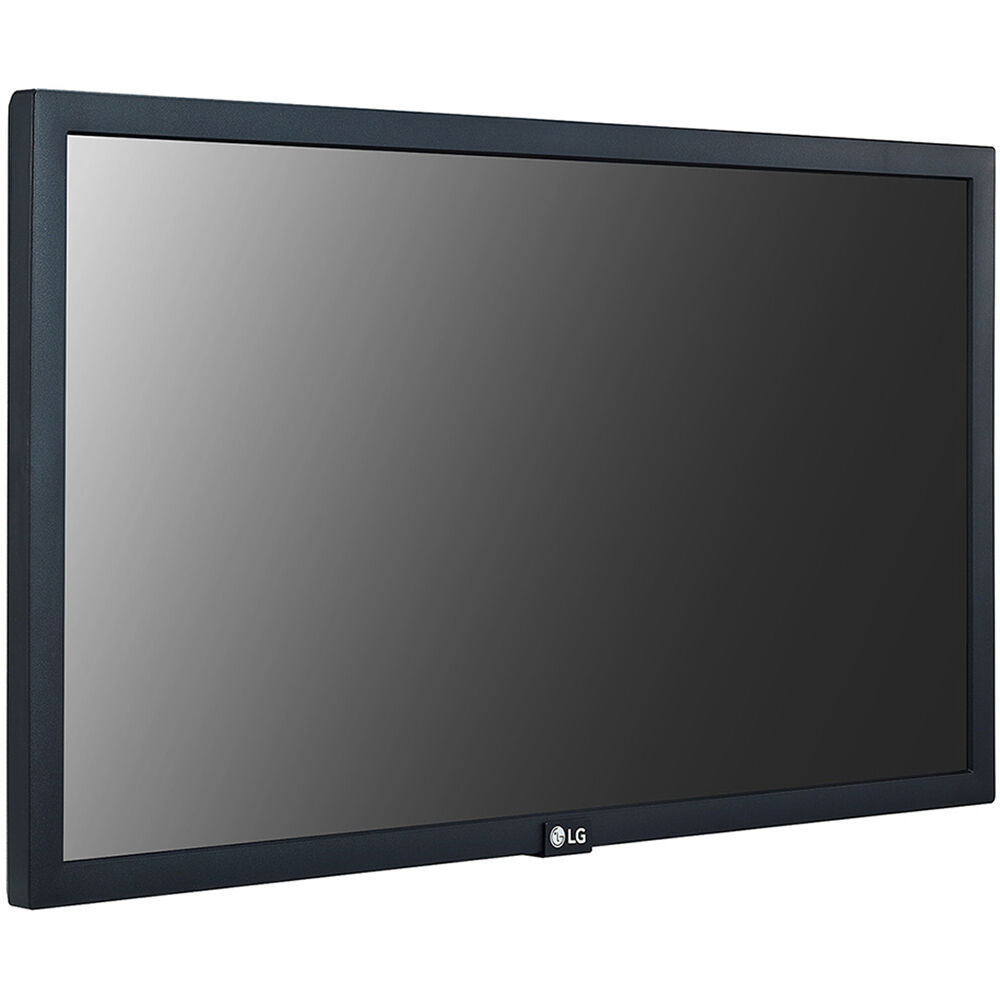

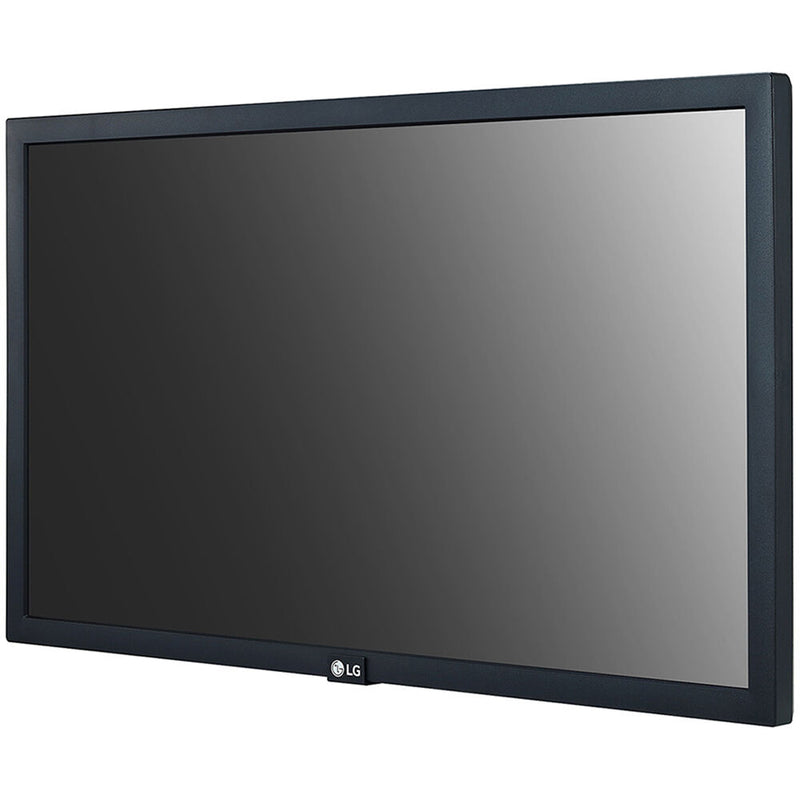

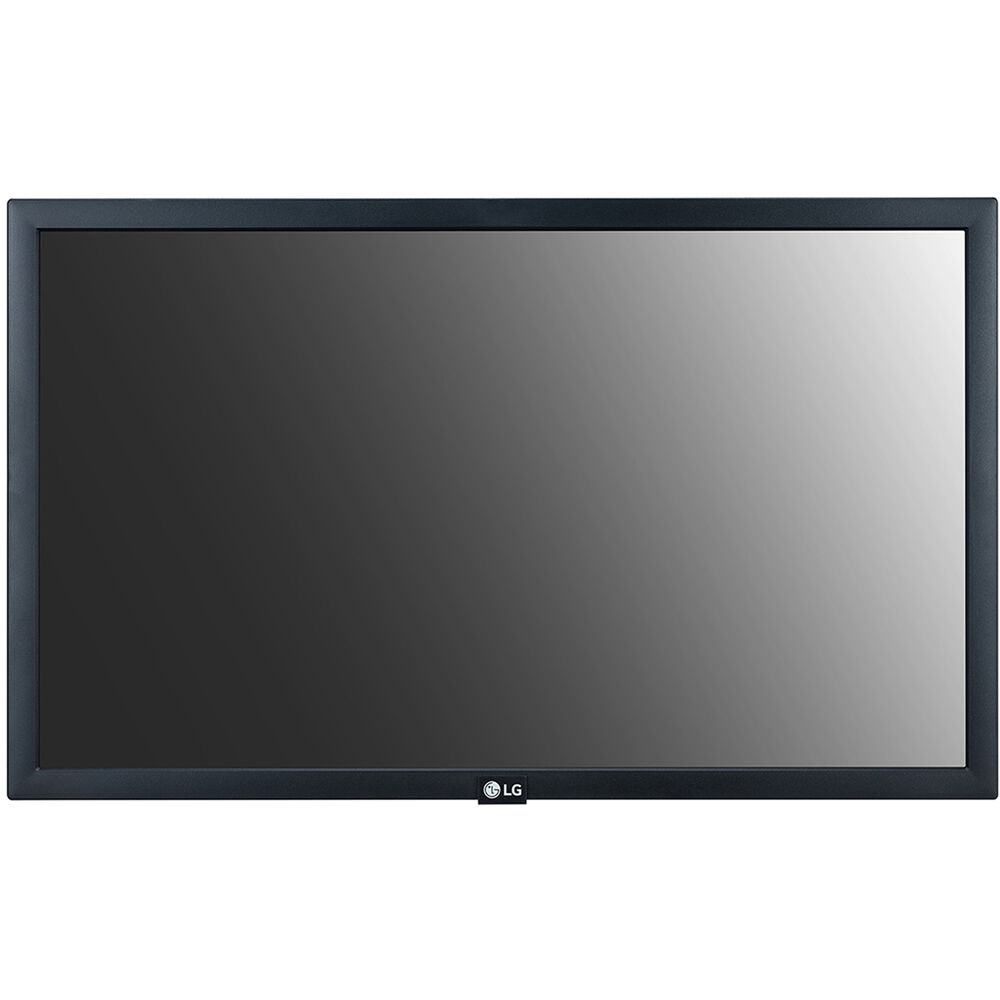

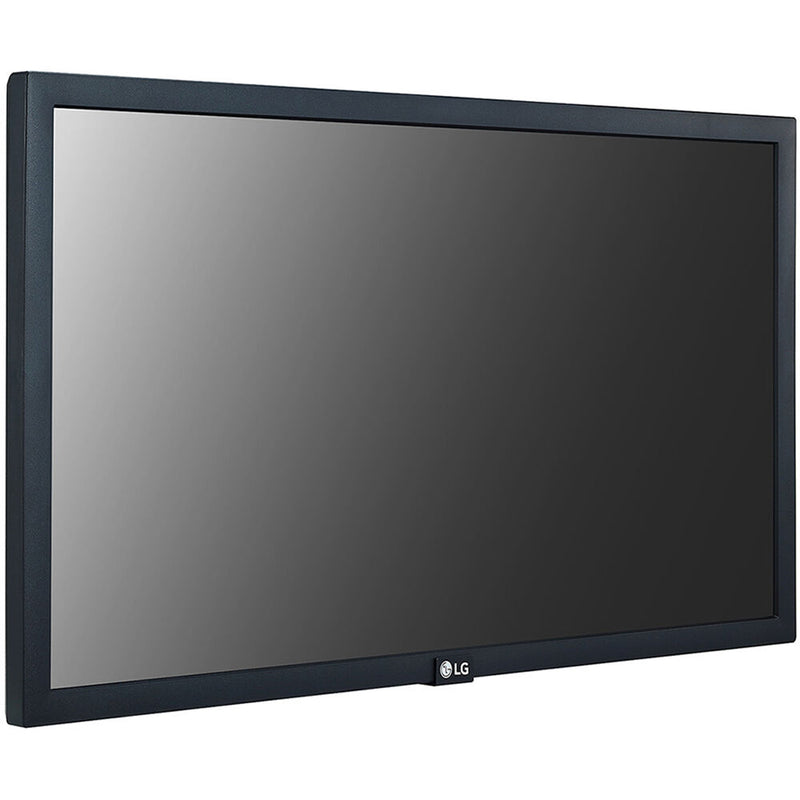

The LG SM3G-B 22" Full HD Commercial Monitor is a digital signage solution with a high-performance, quad-core System on Chip (SoC) processor driven by LG's intuitive webOS signage platform. Content can be input and controlled via HDMI, USB, LAN, or Wi-Fi. RS-232C and LAN control allow the SM3G-B to be easily integrated into larger automation and control systems. USB plug & play is supported to allow easy setup and content playback without the need for an external media player or additional equipment.
High-Performance System on Chip with webOS
Built-in Quad-Core System on Chip (SoC) can execute several tasks at once while providing smooth content playback without the need for a media player. LG webOS smart signage platform enhances user convenience with an intuitive user interface and simple app development tools. Additionally, LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc., via USB plug in. Convenience and usability are maximized since there is no need to purchase additional software or media players.
Multiple Inputs with Failover Function
Because of its various interfaces, users can connect the display to a variety of sources for optimal use, inputs include�two HDMI, USB, RJ45 LAN, and Wi-Fi 5. Also, the failover function supports users preparing backup sources in case an unexpected error occurs. The 22SM3G-B also supports the USB Plug & Play feature, so users can easily set content playback using a USB storage device.
Remote Monitoring and Control System Compatibility
Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple 22SM3G-B displays in different locations in real time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere. The system is also compatible with a variety of control systems, including SNMP, ISM Method, and Crestron Connected. Additionally, Pro:Idiom support for hospitality use is included.
SuperSign CMS
SuperSign CMS is a content management software solution optimized for LG webOS signage. It supports multiple displays and accounts, is able to be linked to external databases, and allows server access from mobile devices. With its simple and intuitive menus and layout options, SuperSign CMS enhances efficiency for content creation, editing, scheduling, and distribution. Users can easily configure brightness and volume settings to follow a pre-determined schedule, as well as swap between schedules with the multi-channel content scheduling feature which stores content beforehand.
SuperSign Control and Control+
SuperSign Control is a basic control software. Up to 100 displays are controlled by one account with a single server. Essential factors such as power, volume, and scheduling can be remotely adjusted, with firmware updates supported.
SuperSign Control+ is a remote control and monitoring software solution optimized for LG's webOS signage. It focuses on large scale deployment. Similar to SuperSign CMS, multiple administrators can access the SuperSign Control+ server via the network to monitor the status of connected displays in real time, control them, and adjust their setting values.
SuperSign is included free of charge, SuperSign Control+ is available with a paid subscription.
Wireless Content Sharing
Content mirroring among devices can quickly be accomplished over a Wi-Di network with the 22SM3G-B.
Real-time Promotion
With Beacon and Bluetooth Low Energy, store managers can provide coupons and information to active displays in real time.
Wireless Access Solution
The 22SM3G-B can provide a wireless point for mobile devices to access the internet.
Real-time Care Service with LG ConnectedCare
The maintenance gets easier and faster with the optional service LG ConnectedCare, a cloud service solution provided by LG service. It remotely manages status of displays in client workplaces for fault diagnosis and remote-control services, assisting a stable operation of the client's business.
UPC: 719192636200
In the Box
- LG SM3G-B 22" Full HD Commercial Monitor
- Remote Control
- Power Cord
- HDMI Cable
- Phone to RS232C Gender Adapter
- External IR Sensor
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- High-Performance System on Chip with webOS
- Multiple Inputs with Failover Function
- Remote Monitoring and Control System Compatibility
- SuperSign CMS
- SuperSign Control and Control+
- Wireless Content Sharing
- Real-time Promotion
- Wireless Access Solution
- Real-time Care Service with LG ConnectedCare
LG SM3G Specs
Display
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape, Portrait
|
| Resolution |
1920 x 1080
|
| Maximum Brightness |
250 nits / cd/m2
|
| Contrast Ratio |
1000:1
|
| Response Time |
14 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Screen Area |
18.8 x 10.6" / 477.7 x 269.5 mm
|
| Horizontal Frequency |
30 to 83 kHz (Digital)
|
| Vertical Frequency |
56 to 60 Hz (Digital)
|
| Dot Pitch |
0.08265 x 0.24795 mm
|
| Pixels Per Inch (ppi) |
102 ppi
|
Surface
| Haze Level |
25%
|
| TV Tuner |
No
|
Connectivity
| USB I/O |
1 x USB-A 2.0 (Audio/Photo/Video/Control)
|
| Ethernet I/O |
1 x RJ45 (Unspecified Ethernet)
|
| Ambient Light Sensor |
Yes
|
| Built-In Speakers |
Yes, 2 x 1 W
|
| Speaker Configuration |
2-Channel
|
Convenience
| Storage |
8 GB
|
| Mobile App Compatible |
Yes: Android & iOS
Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, Setup *As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
| Digital Media Slot |
No
|
| Built-In Mic |
No
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Storage Temperature |
-4 to 140°F / -20 to 60°C
|
| Operating Humidity |
10 to 80% (Non-Condensing)
|
| Storage Humidity |
5 to 85% (Non-Condensing)
|
Electrical
| Power Consumption |
Maximum: 33.0 W
Typical: 30.0 W Standby: < 0.5 W |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz at 0.9 A
|
General
| Lighting Lifespan |
30000 Hours
|
| Lock Slot |
Yes, Kensington
|
| Bezel Thickness |
16.3 mm (Bottom/Right/Top/Left)
|
| Duty Cycle |
16 Hours / 7 Days
|
| Dimensions |
20.1 x 11.9 x 2.1" / 510.3 x 302.1 x 53.8 mm
|
| Weight |
7.36 lb / 3.34 kg
|
Packaging Info
| Package Weight |
10.09 lb
|
| Box Dimensions (LxWxH) |
22.3 x 14.2 x 4.5"
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 50911.0 |
| 3-5 | ₹ 50391.5 |
| 5-10 | ₹ 49352.5 |
| 10+ | ₹ 48313.5 |
Bulk discount will be automatically applied during checkout based on quantity.
