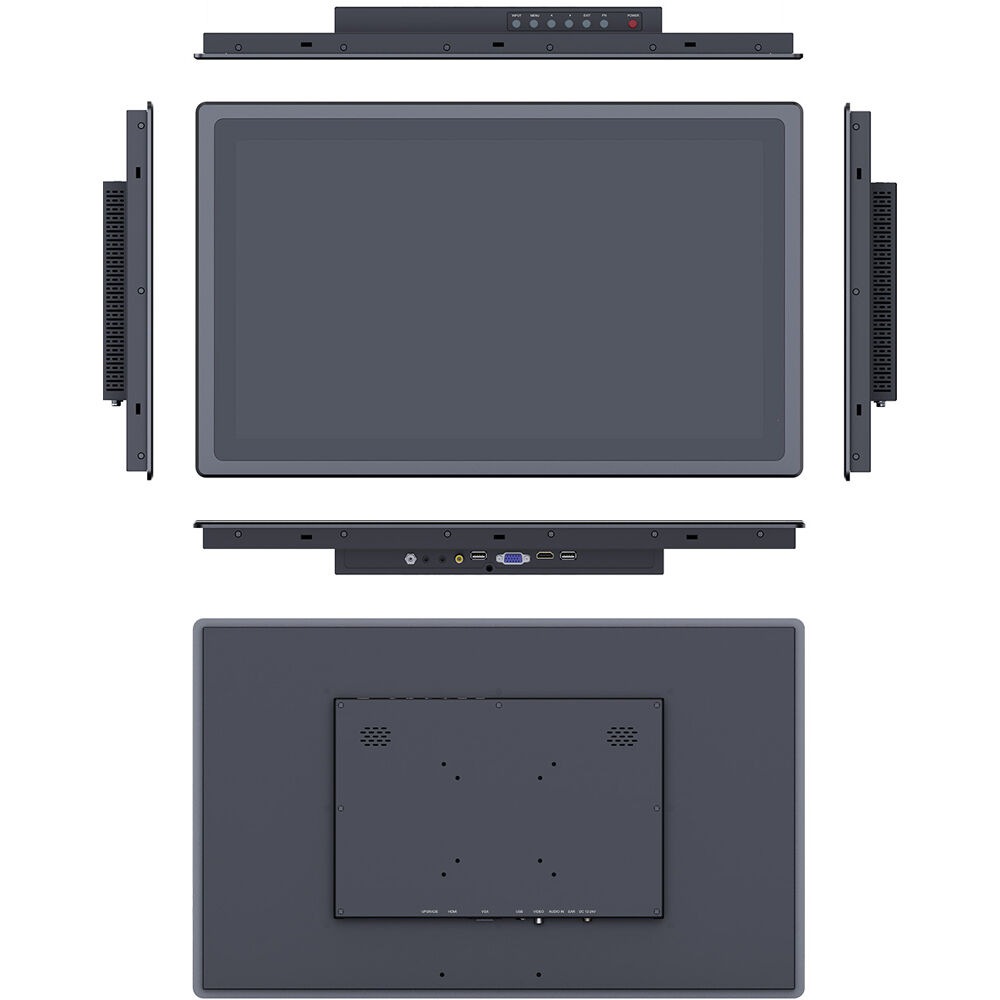

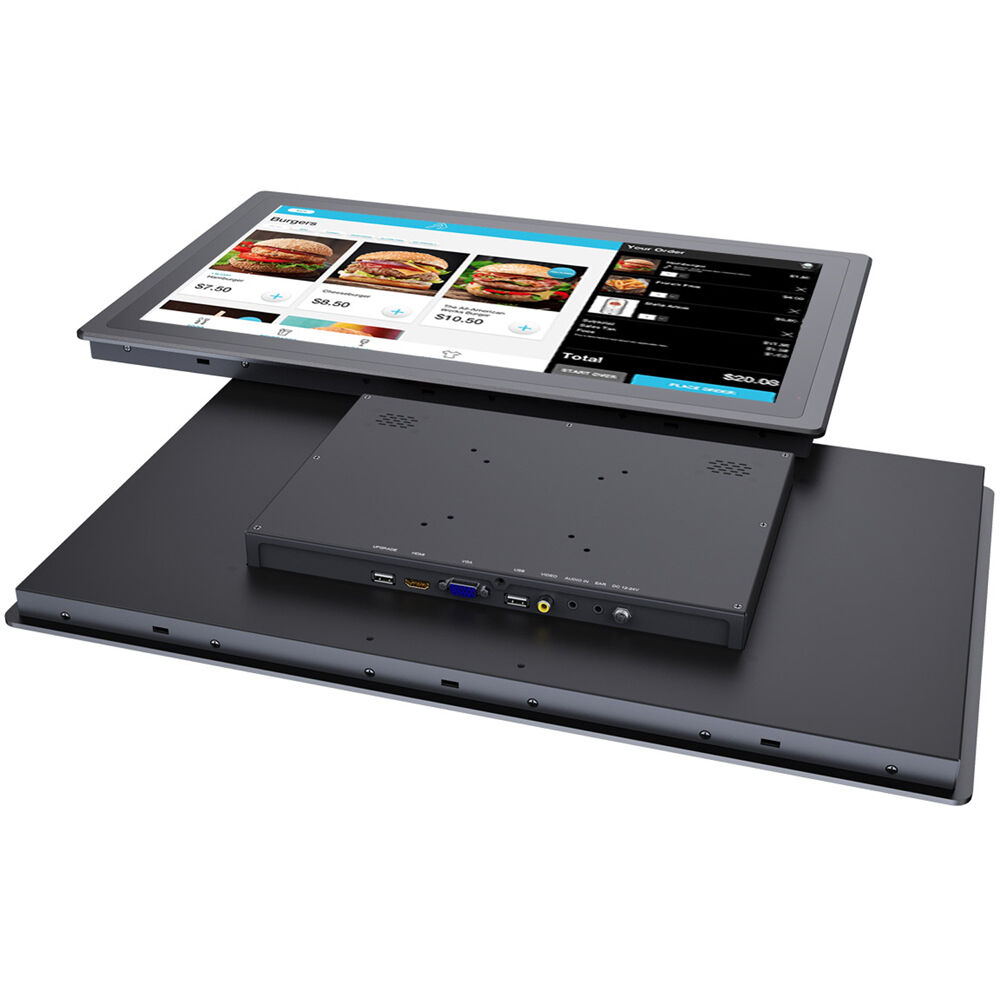

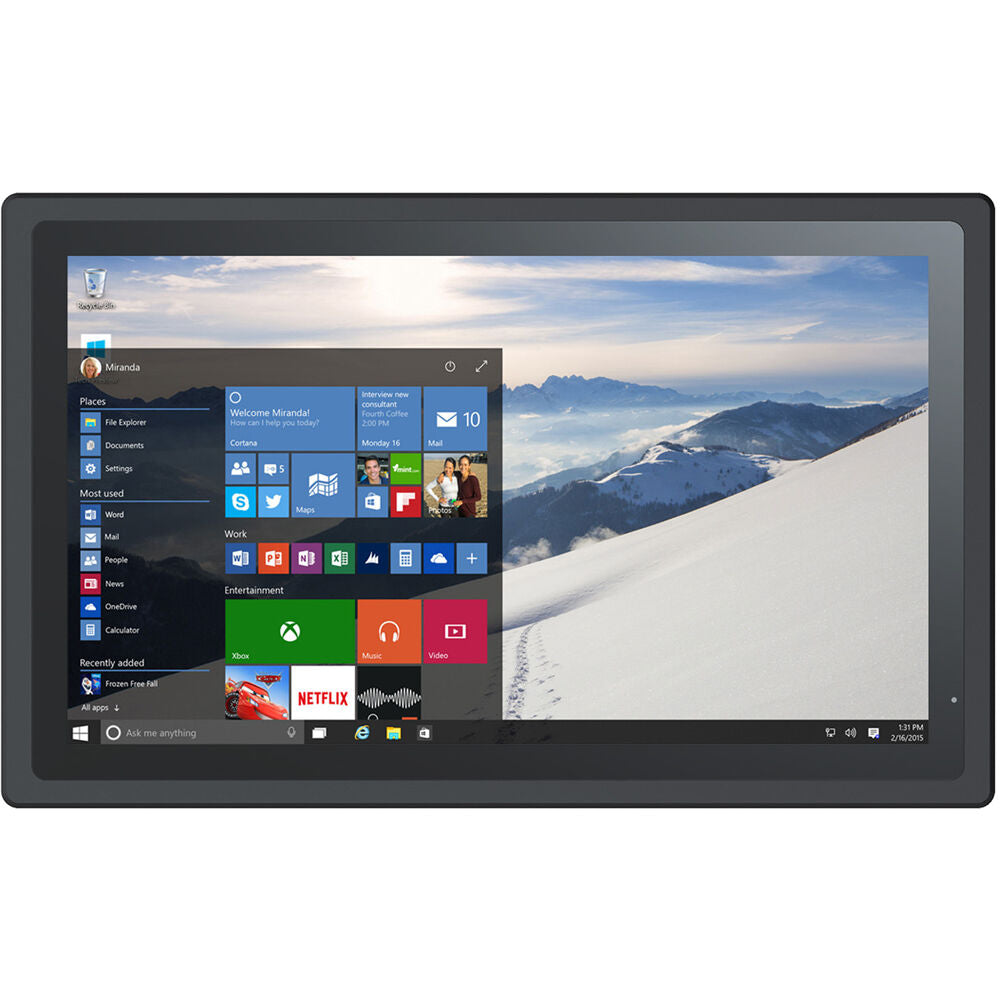

Lilliput Tk2150 Overview
Designed for HMI applications, the 21.5" Full HD Industrial Display from Lilliput can be used as a solution for a variety of situations within many industries. Some examples include various aspects of the medical field, at AI-equipped production facilities, within smart locker installations, or as part of self-service kiosks. The display lacks any touch interface, making it an ideal solution for situations where you only require an information display for workers or guests. The display panel is a generous 21.5" in size, delivers a crisp and detailed 1080p image, and can handle outdoor usage with IP65-rated dust and water resistance.
- Industrial-grade aluminum metal housing
- 1000 cd/m² of brightness
- Auto dimming
- Two built-in speakers
- 12-24 VDC power input compatibility
- One HDMI, VGA, and composite video input
- 3.5mm audio input and headphone output
- USB Type-A port for firmware upgrading
Lilliput Tk2150 Specs
Display
Screen Size (Diagonal) |
21.5" |
Resolution |
1920 x 1080 |
Supported Display Resolutions |
Minimum: 1280 x 720 / 60 Hz Maximum: 3840 x 2160 / 30 Hz |
Panel Type |
LCD |
Brightness |
1000 cd/m² |
Viewing Angle (H x V) |
178 x 178° |
Aspect Ratio |
16:9 |
Contrast Ratio |
1000:1 |
Refresh Rate |
60 Hz |
Pixels Per Inch (ppi) |
103 ppi |
Connectivity
Primary Connectivity Location |
Display |
Input Ports |
1 x HDMI 1.4 � Audio, Video (Rear) 1 x VGA 15-Pin � Video (Rear) 1 x RCA Composite � Video (Rear) 1 x 1/8" / 3.5 mm � Audio (Rear) |
Output Ports |
1 x 1/8" / 3.5 mm � Audio (Rear) |
USB Ports |
2 x Unspecified USB, USB-A (Rear) |
Bluetooth |
None |
Digital Media Slot |
None |
General
TV Tuner |
No |
Display Orientation |
Landscape |
Surface
Touch Resolution |
1920 x 1080 |
Audio
Built-In Speakers |
Yes, 2 |
Speaker Configuration |
2-Channel |
Electrical
Power Consumption |
Typical: < 37.0 W |
DC Input Power |
12 to 24 VDC |
Power Adapter Type |
External |
Environmental
Operating Temperature |
32 to 82°F / 0 to 50°C |
Storage Temperature |
-4 to 140°F / -20 to 60°C |
Physical
Material of Construction |
Aluminum |
IP Rating |
IP65 |
Dimensions |
13.6 x 21.9 x 1.9" / 344.5 x 556.0 x 48.2 mm |
Weight |
13.21 lb / 5.99 kg |
