Description

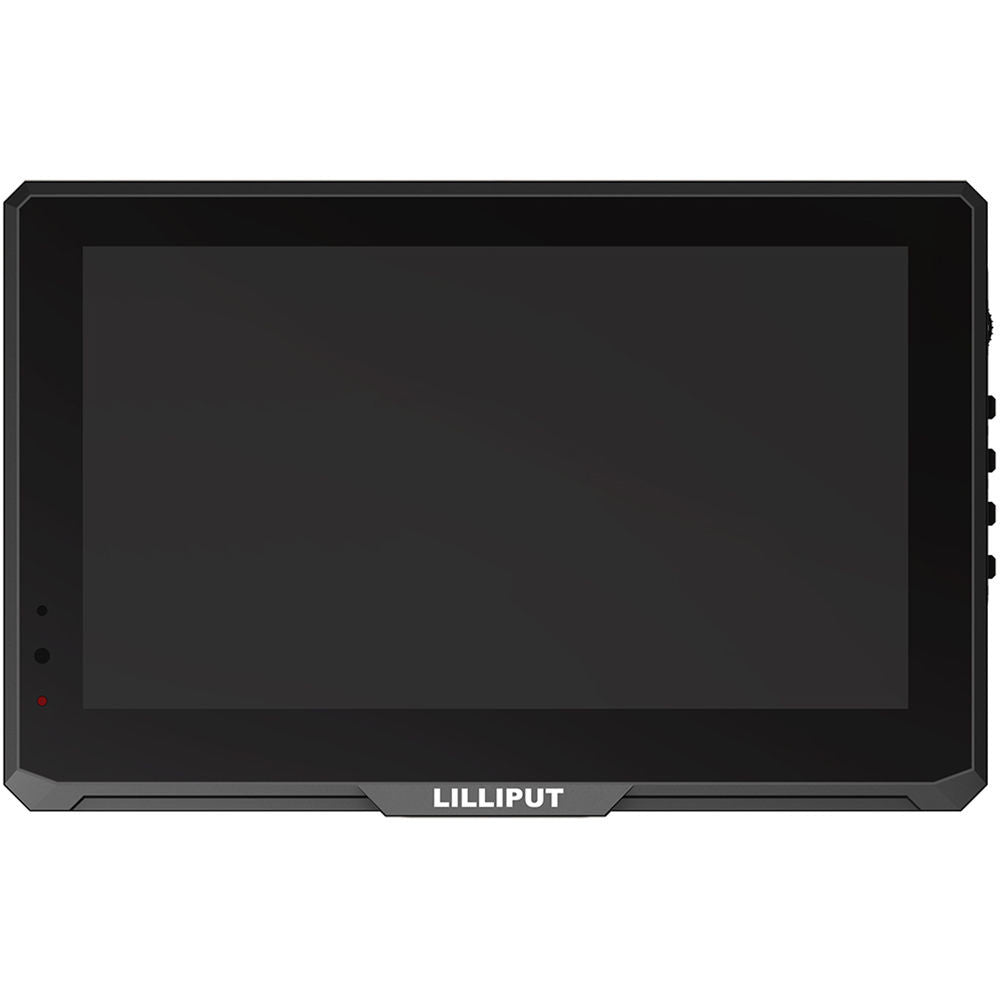

The LILLIPUT 779GL-70NP/C/T 7" HDMI Monitor features a 10-point capacitive touch panel with high precision, fast response, and enhanced transmittance. It offers a native resolution of 800 x 480 supporting resolutions up to 1920 x 1080. It has an aspect ratio of 16:10 with a brightness of 400 cd/m 2 and 500:1 contrast ratio. This monitor features HDMI, DVI, VGA, and AV inputs.
The I/O control interface can be used for functions such as connecting to the reverse trigger line in a car reversing system or controlling the computer host (switch on/off). These functions can be customized as per your requirements. The monitor works on a wide 7-36 VDC range, making it suitable for use in most power sources. The built-in 1W speaker outputs clear audio.
- 800 x 480 resolution, supports up to up to 1920 x 1080
- I/O control interface

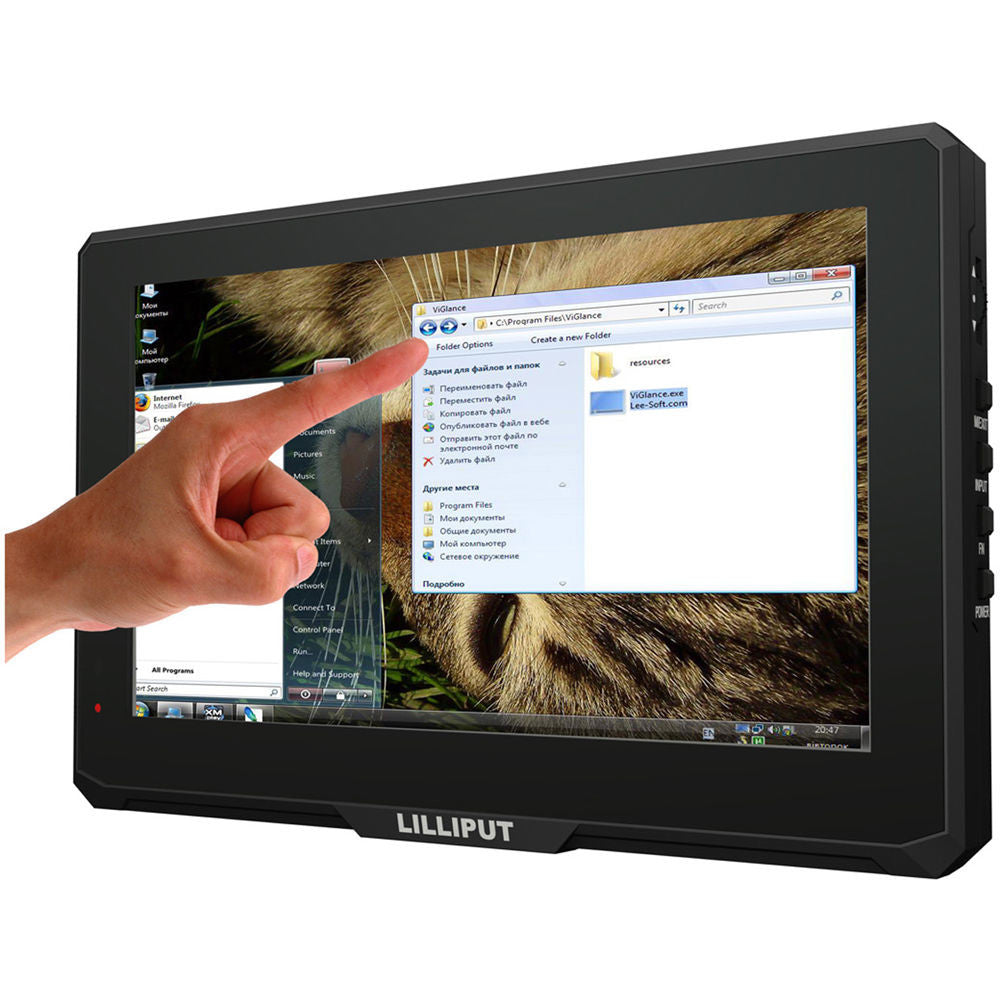

- 10-point touch capacitive screen
- Integrated dustproof front panel
- HDMI, DVI, VGA, & AV inputs
- 500:1 contrast ratio
- 400 cd/m² brightness
- Lux auto brightness (available separately)
- Built-in 1W speaker
- Supports Windows 7 or above, and Android operating systems
| Display Screen | 7" (17.8 cm) LED backlit |
| Surface | Anti-glare |
| Touch Panel | Capacitive 10-point touch |
| Resolution | 800 x 480 (DOT), 8-bit Supports up to 1920 x 1080 |
| Active Area (WxH) | 6.07 x 3.38" (154.08 x 85.92 mm) |
| Dot Pitch | 0.0642 x 0.1790 mm |
| Aspect Ratio | 16:10 |
| Contrast Ratio | 500:1 |
| Brightness | 400 cd/m² |
| Viewing Angle | 140° / 120° (H/V) |
| Response Time | Typical: 10 msec (Rise Time) 15 msec (Fall Time) Maximum: 20 msec (Rise Time) 30 msec (Fall Time) |
| HDMI Format Support | 1080i (60/59.94/50) 1080p (60/59.94/50) 1035i (60/59.94) 1035i (60/59.94) 720p (60/59.94/50) 576p (50) 576i (50) 480p (60/59.94) 480i (60/59.94) |

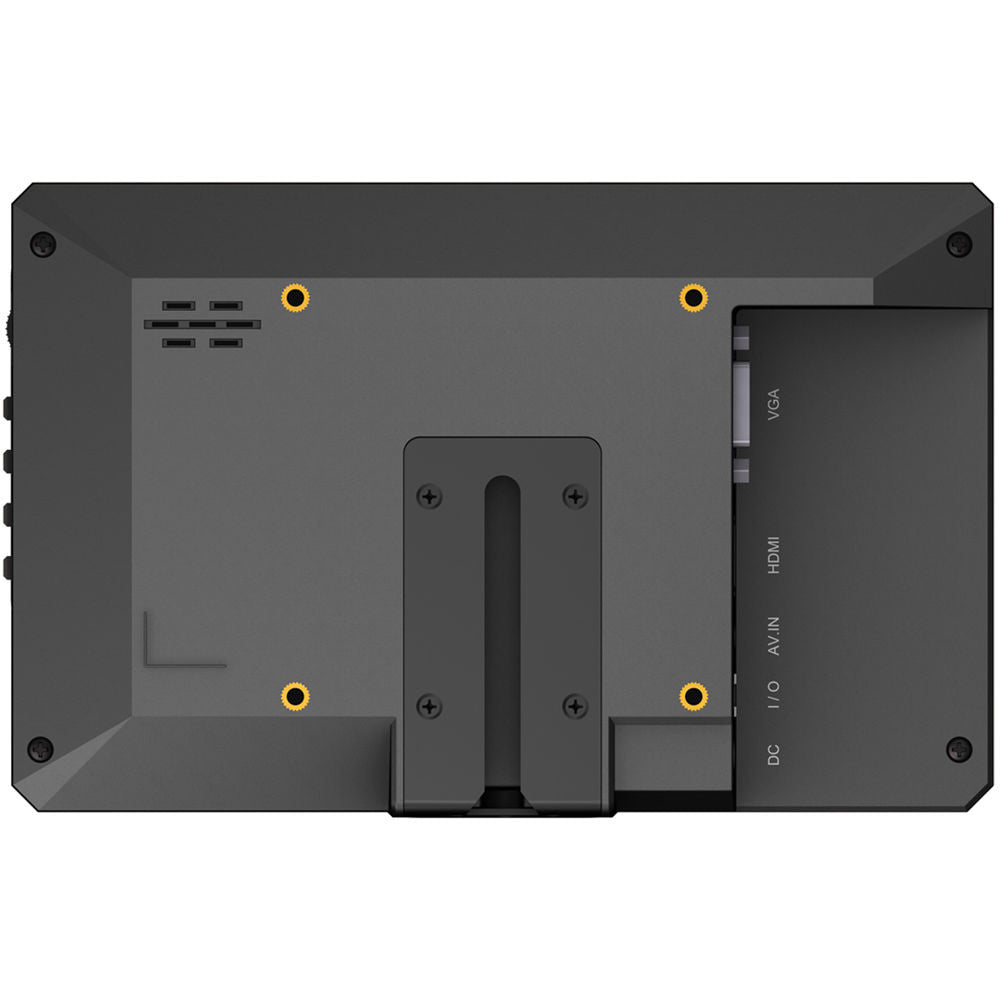

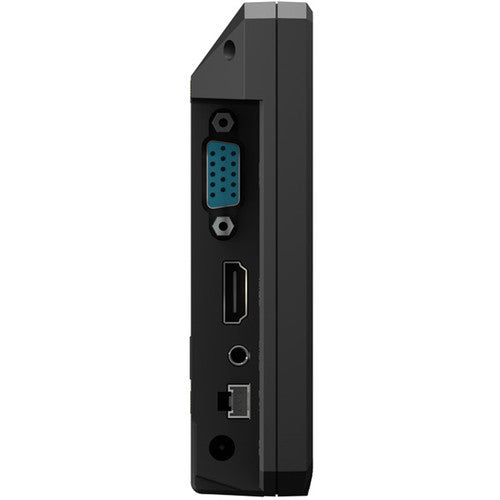

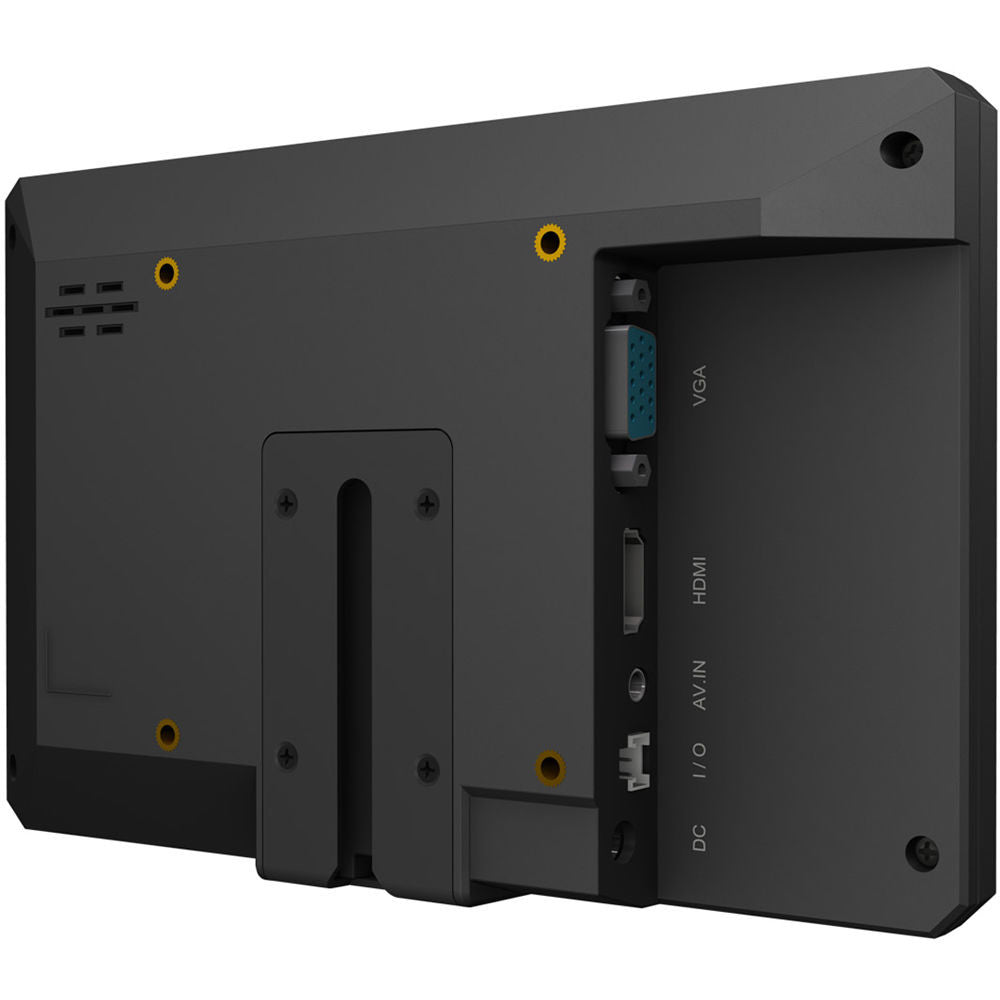

| Input Connectors | AV1, AV2, PC (VGA), HDMI, & DVI |
| Speaker | Built in |
| Audio Output | 1 W |
| I/O Port | 1 |
| Light Source | Single LED (Side-light type) |

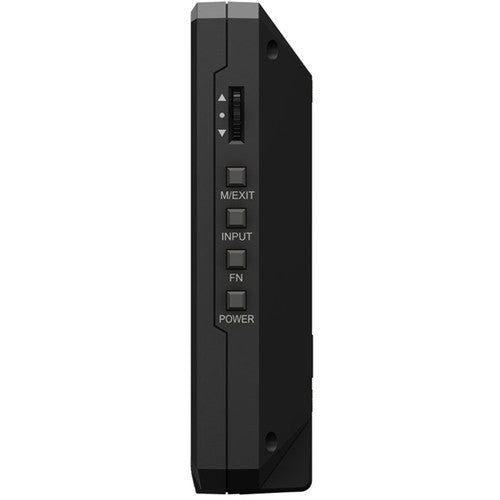

| Control | Basic: Dial, Menu/Exit, FN, Input, Power Advance: Brightness, Contrast, Saturation, Sharpness, Tint, Color Temp, Phase, Clock, H Position, V Position, Aspect, Image Flip, Auto Backlight, Backlight, Reset, Language |
| Supported OS | Windows 7 or above, Android |
| Menu Language | English/Chinese |
| Battery | External (available separately) |
| Input Voltage | 7 to 36 VDC |
| Current | 450 mA |
| Power Supply | 12 VDC, 1200 mA (adapter included) |
| Power Consumption | ?4.5 W |
| Storage Temperature | -22 to 158°F (-30 to 70°C) |
| Operation Temperature | -4 to 140°F (-20 to 60°C) |
| Operation Time | 240 hrs at 140°F (60°C) and 90% RH |
| Dimensions (L x W x D) | 7.3 x 4.7 x 1.2" (185 x 118.5 x 29.5 mm) |
| Weight | 14.6 oz (415.0 g) |
| Packaging Info | |
|---|---|
| Package Weight | 3.75 lb |
| Box Dimensions (LxWxH) | 13.4 x 8.7 x 3.4" |
- I/O Control Line
- VGA Cable
- HDMI A/A Cable
- A/V Input Cable
- Remote Control
- Bracket
- 12 VDC Adapter
- Car Power
- Limited 1-Year Warranty
