Description
Panasonic SQE2W Overview
- 1Description
- 2Digital Signage
- 3Flexible Connectivity
- 4Intel SDM OPS Slot
- 5PJLink

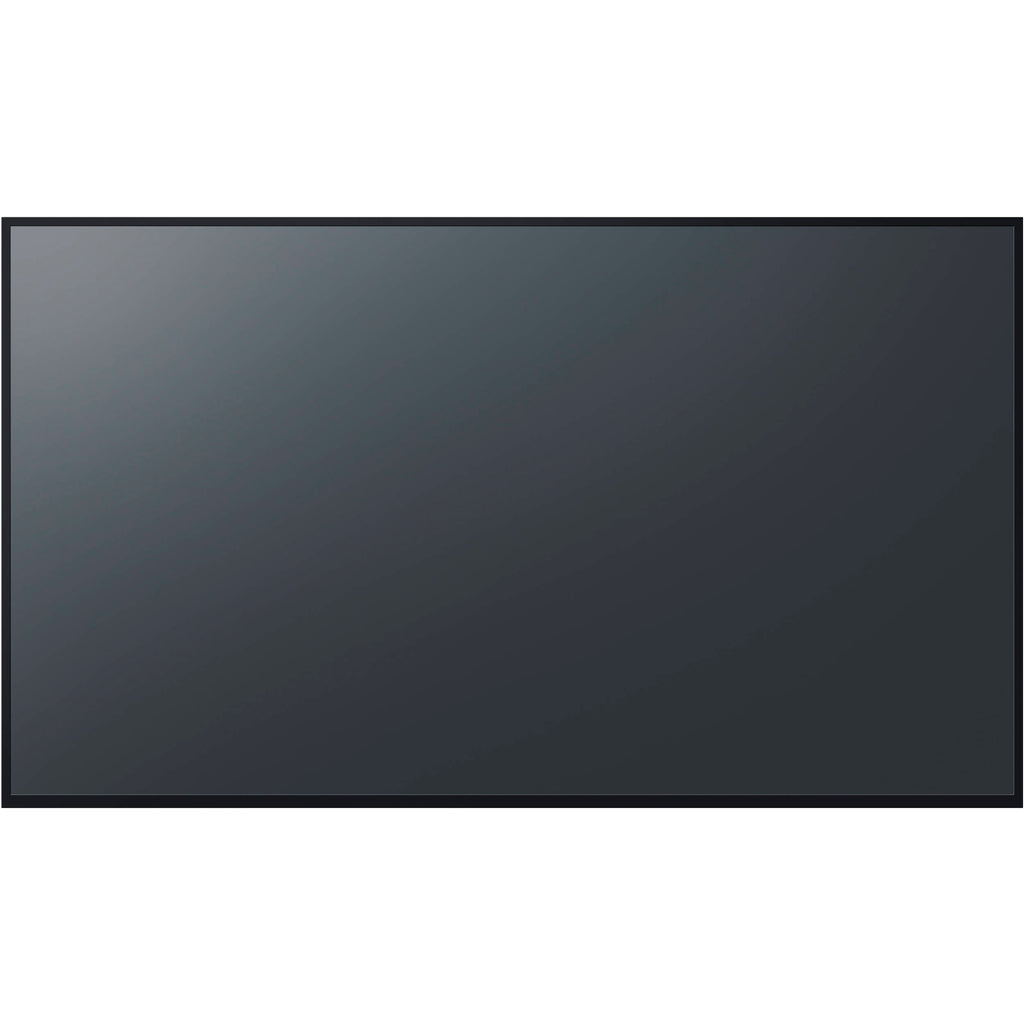

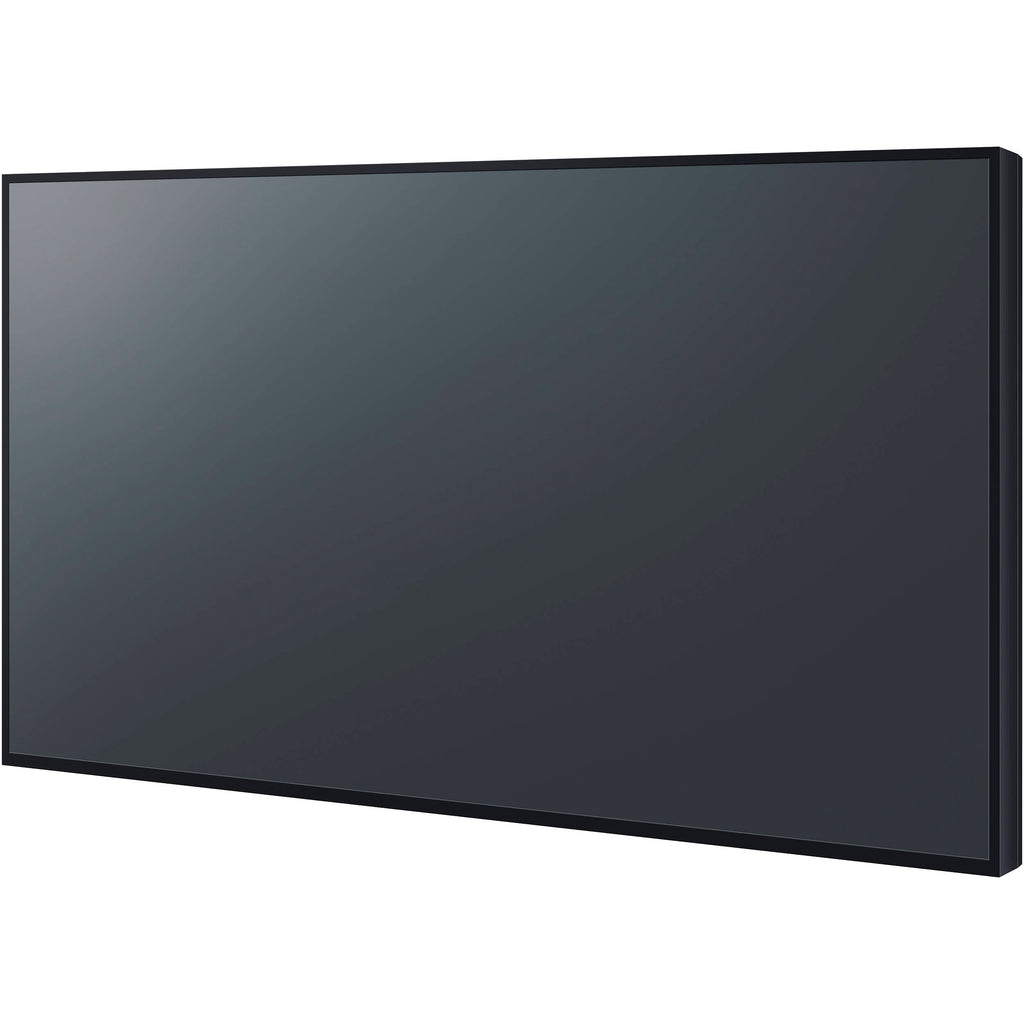

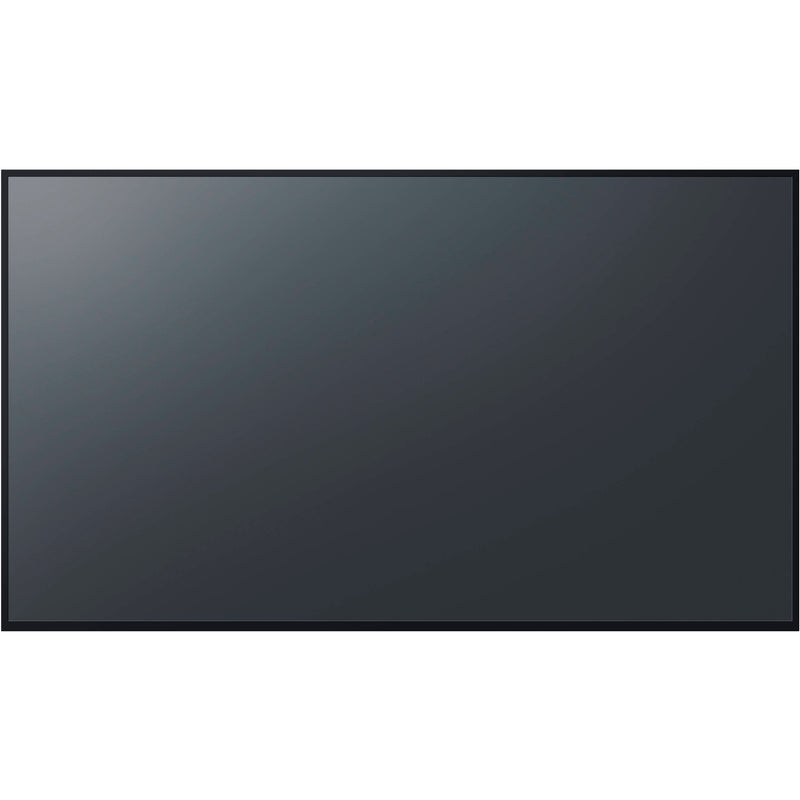

The SQE2W Series 75" UHD 4K Commercial Monitor from Panasonic is a professional display designed for 24/7 continuous operation. The TH-75SQE2W provides 500 nits of brightness with an anti-glare panel and 25% haze treatment for improved visibility in all indoor environments. With support for portrait, landscape, and 45° angle installation, this display is ideal for signage use as well as meeting rooms and classrooms. Connect a variety of devices through HDMI or DisplayPort as well as USB-C for laptops and mobile devices. The SQE2W series is also equipped with an OPS slot for Intel SDM expansion devices and can be managed via the network with PJLink.
Digital Signage
The SQE2W Series is equipped with Android OS and is compatible with HTML5 browser for ease of use with digital signage. The TH-75SQE2W uses highly robust components required for professional use and can be installed vertically. The service life of the panels is not affected when placed vertically. Ideal for installation in places where information is constantly transmitted, such as signage at entrances.
Flexible Connectivity

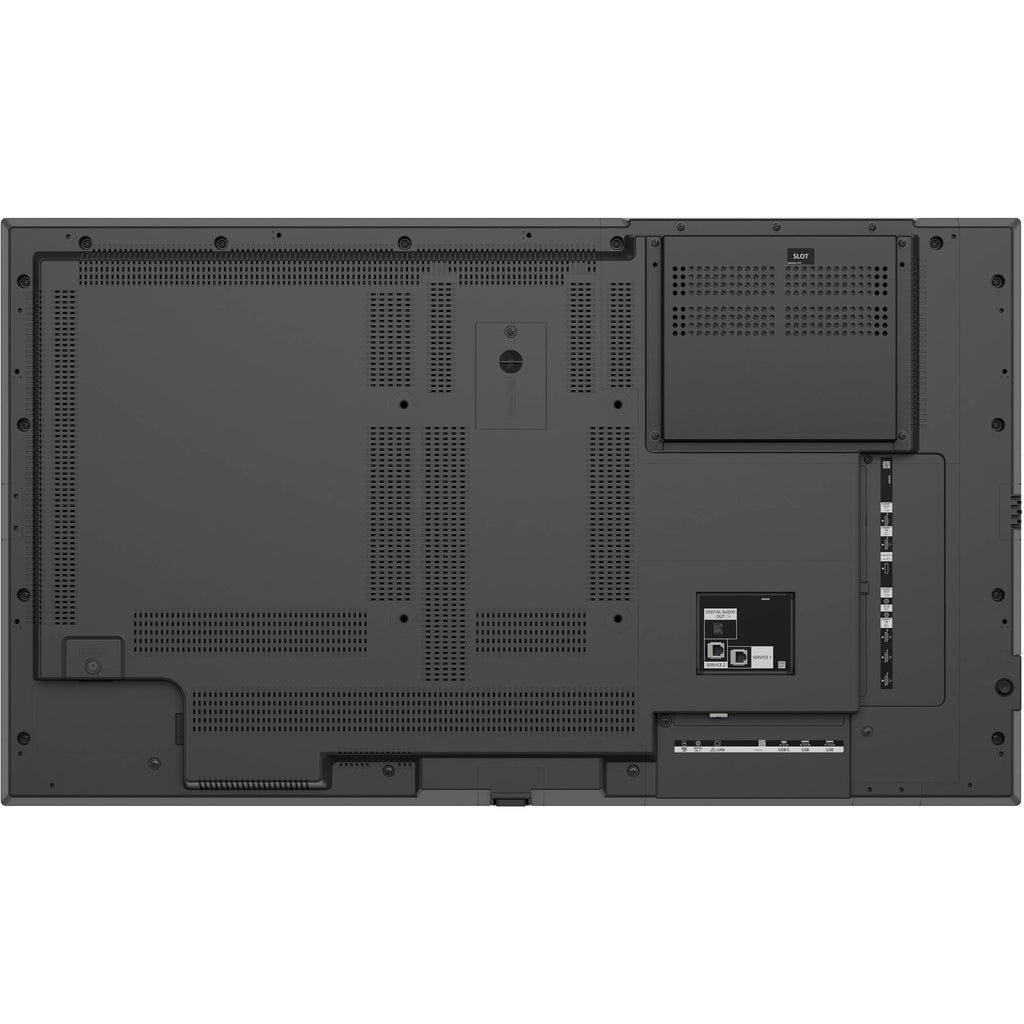

The TH-75SQE2W comes equipped with a full suite of inputs for a variety of devices. Four HDMI inputs and a DisplayPort input support HDCP 2.2. A USB-C input allows for a single connection to display and charge mobile devices. USB-A inputs support storage devices and peripherals such as a keyboard. Wi-Fi and LAN connectivity allow for access to the built-in Android OS and wireless screen sharing. With the TH-75SQE2W, no switchers or converters are required for conferences that require a variety of equipment.
Intel SDM OPS Slot
The SQE2W Series is equipped with the Intel SDM specification slot standard that supports 4K signals. Combined with the interface board, you can easily use a built-in PC and add various interfaces. For example, a PressIT receiver board can be installed.
PJLink
PJLink is a unified standard for operating and controlling data projectors and monitors. PJLink enables central control of displays manufactured by different vendors and displays can be operated by a controller. PJLink compliant equipment can be managed and controlled at any time and in any place, regardless of manufacturer. PJLink is a new standard designed to make communication interfaces and communication protocols that have been different from one manufacturer to another uniform and common. PJLink compliant equipment features a high interconnectivity across different models and manufacturers, enabling easy construction of environments that are mixed with different models and systems and easy replacement of systems that are already in place.
UPC: 885170410169
In the Box
- Panasonic SQE2W Series 75" UHD 4K Commercial Monitor
- Remote Control
- 2 x AA Batteries
- Power Cord (6.5')
- IR Sensor with 5' Cable
- IR Sensor Holder
- 2 x Screw for IR Sensor Holder
- RS-232C Cable (3.3')
- 3 x Clamper for RS-232C Cable
- Limited 3-Year Manufacturer Warranty (Parts and Labor)
Table of Contents
- Description
- Digital Signage
- Flexible Connectivity
- Intel SDM OPS Slot
- PJLink
Panasonic SQE2W Specs
Key Specs
| Display Size |
74.5"
|
| Panel Type |
IPS-Type LCD
|
| Resolution |
3840 x 2160
|
| HDR Compatibility |
Not Specified by Manufacturer
|
| Inputs |
4 x HDMI
1 x DisplayPort |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
Wi-Fi 5 (802.11ac)
|
| USB I/O |
1 x USB-A 3.0 / 3.1/3.2 Gen 1
2 x USB-A 2.0 1 x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
1 x RJ45 Gigabit Ethernet
|
| Smart TV |
Android
|
Display
| Display Size |
74.5"
|
| Panel Type |
IPS-Type LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
45° Angle, Landscape, Portrait
|
| Resolution |
3840 x 2160
|
| Maximum Brightness |
500 nits / cd/m2 (Sustained)
|
| Lighting System |
Direct LED
|
| HDR Compatibility |
Not Specified by Manufacturer
|
| Contrast Ratio |
1200:1
|
| Response Time |
8 ms (GtG)
|
| Refresh Rate |
60 Hz
|
| Bit Depth / Color Support |
10-Bit (1.07 Billion Colors)
|
| Viewing Angle (H x V) |
178 x 178°
|
Video
| TV Tuner |
No
|
Control Console
| Inputs |
4 x HDMI
1 x DisplayPort |
| Outputs |
1 x HDMI
1 x 1/8" / 3.5 mm (Analog Audio) |
| HDCP Support |
Yes, Version 2.2
|
| Wireless |
Wi-Fi 5 (802.11ac)
|
| USB I/O |
1 x USB-A 3.0 / 3.1/3.2 Gen 1
2 x USB-A 2.0 1 x USB-C 3.0 / 3.1/3.2 Gen 1 |
| Ethernet I/O |
1 x RJ45 Gigabit Ethernet
|
| Other I/O |
1 x 1/8" / 3.5 mm Serial (RS-232C) Control Input
1 x 1/8" / 3.5 mm IR Input |
Speaker
| Built-In Speakers |
Yes, 4 x 6 W
|
Convenience
| Smart TV |
Android
|
| Mobile App Compatible |
Yes
*As of May, 2023: Check with manufacturer for the most up-to-date compatibility |
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
20 to 80% (Non-Condensing)
|
| Power Consumption |
Maximum: 370.0 W
Typical: 254.0 W Standby: 0.5 W |
| AC Input Power |
110 to 240 VAC, 50 / 60 Hz
|
General
| Mounting-Hole Pattern |
600 x 400 mm
|
| Bezel Thickness |
15.7 mm (Right/Top/Left)
21.5 mm (Bottom) |
| Dimensions |
66.3 x 38.7 x 3.9" / 1684 x 984 x 100 mm
|
| Weight |
82.5 lb / 37.4 kg
|
