Planar Systems VPI VX2.5 Overview
- 1Description
- 2Virtual Production and Extended Reality
- 3Camera Ready
- 4Wide Color Gamut and HDR
- 5Brompton Control
- 6Solo Setup
- 7Compact Components
- 8Easy Access
- 9Planar Studios

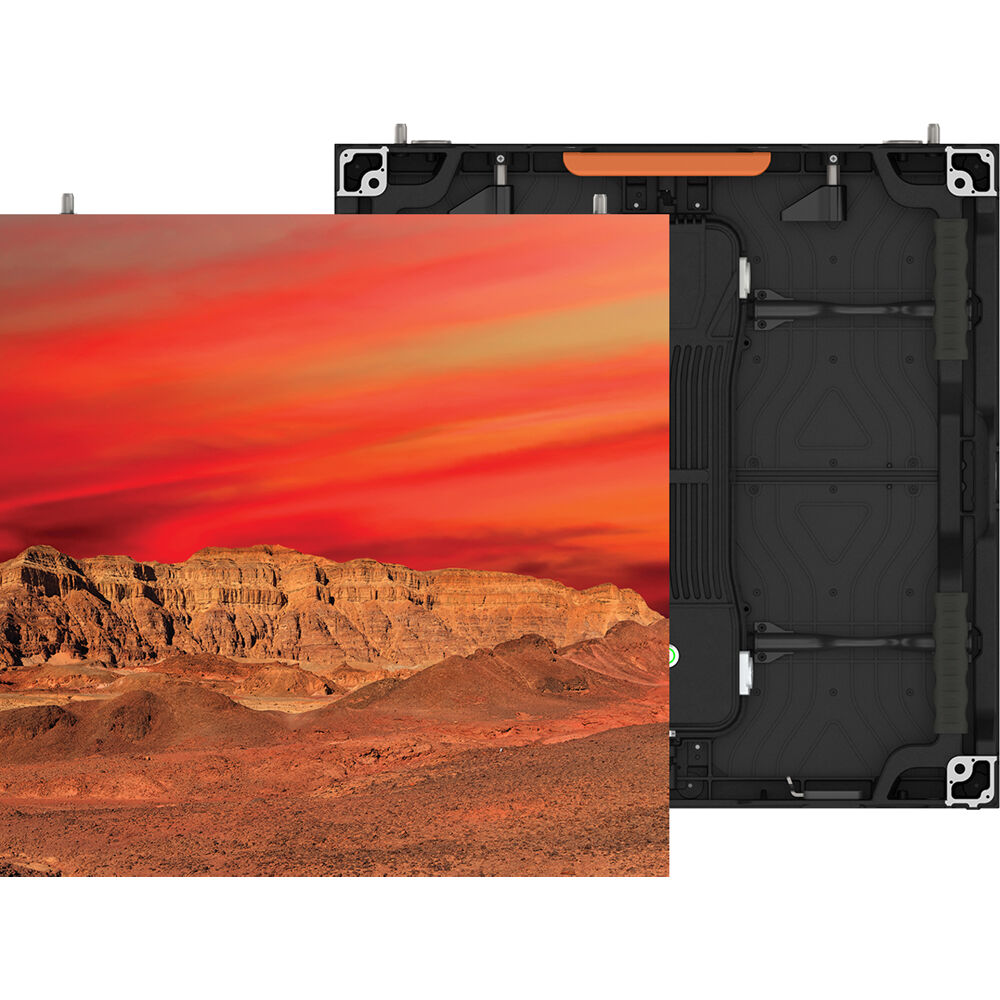

The Planar Venue Pro VX Series VPI-2.5VX B Indoor LED Video Wall Cabinet is an indoor, 1500-nit bright LED video wall cabinet with a narrow 2.5mm pixel pitch. The Venue Pro VX series has exceptional visual properties for in-camera virtual production and extended reality, including HDR compatibility with full DCI-P3 coverage. Suitable for temporary and fixed installations, the VPI-2.5VX B offers full front or rear service access to electronics for deployment versatility, plus magnetically attachable cabinets with a quick-lock system to support fast, single-person handling. This is a single LED display cabinet consisting of four LED modules and intended to be combined with other cabinets and a video wall controller to form a single, larger display. RJ-45 input and output are present to link cabinets to each other and the video wall controller. The VPI-2.5VX B is designed for use with a Brompton Technology video controller.

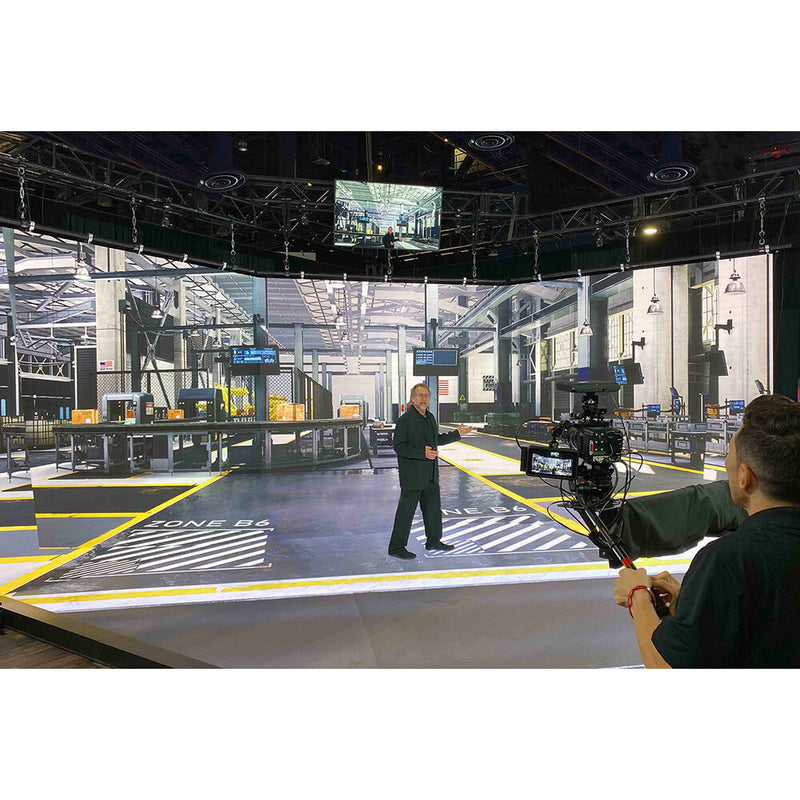

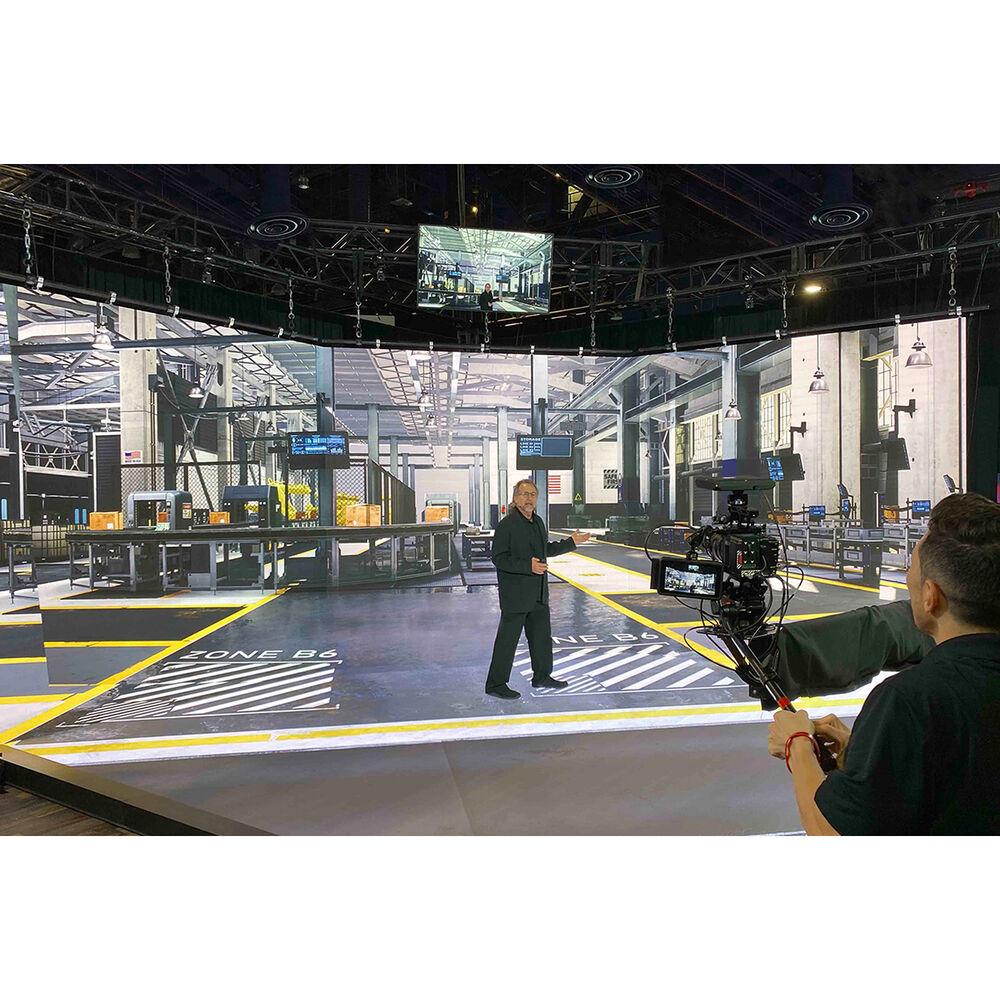

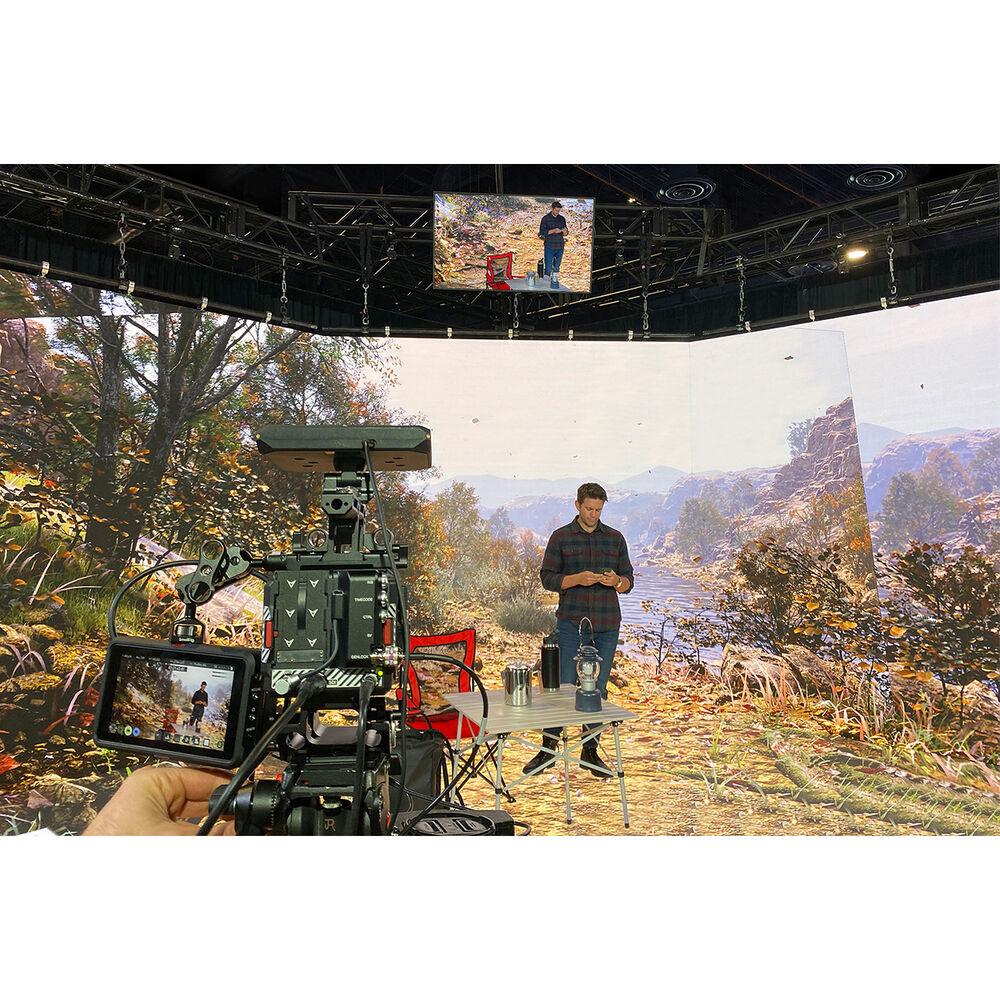

Virtual Production and Extended Reality
Planar Venue Pro VX Series� visual and mechanical properties are conducive to cinema and broadcasting as in-camera background scenes. The displays are designed to integrate with VP/XR volumes, providing a lifelike backdrop. On-set talent can comfortably move around the environment with clear, real-time visual scenery, while those seeing it through the camera lens will feel enveloped in the scene as if they were on location.
Camera Ready
Planar Venue Pro VX Series has a high-performing scan rate for camera compatibility and to reduce artifacts. High brightness and wide frame rate compatibility enable slow motion filming and multiple In-Camera Visual Effects camera frustums.
Wide Color Gamut and HDR
Displays are ready for High Dynamic Range content and show a larger percentage of the visible color spectrum, rendering on-screen content with brighter whites, darker blacks, and more true-to-life hues and shades that creators intended.
Brompton Control
Planar Venue Pro VX Series has the essential features broadcast and film production companies require for today�s on-camera display needs. It is compatible with multiple video controller processing options from Brompton Technology. Benefits and functions include:
- Exceptionally accurate color
- High dynamic range
- Smooth motion with low latency
- Frame remapping
- Grayscale trimming
Solo Setup
Magnetic points briefly hold the LED cabinet in place while a lone installer can secure the LED cabinet and finalize cabling. Handles, locking pins, and an embedded quick-lock system also make it easy and efficient to secure cabinets together.
Compact Components
All electronics are contained in a single compartment on the back of the cabinet. The electronics compartment is easily removable to quickly access and service all components.
Easy Access
Individual cabinets can be removed and installed anywhere within the video wall and all electronics are contained in a single compartment on the back of the cabinet. Front or rear service makes module extraction simple for maintenance.
Planar Studios
The Planar Venue Pro VX Series LED video walls are finely tuned for the Planar Studios initiative, collaborative partnerships to accelerate VP/XR capabilities and make them more accessible, streamlined, and repeatable. Planar Studios aligns top creative and technical experts specializing in areas that include LED video walls, camera motion tracking, digital production, and imaginative visual storytelling. The initiative integrates the products, organizations, and people that creative producers need to create realistic, on-screen content. Applications include:
- Virtual production
- XR stage and studios
- Live events
- Broadcasting
- Corporate presentations
- Education
- Training
In the Box
- Planar Systems Venue Pro VX Series VPI-2.5VX B Indoor LED Video Wall Cabinet
- Limited 2-Year Manufacturer Warranty
Table of Contents
- Description
- Virtual Production and Extended Reality
- Camera Ready
- Wide Color Gamut and HDR
- Brompton Control
- Solo Setup
- Compact Components
- Easy Access
- Planar Studios
Planar Systems VPI VX2.5 Specs
Key Specs
| Display Size |
27.83"
|
| Resolution |
200 x 200
|
| Maximum Brightness |
1500 nits / cd/m2
|
| Inputs |
No
|
| Outputs |
No
|
| Wireless |
No
|
| USB I/O |
No
|
| Ethernet I/O |
2 x RJ45 (Unspecified Ethernet)
|
| Built-In Speakers |
No
|
| Media Card Reader |
No
|
Display
| Display Size |
27.83"
|
| Panel Type |
Direct View LED
|
| Aspect Ratio |
1:1
|
| Resolution |
200 x 200
|
| Maximum Brightness |
1500 nits / cd/m2
|
| Lighting System |
Direct LED
|
| Contrast Ratio |
5000:1
|
| Refresh Rate |
60 Hz
|
| Bit Depth / Color Support |
Not Specified by Manufacturer
|
| Color Gamut |
100% DCI-P3
|
| Viewing Angle (H x V) |
150 x 120°
|
| Screen Area |
19.7 x 19.7" / 500 x 500 mm
|
| Dot Pitch |
2.5 x 2.5 mm
|
| Pixels Per Inch (ppi) |
10 ppi
|
| TV Tuner |
No
|
Connectivity
| Inputs |
No
|
| Outputs |
No
|
| HDCP Support |
Yes
|
| Wireless |
No
|
| NFC |
No
|
| USB I/O |
No
|
| Ethernet I/O |
2 x RJ45 (Unspecified Ethernet)
|
| Ambient Light Sensor |
No
|
| Multi-Input Support (PIP/PBP) |
No
|
| Built-In Speakers |
No
|
Hardware
| Mobile App Compatible |
No
*As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
| Media Card Reader |
No
|
| Built-In Mic |
No
|
Environmental
| Operating Temperature |
-4 to 104°F / -20 to 40°C
|
| Storage Temperature |
-40 to 140°F / -40 to 60°C
|
| Operating Humidity |
10 to 80% (Non-Condensing)
|
| Storage Humidity |
10 to 85% (Non-Condensing)
|
Electrical
| Power Consumption |
Maximum: 160.0 W
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Mounting-Hole Pattern |
No
|
| Lighting Lifespan |
100000 Hours
|
| IK Rating |
No
|
| Lock Slot |
No
|
| Duty Cycle |
24 Hours / 7 Days
|
| Dimensions |
19.7 x 19.7 x 2.9" / 500 x 500 x 74 mm
|
| Weight |
17.8 lb / 8.1 kg
|
