Description
StarBoard Solution IFPDYL112 Overview

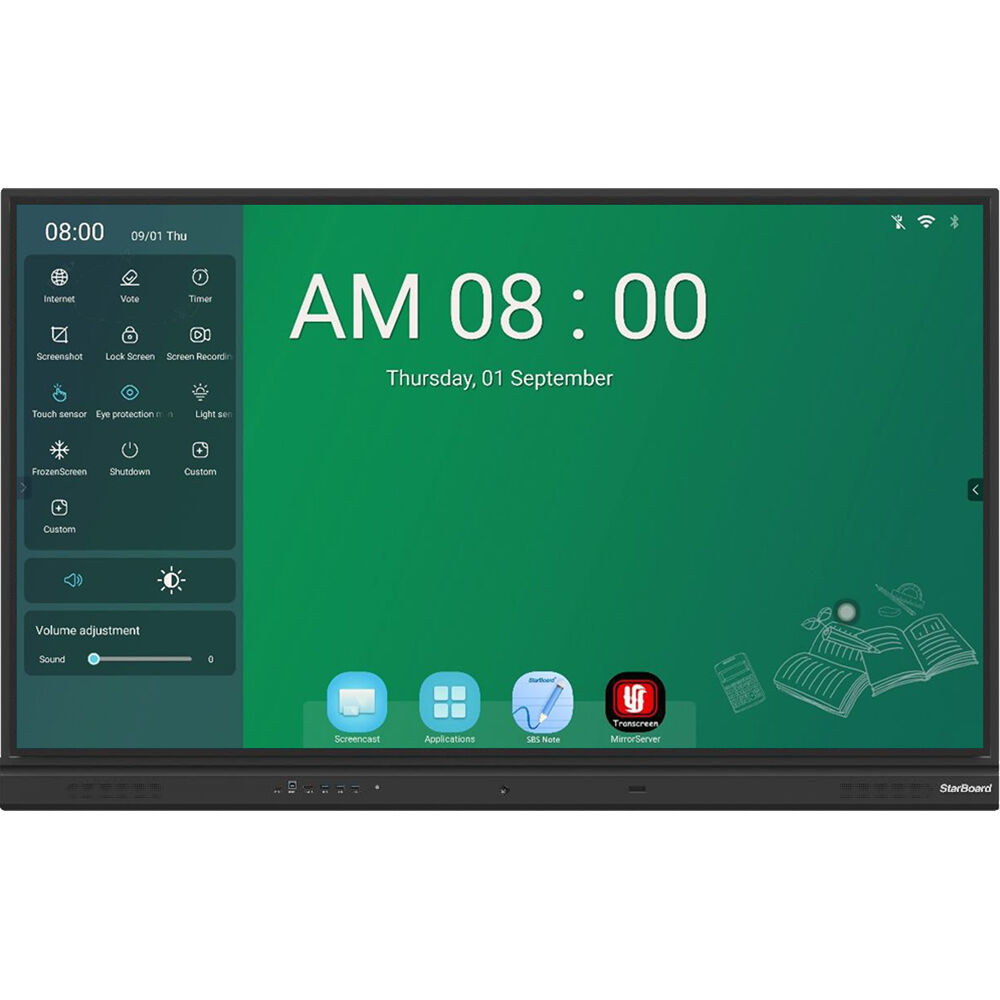

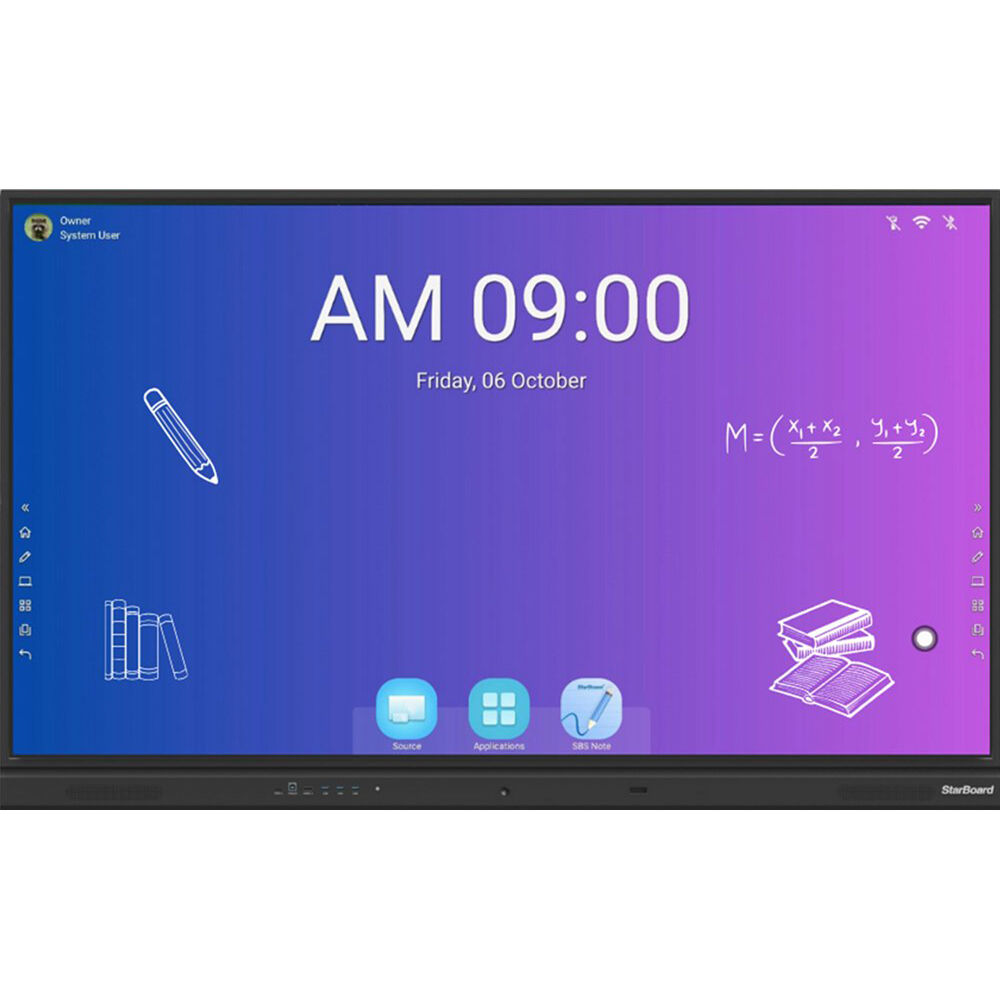

The StarBoard Solution IFPD Android 11 Series 2 86" UHD 4K Touch Screen Monitor is a 350 nits bright interactive display, featuring an integrated Android operating system. This display is designed to be an all-in-one interactive solution for classrooms, conference rooms, and other collaborative spaces.
Connect a wide variety of devices via HDMI, DisplayPort, USB, and OPS inputs to enjoy up to 4K60 video playback. Experience smooth interactivity with accurate 20-point infrared touch and use any opaque object, such as the included pens or your finger, to annotate with the built-in software. You can then share the notes made by an auto-generated QR code for mobile devices. For convenience, Wi-Fi and Bluetooth are built in with the ability to wirelessly screen share with up to 9 devices at once.
Flexible Connectivity
The StarBoard Android 11 Series 2 features a wide variety of inputs, including HDMI, DisplayPort, and USB for connecting all of your devices. Front-loading HDMI and USB-C ports are available for easy walk-up-and-use access along with USB inputs for touch control, memory devices, and peripherals. RJ45 LAN in and out are available along with Wi-Fi to connect to the network. Additionally, there is an analog audio out to connect to headphones or external speakers.
Narrow Bezel
With an 11.5mm frame the screen utilization rate reaches 98%. Combined with advanced IR filter technology, this allows for a more natural writing experience.
Additional Features
- OPS module slot
- Android tablet functions
- Simplified user interface for Android
- 20-point touch with intelligent gesture control
- 32GB on-board storage
- <2mm touch accuracy
- Dual-band Wi-Fi
- Bluetooth 5.0
Items Included
- StarBoard Solution IFPD Android 11 Series 2 86" UHD 4K Touch Screen Commercial Display
- 2 x Magnetic Pens
- HDMI Cable
- USB-B to USB-A Touch Cable
- Power Cable
- Starboard Software Online Download
- Remote Control
- Wall Mounting Bracket
-
Limited 1-Year Manufacturer Warranty
Registration Extension: 3-Year - Limited 5-Year Manufacturer Warranty (Available with Purchase of Extended Warranty)
Additional Resources
No additional resources available
StarBoard Solution IFPDYL112 Specs
Key Specs
| Display Size |
86"
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
350 nits / cd/m2
|
| Touchscreen Technology |
Infrared (IR)
|
| Inputs |
Front:
1x HDMI 2.0 Rear: 2x HDMI 2.0 1x DisplayPort 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
1x HDMI
1x 1/8" / 3.5 mm (Headphone) |
| Wireless |
Wi-Fi / Bluetooth 5.0
|
| USB I/O |
Front:
1x USB-B (Unspecified Version) (Touchscreen Control) 3x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-C (Unspecified Version) (Audio/Charging/Photo/Video/Control/Touchscreen Control) Rear: 2x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-B (Unspecified Version) (Touchscreen Control) |
| Ethernet I/O |
2x RJ45 10/100 Mb/s Ethernet
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
| Built-In Speakers |
Yes, 2x 15 W
|
| Media Card Reader |
1x microSD (Unspecified Type)
|
Display
| Display Size |
86"
|
| Panel Type |
LCD
|
| Aspect Ratio |
16:9
|
| Display Orientation |
Landscape
|
| Native Resolution |
3840 x 2160
|
| Maximum Brightness |
350 nits / cd/m2
|
| Lighting System |
Direct LED
|
| Contrast Ratio |
1200:1
|
| Response Time |
8 ms
|
| Refresh Rate |
60 Hz
|
| Color Support |
1.07 Billion Colors (10-Bit)
|
| Viewing Angle (H x V) |
178 x 178°
|
| Screen Area |
74.6 x 41.9" / 1894.8 x 1064.3 mm
|
| Pixels Per Inch (ppi) |
51 ppi
|
Surface
| Touchscreen Technology |
Infrared (IR)
|
| Multi-Touch Points |
20
|
Video
| TV Tuner |
No
|
Connectivity
| Inputs |
Front:
1x HDMI 2.0 Rear: 2x HDMI 2.0 1x DisplayPort 1x 1/8" / 3.5 mm (Analog Audio) |
| Outputs |
1x HDMI
1x 1/8" / 3.5 mm (Headphone) |
| HDCP Support |
Yes
|
| Wireless |
Wi-Fi / Bluetooth 5.0
|
| NFC |
No
|
| USB I/O |
Front:
1x USB-B (Unspecified Version) (Touchscreen Control) 3x USB-A 3.0 / 3.1/3.2 Gen 1 1x USB-C (Unspecified Version) (Audio/Charging/Photo/Video/Control/Touchscreen Control) Rear: 2x USB-A 3.0 / 3.1/3.2 Gen 1 2x USB-B (Unspecified Version) (Touchscreen Control) |
| Ethernet I/O |
2x RJ45 10/100 Mb/s Ethernet
|
| Other I/O |
1x DE-9/DB-9 Serial (RS-232C) Control Input
|
| Number of OPS/Expansion Slots |
1
|
Speaker
| Built-In Speakers |
Yes, 2x 15 W
|
| Speaker Configuration |
2-Channel
|
Hardware
| Smart TV |
Android 11
|
| Storage |
32 GB eMMC
|
| RAM |
4 GB DDR4
|
| OS Compatibility |
Computer: Windows / macOS / Linux
Mobile: Android/iOS |
| OS Compatibility |
Windows
macOS Linux |
| Mobile App Compatible |
Yes: Android & iOS
|
| Media Card Reader |
1x microSD (Unspecified Type)
|
| Built-In Mic |
No
|
Electrical
| Power Consumption |
Typical: < 415.0 W
Standby: < 1.0 W |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Adapter Type |
Internal
|
General
| Operating Conditions |
32 to 104°F / 0 to 40°C
|
| Mounting-Hole Pattern |
No
|
| Bezel Thickness |
11.5 mm (Right/Top/Left)
|
| Dimensions |
76.9 x 45.9 x 3.6" / 1953.3 x 1165.9 x 91.4 mm
|
| Weight |
154.3 lb / 70 kg
|
