| ₹ 4521.31 includes GST and import duties. | |
| B2B customers can avail ₹ 689.5 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

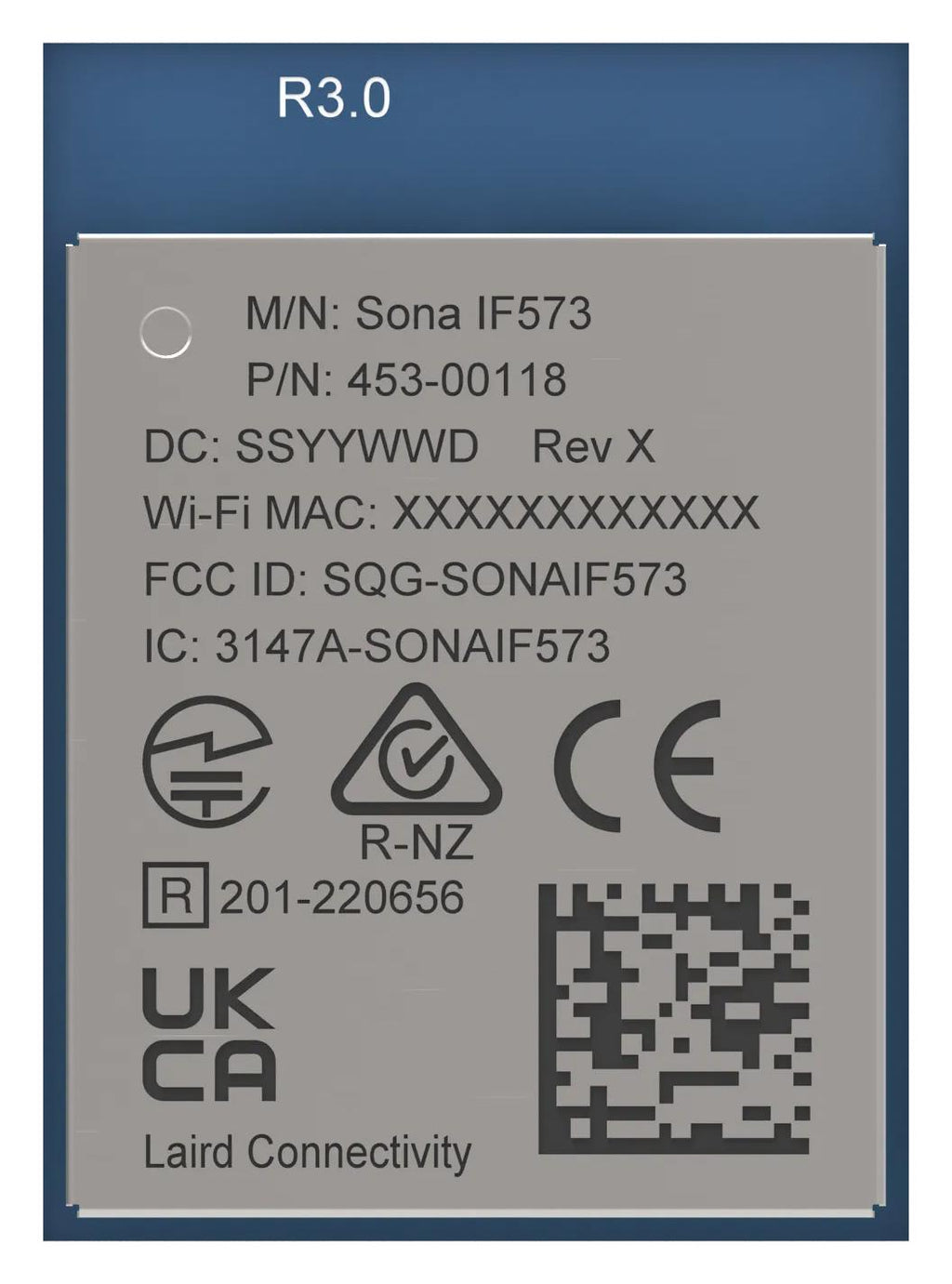

453-00118C is a Sona IF573 series embedded module. It is an integrated, small form factor Wi-Fi/Bluetooth module that is optimized for low-power mobile devices, featuring Wi-Fi 6E: Tri-band 2x2 MIMO IEEE 802.11a/b/g/n/ac/ax WLAN and Bluetooth® 5.4: dual mode. The integration of all WLAN and Bluetooth functionality in a single package supports low cost and simple implementation along with flexibility for platform-specific customization. This device is pre-calibrated and integrates the complete transmit/receive RF paths including bandpass filter, diplexer, switches, reference crystal oscillator, and power management units (PMU). The device has a dedicated Bluetooth port for best Wi-Fi + Bluetooth coexistence performance. The deviceâ��s low power consumption, radio architecture and power management unit (PMU) proprietary power save technologies allow for extended battery life.
- RF trace pin antenna type
- Infineon AIROC� CYW55573MIWBGT wireless chipset
- M.2 1318 form factor
- 2.4/5/6GHz frequency
- Linux software
- Hosted system architecture
- 802.11ax, Bluetooth 5.4 technology
- Typical DC 3.3V, operating range from DC 3.13V to 3.5V
- Operating temperature range from -40° to +85°C
- Dimension is 18mm Length, 13mm width and 0.43mm thickness
Product details
Other details
| Brand | LAIRD CONNECTIVITY |
| Part Number | 453-00118C |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 4430.88 |
| 3-5 | ₹ 4385.67 |
| 5-10 | ₹ 4295.24 |
| 10+ | ₹ 4204.82 |
Bulk discount will be automatically applied during checkout based on quantity.
