Digigram ALP882E Overview
- 1Description
- 2Features
- 3Breakout Cable for Analog I/Os (Available Separately)
- 4Breakout Cable for Digital I/Os (Available Separately)
By Photo's
Eric Calvi

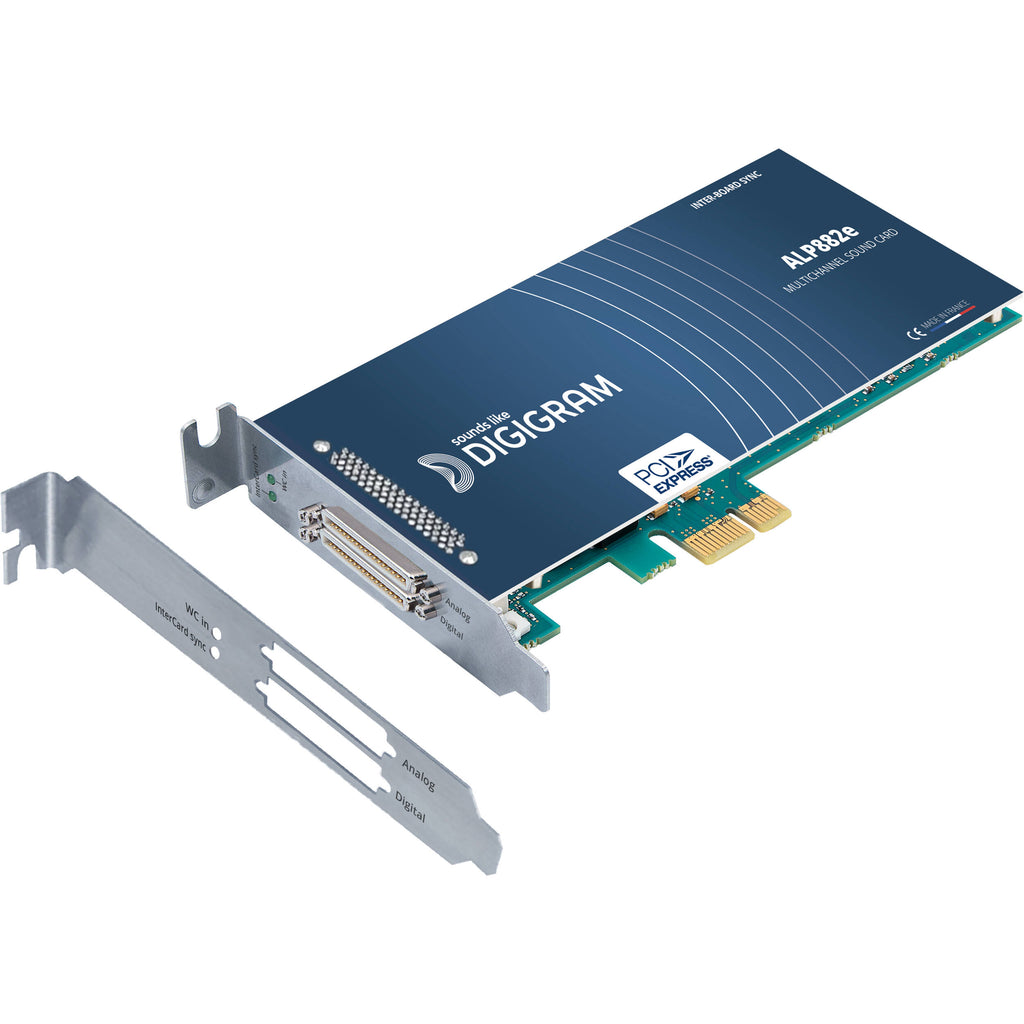

Part of the ALP-X professional sound-card range, the Digigram ALP882e is a versatile, 8-channel PCIe sound card designed for professional PC-based audio systems running Windows or Linux environments. ALP882e is a reliable and stable match for applications such as broadcast (24/7/365), audio production, and outstanding audio quality measurements.
The low-profile ALP882e is equipped with 8 balanced analog line inputs plus 4 stereo AES3 inputs, 8 balanced analog line outputs plus 4 AES3 outputs, 8 GPIs, and 8 GPOs. The zero-latency onboard FPGA 32x32 mixer (8 analog, 8 AES3, 16 software play/record) enables you to route and mix audio channels from physical and software input devices to physical and software output devices. The low-latency drivers are multicard (up to 8 ALP cards) and multiclient. Breakout cables for analog I/Os and digital I/Os are available separately.
Features
- Low-profile PCIe audio card with 2 brackets
- For Windows- and Linux-based audio systems
- Fits in any type of PC/workstation/server with a PCIe slot
- 8 line-level balanced analog I/O channels
- 16 stereo software devices for playout and recording
- Integrated 32x32 zero-latency FPGA-based mixer
- AES11 synchronization input
- Wordclock synchronization I/O
- 8 dry contact GPIs
- 8 relay GPOs
- A/D and D/A Converters: 24-bit / 192 kHz
- Sample rates: 32, 44.1, 48, 64, 88.2, 96, 128, 176.4, 192 kHz
- Interboard synchronization up to 8 ALP-X cards
- Made for standard application or custom design with help of Digigram control API
Breakout Cable for Analog I/Os (Available Separately)
- 8 XLR female input connectors
- 8 XLR male output connectors
Breakout Cable for Digital I/Os (Available Separately)
- 4 XLR female input connectors for AES3
- 4 XLR male output connectors for AES3
- 1 AES11 sync input connector
- 2 BNC connectors for wordclock I/O
- 2 D-Sub 25 female connectors for GPIs and GPOs
In the Box
- Digigram ALP882e Multichannel PCIe Sound Card
- Standard Bracket
- Low-Profile Bracket
- Limited 1-Year Manufacturer Warranty
Table of Contents
- Description
- Features
- Breakout Cable for Analog I/Os (Available Separately)
- Breakout Cable for Digital I/Os (Available Separately)
Digigram ALP882E Specs
Key Specs
| Channels of I/O |
Analog:
8 Inputs / 8 Outputs at 44.1/48/88.2/96/176.4/192 kHz Digital: 8 Input / 8 Output at 44.1/48/88.2/96/176.4/192 kHz |
| Maximum Sampling Rate |
192 kHz / 32-Bit (PCM)
|
| Number of Microphone Inputs |
No
|
| Analog Audio I/O |
8x XLR 3-Pin Balanced Line Input (on Optional Breakout Cable)
8x XLR 3-Pin Balanced Line Output (on Optional Breakout Cable) |
| Digital Audio I/O |
8x XLR 3-Pin AES3 In/Out (on Optional Breakout Cable)
|
| Host Connection |
No
|
| OS Compatibility |
Windows 10 (32/64-Bit)
Linux |
| Power Requirements |
PCIe
|
| Channels of I/O |
Analog:
8 Inputs / 8 Outputs at 44.1/48/88.2/96/176.4/192 kHz Digital: 8 Input / 8 Output at 44.1/48/88.2/96/176.4/192 kHz |
| Built-In DSP |
No
|
| Maximum Sampling Rate |
192 kHz / 32-Bit (PCM)
|
| Number of Microphone Inputs |
No
|
| Built-In Microphone |
No
|
| Expansion Slots |
No
|
Signal Processing
| Gain/Trim Range |
XLR Line Inputs:
-24 dB to +16 dB (in 0.5 dB Steps, XLR Connector is Via Separately Available Cable) XLR Line Outputs: -90 dB to +12 dB (XLR Connector is Via Separately Available Cable) XLR Digital Inputs: -90 dB to +12 dB (XLR/AES3 Connector is Via Separately Available Cable) XLR Digital Inputs, Outputs: -90 dB to +12 dB (XLR/AES3 Connector is Via Separately Available Cable) |
| High-Pass Filter |
No
|
| Solo/Mute |
No
|
Connectivity
| Analog Audio I/O |
8x XLR 3-Pin Balanced Line Input (on Optional Breakout Cable)
8x XLR 3-Pin Balanced Line Output (on Optional Breakout Cable) |
| Digital Audio I/O |
8x XLR 3-Pin AES3 In/Out (on Optional Breakout Cable)
|
| Host Connection |
No
|
| Host Connection Protocol |
PCIe
|
| USB (Non-Host) |
No
|
| Sync I/O |
2x BNC Word Clock Input or Output (on Optional Breakout Cable)
|
| Network I/O |
No
|
| MIDI I/O |
No
|
| Other I/O |
2x DB-25 GPIO In/Out (on Non-Included Breakout Cable)
|
| Wireless |
No
|
Performance
| Frequency Response |
XLR Line Inputs:
20 Hz to 20 kHz ±0.83 dB (at 48 kHz) XLR Line Outputs: 10 Hz to 20 Hz ±0.57 dB (at 48 kHz) |
| Maximum Input Level |
XLR Line Inputs:
+24 dBu (Connector on Separately Available Cable) |
| Maximum Output Level |
XLR Line Outputs:
+24 dBu (Connector on Separately Available Cable) |
| Impedance |
XLR Mic/Line Inputs:
> 10 Kilohms (Balanced) XLR Line Outputs: < 100 Ohms (Balanced) |
| SNR |
XLR Line Inputs:
> 115 dBA > 112 dB (Unweighted) XLR Line Outputs: > 109 dBA > 106 dB (Unweighted) |
| THD+N |
XLR Line Inputs:
< -98 dB (At 22 dBu (1 kHz)) XLR Line Outputs: < -96 dB (At 22 dBu (1 kHz)) |
| EIN |
XLR Mic Inputs:
< -124 dB (at +56 dB Gain, 48 kHz) |
Digital Audio
| Sample Rates |
AES3:
32 / 44.1 / 48 / 64 / 88.2 / 96 / 128 / 176.4 / 192 kHz (PCM) |
| Bit Depths |
8 / 16 / 24 / 32-Bit / 32-Bit Float (PCM)
|
| Sync Sources |
AES11, Internal, Word Clock
|
Audio Storage & Playback
| Media/Memory Card Slot |
No
|
Compatibility
| OS Compatibility |
Windows 10 (32/64-Bit)
Linux |
| Mobile App Compatible |
No
|
| Required Hardware |
PCIe Card Slot
|
Power
| Power Requirements |
PCIe
|
Physical
| Dimensions |
6.6 x 2.7 x 0.8" / 16.8 x 6.9 x 2 cm
|
