Description
Fractal Design Ridge Overview
- 1Description
- 2Unique Adjustable Design

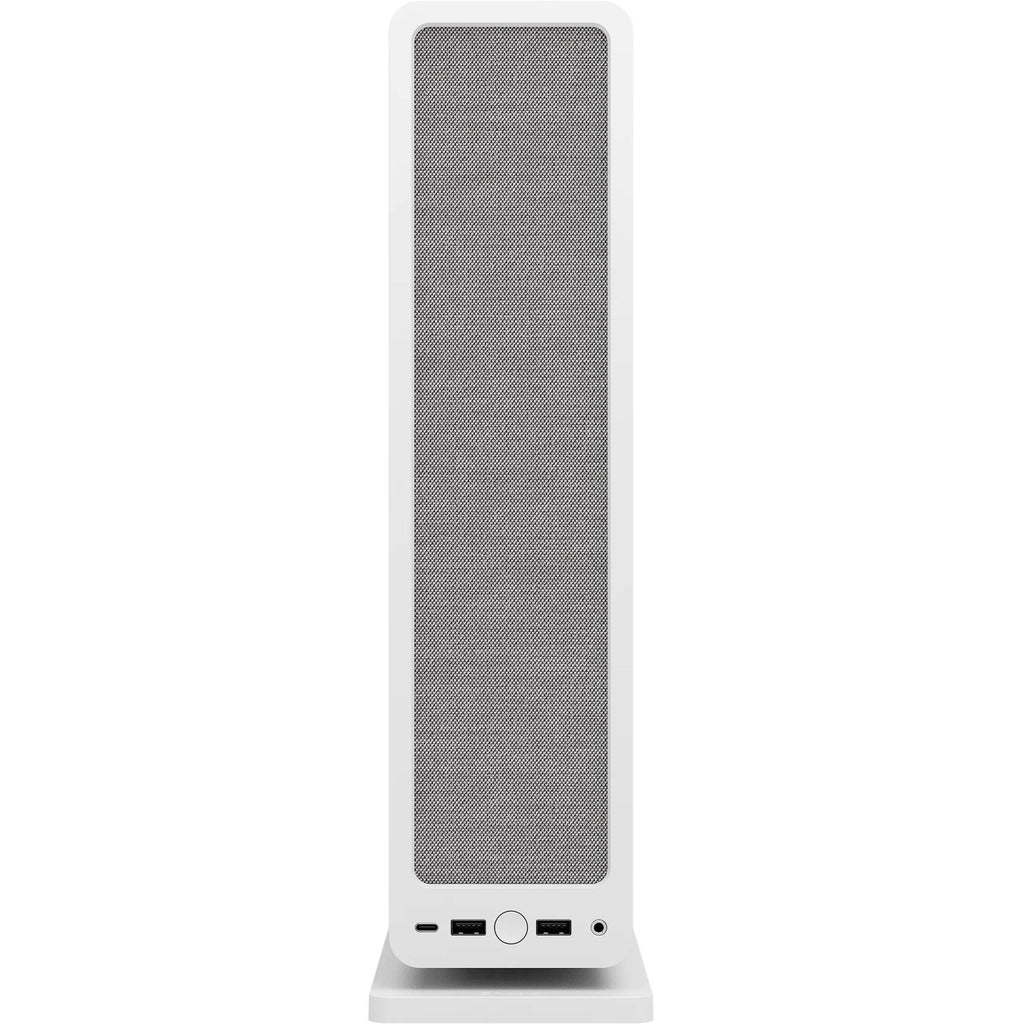

- 3Front Panel Connectivity
- 4GPU
- 5Cooling Support

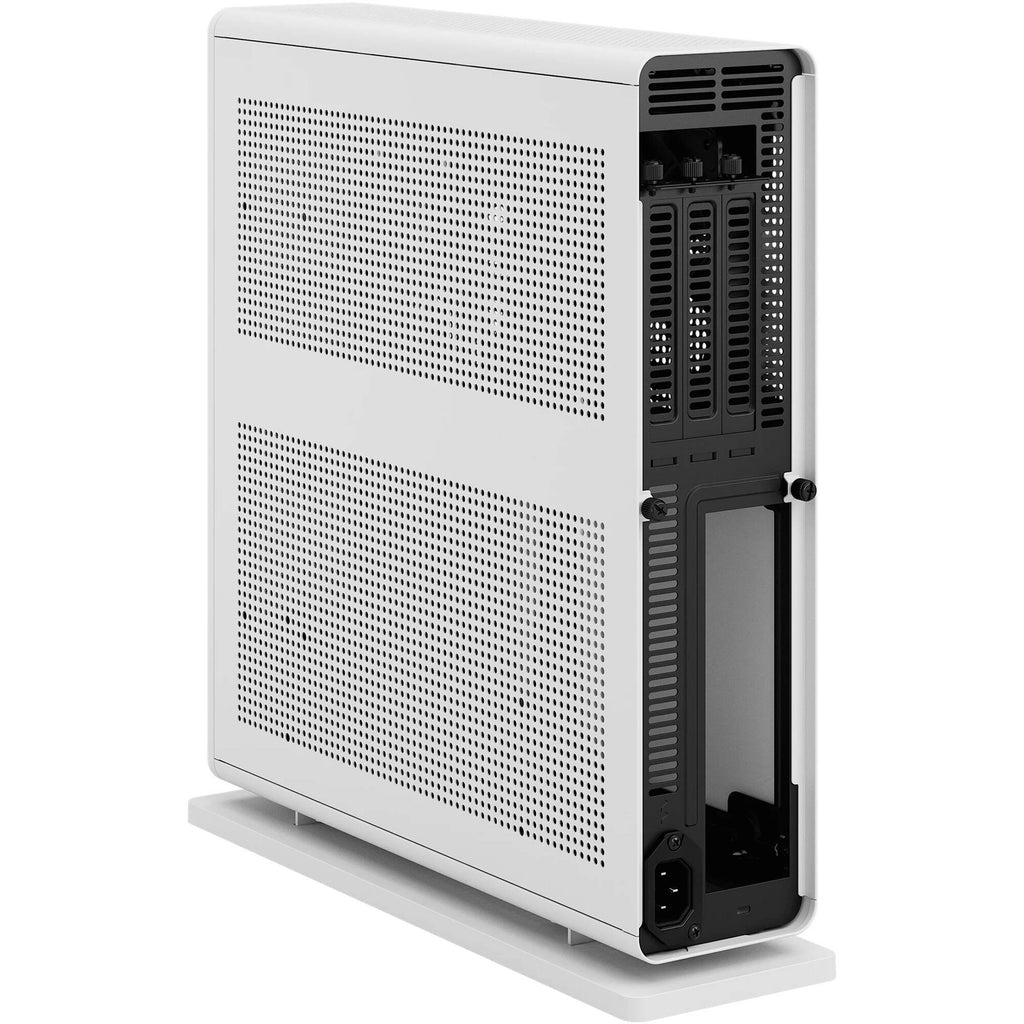

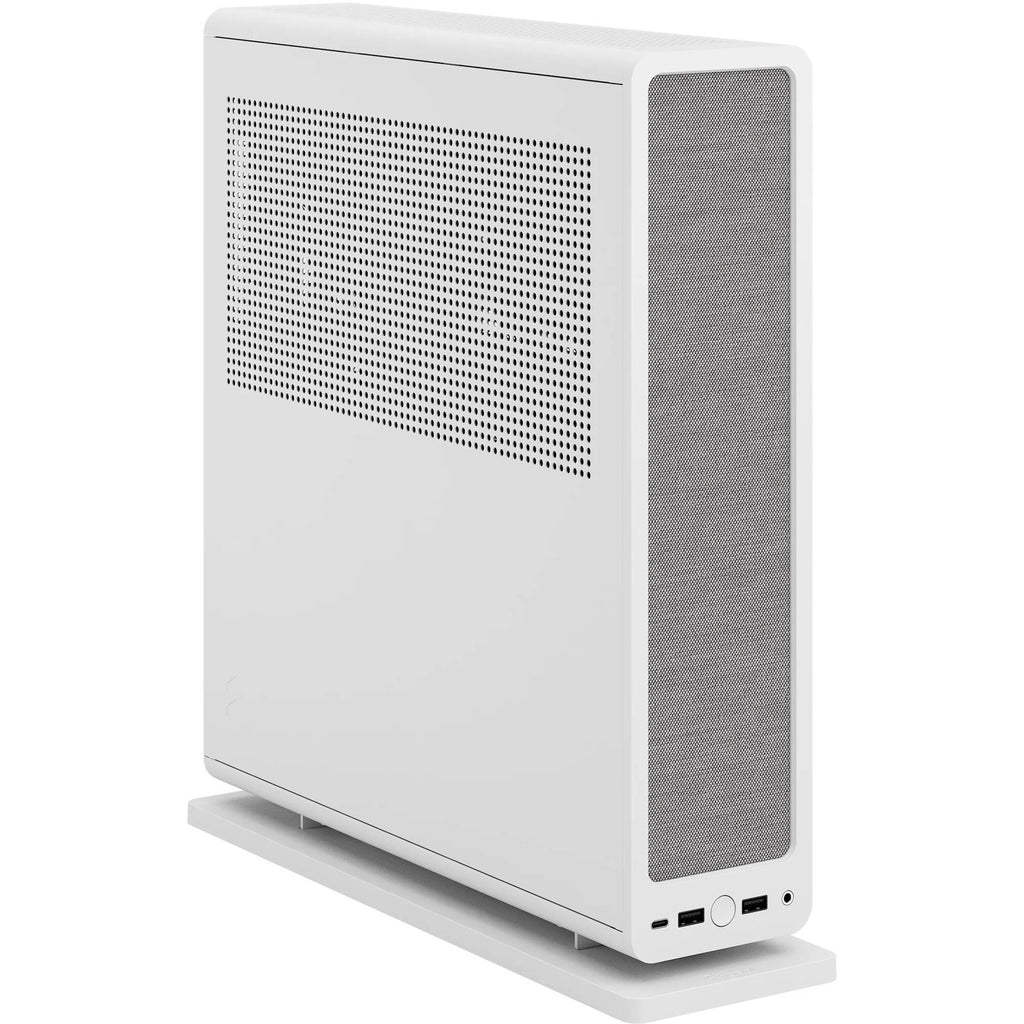

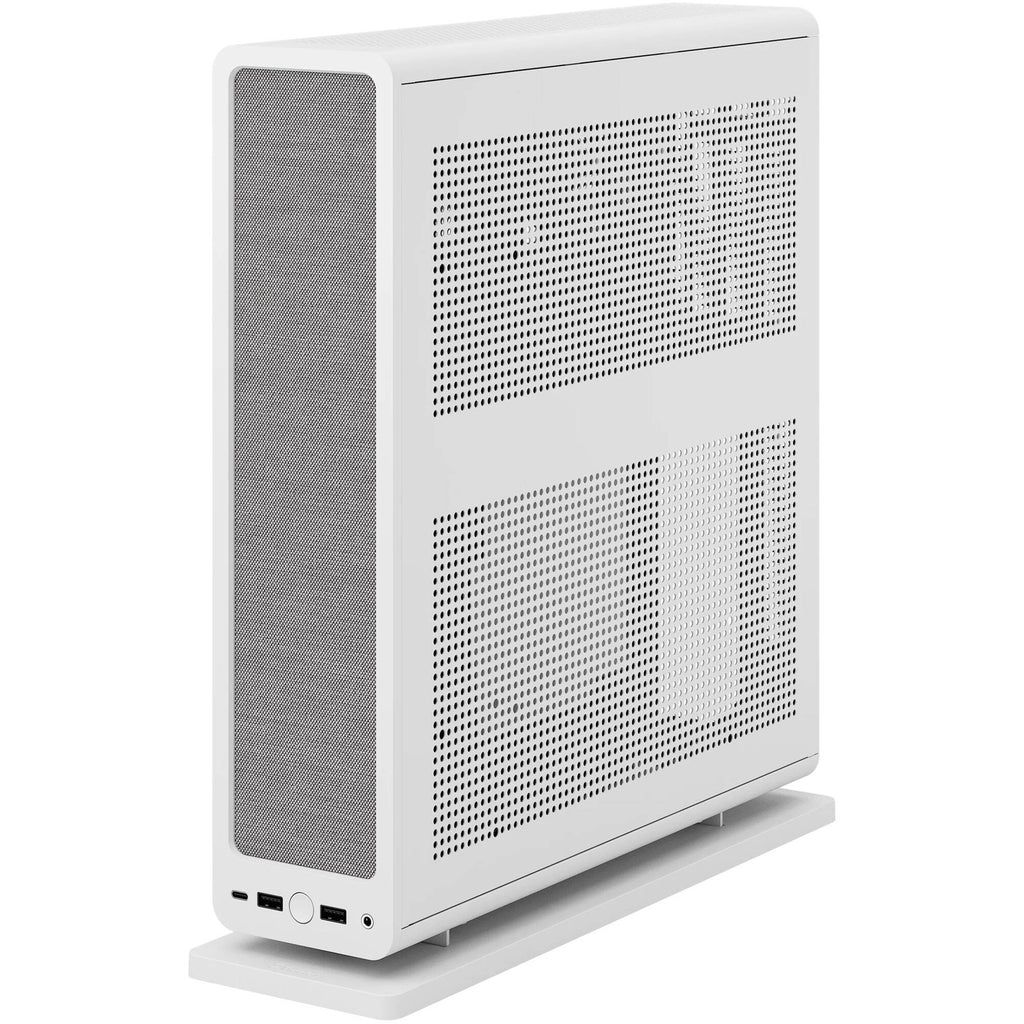

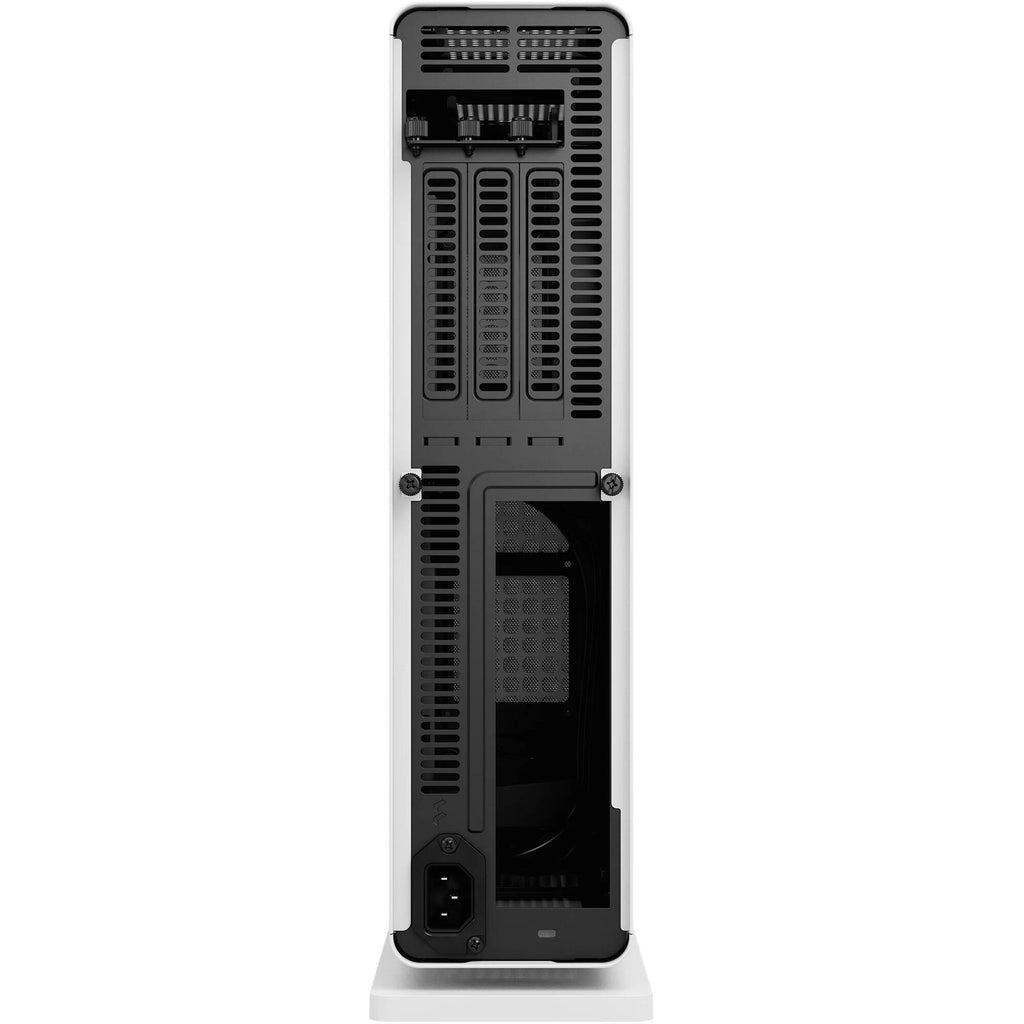

Designed for experienced builders looking to leverage smaller components without compromising performance, the Ridge Mini-ITX Small Form Factor Case from Fractal Design gives users enhanced utility with a stylish contemporary finish suitable for both desktop and entertainment center use.
Vented anodized steel panels and modular layout provides the Ridge with a unique style that enhances airflow no matter how you configure your system. Despite the deceptive size of the Ridge, you can still comfortably install large 3-slot graphics cards up to 13.1" long as well as a Mini-ITX motherboard. You can fit up to four 2.5" drives with four available positions depending on your layout. The Ridge also supports fan and liquid AiO coolers, giving you multiple options when outfitting for optimal performance. Internal brackets are big enough to house an SFX or SFX-L power supply, allowing you to scale your energy efficiency to your liking.
In the Box
- Fractal Design Ridge Mini-ITX Small Form Factor Case (White)
- PCIe 4.0 Riser Card
- 8 x Mounting Screw (6-32)
- 8 x Mounting Screw (M3)
- 4 x Power Supply Screw
- 4 x Mounting Screw (M4)
- 12 x Fan Screw
- 8 x Rubber Spacer
- 6 x Cable Tie
- 4 x Cable Strap
- Vertical Stand
- Horizontal Stand
- Limited 2-Year Manufacturer Warranty
- Description
- Unique Adjustable Design
- Front Panel Connectivity
- GPU
- Cooling Support
Fractal Design Ridge Specs
| Motherboard Support |
Mini-ITX
|
| Internal Drive Bays |
4x 2.5"
|
| Expansion Slots |
3x Full Height
|
| Maximum GPU Length |
13.2" / 335 mm
|
| CPU Cooler Height |
2.8" / 70 mm
|
| Fans Included |
Side:
2x 140 mm Non-LED (Unspecified rpm) |
| I/O |
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Windowed Panel |
No
|
| Built-In Lighting |
No
|
| Tool-Less Design |
Thumbscrews
|
| Motherboard Support |
Mini-ITX
|
| External Drive Bays |
No
|
| Internal Drive Bays |
4x 2.5"
|
| Expansion Slots |
3x Full Height
|
| Maximum GPU Length |
13.2" / 335 mm
|
| CPU Cooler Height |
2.8" / 70 mm
|
| Supported PSU Size |
SFX-L
|
| Maximum PSU Length |
4.9" / 125 mm
|
| PSU Mounting Location |
Side
|
| Fan Mounting |
Side:
2x 120/140 mm Top: 3x 80 mm |
| Fans Included |
Side:
2x 140 mm Non-LED (Unspecified rpm) |
| Maximum Radiator Size |
Side:
280 mm |
| Fan Controller Included |
No
|
| I/O |
1x USB-C (USB 3.1/3.2 Gen 2)
2x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Media/Memory Card Slot |
No
|
| Audio I/O |
1x 3.5 mm Input/Output
|
| Display Outputs |
No
|
| Windowed Panel |
No
|
| Color |
White
|
| Material |
Steel
|
| Built-In Lighting |
No
|
| Tool-Less Design |
Thumbscrews
|
| Cable Management Space |
0.5" / 13.8 mm
|
| Dimensions (W x H x D) |
4.3 x 14.7 x 15.6" / 110 x 374 x 395 mm
|
| Weight |
9.5 lb / 4.3 kg
|
| Package Weight |
12.12 lb
|
| Box Dimensions (LxWxH) |
17 x 16.75 x 6.75"
|
