Description
Gigabyte GP-UD850GM Overview
- 1Description
- 280 PLUS Gold Certified
- 3Thermal Conditioning
- 4Protections
- 5Compact Design
Power your next build with the durable and reliable design of the Gigabyte UD850GM 850W 80 PLUS Gold Modular ATX Power Supply. It gives you ample connectivity options, thermal enhancements, and ample electrical protections to empower your high-end components so you can game with peace of mind.
The UD850GM operates on the Intel ATX12V version 2.31 standard, delivering 850W of power via single +12V rail, making this ideal for a wide range of gaming-focused components. Use only the cables you need with the modular design, saving space in your case. Flat low-profile cables make wire management and organization easier, allowing you to easily snake wires through any potentially tight areas. High-quality Japanese capacitors balance and drive power to your components while ensuring up to 90% efficiency at typical load, earning this PSU an 80 PLUS Gold certification.
In the Box

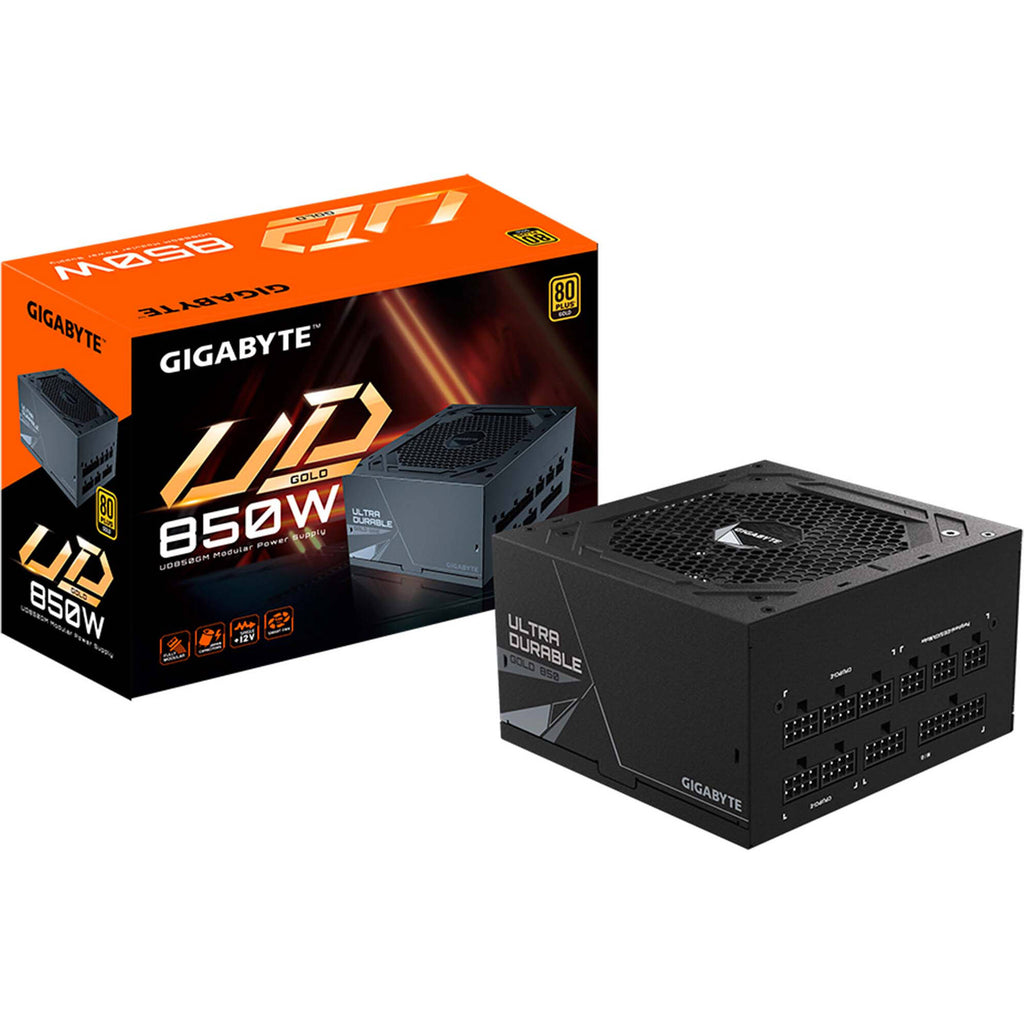

- Gigabyte UD850GM 850W 80 PLUS Gold Modular ATX Power Supply
- Limited 10-Year Manufacturer Warranty
- Description
- 80 PLUS Gold Certified
- Thermal Conditioning
- Protections
- Compact Design
Gigabyte GP-UD850GM Specs
| Total Connectors | 1 x 20+4-Pin ATX Motherboard 2 x 4+4-Pin EPS CPU 4 x 6+2-Pin PCIe 8 x 15-Pin SATA 3 x 4-Pin Peripheral / Molex 1 x 4-Pin Floppy |
| Cable Design | Flat, Modular |
| PCIe Connector Distances | 23.6" / 600 mm 5.9" / 150 mm |
| SATA Connector Distances | 23.6" / 600 mm 5.9" / 150 mm 5.9" / 150 mm 5.9" / 150 mm |
| Peripheral Connector Distances | 19.7" / 500 mm 4.7" / 120 mm 4.7" / 120 mm |
| Floppy Connector Distances | 5.9" / 150 mm |
| ATX Connector Distance | 24" / 610 mm |
| EPS Connector Distances | 23.6" / 600 mm |
| Total Wattage | 850 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 850 W |
| Max Load for +12 V | 70.8 A |
| Combined Power for +3.3/+5 V | 105 W |
| Max Load for +3.3 V | 20 A |
| Max Load for +5 V | 20 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 3 A |
| Max Power for -12 V | 3.6 W |
| Max Load for -12 V | 0.3 A |
| Peak Power | 850 W |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz at 12 to 6 A |
| Efficiency Rating | 80 PLUS Gold |
| Active Power Factor Correction | None |
| Efficiency | 90% |
| Hold up Time | 16 ms |
| Power-Good Signal | 100 to 150 ms |
| Fan Size | 120 mm |
| Bearing Type | Hydraulic |
| Form Factor | ATX |
| Compliance | ATX 12 V v2.31 |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Mean Time Between Failures (MTBF) | 100,000 Hours |
| Dimensions | 5.9 x 3.4 x 5.5" / 150 x 86 x 140 mm |
| Package Weight | 5.73 lb |
| Box Dimensions (LxWxH) | 10 x 8.2 x 4.7" |
