Description
Lian Li Edge Overview
For users who prioritize clean aesthetics, convenience, and airflow, this black L-shaped Lian Li Edge Series 1300W 80 Plus Platinum Modular ATX Power Supply is an ideal solution. Sporting a built-in USB hub, this PSU enables optimized cabling for dual-chamber PC cases so users can showcase high-end components while enhancing airflow.
Connectivity

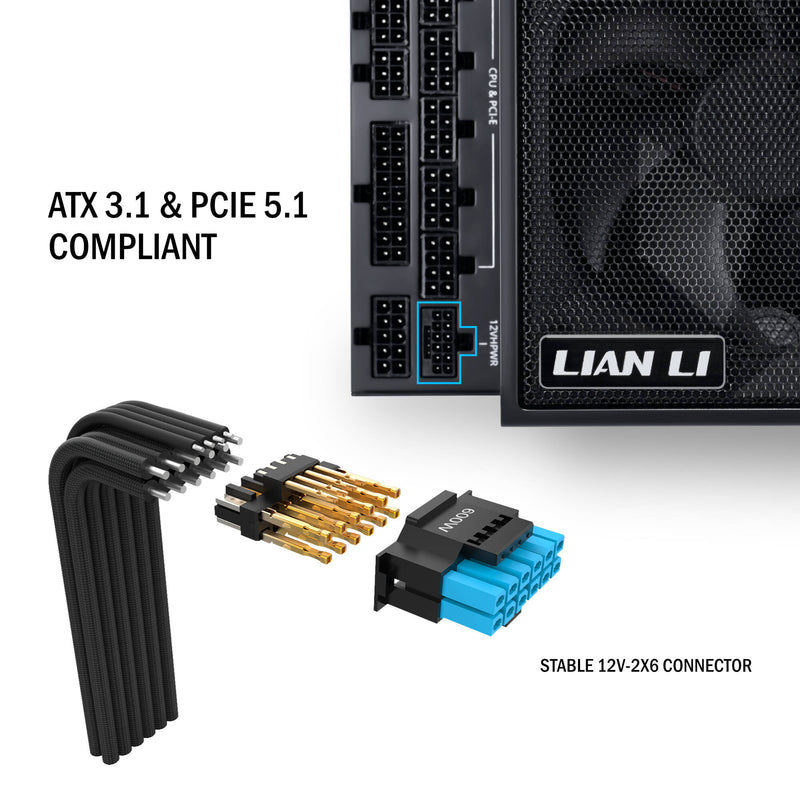

The Edge features a single +12V 1300W rail, meeting ATX 3.1 motherboard compliance to efficiently operate your resource-demanding components. It features a multitude of connectors to suit your needs, such as a 20+4 pin, a 4+4 pin, and 8 pin motherboard connectors, alongside 4 PCIe connectors, 14 SATA connectors, one peripheral cable, a 9-pin USB cable, and a USB-A to 9-pin cable. It includes one 16-pin 12VHPWR for high-powered NVIDIA 40 series graphics cards, as well as an additional 12VHPWR 8-pin cable for dual GPU configurations.
Modular & Clutter-free
Say goodbye to messy power supply cables. The Edge Series features a fully modular design, so users can leave out unnecessary cables. Its unique L-shape connector strip enables convenient cabling in the back of dual-chamber vertical PC cases, such as the Lian Li O11, meaning improved airflow and clutter-free component aesthetics.
USB Expansion
Connect UNI fans, Strimer Plus, RGB controllers, and more directly to the Edge Series. This PSU delivers uninterrupted power to four built-in USB ports. Each port provides up to 500mA for internal accessories expansion, supporting up to seven simultaneous devices when used with separately purchased 1-to-2 USB splitter cables.
Premium Cabling
Included with this Edge Series PSU are flexible braided sleeved cables and adjustable cable combs to maintain a clutter-free build. Each cable features custom dual color PCIe 5.1 connector shells for secure connections, gold plating, soldered wire terminal connections, and .25mm copper thickness to mitigate short circuits, enhance current stability, and reduce contact resistance for long-term stability.
Cool and Quiet
The power supply comes equipped with a 120mm cooling fan within its steel chassis. Combined with an open mesh design, the fan operates at a maximum of 2000 rpm while producing up to 26 dBA acoustic noise to quietly dissipate heat from internal components even under heavy load.
Efficient and Stable Operation
The Edge Series is backed by the 80 PLUS Platinum rating, ensuring optimal power efficiency. It features the German EPCOS capacitors, LLC topology, and Active PFC, for further efficiency and heat reduction.
UPC: 840353046160
Items Included
- Lian Li Edge Series 1300W 80 Plus Platinum Modular ATX Power Supply (Black)
- 20+4 Pin Motherboard Cable
- 8 Pin CPU Power Cable
- 4+4 Pin CPU Power Cable
- 4 x 6+2 Pin PCIe Power Cable
- 12V-2×6 12VHPWR Cable
- 12VHPWR 8-Pin Cable
- 2 x SATA Cable
- 4x4 Pin Peripheral Cable
- USB 9 Pin Cable
- USB 9-Pin to USB-A Cable
- I/O Shield
- AC Power Cord
- Limited 10-Year Manufacturer Warranty
Additional Resources
Lian Li Edge Specs
Key Specs
| Total Connectors |
1x 20+4-Pin ATX Motherboard
1x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 2x 6+2-Pin PCIe 4x 4-Pin Peripheral / Molex 8x 15-Pin SATA |
| Cable Design |
Modular
|
| Total Wattage |
1300 W
|
| Number of +12 V Rails |
1
|
| Efficiency Rating |
80 PLUS Platinum
|
| Form Factor |
ATX
|
Connectivity
| Total Connectors |
1x 20+4-Pin ATX Motherboard
1x 4+4-Pin EPS CPU 1x 16-Pin PCIe (12VHPWR) 2x 6+2-Pin PCIe 4x 4-Pin Peripheral / Molex 8x 15-Pin SATA |
| Cable Design |
Modular
|
| PCIe Connector Distances |
21.7" / 550 mm
|
| SATA Connector Distances |
11.8" / 300 mm
12.4" / 315 mm 13" / 330 mm 13.6" / 345 mm 14.2" / 360 mm 15.7" / 400 mm 20.7" / 525 mm 21.7" / 550 mm 27.6" / 700 mm 33.5" / 850 mm |
| Peripheral Connector Distances |
19.7" / 500 mm
25.6" / 650 mm 31.5" / 800 mm 37.4" / 950 mm |
| ATX Connector Distance |
21.7" / 550 mm
|
| EPS Connector Distances |
19.7" / 500 mm
|
Electrical
| Total Wattage |
1300 W
|
| Number of +12 V Rails |
1
|
| Combined Power for +12 V |
1296 W
|
| Combined Power for +3.3/+5 V |
120 W
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
General
| Efficiency Rating |
80 PLUS Platinum
|
| Active Power Factor Correction |
No
|
Cooling
| Fan Size |
120 mm
|
| Bearing Type |
Fluid Dynamic Bearings (FDB)
|
| Noise Level |
33.6 dBA
|
Physical
| Form Factor |
ATX
|
| Compliance |
ATX v3.1
|
| Protection |
No Load Operation, Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Surge and Inrush Protection, Under-Voltage Protection
|
| Certifications |
CE, FCC, CCC, UKCA, EAC, ICES
|
| Dimensions |
7.2 x 5.9" / 182 x 150 mm
|
Packaging Info
| Package Weight |
8.62 lb
|
| Box Dimensions (LxWxH) |
16.7 x 8.2 x 5.3"
|
