Description
MSI MAG PANO M100R PZ Overview

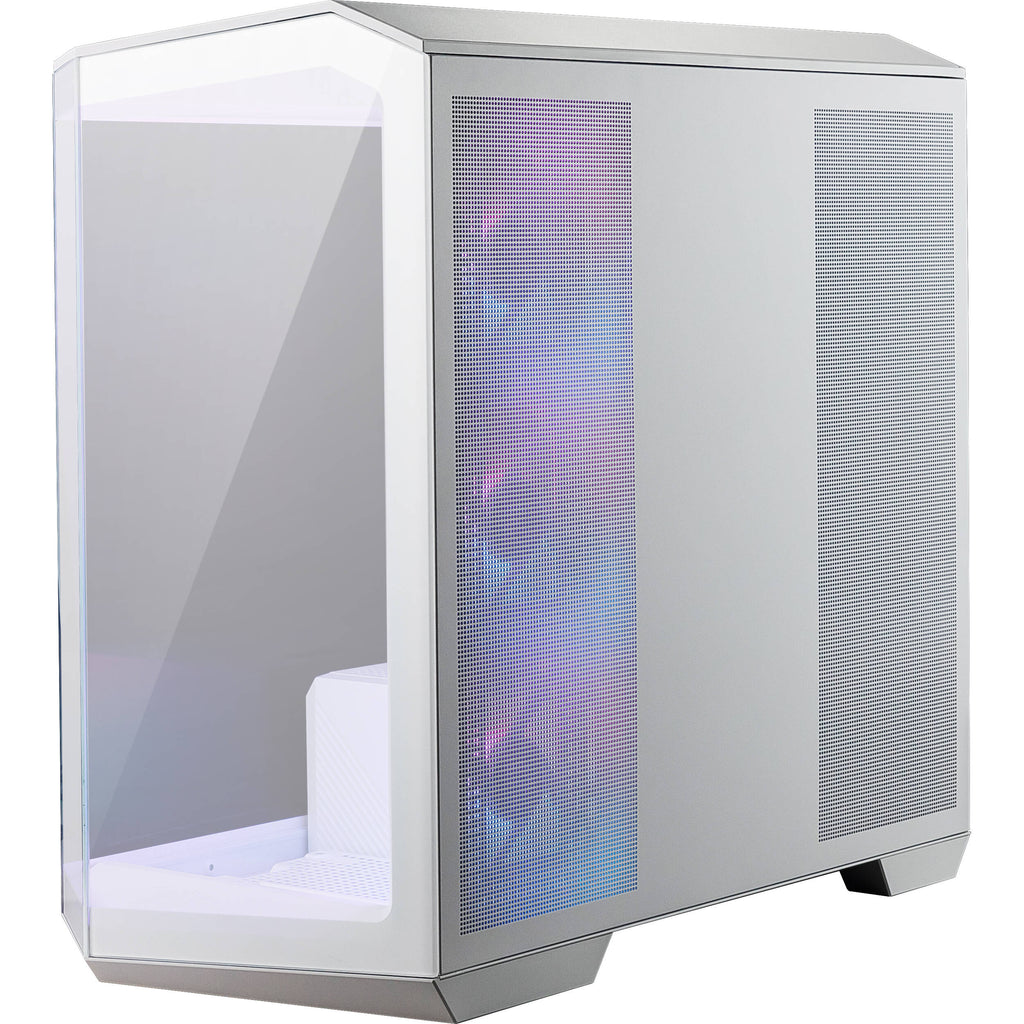

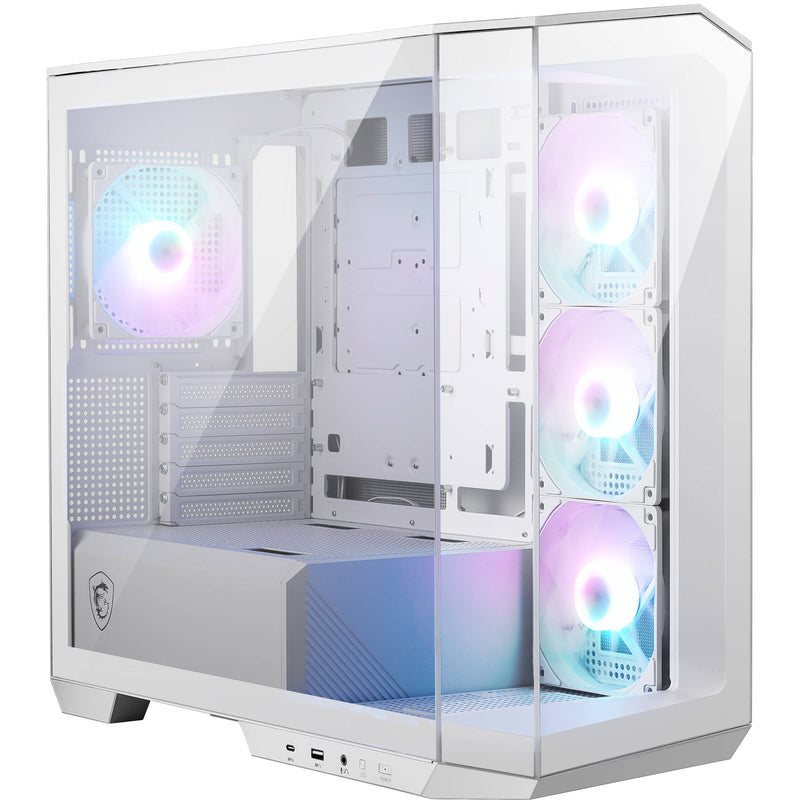

Designed to support back-connect micro-ATX and mini-ITX motherboards, the white MAG PANO M100R PZ Mid-Tower Computer Case from MSI allows you to move the power, fan, or IO cables out of view while providing easy access to the headers. Complementing this design is a 270° panoramic tempered glass panel that turns this chassis into a showcase for your internal components and figurines.

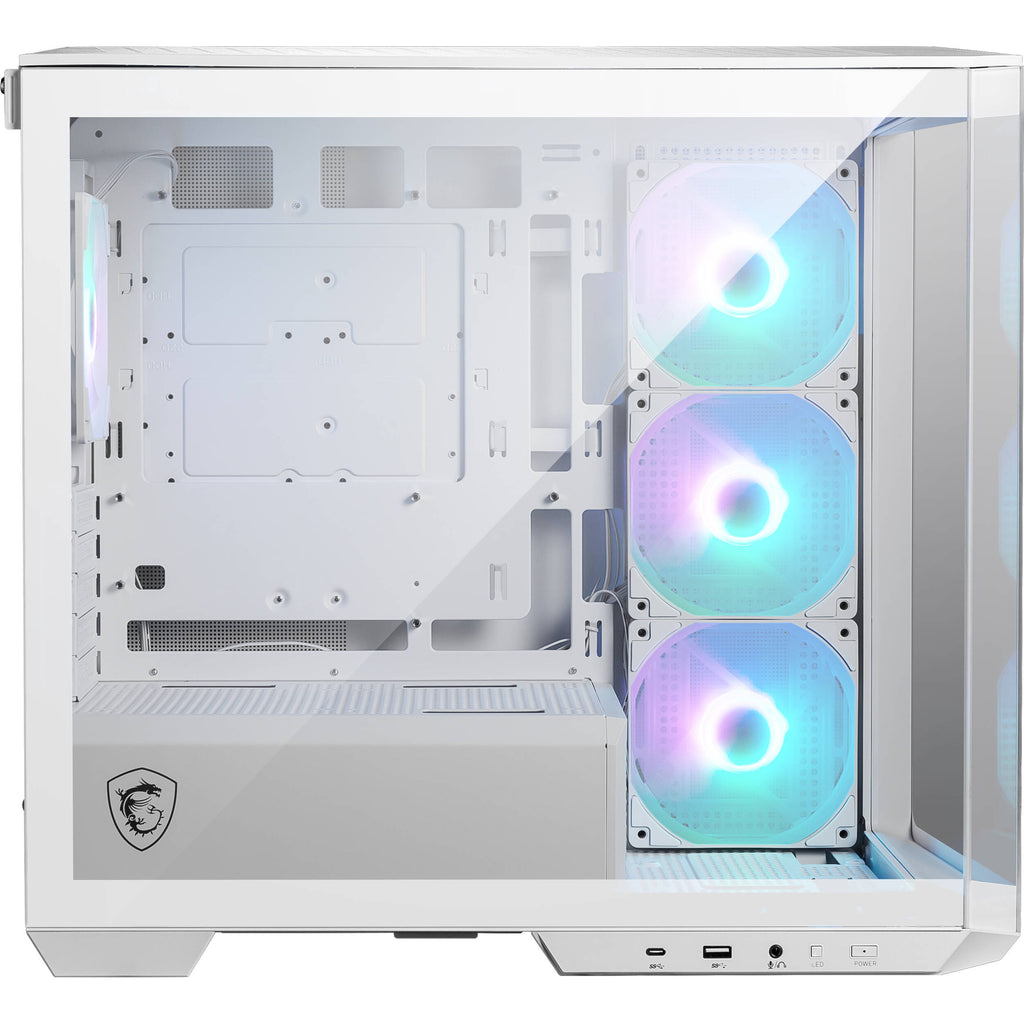

Three reverse blade 120mm ARGB side fans and one rear fan deliver efficient airflow while delivering an unobstructed view of the interior. Five expansion slots are available, and a support stand allows you to securely install up to a 390mm long graphics card. In addition to having a 2.5"/3.5" drive bay, a combo bay allows you to install either two 2.5" drives or one 3.5" and one 2.5" drive. A high-speed USB-C 3.2 2x2 port and one USB-A 3.1 Gen 1 port are located on the bottom of the side panel alongside a 3.5mm audio jack.
In the Box
- MSI MAG PANO M100R PZ Mid-Tower Computer Case (White)
- Limited 2-Year Manufacturer Warranty
Additional Resources
MSI MAG PANO M100R PZSpecs
| Motherboard Support |
Micro-ATX, Mini-ITX
|
| Internal Drive Bays |
1x 2.5/3.5"
and 2x 2.5" or 1x 2.5" and 1x 3.5" |
| Expansion Slots |
5x Full Height
|
| Maximum GPU Length |
15.4" / 390 mm
|
| CPU Cooler Height |
6.9" / 175 mm
|
| Fans Included |
Side:
3x 120 mm LED (Unspecified rpm) Rear: 1x 120 mm LED (Unspecified rpm) |
| I/O |
1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Windowed Panel |
Yes
|
| Built-In Lighting |
No
|
| Motherboard Support |
Micro-ATX, Mini-ITX
|
| External Drive Bays |
No
|
| Internal Drive Bays |
1x 2.5/3.5"
and 2x 2.5" or 1x 2.5" and 1x 3.5" |
| Expansion Slots |
5x Full Height
|
| Maximum GPU Length |
15.4" / 390 mm
|
| CPU Cooler Height |
6.9" / 175 mm
|
| Supported PSU Size |
ATX
|
| Maximum PSU Length |
7.9" / 200 mm
|
| PSU Mounting Location |
Bottom
|
| Fan Mounting |
Top
3x 120 mm or 2x 140 mm Rear 1x 120 mm or 1x 140 mm Side 3x 120 mm Bottom 1x 120 mm Internal 2x 120 mm |
| Fans Included |
Side:
3x 120 mm LED (Unspecified rpm) Rear: 1x 120 mm LED (Unspecified rpm) |
| Maximum Radiator Size |
Top:
360 mm Rear: 140 mm |
| Fan Controller Included |
Yes
|
| I/O |
1x USB-C (USB 3.2 Gen 2x2)
1x USB-A (USB 3.0 / 3.1/3.2 Gen 1) |
| Media/Memory Card Slot |
No
|
| Audio I/O |
1x 3.5 mm Input/Output
|
| Display Outputs |
No
|
| Windowed Panel |
Yes
|
| Color |
White
|
| Built-In Lighting |
No
|
| Security |
No
|
| Cable Management Space |
No
|
| Dimensions (W x H x D) |
9.3 x 15.9 x 17.3" / 235 x 405 x 440 mm
|
| Package Weight |
24.78 lb
|
| Box Dimensions (LxWxH) |
24 x 21.5 x 13.75"
|
