Provided by third party: Built to deliver long lifespan performance for the latest in embedded, industrial, and security applications, Supermicro uni-processor 1U rack servers and the newest Intel Xeon E3-1200 v5 family processors enable the best performance and efficiency available, with the highest levels of quality and reliability.
In the Box

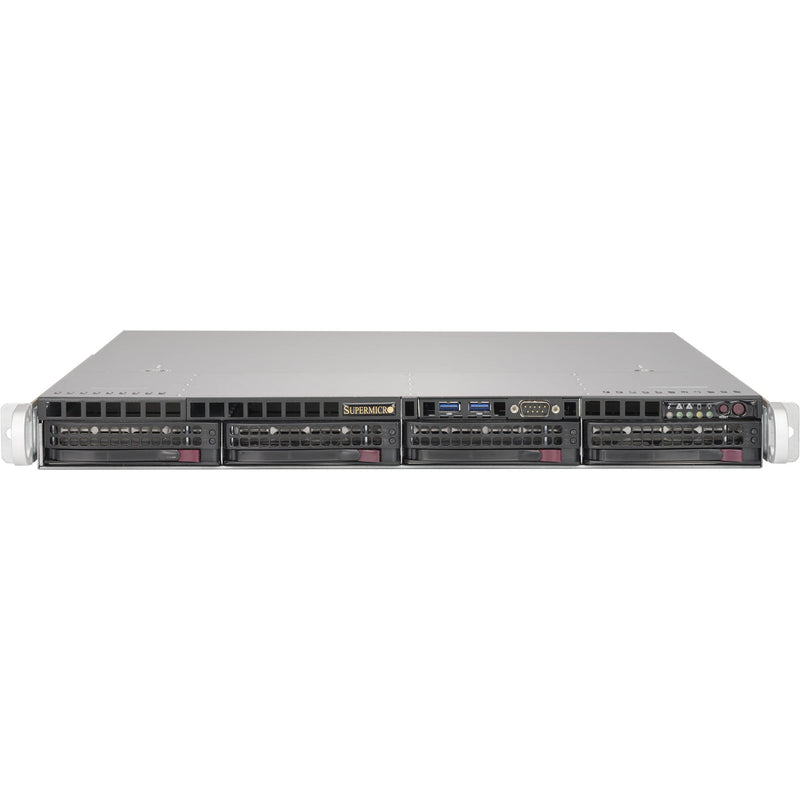

Supermicro 5019S-M 4-Bay 3.5" Hot-Swap SATA III RAID SuperServer (1 RU)
- SuperServer 5019S-M (Black)

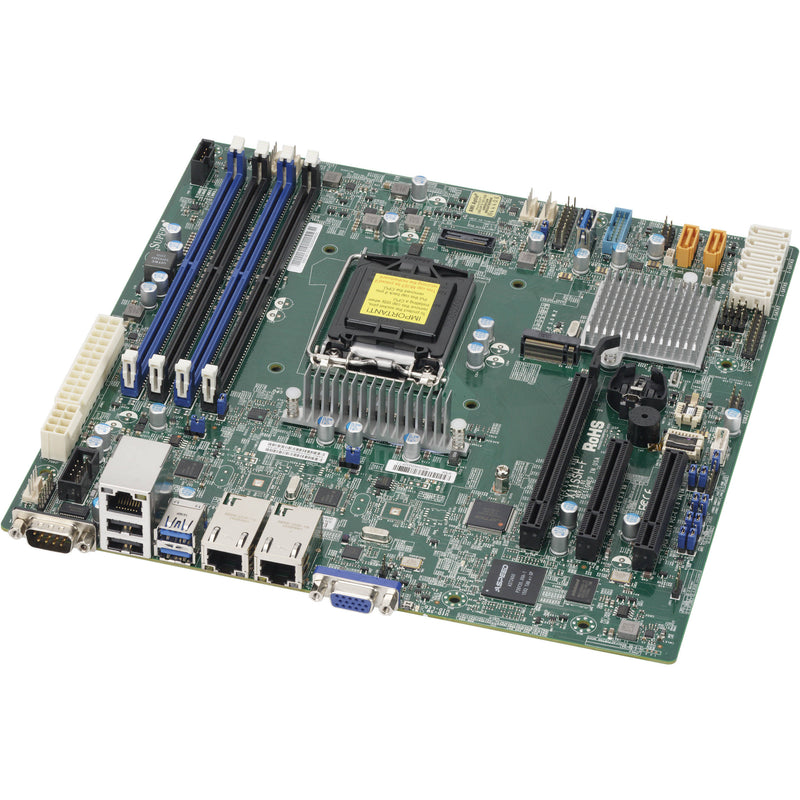

- 1 x Super X11SSH-F Motherboard
- 1 x 1U Chassis
- 1 x SC811/SC512L/SC512F/SC813M/SC113M/SC513L-410B/SC513L-420B/SC513F, UP X9SRE/I, X9 Mylar Air Shroud, 12"x9.6" MB
- 1 x 1U 4-Port 12Gbps Backplane Support 4x3.5\" SAS/SAS HDD/SSD
- 1 x 8 pin to 8 pin round SGPIO cable, 40cm, 28AWG, pinout 1-1,RoHS/REACH
- 1 x SET OF 4 SATA 56/45.5/35/23CM ROUND S-RA. 26AWG
- 1 x Riser card bracket for SC812,813,813M,815,111,113,113M
- 1 x Black 2x USB3.0/COM port tray in slim FDD bay
- 1 x 5019S-M/MR,QRG,HF,RoHS/REACH
- 1 x RSC-RR1U-E16 with PCI-E x16 output
- 1 x 1U PASSIVE CPU HS FOR INTEL LGA1156
- 1 x 1U Single AC-DC 350W Platinum Level, multiple output power supply
- 3 Year Limited Warranty
| Processor & Chipset |
| Number of Processors Supported | 1 |
| Processor Socket | Socket H4 LGA-1151 |
| Processor Supported | Core i3
Xeon |
| 64-bit Processing | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C236 |
| Memory |
| Maximum Memory | 64 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2133/PC4-17000 |
| Number of Total Memory Slots | 4 |
| Controllers |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| Display & Graphics |
| Graphics Controller Manufacturer | ASPEED |
| Graphics Controller Model | AST2400 |
| I/O Expansions |
| Number of Total Expansion Bays | 4 |
| Number of 3.5" Bays | 4 |
| Number of Total Expansion Slots | 2 |
| Number of PCI Express x8 Slots | 1 |
| Interfaces/Ports |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 2 |
| Number of SATA Interfaces | 4 |
| Power Description |
| Input Voltage | 120 V AC
230 V AC |
| Number of Power Supplies Installed | 1 |
| Maximum Power Supply Wattage | 350 W |
| Physical Characteristics |
| Color | Black |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 19.8" |
| Weight (Approximate) | 30.42 lb |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
