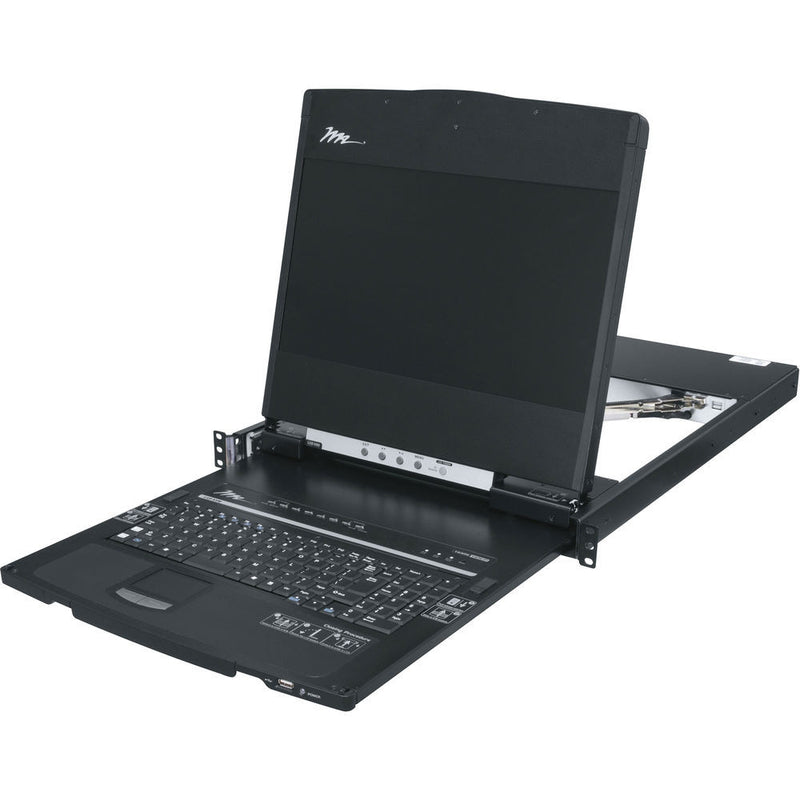

Provided by third party: High-definition rackmount consoles are designed for the needs of the AV system, with a digital platform that maintains complete digital signal integrity. This results in data that remains intact between source and display with no compatibility issues and no need for specialty cabling or accessories. Supporting a broad range of applications, rackmount consoles are ideal whenever rackmount control and system monitoring is required.
- Key Features
-
- High-definition, widescreen display
- Designed for digital video, featuring an HDMI digital platform
- No special cables required
- IP-enabled for remote monitoring and management
- Compact design
- Dual rail design allows monitor to reside in open position for system monitoring while keyboard is recessed
- Fast one-person installation with quick-install rails
| General |
| Display Type | KVM console |
| Diagonal Size | 17.3" |
| Aspect Ratio | Widescreen |
| Native Resolution | 1900 x 1080 at 60 Hz |
| Color | Black |
| Dimensions (WxDxH) | 16.1 in x 25.2 in x 1.7 in |
| Input |
| Type | Keyboard, touchpad |
| KVM |
| Type | KVM switch - 8 ports |
| Features | IP-based user connection, user access management, broadcast mode |
| Miscellaneous |
| Features | HDCP Compliant |
| Compliant Standards | ISO 9001, ICES-003, UL 60950, ISO 14001, EMC, FCC Part 15, RoHS, UL 60950-1, 128 bit SSL, RSA-1024, RoHS 2011/65/EU, EMC 2004/108/EC, RoHS 2002/95/EC, EMC 2014/30/EU |
| Power |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 19.4 Watt |
| Software / System Requirements |
| OS Required | Microsoft Windows NT, Apple MacOS 9.0 or later, IBM AIX 4.3 or later, Novell NetWare 5.0 or later, SunSoft Solaris 8 or later, Mandrake Linux 9.0 or later, Microsoft DOS 6.2 or later, SuSE Linux 10.0 or later, Red Hat Linux 9.0 or later, FreeBSD 5.5 or later |
