| ₹ 164.73 includes GST and import duties. | |
| B2B customers can avail ₹ 25.12 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

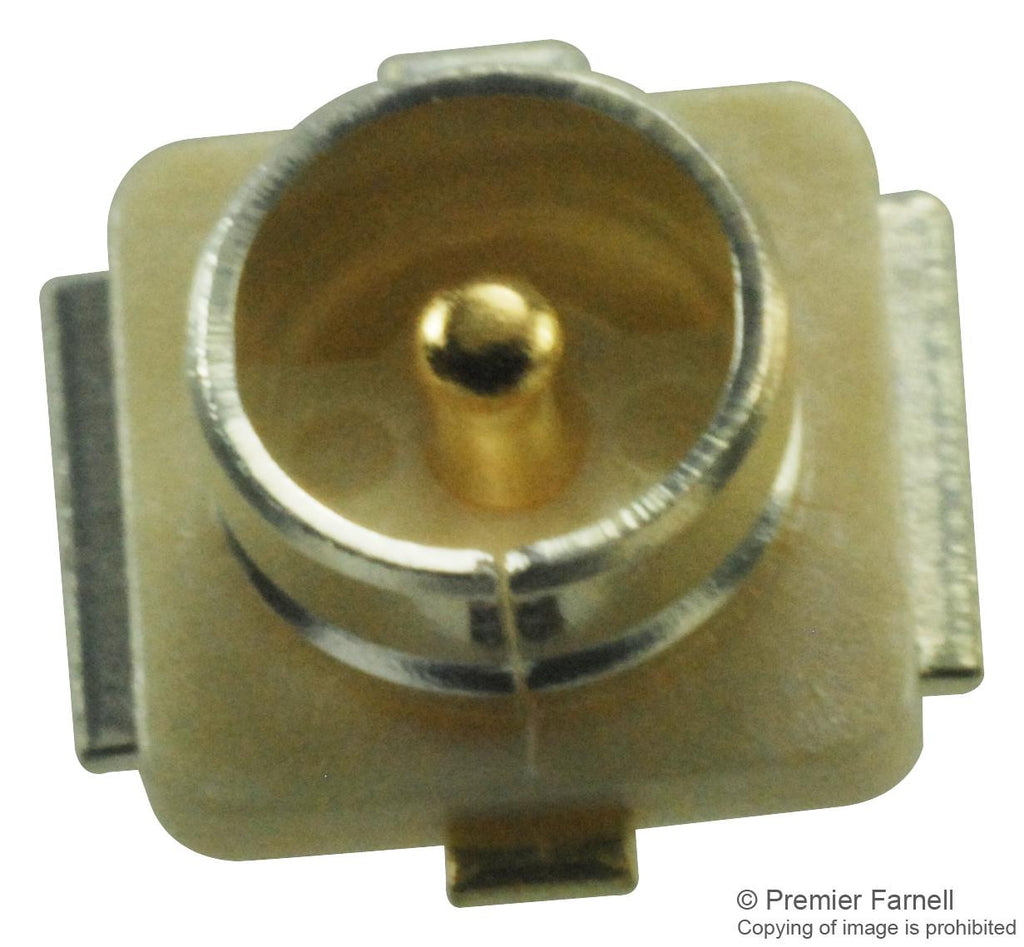

The U. FL-R-SMT(01) from Hirose is a straight ultra-miniature SMT coaxial receptacle. These connectors offer high frequency performance from DC to 6GHz to meet the frequency requirements of a wide variety of miniature equipments.
- Phosphor bronze with gold plated contacts
- LCP insulator
- VSWR of 1.3max at 0 to 3GHz
- Operating temperature range from -40°C to 90°C
- Silver plating shell
- Extraction jig permits simple removal of connectors
Applications
Industrial, RF Communications, Communications & Networking
Product details
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold Plated Contacts |
| Connector Type | U.FL Coaxial |
| Coaxial Termination | Solder |
| Connector Mounting | PCB Mount |
| Connector Body Style | Straight Jack |
| Coaxial Cable Types | - |
| Impedance | 50ohm |
| Product Range | - |
| Frequency Max | 6GHz |
Other details
| Brand | HIROSE(HRS) |
| Part Number | U.FL-R-SMT(01) |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 161.44 |
| 3-5 | ₹ 159.79 |
| 5-10 | ₹ 156.49 |
| 10+ | ₹ 153.2 |
Bulk discount will be automatically applied during checkout based on quantity.
