Description

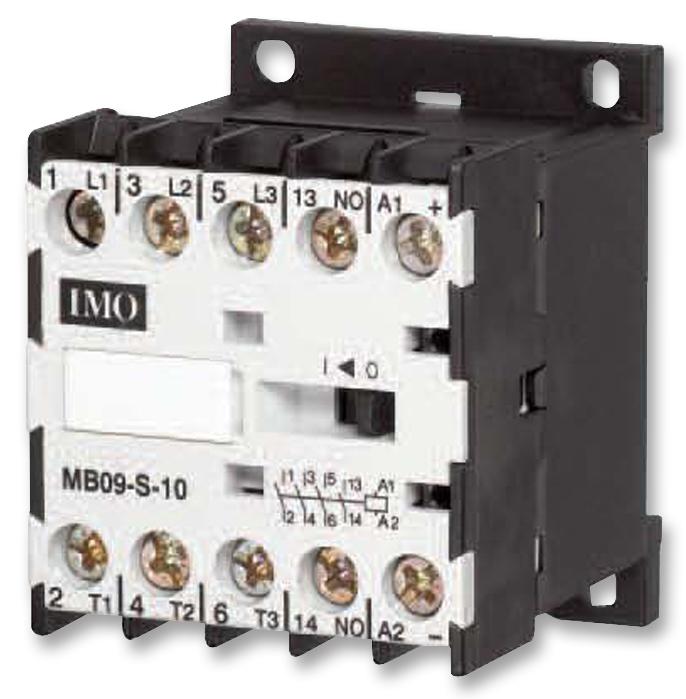

The MB12-S-10230 is a 3 main + 1 make auxiliary Mini Contactor with DIN mounting screw terminals.
- Long life
- Finger touch protection
- Twin bifurcated auxiliary contacts
- Designed to EN 60947-4-1
Industrial
Product details
| Load Current Inductive | 12A |
| Relay Mounting | DIN Rail |
| Operating Voltage | 690VAC |
| Contact Configuration | 3NO / 1NO |
| No. of Poles | 4 Pole |
| Switching Power AC3 | 5.5kW |
| Switching Current AC1 | 20A |
| Coil Voltage VAC Nom | 230V |
| Coil Voltage VDC Nom | - |
| Switching Power AC1 | 5.5kW |
| Load Current Resistive | 20A |
| Switching Current AC3 | 12A |
| Product Range | - |
Other details
| Brand | IMO PRECISION CONTROLS |
| Part Number | MB12-S-10230 |
| Quantity | Each |
| Technical Data Sheet EN |  |
