Description
American DJ ULTRA LB18 Overview

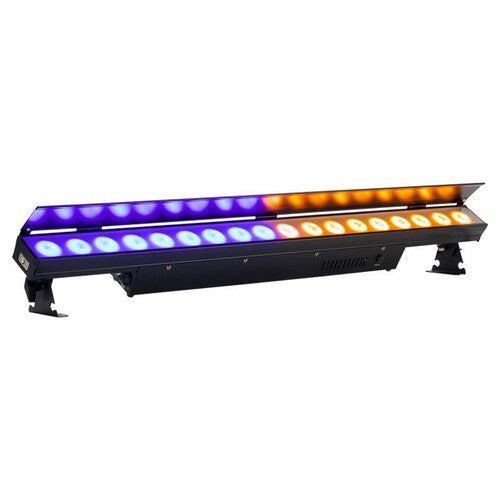

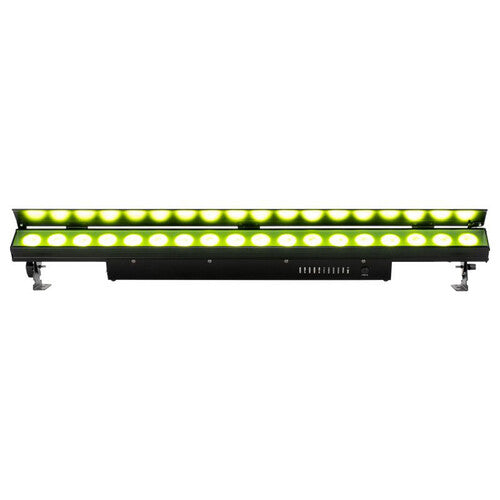

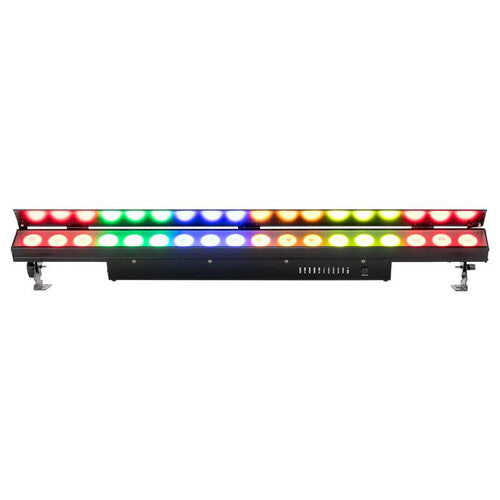

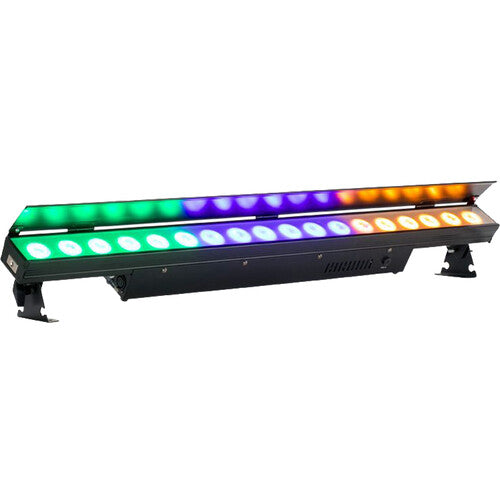

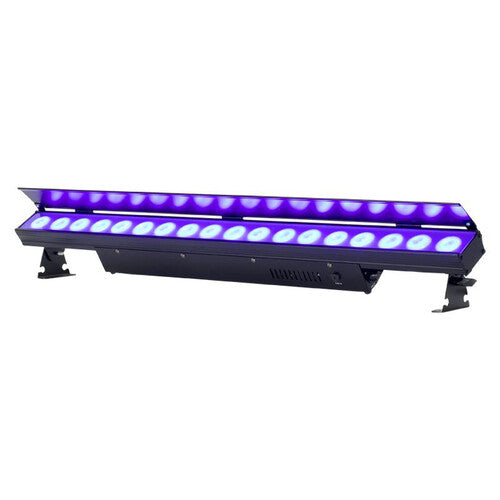

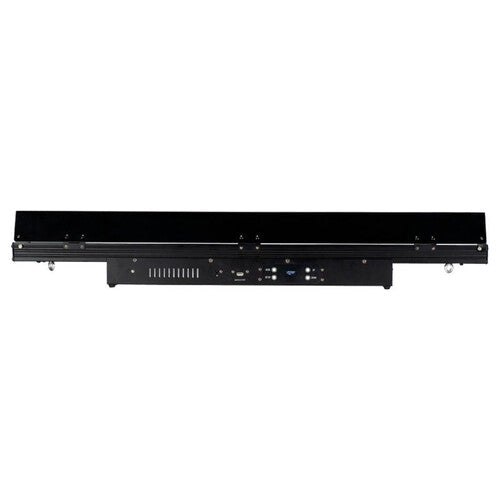

Lighting designers in need of a bright, linear LED light strip should check out the American DJ Ultra LB18, a 40" versatile LED linear fixture that has 18 x 10W, 5-in-1 HEX LEDs (RGBA+Lime). The 17x40° beam angle makes it especially useful for wide washes and its dual mounting brackets also function as floor stands, making it ideal for uplighting applications. A glare shield is provided to block the LEDs from glare/view while offering protection during transport.
The fixture utilizes American DJ's patent-pending Quick Align system features end-locking magnets, enabling multiple HEX bars to be easily linked end-to-end for seamless output with no breaks of color. You can daisy-chain up to 12 units together via the fixture's built-in IEC in/out power connectors (120V). The Ultra LB18 includes the American DJ UC IR, an easy-to-use wireless infrared remote. Alternatively, the fixture may be operated via a DMX controller or the unit's built-in programs. A power cable and two mounting brackets are also included.
- 18 x 10W ultrabright (Red, Green, Blue, Amber & Lime) LEDs
- Long Life LEDs (rated at approximately 50,000 hr)
- 17x40 degree beam angle
- >90 CRI
- Linear color temperature control (2300 to 9900K)
- Smooth RGBAL color mixing
- Horizontal magnetic alignment feature (built In)
- Includes with the ADJ UC IR remote. Operates at a distance of up to 32.8 feet
- Glare shield that blocks the LEDs from glare/view and protects LEDs during transport
- USB service port
- Linkable: DMX via 5-pin XLR cable
- Locking power In/Out to daisy chain power
- Daisy-chain power link (up to 12 Ultra LB18s can be linked at 120V and up to 25 Ultra LB18s can be linked at 240V)
- Digital display with 4-button menu
- 11 DMX channel modes: 5, 8, 10, 13, 16, 30, 33, 38, 41, 60, and 71 channels
- 6 groups of three RGBAL LED pixels controllable via DMX in 30, 33, 38, 41, 60, and 71 channel modes
- 6 operational modes: Auto Run, Program mode, Sound trigger, RGBAL manual, Static color, and DMX-512 mode
- Flicker-free operation (no flickering on camera)
- Selectable refresh rates from 2.88 to 25 kHz
- 64 built-in color macros, including 15 white color temperature presets
- 6 selectable dim modes (Standard, Stage, TV, Architectural, Theatre, and Stage 2)
- 4 selectable dim curves (Square, Linear, Inv. Square, and S. Curve)
- Built-in microphone for sound trigger mode
- LED pulse and strobe effect
- Electronic dimming: 0-100
In the Box
- American DJ ULTRA LB18 5-in-1 Color Mixing LED Linear Fixture
- Power Cable
- Glare Shield
- UC IR Remote Control
- Limited 2-Year Manufacturer Warranty
American DJ ULTRA LB18 Specs
| Fixture Type | Linear/Bar Light |
| Light Source | 18 x Color LED - 10 W |
| Expected Lamp Life | 50,000 Hours |
| Colors | Red, Green, Blue, Amber, Lime |
| Pixel Configuration | 6 x Zones |
| Color Temperature | 2300 to 9900K |
| Beam Angle | 17 x 40° |
| Shutter / Strobe | Electronic |
| Dimming | Electronic, 0 to 100% with 6 Dimmer Modes |
| Operating Modes | Automatic, DMX, Program, Sound-Active, Standalone, Static Color |
| Macros / Programs | 63 x Color Macro |
| Effects | Strobe |
| Gobos | None |
| Refresh Rate | 2.88 kHz to 25 kHz (Adjustable) |
| Control Protocols | DMX512, Internal |
| DMX Channel Modes | 11 Mode(s): 5 / 8 / 10 / 13 / 16 / 30 / 33 / 38 / 41 / 60 / 71-Channel |
| Display / Controls | LCD / 4-Button |
| Remote Control | RF Remote (with Included Equipment) |
| Mobile App Compatible | No |
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
| Wireless Range | 32.8' / 10 m (with Optional Equipment) |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x IEC Output: 1 x IEC |
| Power / Current Consumption | 130 W |
| Power Linking | 12 Units at 120 VAC 25 Units at 240 VAC |
| Environmental Protection | None |
| Mounting | Mounting Bracket |
| Included Accessories | 1 x Power Cable 1 x Barn Doors 1 x Controller |
| Duty Cycle | None |
| Exterior Color | Black |
| Dimensions | 39.3 x 7.42 x 3.39" / 99.8 x 18.85 x 8.61 cm |
| Weight | 12.1 lb / 5.5 kg |
| Package Weight | 13.5 lb |
| Box Dimensions (LxWxH) | 41.5 x 7.5 x 5.5" |
