Description

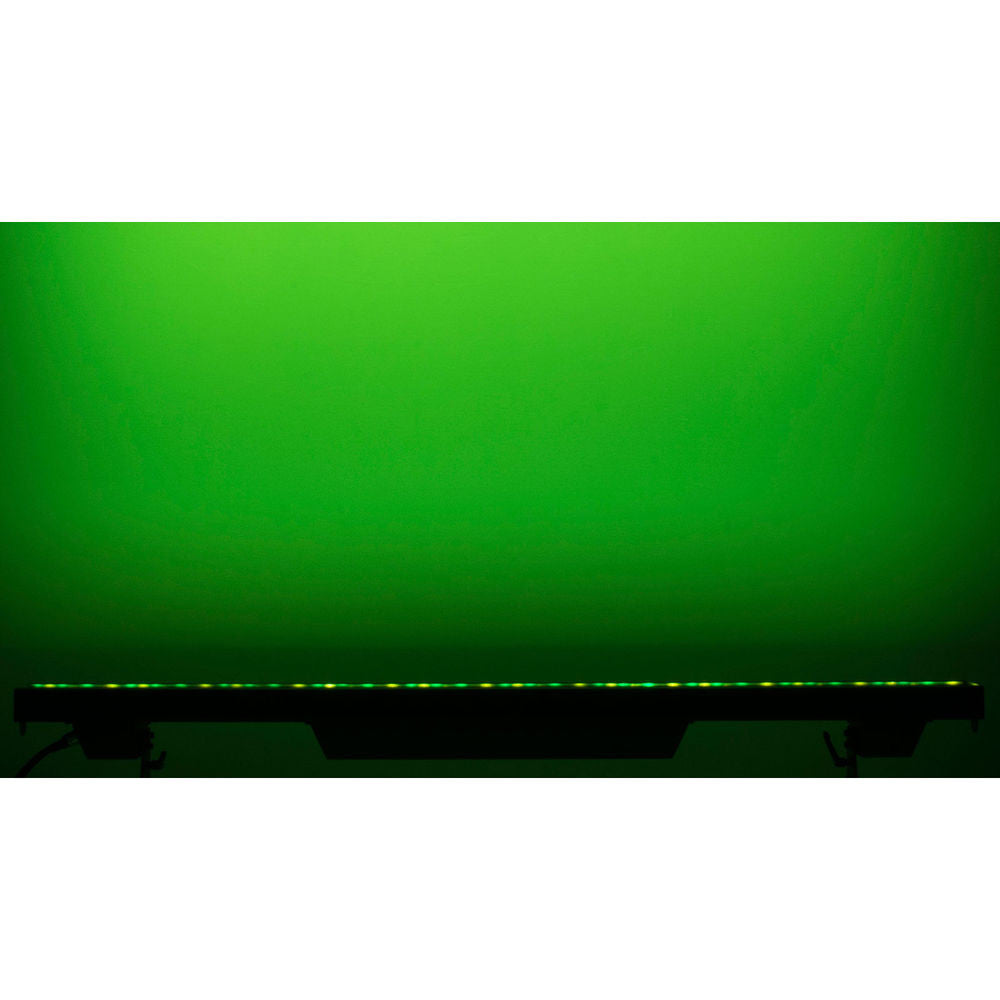

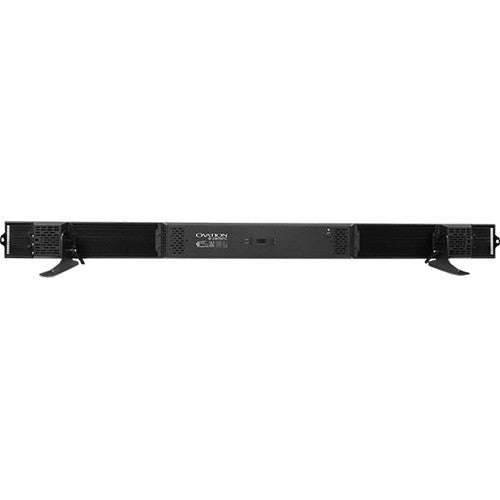

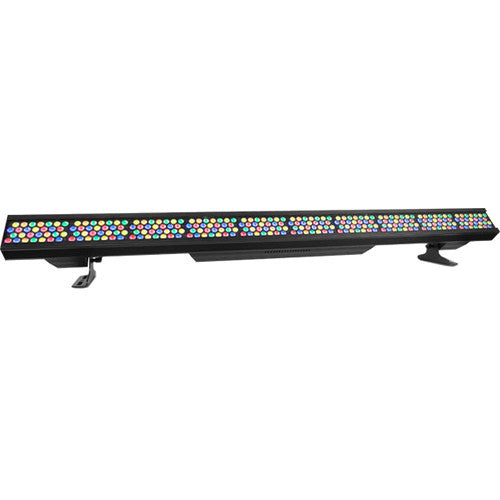

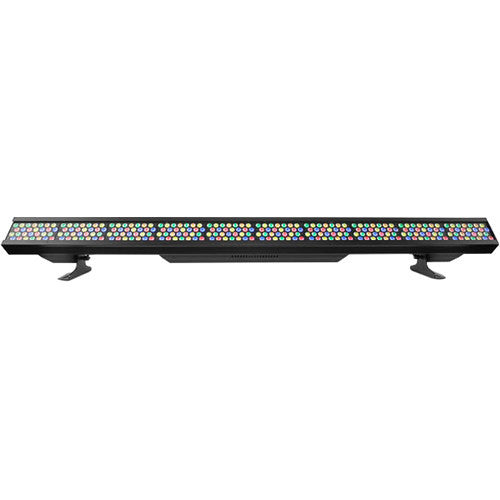

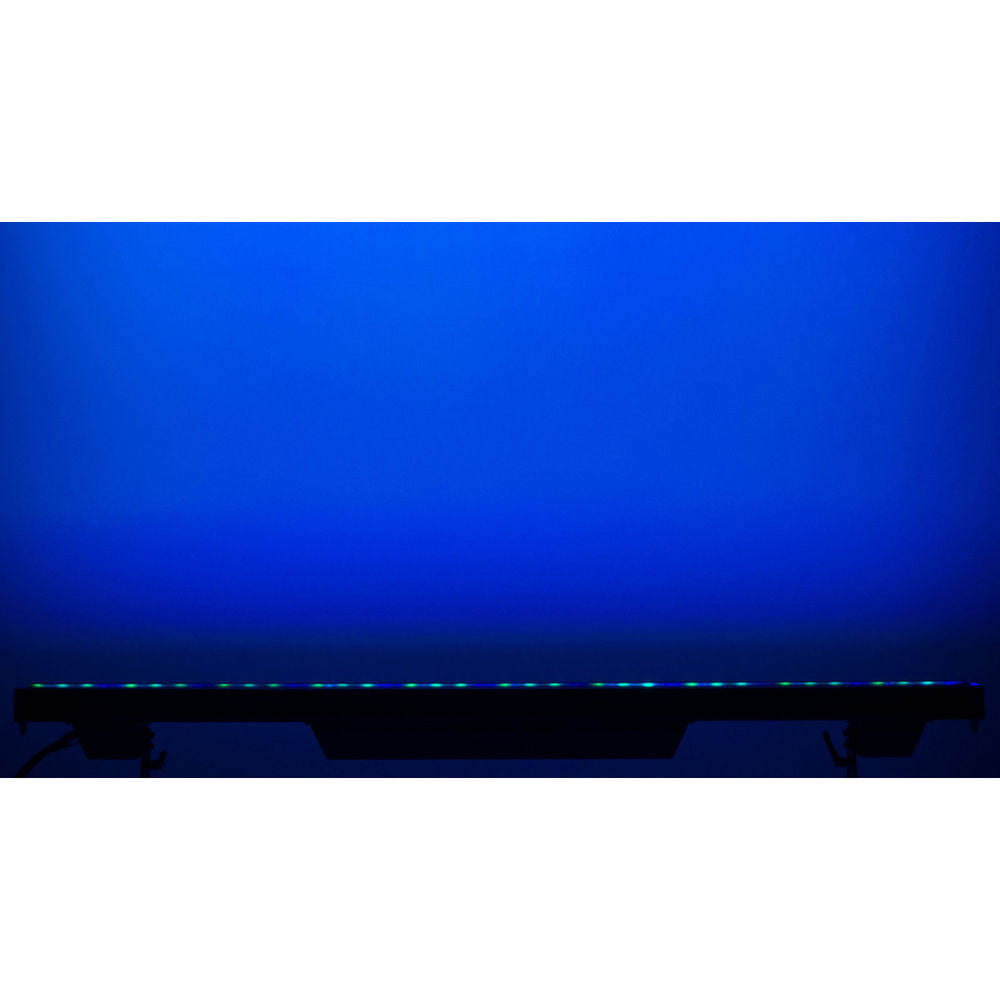

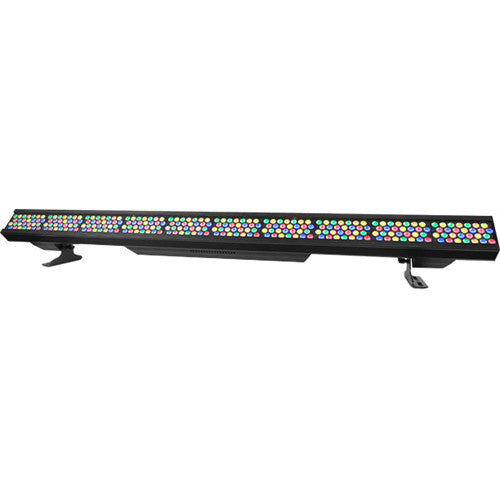

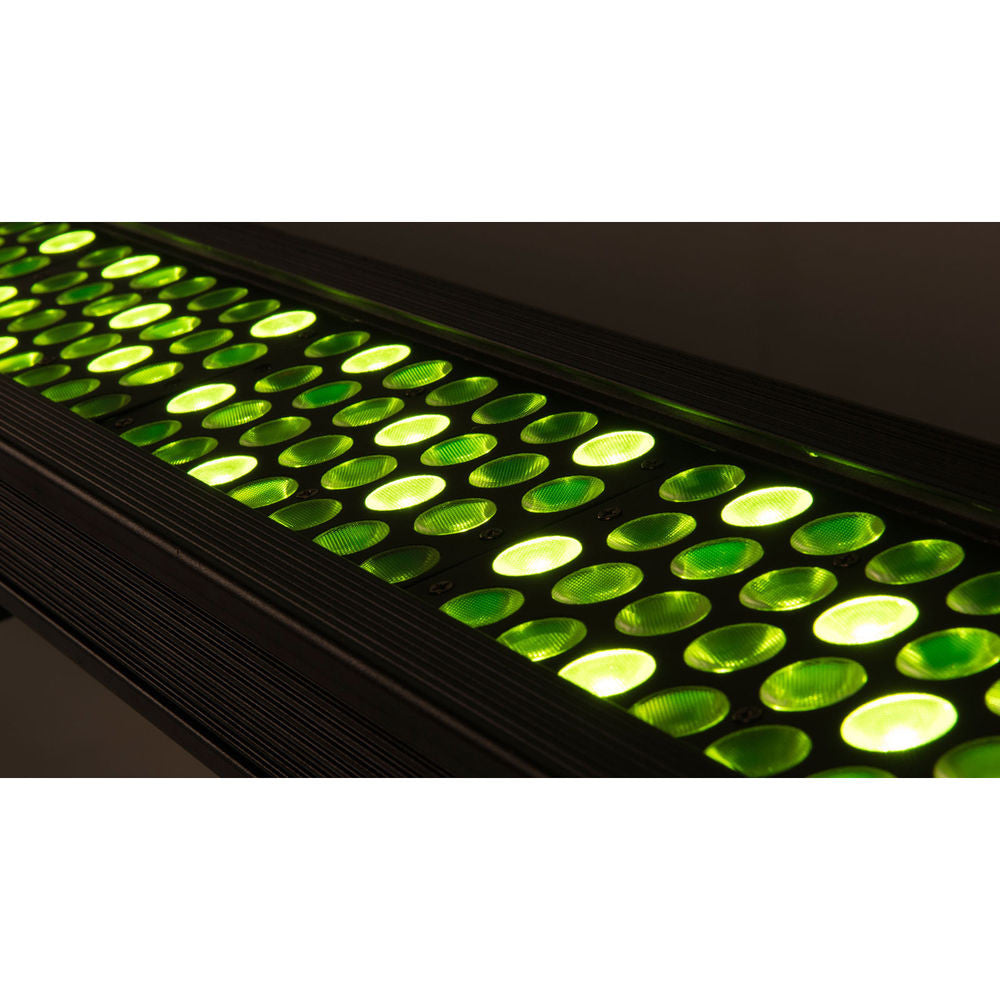

The Ovation B-2805FC from Chauvet is a batten-style light fixture featuring an RGBA-Lime color system, ten sections of control, and support for DMX, RDM, Art-Net, and sACN for programming and networking options. It also features a virtual color wheel and color temperature presets. This compact yet powerful fixture not only makes a remarkable batten light, but also a standard wash as well. A holographic filter is included and locks into place so the fixture can be used in any orientation without worrying about the filter sliding out.
-
- Full-color LED (RGBAL) batten-style fixture for theater, film, and production
- Theater-ready with 16-bit dimming of master dimmer and individual colors
- Multiple control personalities for complex programming schemes up to 10 sections of control

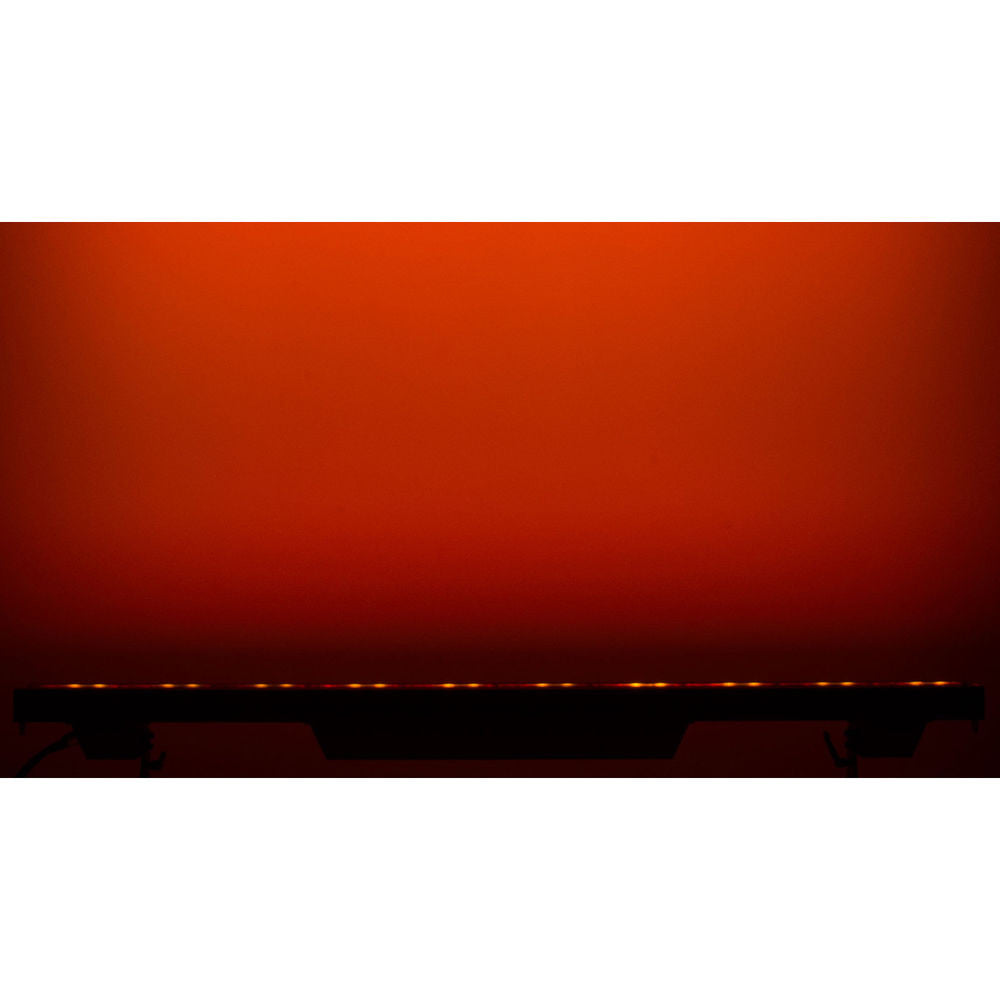

- Included holographic filter for use in cyc lighting or wall grazing applications for ultra-smooth color mixing
- Virtual color wheel with colors matched to popular Rosco Gel colors
- Art-Net, sACN, 3- and 5-pin DMX, and RDM (Remote Device Management) for added control flexibility
- Neutrik powerCON, and Amphenol etherCON compatible connections for power and data linking
- Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
- Nearly silent operation for use in studio and theater applications
- Standalone color mixing
UPC: 781462215576
In the Box
CHAUVET PROFESSIONAL Ovation B-2805FC RGBA-L Batten-Style Light Fixture
- Neutrik powerCON Power Cord
- Wall Washing Filter
- Limited 2-Year Warranty

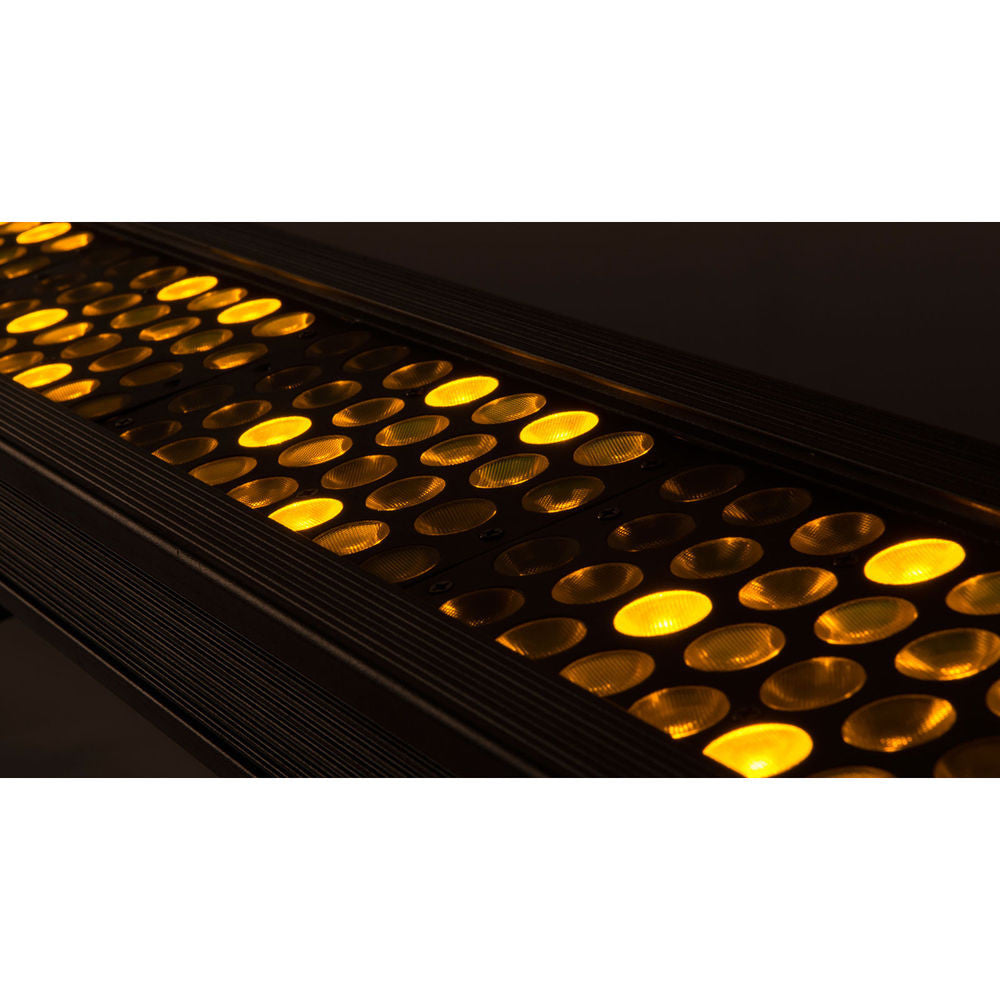

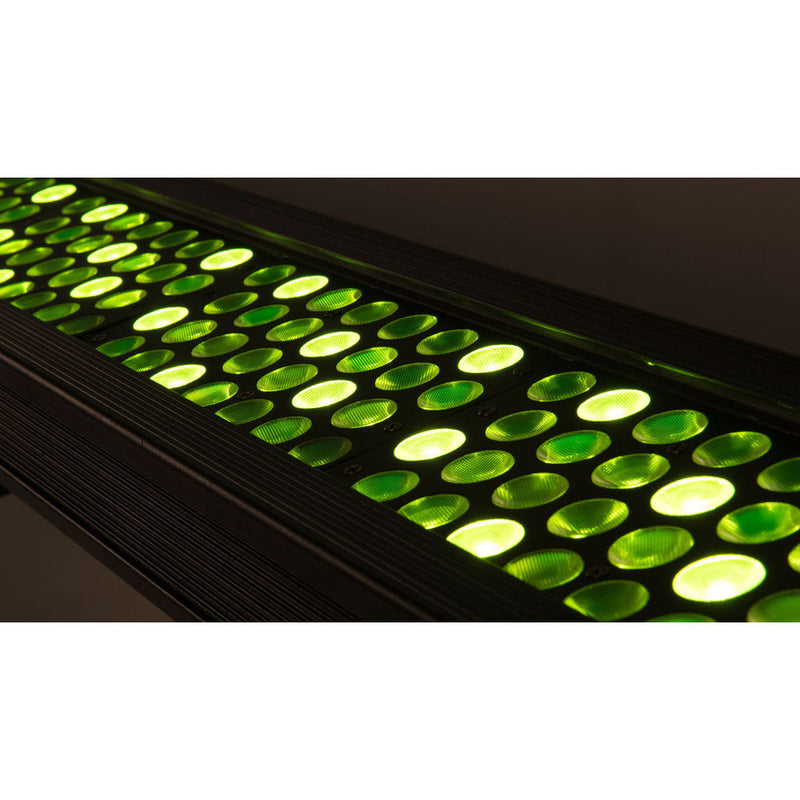

| Light Source | 280 x R/G/B/A/L LEDs, 8 W (740 mA) (60 x red, 60 x green, 60 x blue, 40 x amber, 60 x lime) |
| Life Expectancy | 50,000 hours |
| Illuminance | No Filter: 5586 lux @ 16.4' / 5 m Filter: 2320 lux @ 16.4' / 5 m |
| Beam Angle | Horizontal: 25� (52� with filter) Vertical: 20� |
| Field Angle | Horizontal: 42� (83� with filter) Vertical: 40� |
| Optics | 20� (installed) |
| Color Mixing | RGB, RGBA, RGBAL, RGBAL (16-bit), Standalone |
| Color Temperature | 2800 to 6500K |
| Color Temperature Presets | Yes |
| Dimmer | Electronic |
| Dimmer Curves | 4 x curves |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 30 Hz |
| Built-In Programs | Yes |
| PWM Frequency | 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 25000 Hz |
| Zone Control | 1, 2, 3, 5, or 10 zones |
| Protocols | Art-Net, DMX, RDM, sACN |
| DMX Channel Modes | 32 x Modes: 1 Cell: 3, 4, 5, 8, 9, 10, 10, 17 channels 2 Cell: 6, 8, 10, 15, 17, 19, 20, 31 channels 5 Cell: 15, 20, 25, 33, 38, 43, 50, 70 channels 10 Cell: 30, 40, 50, 63, 73, 83, 100, 135 channels |
| DMX Connectors | Input: XLR 3-pin, XLR 5-pin Output: XLR 3-pin, XLR 5-pin |
| Data Connector | Input: Amphenol etherCON Output: Amphenol etherCON |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Connectors | Power Input: Neutrik powerCON Power Output: Neutrik powerCON |
| Power Linking | 120 V: 2 x units 208 V: 3 x units 230 V: 4 x units |
| Power Consumption | 120 V, 60 Hz: 620 W, 5.16 A 208 V, 60 Hz: 601 W, 2.98 A 230 V, 50 Hz: 597 W, 2.76 A |
| Power Cable | Edison plug to Neutrik powerCON |
| Power Cable Length | 5' / 1.5 m |
| IP Rating | IP20 |
| Certifications & Approvals | CE, MET |
| Housing Material | Aluminum die-cast |
| Dimensions | 69.0 x 8.26 x 8.13" (175 x 21.0 x 20.7 cm) |
| Weight | 45.4 lb (20.5 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 51.5 lb |
| Box Dimensions (LxWxH) | 72.3 x 11.1 x 9.0" |
