Elation Professional Mondrian Overview
- 1Description
- 2Features
- 3Color
- 4Gobos
- 5Effects
- 6Control/Connections

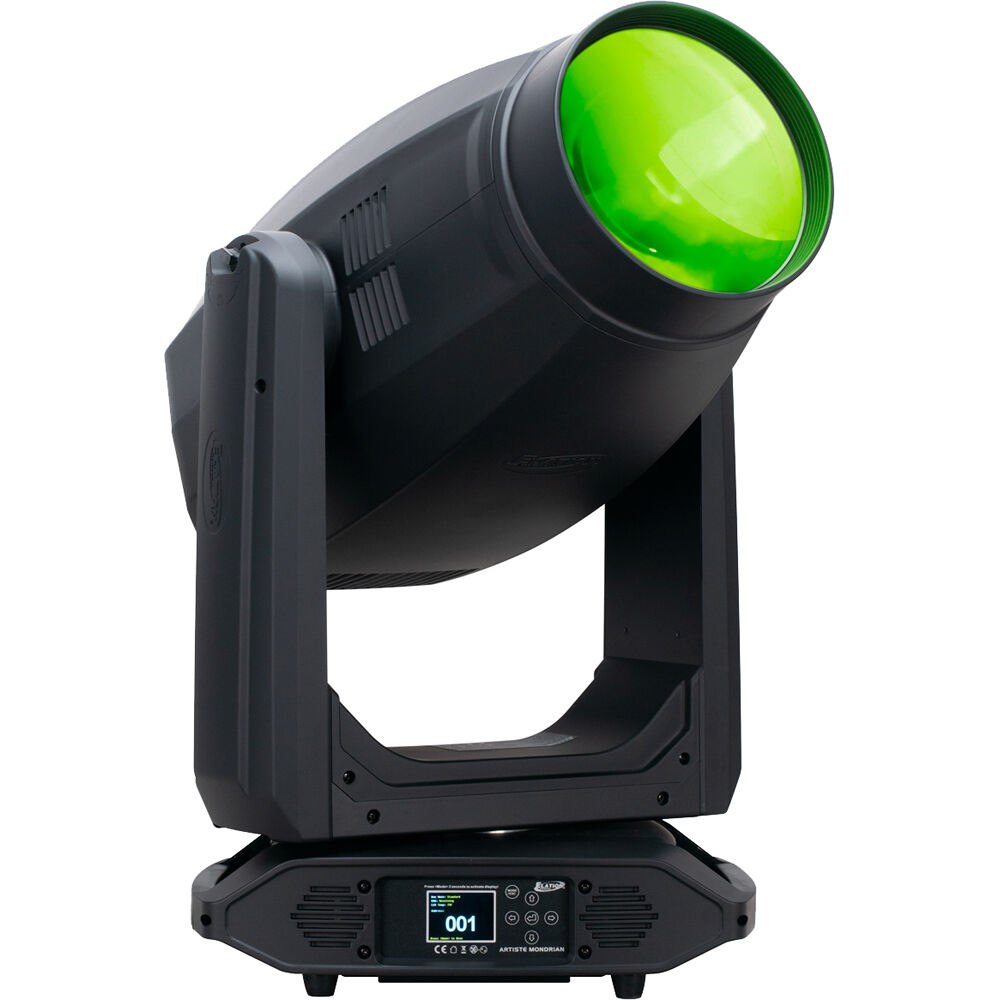

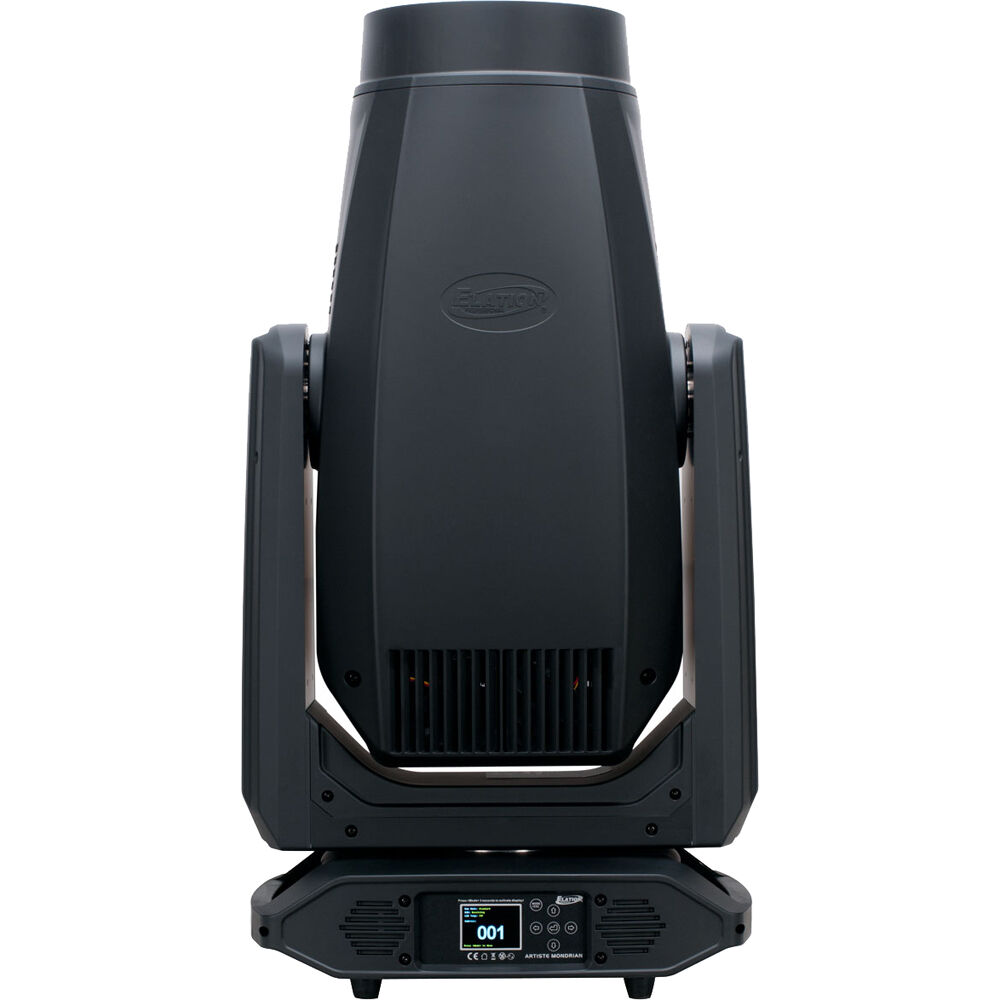

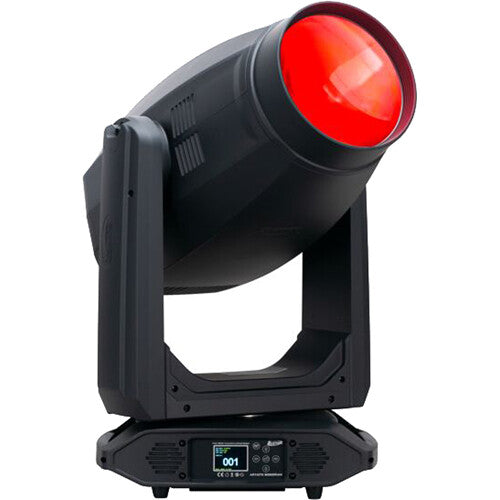

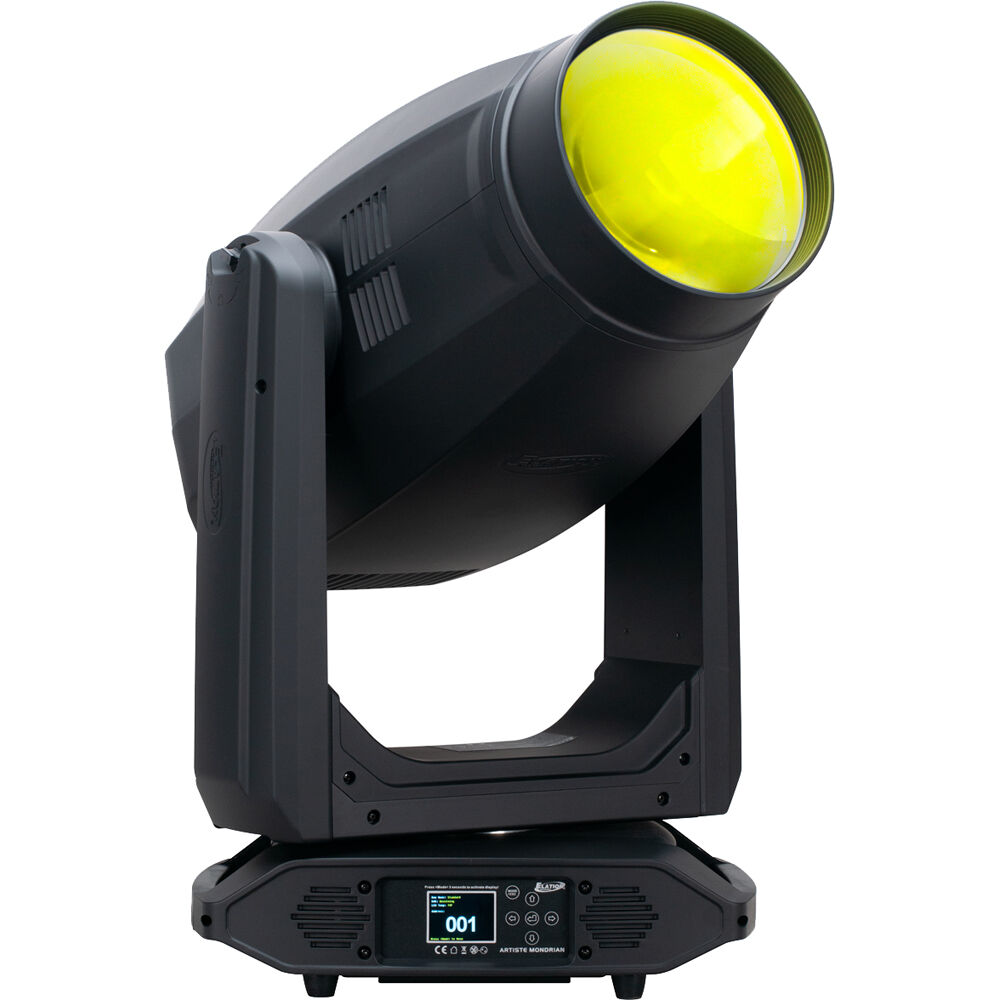

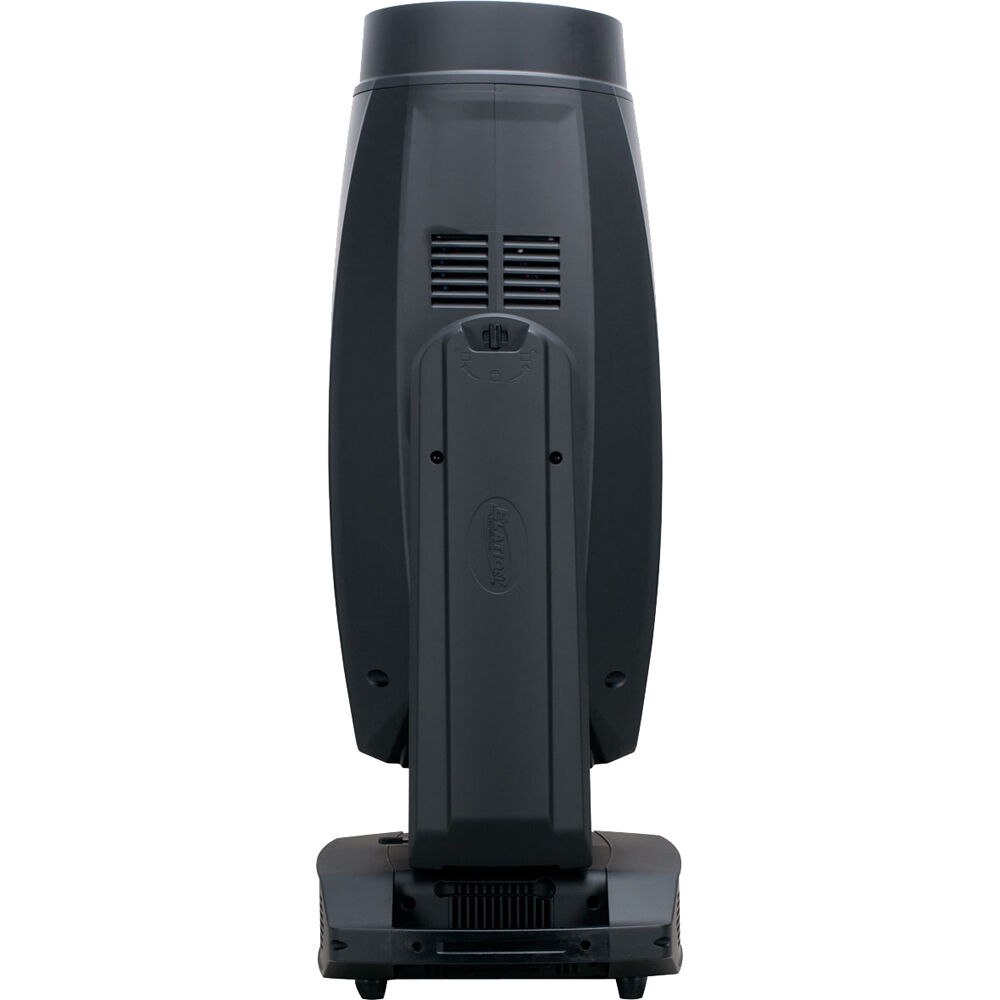

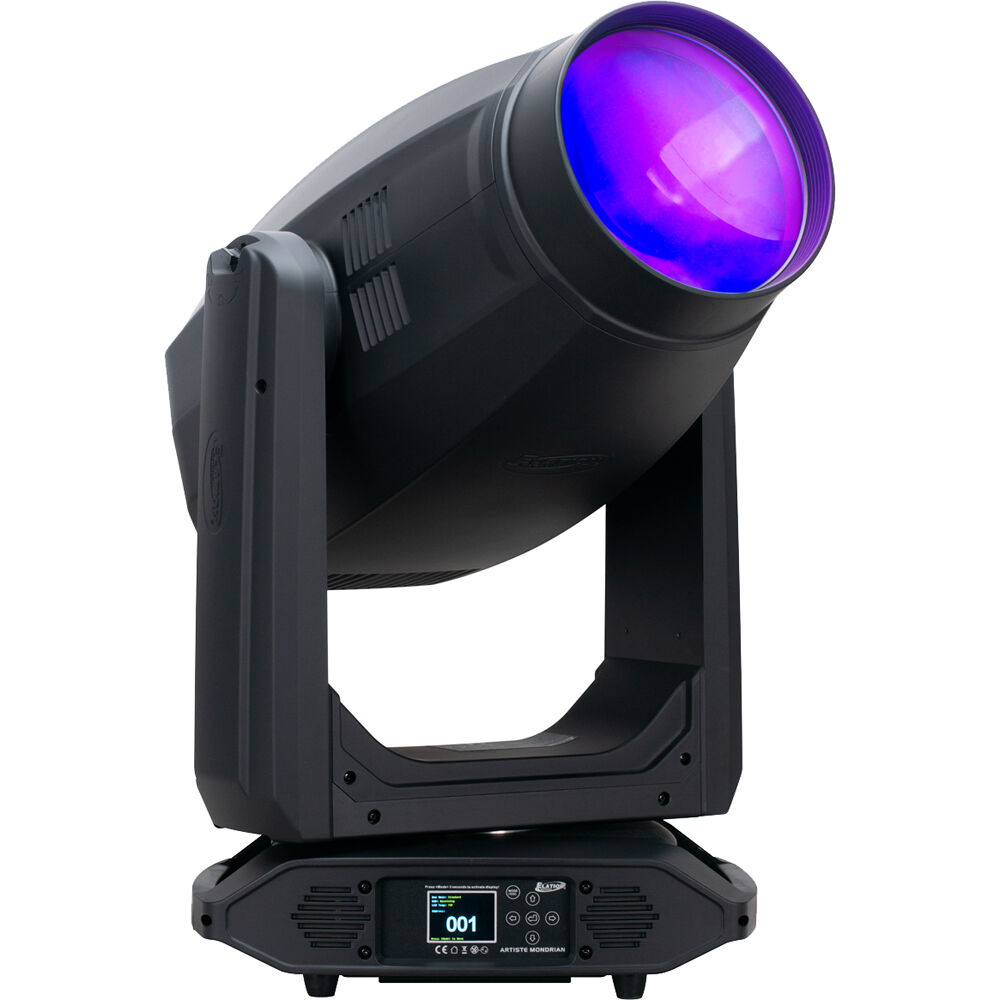

The Elation Professional Artiste Mondrian is an extremely bright, full-featured LED profile FX fixture offering high center intensity, narrow-beam angles, and a wide color-mixing gamut through its variable SpectraColor engine. Providing up to 51,000 lumens from its efficient 950W 6500K LED engine, the Mondrian is the ideal fixture for any application requiring superior output, bright and powerful narrow beams, and quiet operation, as well as stunning effects and colors. Mondrian integrates Elation's new SpectraColor system, which offers traditional CMY mixing but adds a variable RGB color mix for rich, saturated primaries.
In combination with the variable CTO, the Mondrian allows for colors that were previously impossible to achieve, from theatrical pastels to the most vibrant red or blues ever produced by a color mixing system. The Artiste Mondrian's wide color gamut is achieved by seven color-mixing flags with 16-bit precision for artistic possibilities that are truly inspiring. The fixed color wheel offers UV and high CRI options to round out the amazing color range of the fixture.
- High-efficiency 950W 6500K White Peak Field LED engine
- Up to 51,000 total lumen fixture output
- Peak Field engine for powerful beams and high center intensity
- SpectraColor CMYRGB array and variable linear CTO
- Six-position color wheel, high CRI, UV filter
- Complete FX system: Two rotating gobo wheels, animation, iris, dual prism, dual frost
- Full blackout framing system with 360° continuous index and rotation of shapes
- Narrow beams to wide washes from 3 to 45°
- Large 8.75 clear Plano Convex (PC) lens
- SpectraColor CMY + RGB color mixing array
- Six dichroic colors including high CRI filter and UV
- Linear CTO color correction
- Two gobo wheels
- 12 rotating/indexing interchangeable glass gobos
- Motorized zoom 8.75" front lens
- Four rotating full blackout framing blades
- 360° continuous framing index and rotation
- Full 360° Bi-directional animation wheel
- Two rotating prisms
- Two variable frost filters (light and wash)
- Internal color, framing, prism, and frost macros
- Motorized iris with variable pulse effects
- Variable 16-bit dimming curve modes
- High-speed electronic shutter and strobe
- DMX controllable LED refresh rate
- Two DMX channel modes (42/ 68)
- 16-bit pan, tilt, and dimming Control
- Motorized focus and Auto-Focus presets
- DMX, RDM, Art-NET, and sACN protocol support
- 6-button touch-control panel
- Full color 180° reversible LCD menu display
- Hibernation mode (power save)
- Locking 5-pin XLR DMX, RJ45 Ethernet, and power
- USB connection (firmware updates)
- Wired digital communication network
In the Box
- Elation Professional Artiste Mondrian
- 2 x Omega Bracket
- Locking Power Cable
- Description
- Features
- Color
- Gobos
- Effects
- Control/Connections
Elation Professional Mondrian Specs
| Fixture Type | Moving Head |
| Light Source | White LED - 950 W |
| Light Source Life Expectancy | 30,000 Hours |
| Colors | Cyan Magenta Yellow Red Green Blue Ultraviolet CTO (Color Temperature Orange) |
| Photometrics | 35° at 6540K: 11,220.3 fc / 120,778 Lux at 3.3' / 1 m 448.8 fc / 4831 Lux at 196.9" / 5 m 112.2 fc / 1208 Lux at 32.8' / 10 m |
| Color Temperature | 6500K |
| Lumen Output | 51,000 Lumens |
| Beam Angle | 3 to 35° |
| Field Angle | 4 to 46° |
| Shutter / Strobe | Electronic |
| Iris | Yes, Electronic |
| Focus | Motorized |
| Zoom Adjustment | Motorized, 3 to 45° |
| Dimming | 16-Bit Electronic |
| Prism | 2-Facet Circular |
| Operating Modes | DMX, Energy Save |
| Macros / Programs | Color Macro |
| Effects | Strobe Animated Patterns Frost Filter Pulse |
| Gobos | 12 x Removable Glass Gobo |
| Color Accuracy Index | CRI: 72 |
| Refresh Rate | 900 Hz to 25,000 Hz (Adjustable) |
| Tilt Ranges | 360° |
| Pan Ranges | 360° |
| Movement Resolution | 16-Bit |
| Control Protocols | DMX512, RDM, Art-Net, sACN |
| DMX Channel Modes | 2 Mode(s): 42 / 64-Channel |
| Display / Controls | LCD / 6-Button |
| Remote Control | None |
| App Compatible | No |
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output 1 x RJ45 Network Input 1 x RJ45 Network Output |
| AC Input Power | 120 to 240 VAC, 50/60 Hz |
| AC Power Connector | Not Specified by Manufacturer |
| Power / Current Consumption | 1500 W |
| IP Rating | IP20 |
| Mounting | Floor Base, Omega Bracket |
| Included Accessories | 1 x Power Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Cooling | Fan (Variable Speed) |
| Certifications | CE, cETLus *as per Manufacturer |
| Dimensions | 34.2 x 26.5 x 18.5" / 0.9 x 0.7 x 0.5 m |
| Weight | 104.7 lb / 47.5 kg |
