Description

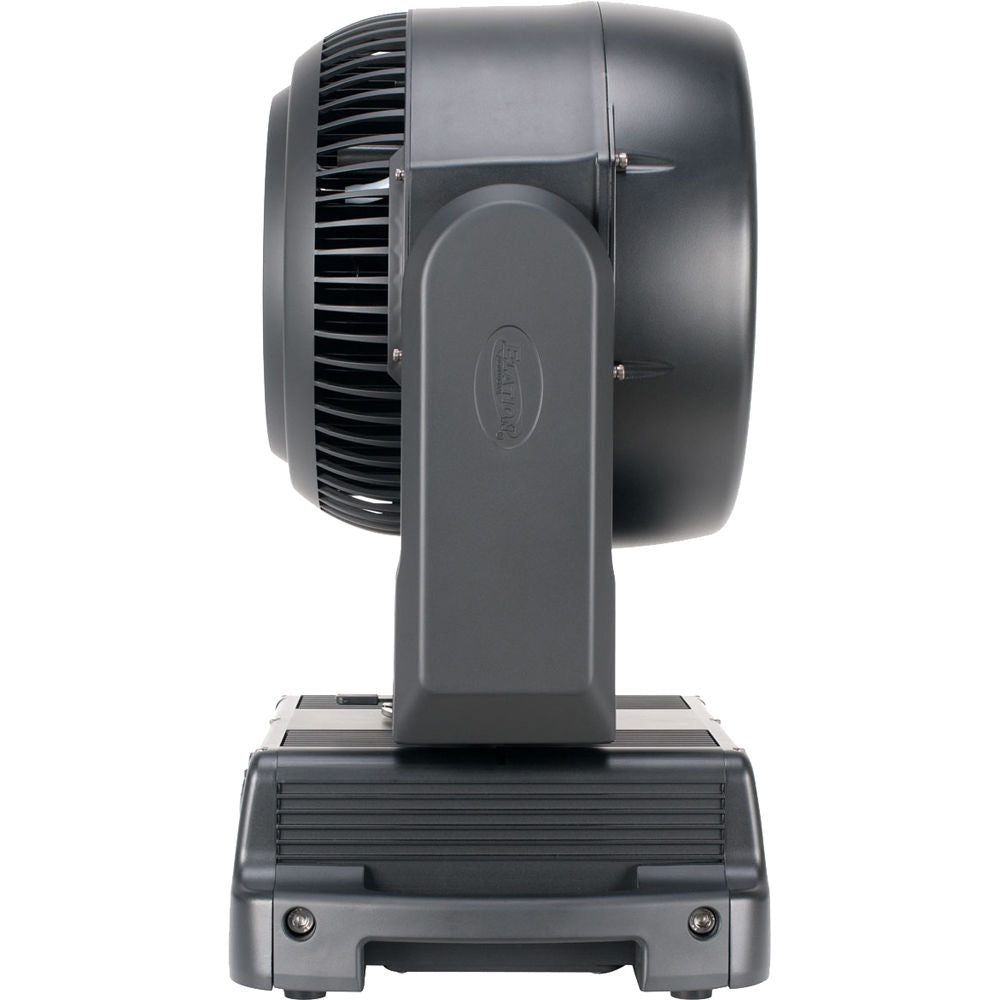

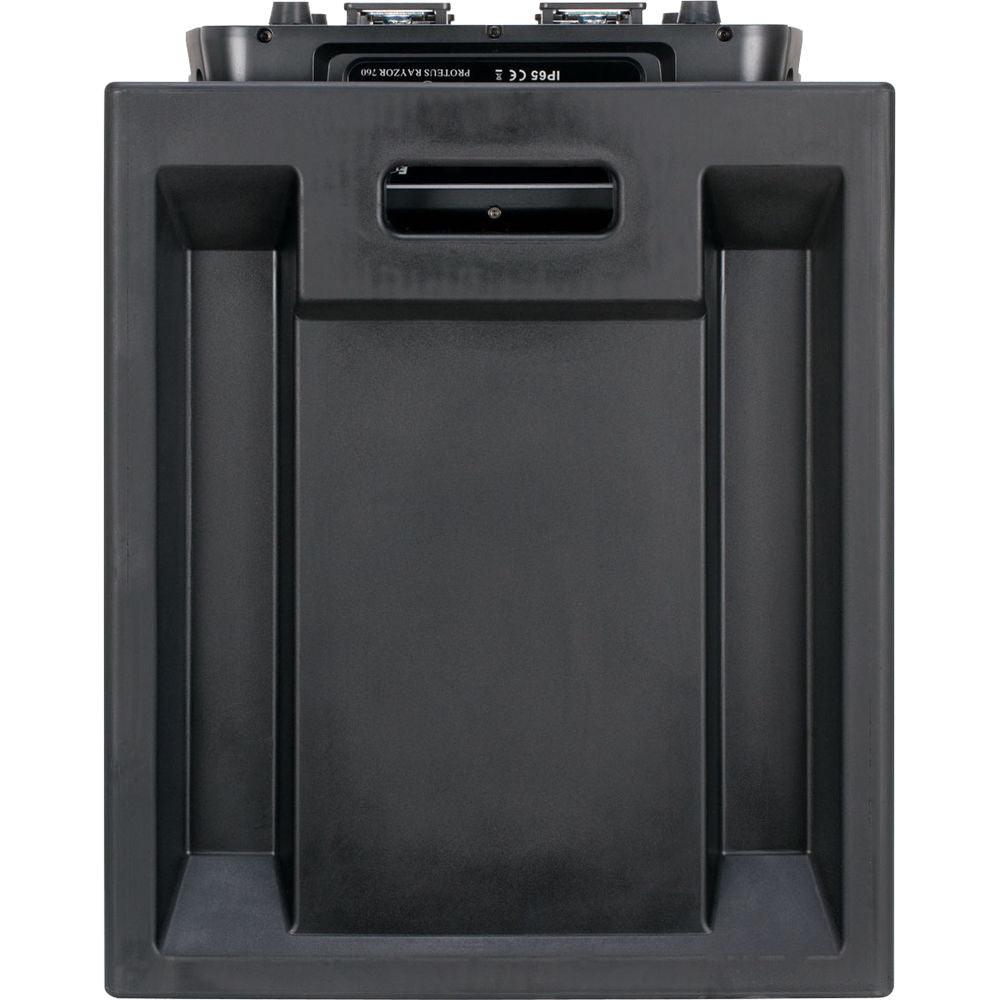

Elation Professional Proteus Rayzor 760 Overview

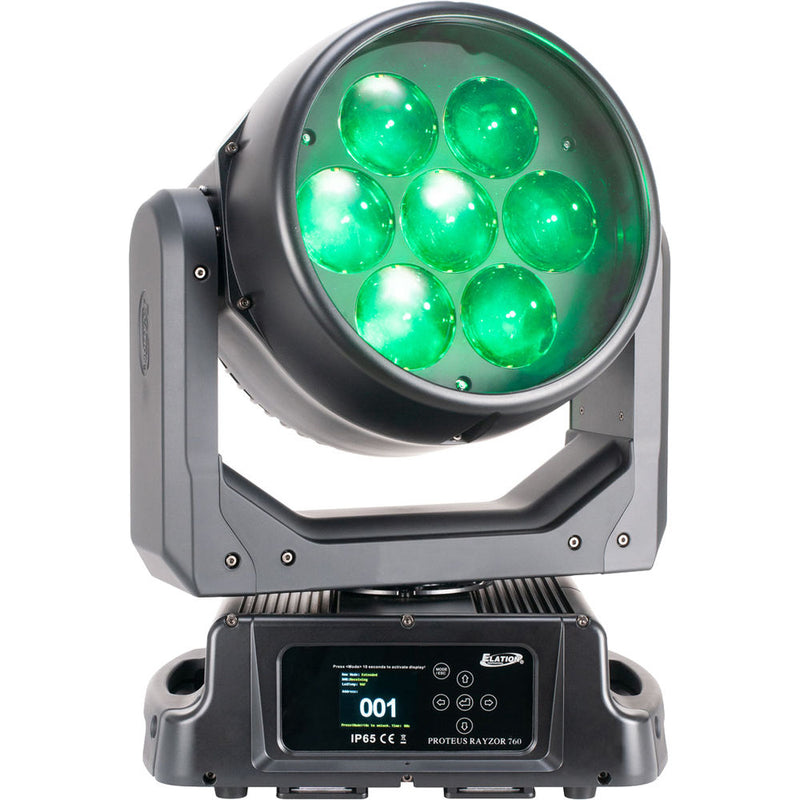

The IP65-rated Elation Professional Proteus Rayzor 760 is a bright RGBW LED moving head wash fixture with remarkable features including the SparkLED system, fast continuous pan and tilt motion, a motorized zoom, and an impressive 8000W lumen output, which provides intense and well-defined mid-air beams, for any application from stages and broadcast studios to full-blown outdoor concerts and performances.

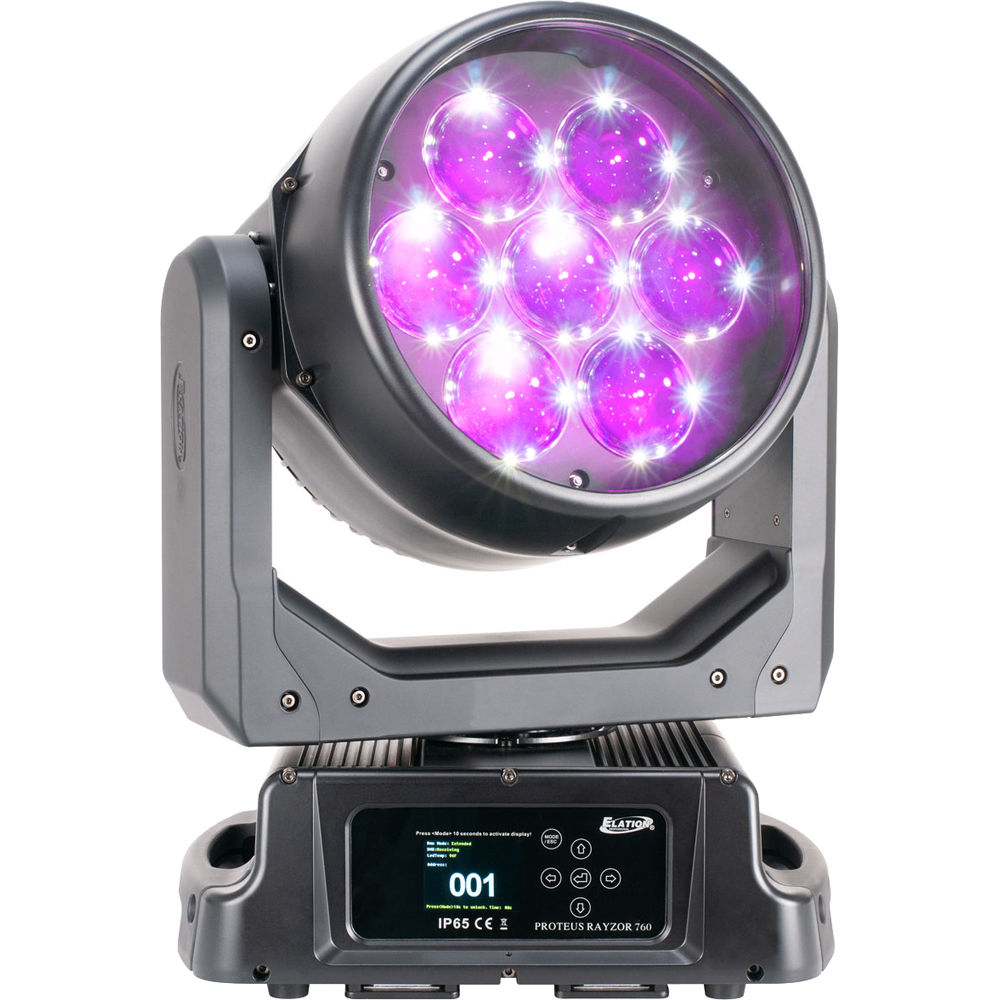

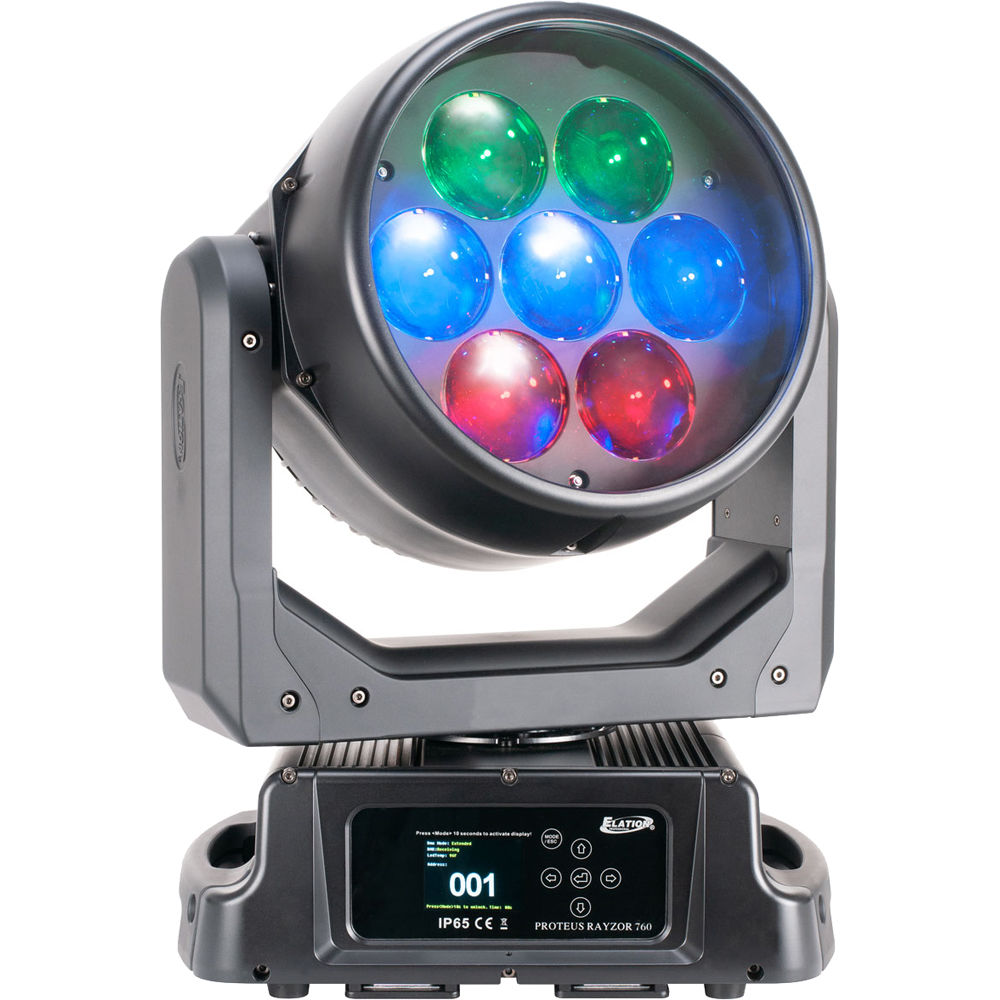

The fixture features seven independently controlled 60W RGBW LEDs with oversized front lenses that create a large surface that is enhanced by the exclusive patent pending SparkLED technology. SparkLED consists of 28 individual white LEDs, strategically placed inside the lens itself to create an additional layer, allowing designers access to an innovative way of creating interest on the stage. SparkLEDs are controllable by a lighting console or driven by a multitude of internal FX patterns.
The Proteus Rayzor 760 features a fast, motorized zoom with variable dispersion from 5 to 77°, and fast and precise 360° continuous pan and tilt rotation, as well as linear color temperature presets, RGBW color mixing and pixel control, color presets and macros, and 16-bit dimming with electronic strobe and variable dimming curves.

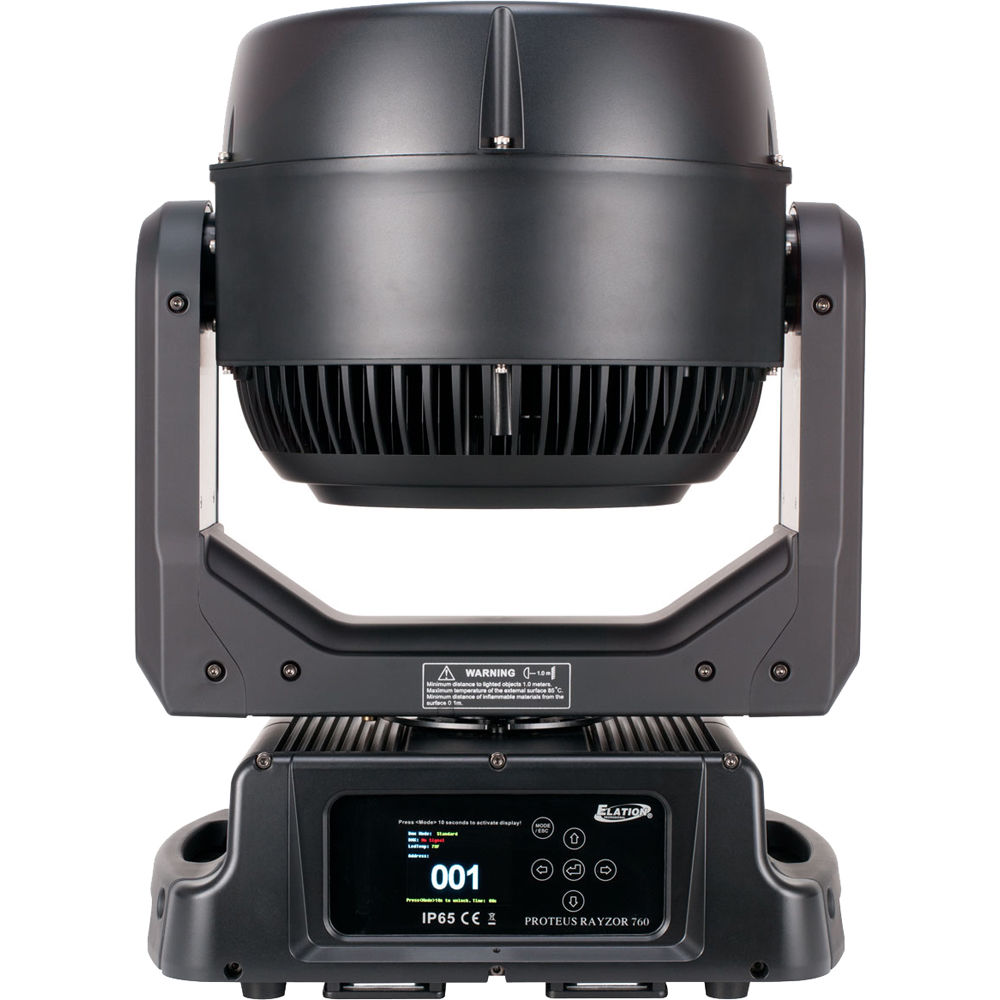

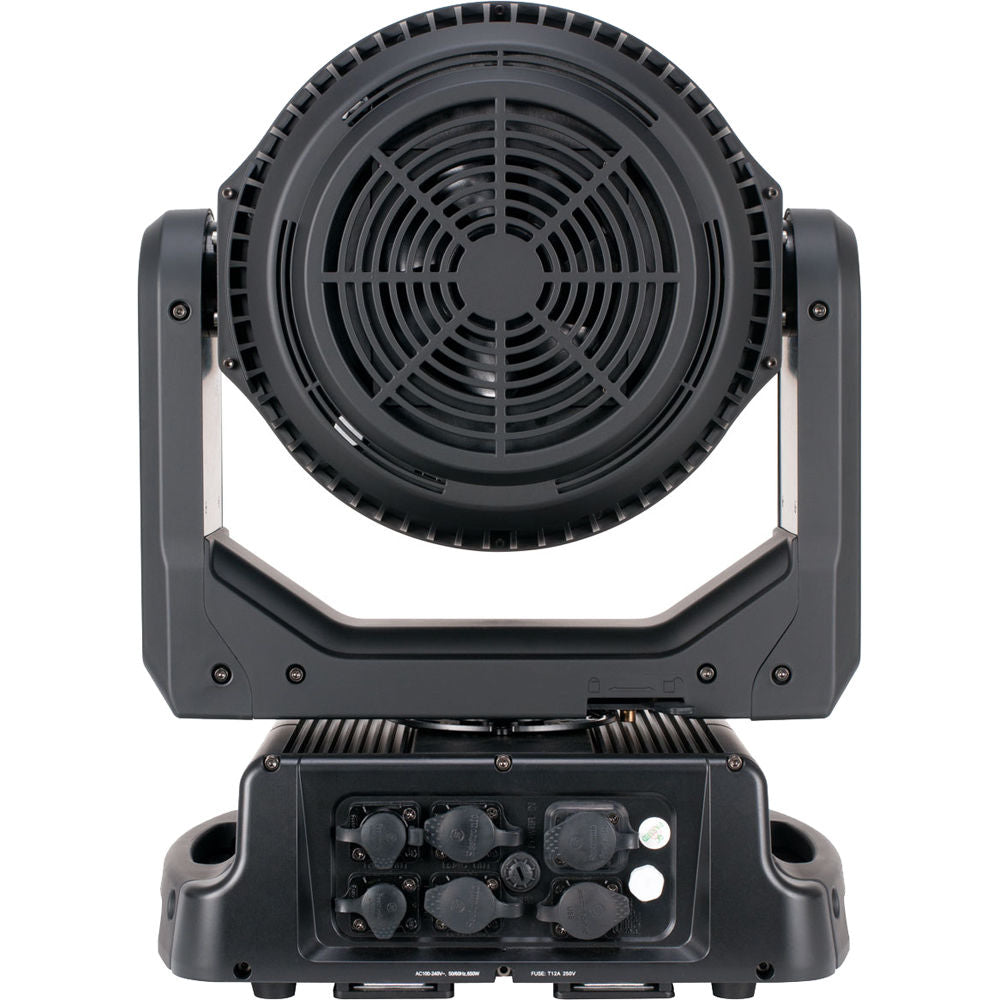

The Proteus Rayzor 760 can be controlled by DMX (3 channel modes), remote device management (RDM), Art-NET, and sACN protocol support. The rear panel offers a variety of IP65-rated input and output connections including 5-pin XLR, RJ45 etherCON, and Seetronic power. There is a 6-button control panel and full color 180° reversible menu display. The Elation Professional Proteus Rayzor 760 ships with mounting brackets and a power cord.
- 7 x 60W Osram RGBW LED with pixel control
- 28 x 2W SparkLED effect with pixel control (patent pending)
- Extreme Zoom: 5° for mid-air beam to 77° for even washes
- Fast and precise 360° continuous pan and tilt rotation
- Beam FX and smooth wash fixture in a compact IP65-certified housing
In the Box
- Elation Professional Proteus Rayzor 760 RGBW LED Moving Head Wash Fixture with SparkLED Effect

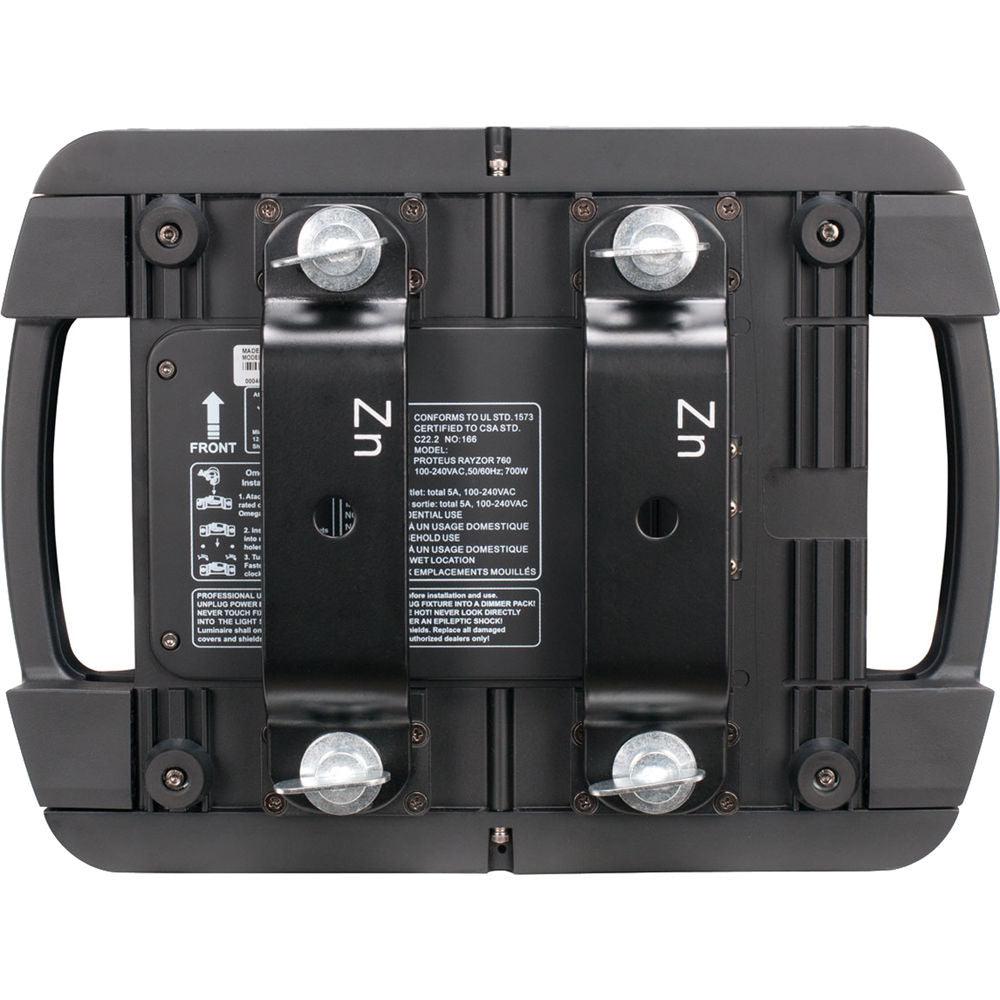

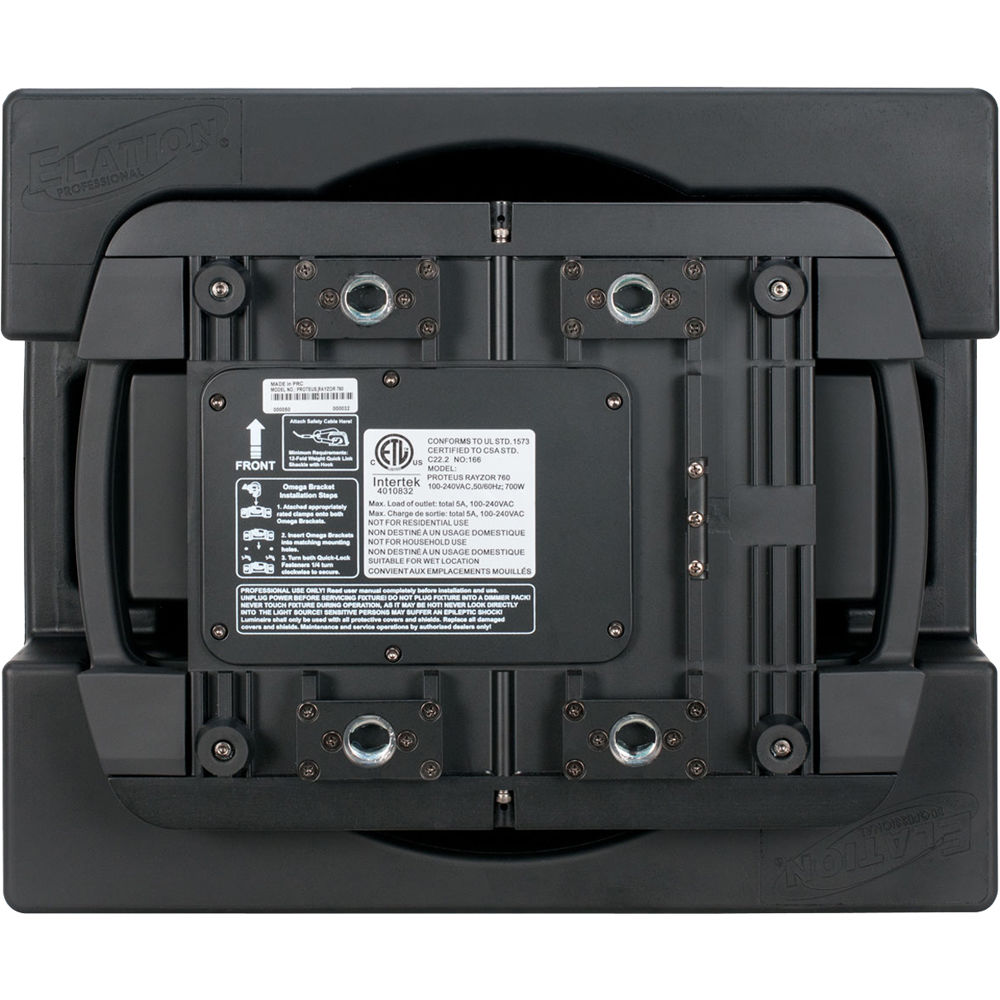

- Set of Mounting Brackets
- powerCON TRUE1 Power Cord
- Limited 2-Year Warranty
Elation Professional Proteus Rayzor 760 Specs
| Light Source | 7 x 60 W Osram RGBW LEDs 28 x 2 W White SparkLED 30,000-Hour Average LED Life |
| Photometric Data | Total Output: 8000 lumens |
| Effects | Beam Zoom Angle: 5 to 77° Linear Color Temperature Presets (2700-8000K) RGBW Color Mixing and Pixel Control White SparkLED Lens Effect Color Presets and Macros Electronic Strobe and Variable Dimming Curves 16-Bit Dimming |
| Control and Connectors | DMX Channel Modes: 3 360° Continuous Pan and Tilt Movement DMX Adjustable Refresh Rate (900 to 25,000 Hz) 6 x Button Touch Panel Full Color 180° Reversible LCD Menu Display RDM Support IP65 5-Pin XLR DMX In/Out IP65 RJ45 EtherCon In/Out (Art-Net, sACN) Seetronic IP65 Power In/Out With Wired Digital Communication Network |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | Maximum 600 W |
| Approvals | CE | cETLus Pending |
| Ratings | IP65 |
| Dimensions (L x W x H) | 14.5 x 11.6 x 17.4" / 368.3 x 294.6 x 442.0 mm |
| Weight | 28.6 lb / 13.0 kg |
