Description
Elation Professional Smarty Max Overview
- 1Description
- 2Features
- 3Effects
- 4Color
- 5Gobos
- 6Control / Connections

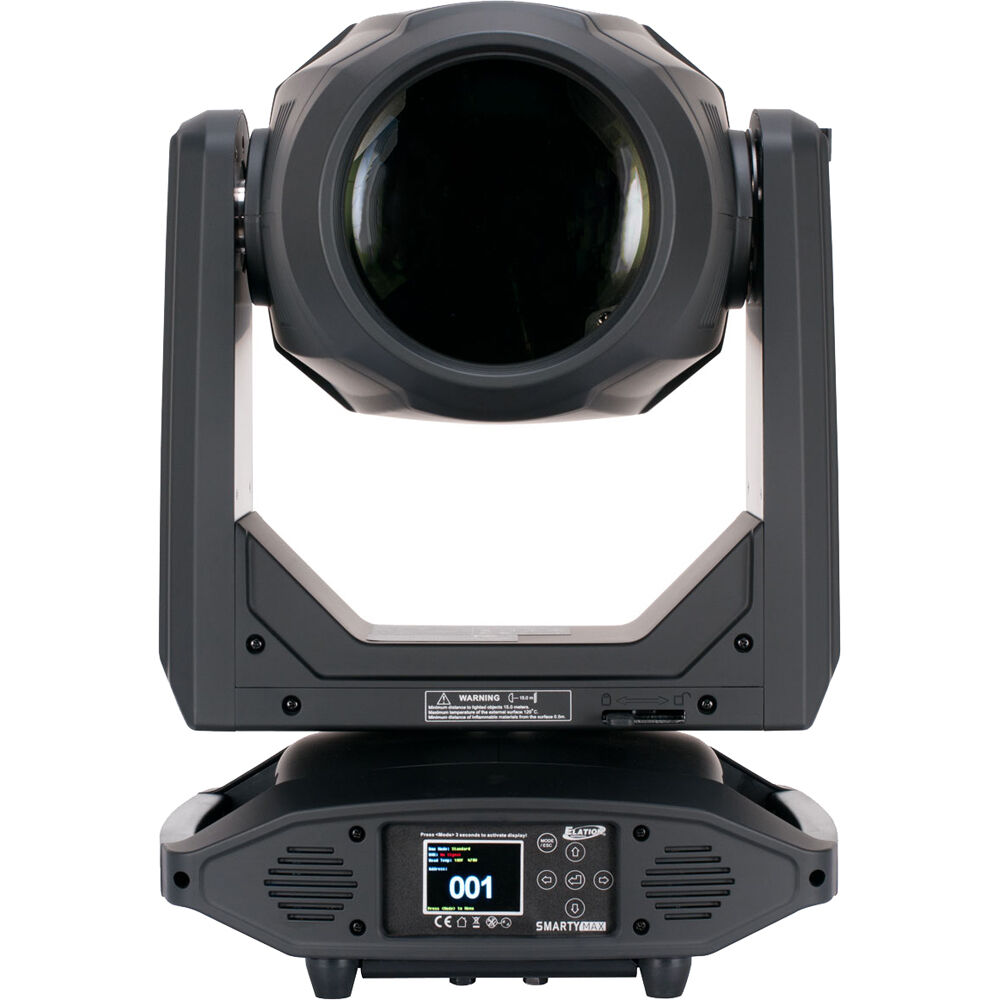

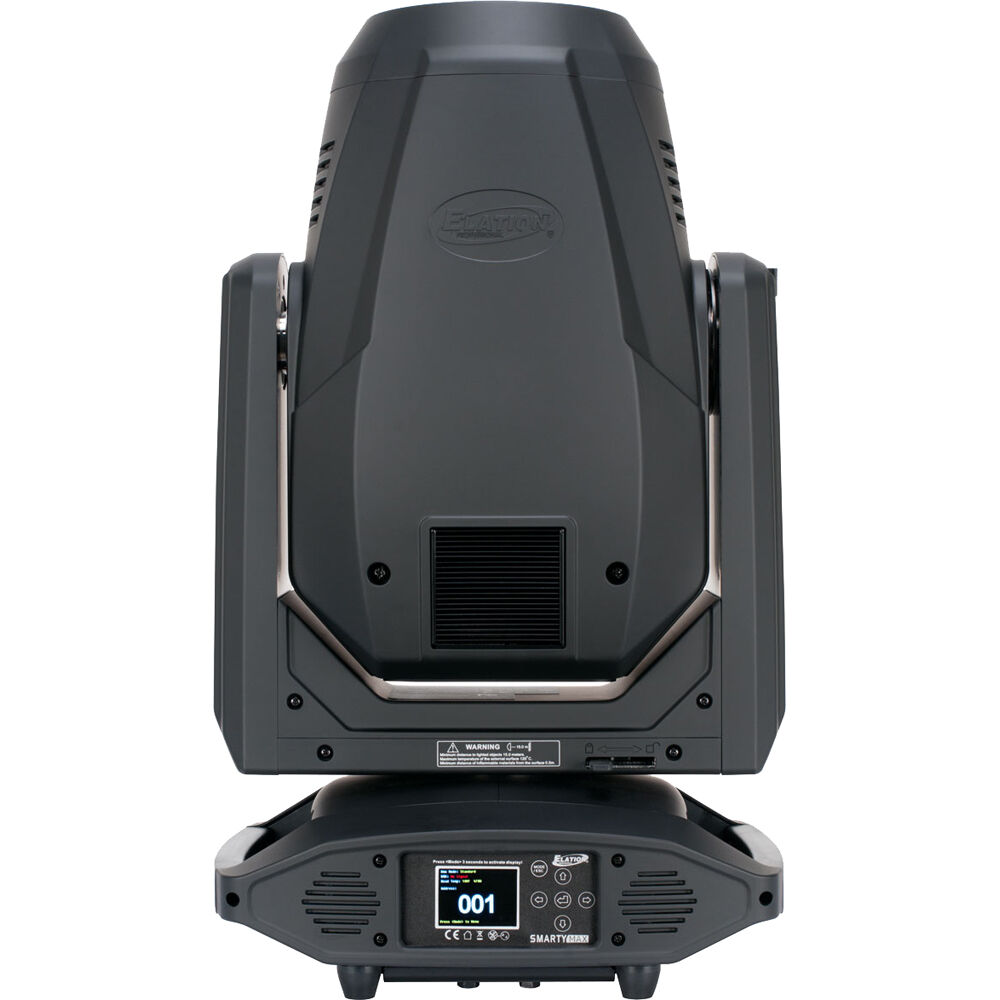

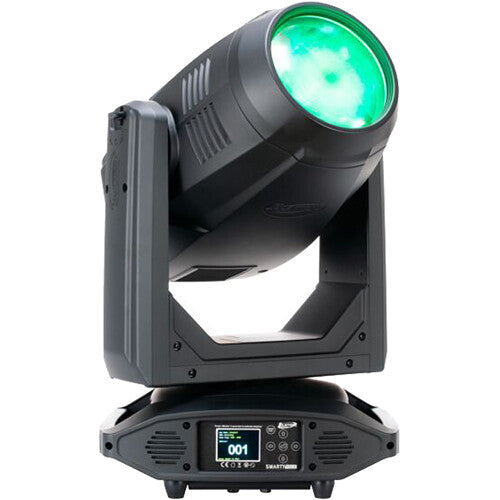

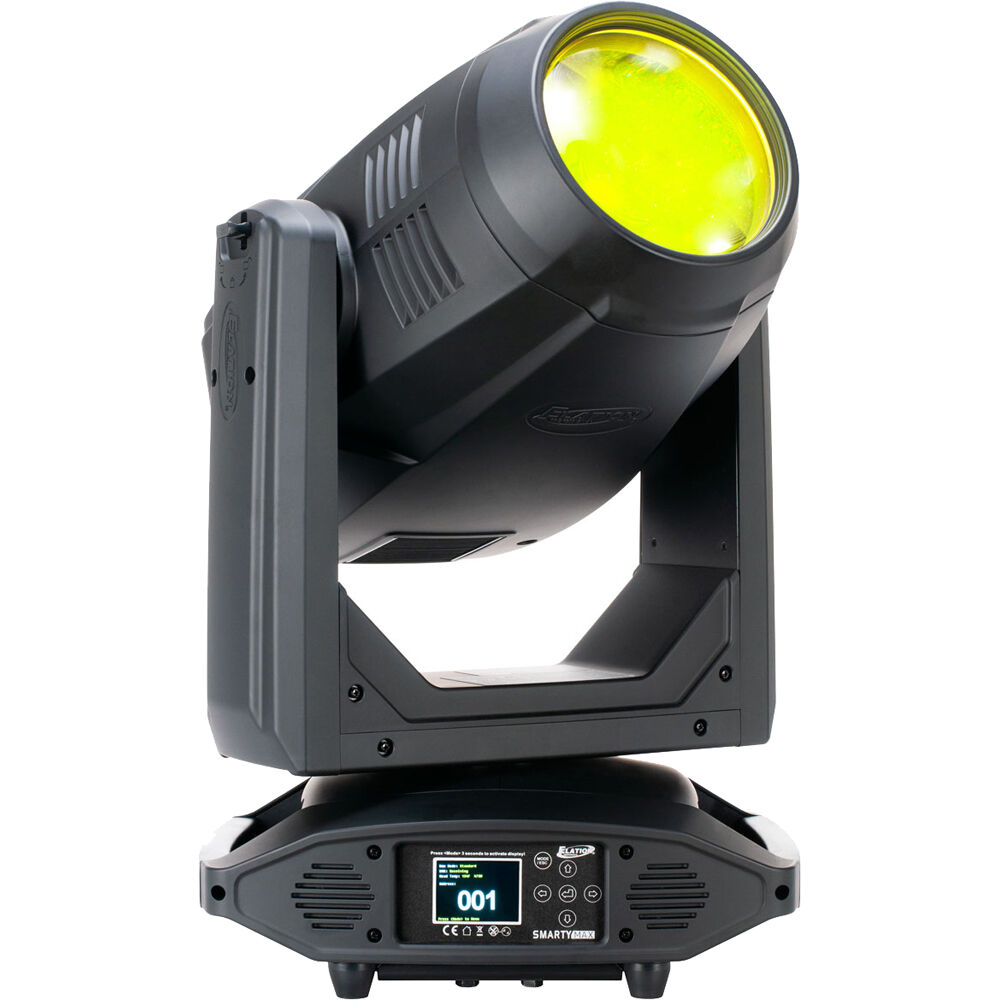

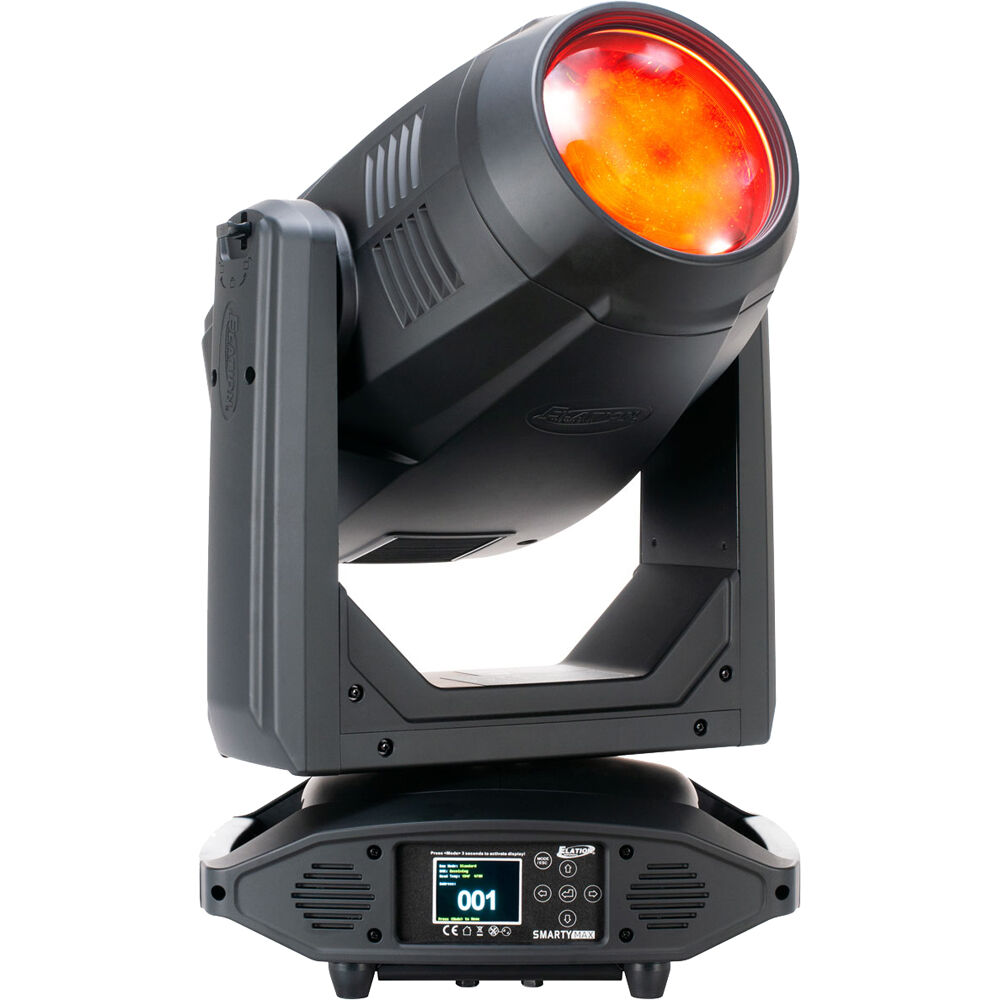

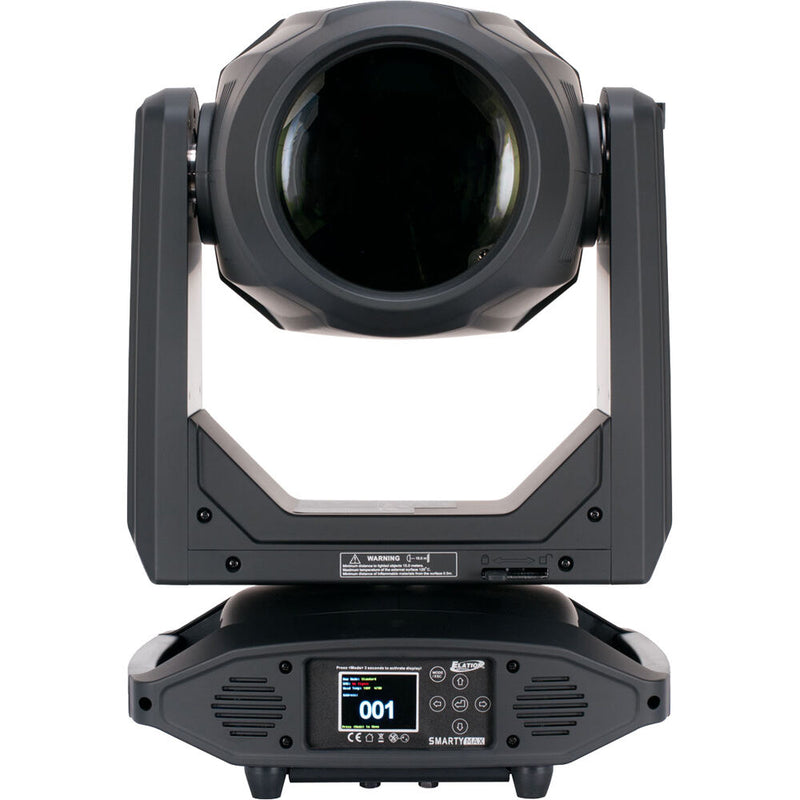

The SMARTY MAX from Elation Professional combines high output and long lamp life in a feature-packed compact and lightweight Hybrid fixture. SMARTY MAX is the Extreme Output Hybrid featuring the new Philips MSD Platinum FLEX 400 lamp. Rated at 480W and up to 4000 hours of lamp life, the SMARTY MAX includes CMY and variable CTO and is the world's first Hybrid incorporating a full Iris for dynamic beam effects.
Four prisms on two planes, dual frosts plus dual gobo wheel, and the unique dual track animation round out the comprehensive FX package in a compact and lightweight housing. Delivering 21,000 lumens from its large 160mm front aperture, the SMARTY MAX has a crisp output for extremely powerful beams, sharp gobos, and bright washes, making it a flexible fixture for almost any application, while providing an excellent return on investment.
- Extreme output 3-in-1 beam, spot, wash hybrid fixture
- Flex Lamp Technology from 370 to 480W plus Smart Hibernation with up to 4000-hour lamp life
- Full CMY color mixing system, variable CTO, color wheel
- Creative FX package: 8 rotating and 14 static gobos, Dual Track Animation, iris 4 prism on dual planes, 2 frost
- Ultrafast zoom: beam 2 to 20° / spot 3 to 30° / wash 9 to 35°
- Beam, spot, and wash modes
- Motorized zoom
- Dual frost filter for light frost, full wash
- 4 prisms on dual planes
- Iris
- CMY color, gobo,
- Prism macros
- Motorized focus with autofocus feature
- High-speed shutter and strobe
- Full CMY color mixing system
- Variable CTO
- 13-position color wheel
- 2 gobo wheels
- 8 interchangeable-rotating/indexing glass gobos
- 14 static-stamped metal gobos
- Dual-track animation wheel
- 2 DMX channel modes (27/44 Channels)
- 6-button touch panel
- Full-color 180° reversible LCD menu display
- DMX, RDM, Art-Net, and sACN protocol support
- 5pin DMX in/out
- RJ45 Ethernet in/out
- IP65 locking power cable in/out
- Wired digital communication network
In the Box
- Elation Professional SMARTY MAX
- 2 x Omega Bracket
- IP65 Power Cable
- Description
- Features
- Effects
- Color
- Gobos
- Control / Connections
Elation Professional Smarty Max Specs
| Fixture Type | Moving Head |
| Light Source | 1 x Discharge Bulb - 480 W |
| Light Source Life Expectancy | 4000 Hours |
| Colors | Red Green Blue Cyan Magenta Yellow Purple Light Green Pink CTO (Color Temperature Orange) CTB (Color Temperature Blue) Ultraviolet |
| Photometrics | 3°: 42,967 fc / 462,508 Lux at 16.4' / 5 m |
| Lumen Output | 21,000 Lumens |
| Beam Angle | 0.8 to 29° |
| Field Angle | 1.8 to 39° |
| Iris | Yes |
| Focus | Motorized |
| Zoom Adjustment | Motorized, 2 to 35° |
| Dimming | 0% with 100 Dimmer Modes |
| Operating Modes | DMX |
| Macros / Programs | Color Mixing Gobo Macro Prism Macro |
| Effects | Frost Filter Animated Patterns Strobe |
| Gobos | 8 x Removable Glass Gobo 14 x Fixed Metal Gobo 1 x Removable Glass Animation Wheel |
| Gobo Size | Glass Gobo: Outer Diameter: 0.5" / 13.8 mm Max Image Size: 0.4" / 9 mm Max Thickness: 0" / 1.1 mm |
| Pan/Tilt Inversion | Yes |
| Control Protocols | DMX512, RDM, Art-Net, sACN |
| DMX Channel Modes | 2 Mode(s): 27 / 44-Channel |
| Display / Controls | LCD / 6-Button |
| Remote Control | None |
| App Compatible | No |
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output 1 x RJ45 Data Input 1 x RJ45 Data Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON TRUE1 Output: 1 x powerCON TRUE1 |
| Power / Current Consumption | 700 W |
| IP Rating | IP20 |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
| Mounting | Floor Base, Omega Bracket |
| Included Accessories | 1 x Power Cable |
| Exterior Color | Black |
| Dimensions | 25.3 x 17.5 x 15.3" / 64.3 x 44.5 x 38.9 cm |
| Weight | 60 lb / 27.2 kg |
Elation Professional Smarty Max Reviews
