Description

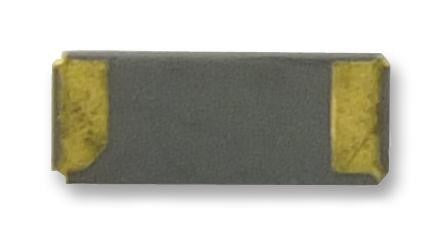

The X32K768S021 from AEL Crystals is a 4.1mm x 1.5mm surface mount crystal resonator with CM415 holder style.
- Crystal frequency of 32.768kHz
- Adjustment tolerance of ± 20PPM at 25°C
- Operating temperature range from -40°C to 85°C
- Load capacitance of 12.5pF
- Ageing of ±5ppm 1st year maximum
Applications
Consumer Electronics
Product details
| Load Capacitance | 12.5pF |
| Operating Temperature Min | -40°C |
| Operating Temperature Max | 85°C |
| Crystal Case | SMD, 4.1mm x 1.5mm |
| Product Range | - |
| Frequency Stability + / - | - |
| Frequency Tolerance + / - | 50ppm |
| Frequency Nom | 32.768kHz |
Other details
| Brand | AEL CRYSTALS |
| Part Number | X32K768S021 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
