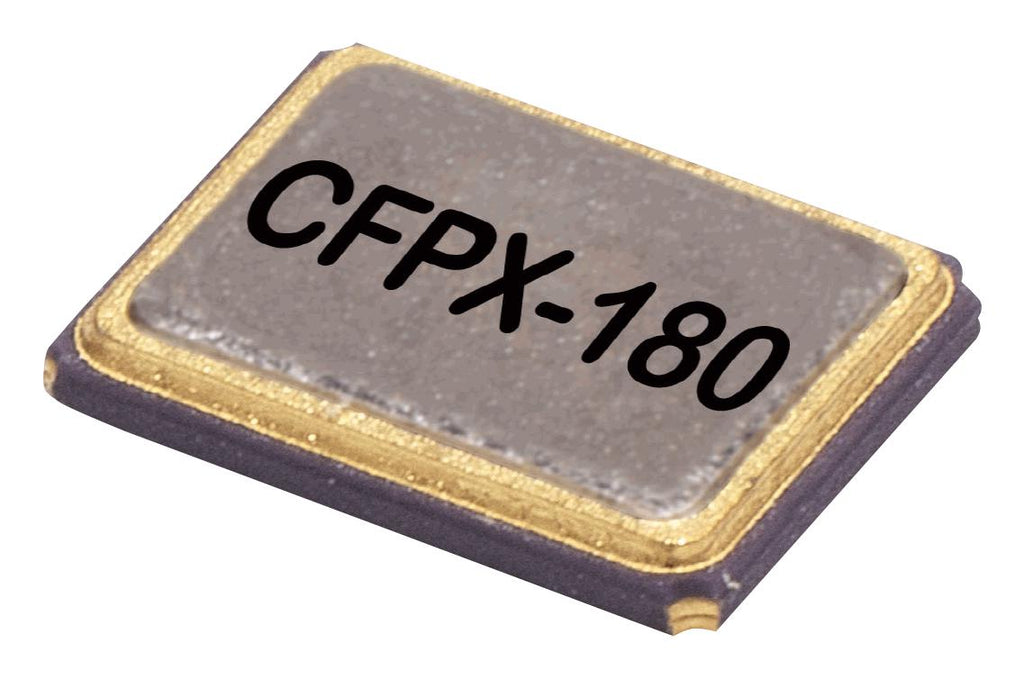

This is a Crystal, 24 MHz, SMD, 3.4mm x 2.7mm, 50 ppm, 18 pF, 20 ppm, CFPX-180 Series product from IQD FREQUENCY PRODUCTS with the model number LFXTAL060278
Product details
| Frequency Nom |
24MHz |
| Crystal Case |
SMD, 3.4mm x 2.7mm |
| Frequency Stability + / - |
50ppm |
| Load Capacitance |
18pF |
| Frequency Tolerance + / - |
20ppm |
| Product Range |
CFPX-180 Series |
| Operating Temperature Min |
-20°C |
| Operating Temperature Max |
70°C |
| RoHS Phthalates Compliant |
Yes |
Other details
| Brand |
IQD FREQUENCY PRODUCTS |
| Part Number |
LFXTAL060278 |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
