Description

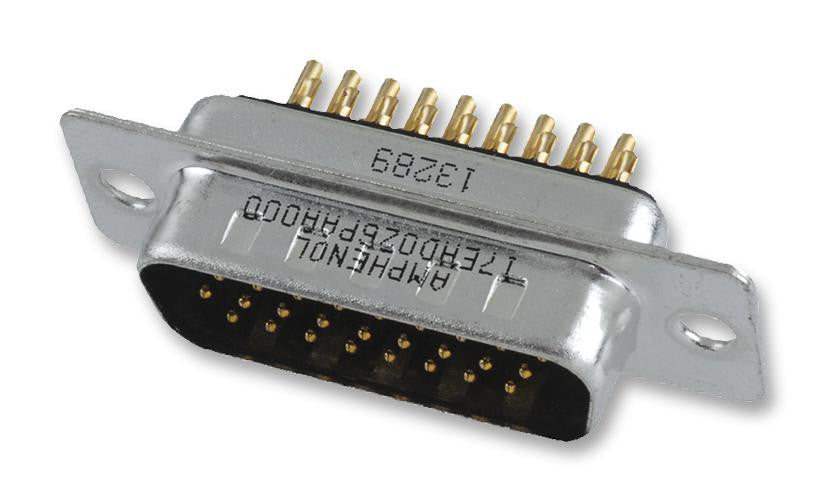

The 17EHD026PAA000 is a 26-position D-sub Connector, 17EHD series, gold flash over nickel-plated copper alloy contacts, 0.120-inch (3.05mm) clear hole panel mounting and solder cup termination, pin (male)-type contact. The high density D-subminiature connector complement Amphenol's extensive D-subminiature connector line. This line of connector offers many superior features and high performance level. A cable mount version with solder terminations is also available, which can be combined with Amphenol's standard line of shielded or unshielded backshells.
- Tin-plated steel shell
- UL94V-0 black glass-filled thermoplastic dielectric
- 3A Maximum current rating per contact
- 125VAC Voltage rating
- 1000VAC Minimum dielectric withstanding voltage
- 5000MR Minimum insulation resistance
- 15mR Maximum contact resistance
Applications
Communications & Networking, Industrial
Product details
| No. of Contacts | 26Contacts |
| D Sub Shell Size | DA |
| Gender | Plug |
| Product Range | 17EHD Series |
| Contact Termination Type | Solder |
| Connector Body Material | Steel Body |
Other details
| Brand | AMPHENOL COMMERCIAL PRODUCTS |
| Part Number | 17EHD026PAA000 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
