Description
Violectric DHA V226 Overview
- 1Description
- 2Powerful Amplifier and Preamplifier
- 3Versatile DAC
- 4Professional Quality Electronics

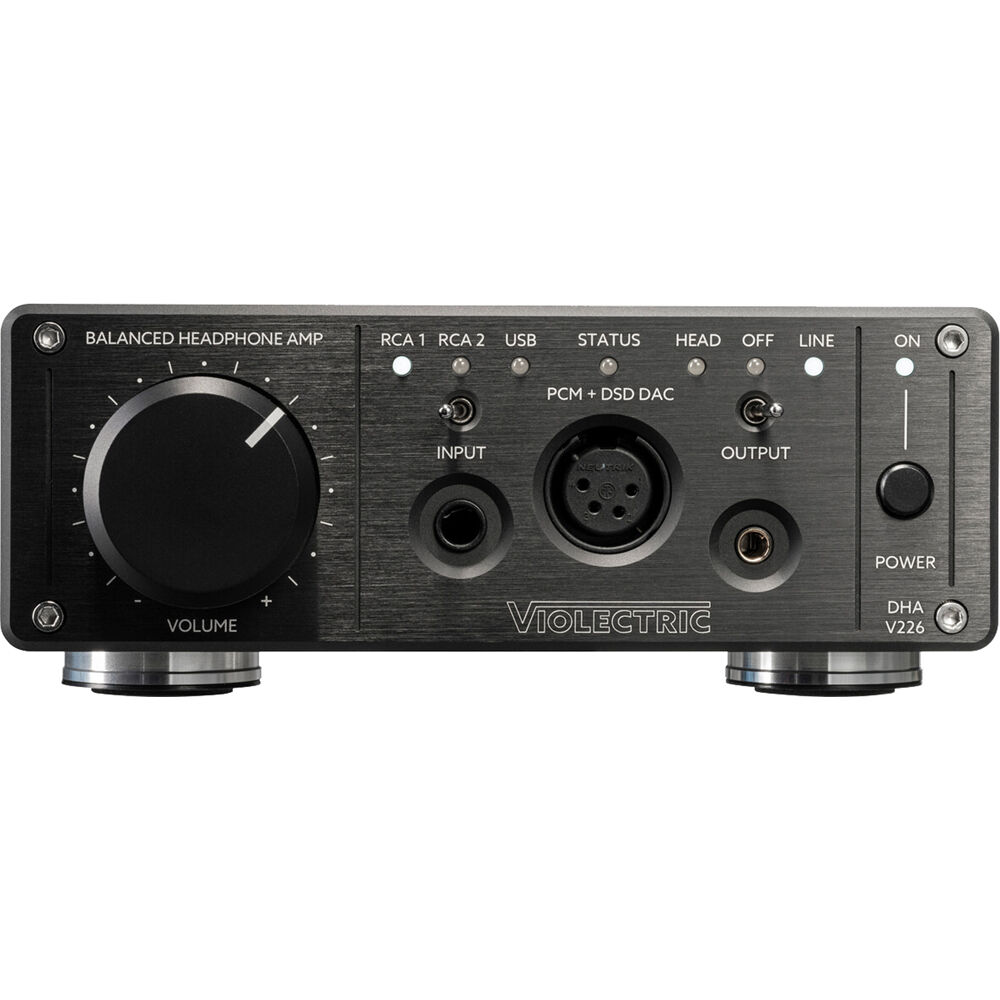

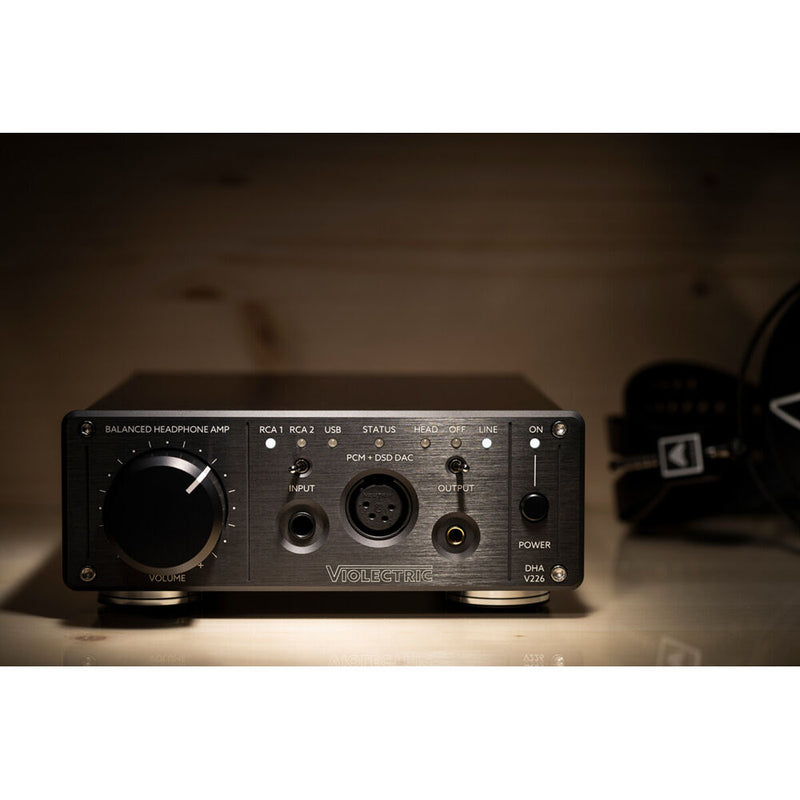

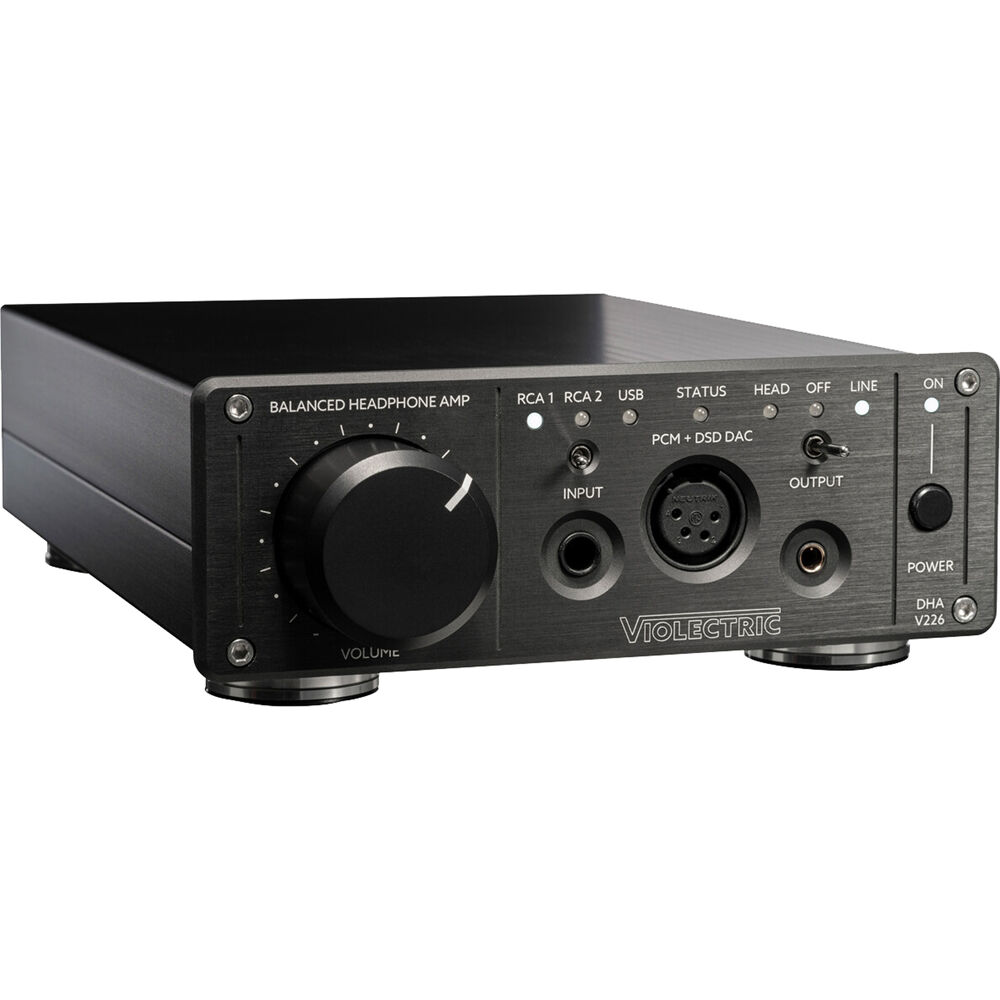

Designed to fill three vital roles in one compact form factor, the DHA V226 from Violectric is a versatile D/A converter with a high-quality preamplifier and an audiophile balanced, stereo headphone amplifier. With support for 16- to 600-ohm headphones, this unit can drive the most demanding headphones, such as planars and low-impedance dynamics, while the Cirrus CS43131 DAC chip provides 32-bit digital-to-analog conversion, with support for up to 384 kHz PCM sampling rates and DSD256 decoding.

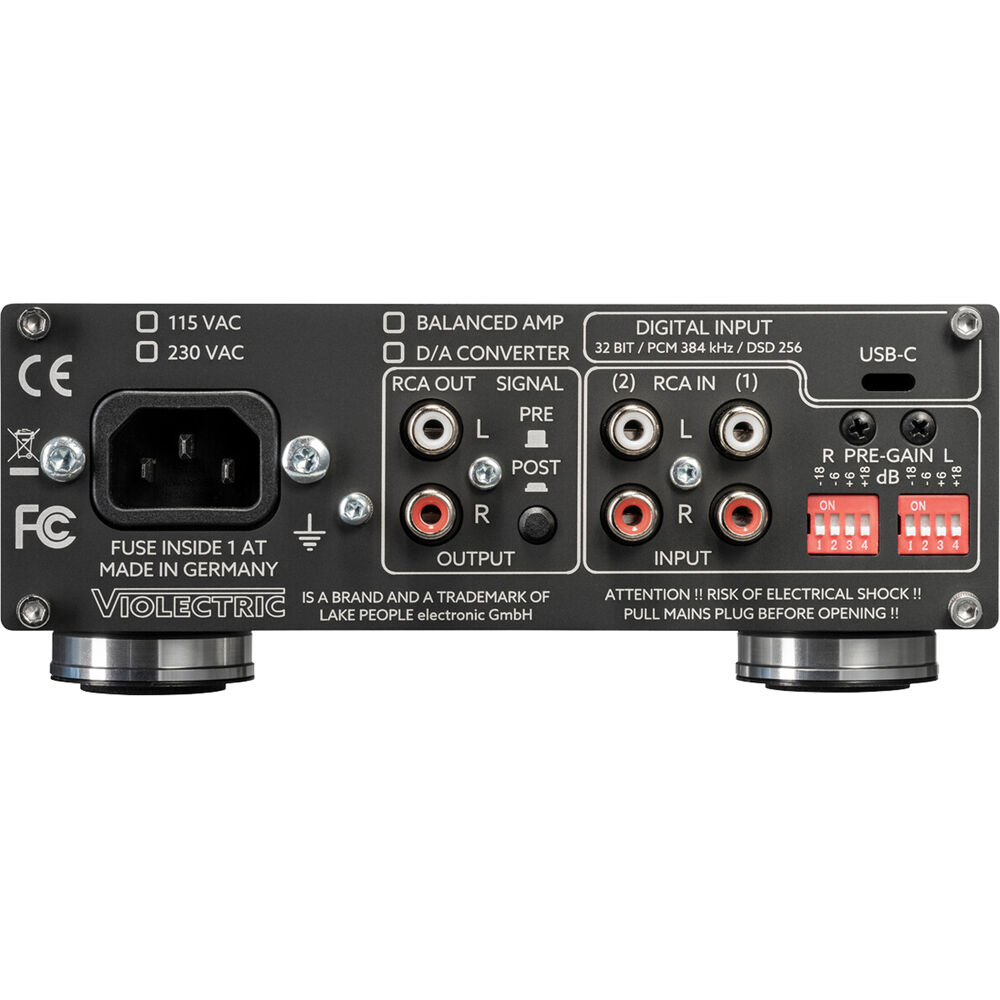

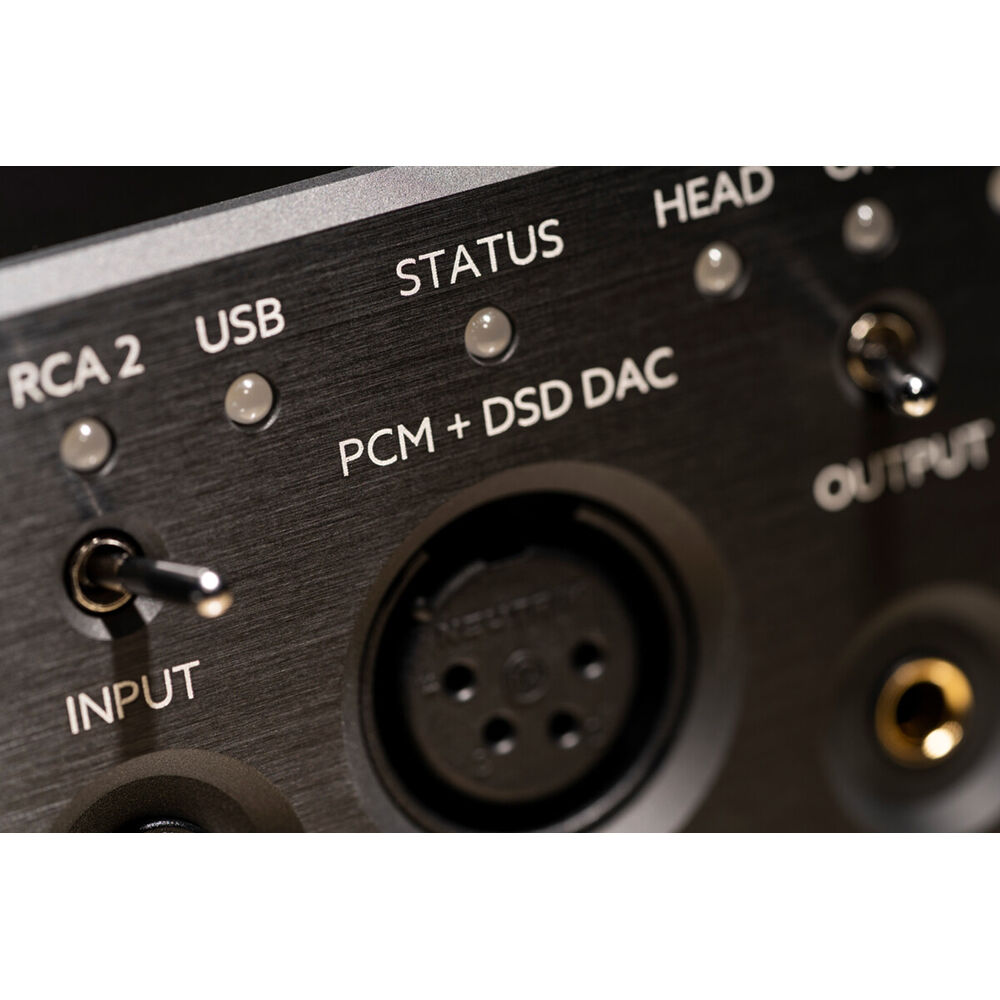

The V226 sports efficient I/O including unbalanced RCA input and output, multiple headphone outs including 1/4", 4.4mm Pentaconn, and a true balanced XLR 4-pin out, as well as a USB-C digital input for DAC functions. With versatile, quality features like pre- and post-fader selection, pre-gain DIP switches, and a standard Alps RK 27 volume pot, it has never been simpler to control your signals.
Powerful Amplifier and Preamplifier
The V226 is designed to be operated as either a headphone amplifier or a loudspeaker preamplifier, with selectable inputs and outputs as well as pre or post gain routing. Protective circuits also help to avoid overloads.
- Two unbalanced RCA stereo input pairs, one unbalanced RCA stereo output pair
- Balanced XLR 4-pin stereo headphone output with wide ranging impedance support
- Extra 1/4" and 4.4mm headphone outputs
- Analog I/O selection
- Pre- or post-gain routing selection
- Rear panel DIP switches for pre-gain control up to ±18 dB
Versatile DAC
The V226 sports powerful DAC hardware via its Cirrus-based CS43131 DAC chip which supports 32-bit PCM decoding and an impressive 130 dB dynamic range. Through USB-C, sample rates as high as 384 kHz PCM and DSD256 can be achieved.
Professional Quality Electronics
The V226 is built to the highest standards with top-grade electronics. From high-quality resistors to reliable controls and connectors, this desktop unit is built to last for years of continuous use.
- One toroidal transformer with large filter capacity of >200,000 uF

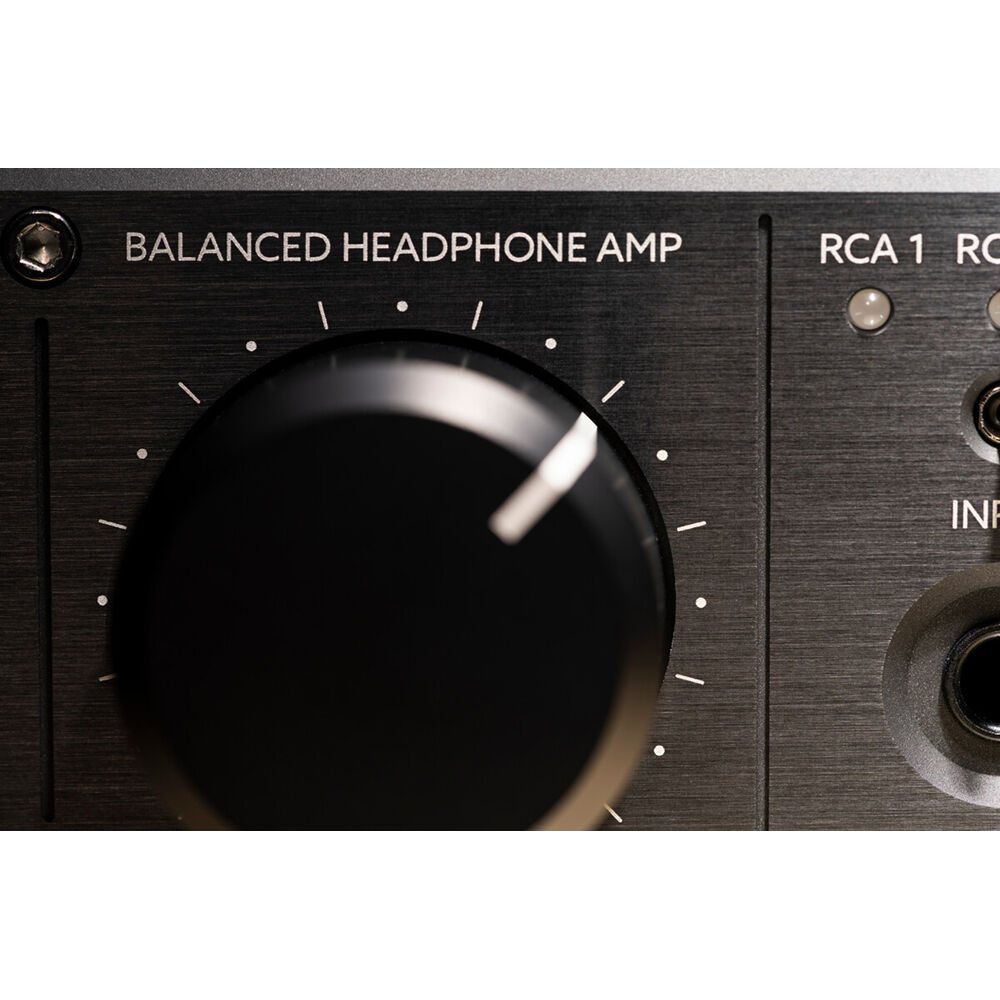

- Alps RK 27 attenuator control made from solid, 38mm aluminum
- Four powerful amps offering 3500mW Pmax into 100 ohms and 23V RMS into 600 ohms
- Delayed coupling of headphones to amp after power activation
- Headphone path and line-out path individually switchable
- Rugged black anodized aluminum chassis
In the Box
- Violectric DHA V226 Headphone Amplifier, Preamp, and DAC
- Power Cord
- Limited 5-Year Manufacturer Warranty
Table of Contents
- Description
- Powerful Amplifier and Preamplifier
- Versatile DAC
- Professional Quality Electronics
Violectric DHA V226 Specs
| Form Factor | Desktop |
| Converter Type | D/A Converter |
| Number of Channels | 1 x D/A |
| Converter Circuitry | D/A Chipset: 1 x Cirrus Logic CS43131 |
| Display | None |
| Maximum Sampling Rate | 384 kHz / 32-Bit (PCM) |
| Number of Microphone Preamps | None |
| Expansion Slots | None |
| Gain/Trim Range | 0 dB to +6 dB -18 dB to +18 dB (Pre-Gain DIP Switches) |
Connectivity
| Analog Audio I/O | 2 x Stereo RCA Coaxial Unbalanced Line Input 1 x Stereo RCA Coaxial Unbalanced Line Output 1 x XLR 4-Pin Balanced Headphone Output (Front Panel) 1 x 1/4" TRS Unbalanced Headphone Output (Front Panel) 1 x 4.4 mm TRRRS Balanced Headphone Output (Front Panel) |
| Phantom Power | None |
| Digital Audio I/O | None |
| Host Connection / USB | None |
| USB (Non-Host) | 1 x USB-C (Digital Input) |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
Performance
| Frequency Response | 5 Hz to 250 kHz -0.5 dB |
| Maximum Input Level | +21 dBu |
| Maximum Output Level | +21 dBu |
| Headphone Output Power | 1500 mW into 16 Ohms 2200 mW into 32 Ohms 2800 mW into 50 Ohms 3500 mW into 100 Ohms 1800 mW into 300 Ohms 900 mW into 600 Ohms |
| Impedance | Line Inputs: 10 Kilohms Line Outputs: < 1 Ohm |
| Dynamic Range | Analog: > 131 dBA Digital: 130 dB (Typical) |
| THD+N | Analog: < -102 dB / < 0.0008% (At 1 kHz, 2 x 10V, 100R = 1W) < -100 dB / < 0.001% (At 1 kHz, 2 x 4V, 32R = 0.5W) Digital: -115 dB |
| Crosstalk | -100 dB (At 1 kHz) -95 dB (At 15 kHz) |
Digital Audio
| Sample Rates | Up to 384 kHz (PCM) |
| Bit Depths | Up to 32-Bit (PCM, D/A Conversion, Playback) |
| Digital Audio Decoding | DSD, PCM |
| Sync Sources | None |
Compatibility
| OS Compatibility | None |
| Included Software | None |
| App Compatible | No *As of December, 2022: Check with manufacturer for the most up-to-date compatibility |
| Mobile Device Compatibility | None |
Power
| Power Requirements | AC Input |
| AC Input Power | 115 to 230 VAC, 50 / 60 Hz (T 1 A) |
| Power Consumption | 15 VA |
Physical
| Certifications | CE, FCC *as per Manufacturer |
| Dimensions | 9.9 x 6.7 x 2.6" / 25.2 x 17 x 6.5 cm (with Feet) |
Packaging Info
| Package Weight | 6.32 lb |
| Box Dimensions (LxWxH) | 13.9 x 10.1 x 5.9" |
