| ₹ 31230.06 includes GST and import duties. | |
| B2B customers can avail ₹ 4762.58 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description

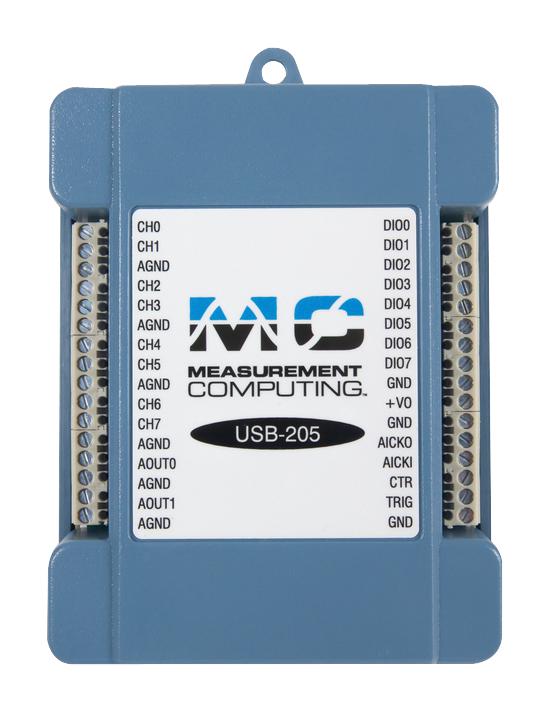

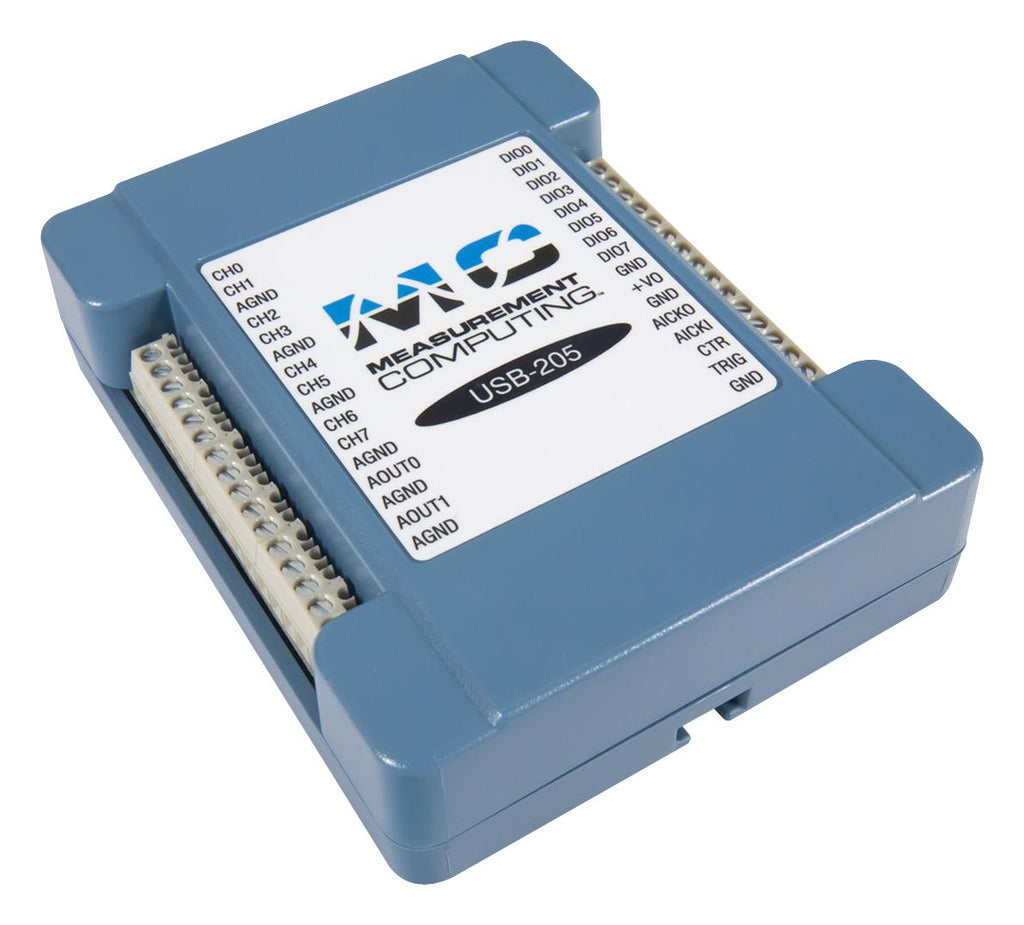

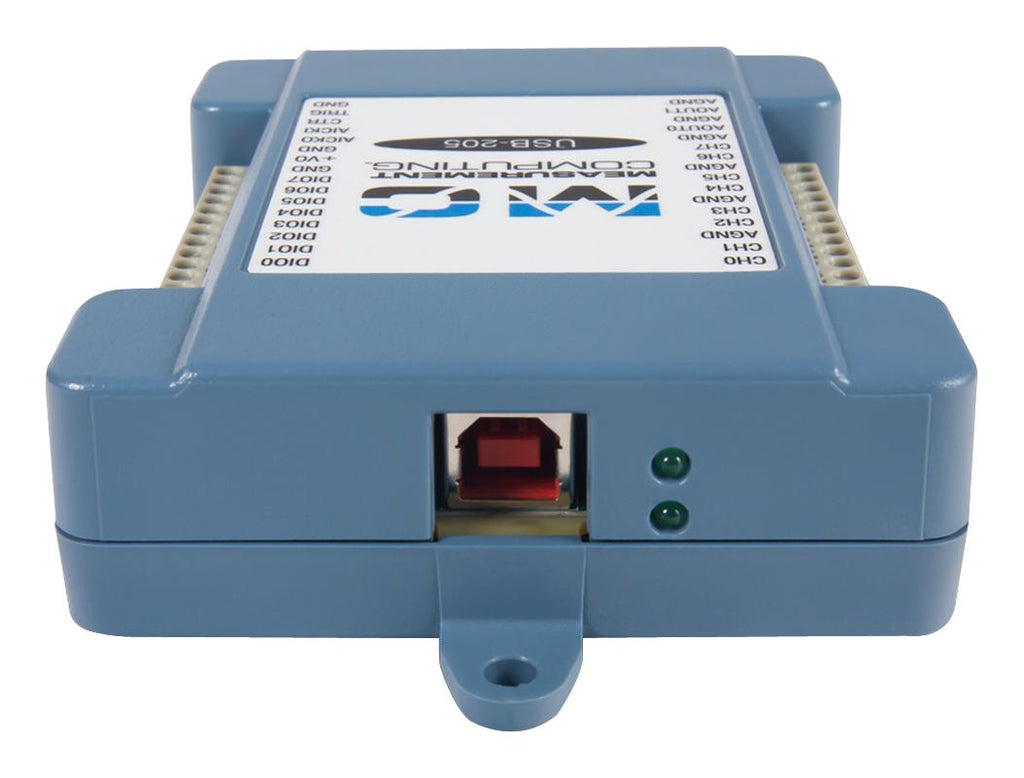

MCC USB-205 is a low-cost, 12-bit, multifunction DAQ device designed for general purpose data acquisition applications. Each device features eight SE analogue voltage inputs, two analogue outputs, eight digital I/O, and one counter input. Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEWâ�¢, MATLAB®, Linux®, and Pythonâ�¢.
- 500KS/s sample rate
- ±10V input range
- External pacer I/O
- User voltage output
- No external power required
- Two screw terminal banks for field wiring connections
- Supported OS: Windows® 10/8/7/Vista®XP 32/64bit, Linux®, Androidâ�¢
Contents

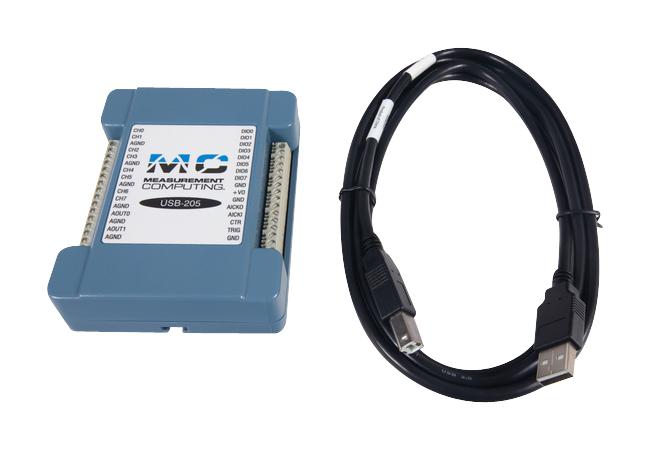

USB-205, USB cable, Printed insert: DAQami software quick start, MCC packaging assembly/foam.
Product details
| No. of Channels: 8Channels |
| Sampling Rate: 500kSPS |
| Input Voltage Max: - |
| Input Current Max: 500mA |
| Bandwidth: 1MHz |
| External Height: 28.96mm |
| External Width: 82.8mm |
| External Depth: 117.86mm |
| Product Range: USB-200 Series |
Other details
| Brand | DIGILENT |
| Part Number | MCC USB-205 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 30605.46 |
| 3-5 | ₹ 30293.16 |
| 5-10 | ₹ 29668.56 |
| 10+ | ₹ 29043.96 |
Bulk discount will be automatically applied during checkout based on quantity.
