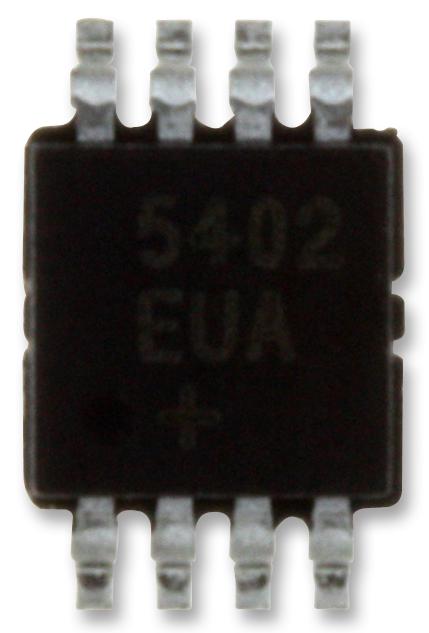

Maxim Integrated / Analog Devices MAX5721EUA+ MAX5721EUA+ Digital to Analogue Converter Low Power 10 bit SPI 2.7V 5.5V �max 8 Pins

The MAX5721EUA+ is a 10bit, low power, dual, voltage output DAC with serial interface in 8 pin µMAX package. The wide supply voltage range and 112µA supply current accommodate low power and low voltage applications. DAC outputs employ on-chip precision output amplifiers that swing rail to rail. The MAX5721's reference input accepts a voltage range from 0 to VDD. In power-down the reference input is high impedance, further reducing the system's total power consumption. The 20MHz, 3-wire SPI, QSPI, MICROWIRE and DSP-compatible serial interface saves board space and reduces the complexity of opto and transformer isolated applications. The MAX5721 on-chip power-on reset (POR) circuit resets the DAC outputs to zero and loads the output with a 100Kohm resistor to ground. This provides additional safety for applications that drive valves or other transducers that need to be off on power-up. The MAX5721's software-controlled power-down reduces supply current to less than 0.3µA.

• Supply voltage range is 2.7V to 5.5V
• Operating temperature range from -40°C to 85°C
• Fast 20MHz 3-wire SPI/QSPI/MICROWIRE and DSP-compatible serial interface
• Schmitt triggered inputs for direct interfacing to optocouplers
• Software selectable output loads (1Kohm, 100Kohm or high impedance) in power-down mode
• Rail to rail output buffer

Applications

Signal Processing, Portable Devices

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	MAXIM INTEGRATED / ANALOG DEVICES
Part Number	MAX5721EUA+
Quantity	Each
