The MCP3561 is a single channel, 24-bit precision delta-sigma analog-to-digital converter (ADC) with integrated programmable gain amplifier (PGA), oscillator and temperature sensor. With 24-bit resolution and data rates up to 153.6 kilo-samples-per-second (kSPS), the MCP3561 can be used in a wide range of high speed and high precision ADC applications.
- 24-bit Resolution
- Differential and Single-ended Input Operation
- Programmable Gain: 1/3, 1, 2, 4, 8, 16, 32, 64
- Programmable Data Rates: Up to 153.6kSPS
- Internal Oscillator
- Internal Temperature Sensor
Other details
| Brand |
MICROCHIP |
| Part Number |
MCP3561T-E/NC |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |

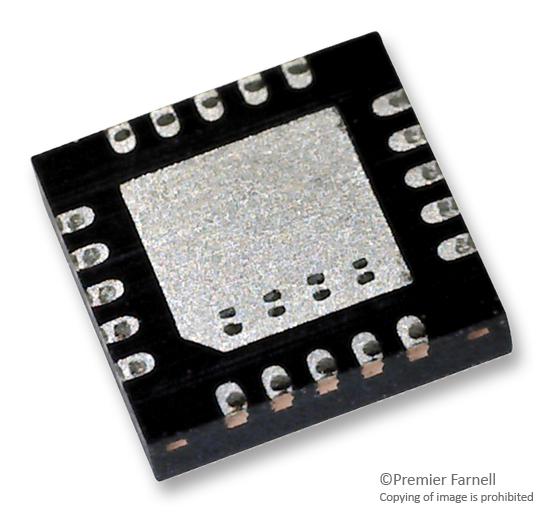

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
