Description

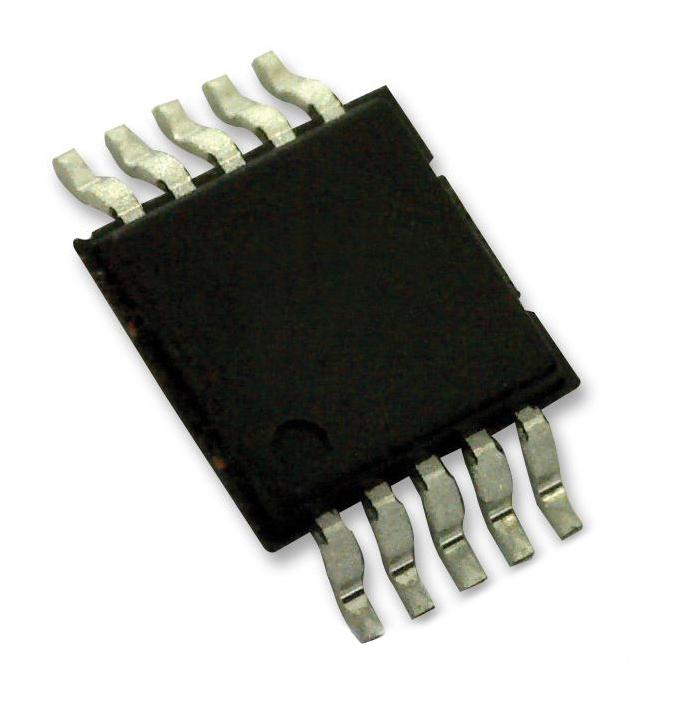

MCP4728T-E/UN is a quad, 12bit voltage output Digital-to-Analog Convertor (DAC) with non-volatile memory (EEPROM) in a 10-lead MSOP package. Its on-board precision output amplifier allows it to achieve rail-to-rail analogue output swing. The DAC input codes, device configuration bits, and I2C address bits are programmable to the non-volatile memory (EEPROM) by using I2C serial interface commands. The non-volatile memory feature enables the DAC device to hold the DAC input codes during power-off time, allowing the DAC outputs to be available immediately after power-up with the saved settings. This feature is very useful when the DAC device is used as a supporting device for other devices in the application's network.
- Has a high precision internal voltage reference (VREF = 2.048V)
- User can select the internal reference or external reference (VDD) for each channel individually
- ±0.2 least significant bit differential nonlinearity (DNL) (typical)
- Fast settling time of 6 µs (typical)
- Normal or power-down mode
- Low power consumption
- Single-supply operation range from 2.7V to 5.5V
- Includes a power-on reset (POR) circuit
- Two-wire I2C compatible interface for standard (100KHz), fast (400KHz)/ high speed (3.4MHz) mode
- Extended temperature range from -40°C to +125°C
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Resolution (Bits): 12bit |
| Sampling Rate: - |
| Data Interface: I2C |
| Supply Voltage Range: 2.7V to 5.5V |
| ADC / DAC Case Style: MSOP |
| No. of Pins: 10Pins |
| Input Channel Type: Serial |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Product Range: Quad 12 Bit Voltage Output DACs |
| Automotive Qualification Standard: AEC-Q100 |
| MSL: MSL 2 - 1 year |
Other details
| Brand | MICROCHIP |
| Part Number | MCP4728T-E/UN |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
