Description

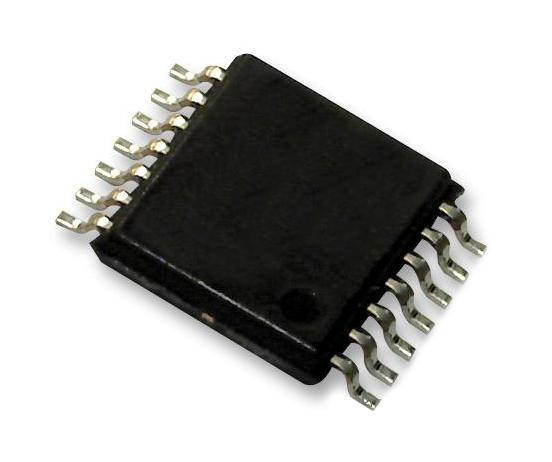

MCP4922T-E/ST is a 2.7 to 5.5V, low-power, low DNL, 12bit DAC in a plastic TSSOP package. Available with optional 2x buffered output and SPI interface. The MCP4922 DAC provides high accuracy and low noise performance for industrial applications where calibration or compensation of signals (such as temperature, pressure and humidity) are required. The MCP4922 device utilizes a resistive string architecture, with its inherent advantages of low DNL error, low ratio metric temperature coefficient and fast settling time. The MCP4922 include double buffered inputs, allowing simultaneous updates using the active low LDAC pin. This device also incorporates a Power-On Reset (POR) circuit to ensure reliable power-up. Typical applications include set point or offset trimming, sensor calibration, digitally-controlled multiplier/divider, portable instrumentation (battery-powered) and motor feedback loop control.
- ±0.2 LSB DNL (typ), ±2 LSB INL (typ)
- Rail-to-rail output
- SPI� interface with 20MHz clock support
- Fast settling time of 4.5µs
- Selectable unity or 2x gain output
- 450KHz multiplier mode
- External VREF input
- Extended temperature range from -40°C to +125°C
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Resolution (Bits): 12bit |
| Sampling Rate: - |
| Data Interface: SPI |
| Supply Voltage Range: 2.7V to 5.5V |
| ADC / DAC Case Style: TSSOP |
| No. of Pins: 14Pins |
| Input Channel Type: Serial |
| Operating Temperature Min: -40°C |
| Operating Temperature Max: 125°C |
| Product Range: 12 bit |
| Automotive Qualification Standard: AEC-Q100 |
| MSL: MSL 1 - Unlimited |
Other details
| Brand | MICROCHIP |
| Part Number | MCP4922T-E/ST |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
