Description
The TC7107CPL is a 3-1/2-digit direct display drive Analog-to-digital Converter (ADC) allows existing TC7107 based systems to be upgraded. Each device has a precision reference with a 20ppm/�C maximum temperature coefficient. This represents a 4 to 7 times improvement over similar 3-1/2-digit converters. Existing TC7107 based systems may be upgraded without changing external passive component values. It drives common anode light emitting diode displays directly with 8mA per segment. A high resolution indicating meter requires only a display, four resistors and four capacitors. It reduces linearity error to less than 1 count. Rollover error - the difference in readings for equal magnitude, but opposite polarity input signals, is below �1 count. High-impedance differential inputs offer 1pA leakage current and a 10��R input impedance. The differential reference input allows ratiometric measurements for ohms or bridge transducer measurements.
- Drives LED display directly
- Zero reading with zero input
- Low noise for stable display
- Auto-zero cycle eliminates need for zero adjustment
- True polarity indication
- Differential reference inputs simplify ratiometric measurements
Applications
Sensing & Instrumentation, Metering, Consumer Electronics, Portable Devices
Product details
| Operating Temperature Min | 0�C |
| Resolution (Bits) | 3.5bit |
| ADC / DAC Case Style | DIP |
| Supply Voltage Type | Single |
| Operating Temperature Max | 70�C |
| Sampling Rate | - |
| Data Interface | Parallel |
| No. of Pins | 40Pins |
| Product Range | LCD/LED Display ADCs |
| Automotive Qualification Standard | - |
| Supply Voltage Min | - |
| Packaging | Each |
| Supply Voltage Max | 5V |
| Input Channel Type | Differential |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | TC7107CPL.. |
| Quantity | Each |
| Technical Data Sheet EN |  |

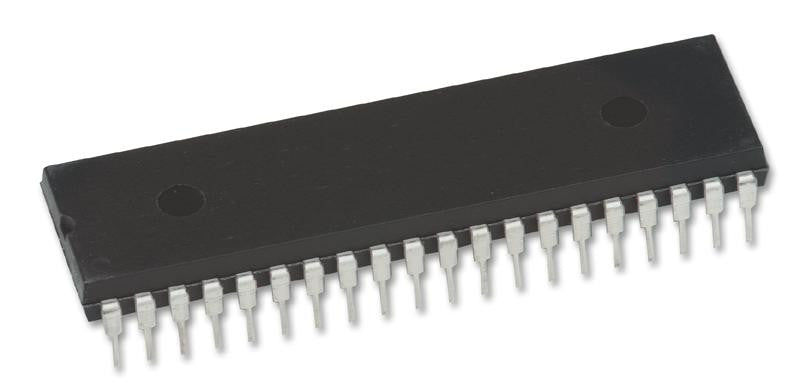

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
