Description
The TC7109CPL is a 12-bit �A-compatible Analog-to-digital Converter (ADC) provides a versatile digital interface. In the direct mode, chip select and HIGH/LOW byte enable control parallel bus interface. In the Handshake mode, the TC7109A will operate with industry standard UARTs in controlling serial data transmission - ideal for remote data logging. Control and monitoring of conversion timing is provided by the RUN/HOLD input and Status output. The plus sign, CMOS low power ADC has only eight passive components and a crystal are required to form a complete dual slope integrating ADC. The improved VOH source current and other TC7109A features make it an attractive per-channel alternative to analog multiplexing for many data acquisition applications. True differential input and reference allow measurement of bridge type transducers such as load cells, strain gauges and temperature transducers.
- Zero integrator cycle for fast recovery from input overloads
- Eliminates cross-talk in multiplexed systems
- Sign magnitude coding format
- True differential signal input and differential reference input
- No zero adjustment needed
- TTL Compatible, byte organized tri-state outputs
Applications
Automation & Process Control, Signal Processing
Product details
| Operating Temperature Min | 0�C |
| Resolution (Bits) | 12bit |
| ADC / DAC Case Style | DIP |
| Supply Voltage Type | Single |
| Operating Temperature Max | 70�C |
| Sampling Rate | 10SPS |
| Data Interface | Parallel, Serial |
| No. of Pins | 40Pins |
| Product Range | Single 12-Bit Integrating ADCs |
| Automotive Qualification Standard | - |
| Supply Voltage Min | 4.5V |
| Packaging | Each |
| Supply Voltage Max | 5.5V |
| Input Channel Type | Differential |
| MSL | - |
Other details
| Brand | MICROCHIP |
| Part Number | TC7109CPL |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Product Change Notice EN | |

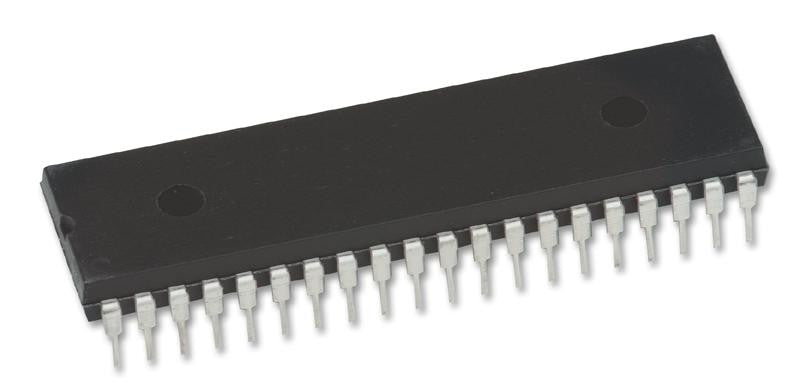

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
