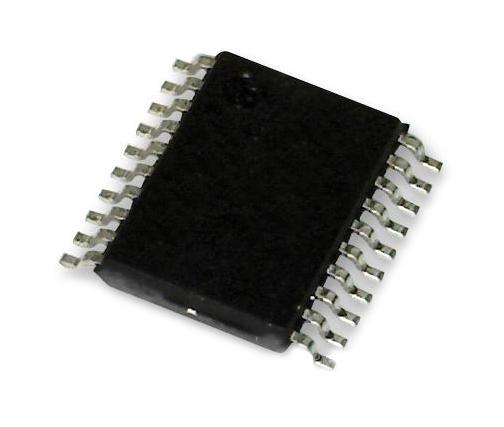

Texas Instruments PCM5102APWR PCM5102APWR Digital to Analogue Converter 32 bit 384 Ksps I2S 3V 3.6V Tssop 20 Pins

The PCM5102APWR is a monolithic CMOS stereo Digital-to-analog Converter with additional support circuitry. The PCM510xA device uses the latest generation of TIs advanced segment-DAC architecture to achieve excellent dynamic performance and improved tolerance to clock jitter. Using Directpath� charge-pump technology, the PCM510xA device provides 2.1VRMS ground centered outputs, allowing designers to eliminate DC blocking capacitors on the output, as well as external muting circuits traditionally associated with single-supply line drivers. The integrated line driver surpasses all other charge-pump based line drivers by supporting loads down to 1kR per pin. The integrated PLL on the device removes the requirement for a system clock, allowing a 3-wire I²S connection and reducing system EMI. Intelligent clock error and PowerSense undervoltage protection utilizes a two-level mute system for pop-free performance.

• Ultralow out-of-band noise
• No DC blocking capacitors required
• Automatic power-save mode when LRCK and BCK are deactivated
• Simple configuration using hardware pins
• Green product and no Sb/Br

Applications

Consumer Electronics, Sensing & Instrumentation, Automotive, Imaging, Video & Vision

Other details

Brand	TEXAS INSTRUMENTS
Part Number	PCM5102APWR
Quantity	Each (Supplied on Cut Tape)
