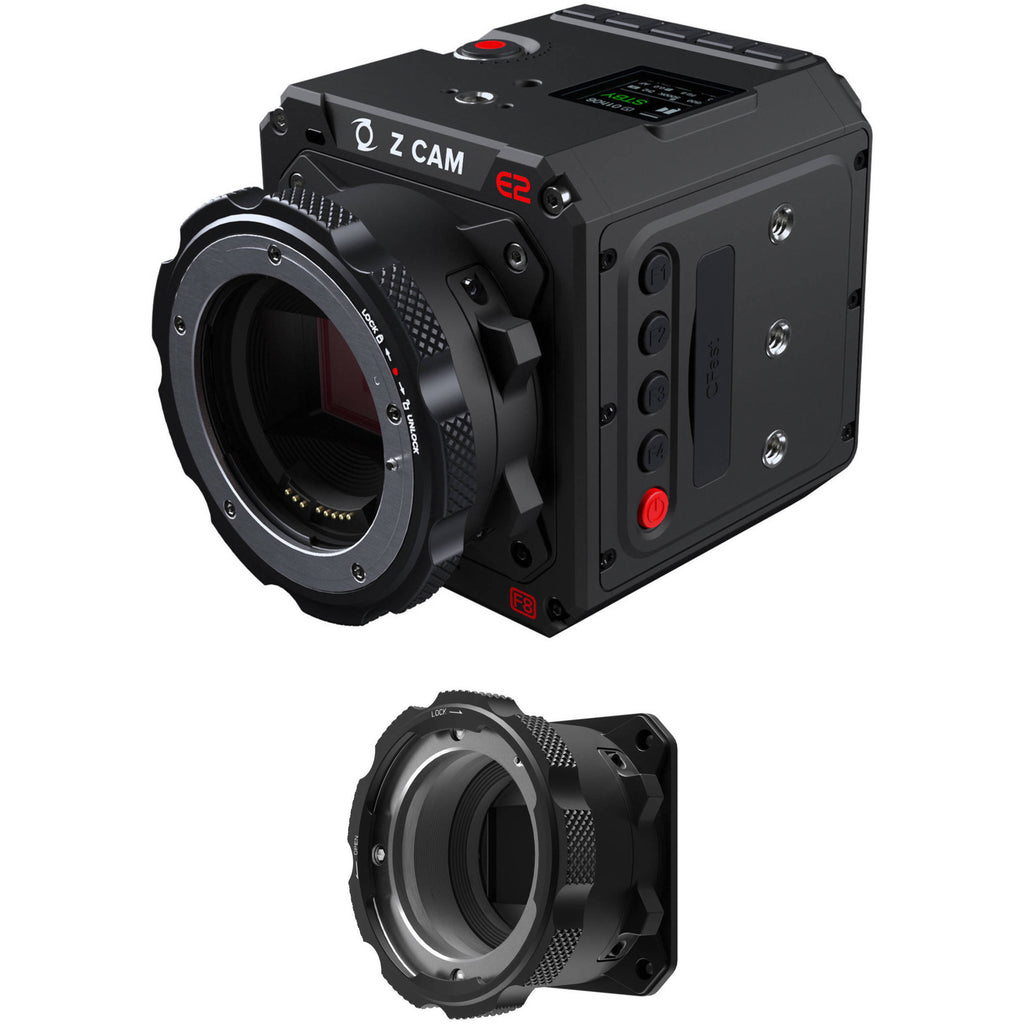

Z CAM E2-S6 Super 35 6K Cinema Camera (PL Mount)

Record up to 6K60 Video

ZRAW Recording

14 Stops of Dynamic Range

Super 35 CMOS Sensor

Shoot professional high-definition cinema footage with the Z CAM E2-S6 Super 35 6K Cinema Camera with a PL lens mount. The camera features a Super 35 sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range, supports timecode, shoots up to 6K at up to 60 fps, DCI 4K up to 75 fps, 1080p up to 120 fps, and records data up to 300 Mb/s onto CFast 2.0 media.

Supported recording formats MOV and MP4 using H.265 for 10-bit recording (H.264 supports 8-bit recording), and firmware 0.88 that allows the camera to record in the ZRAW format. The HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.

The E2-S6 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, an Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.

The E2-S6 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.

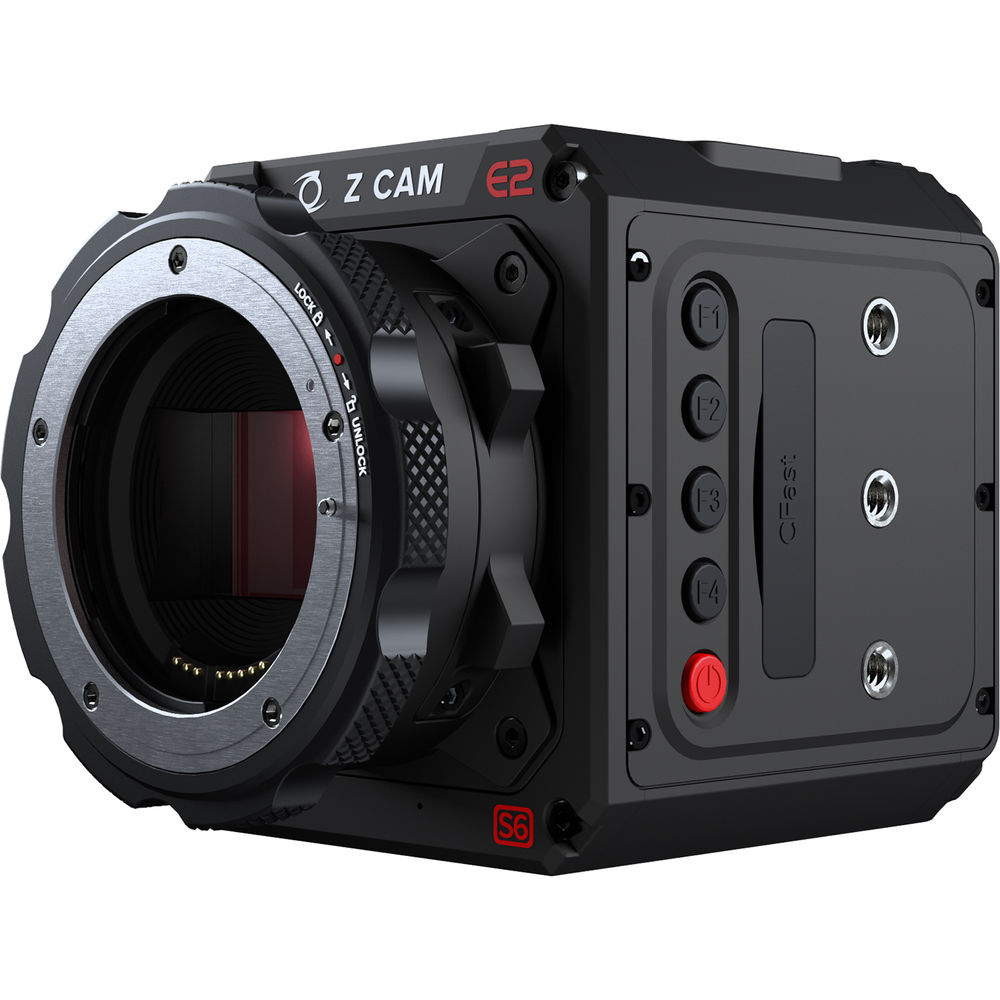

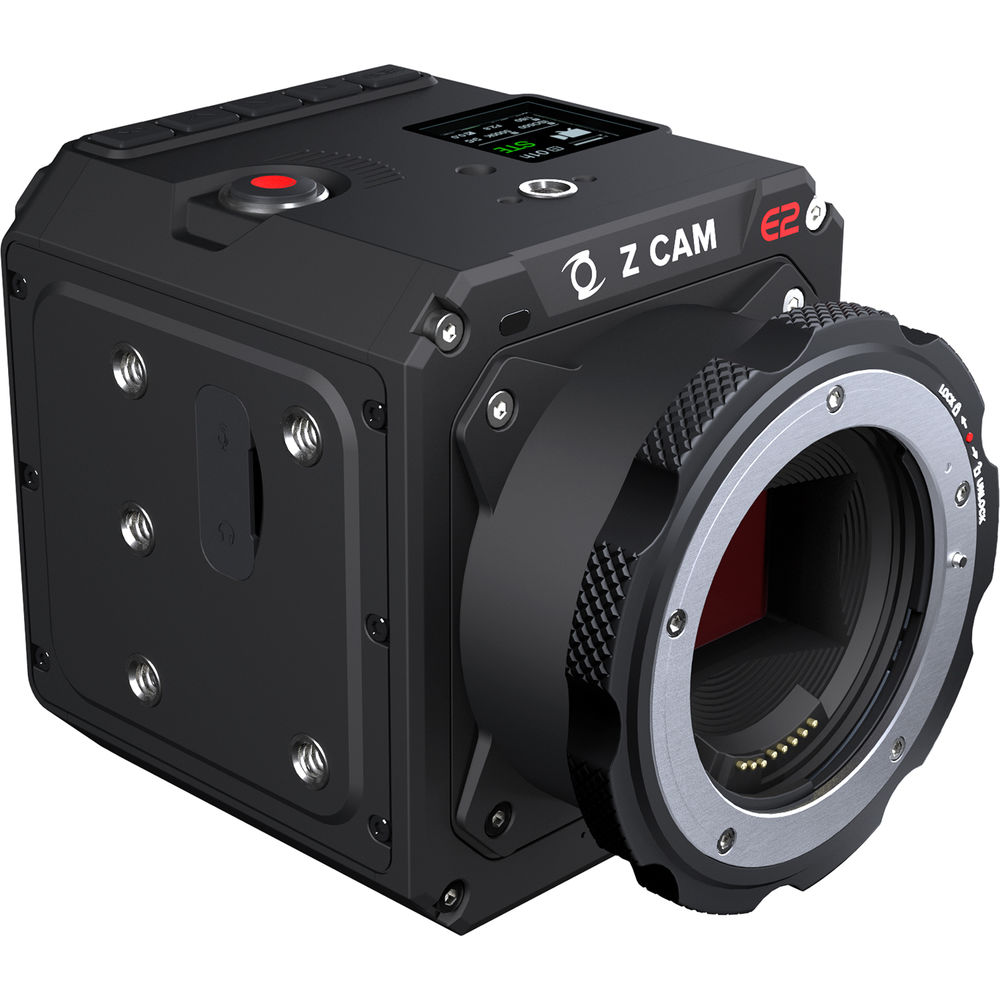

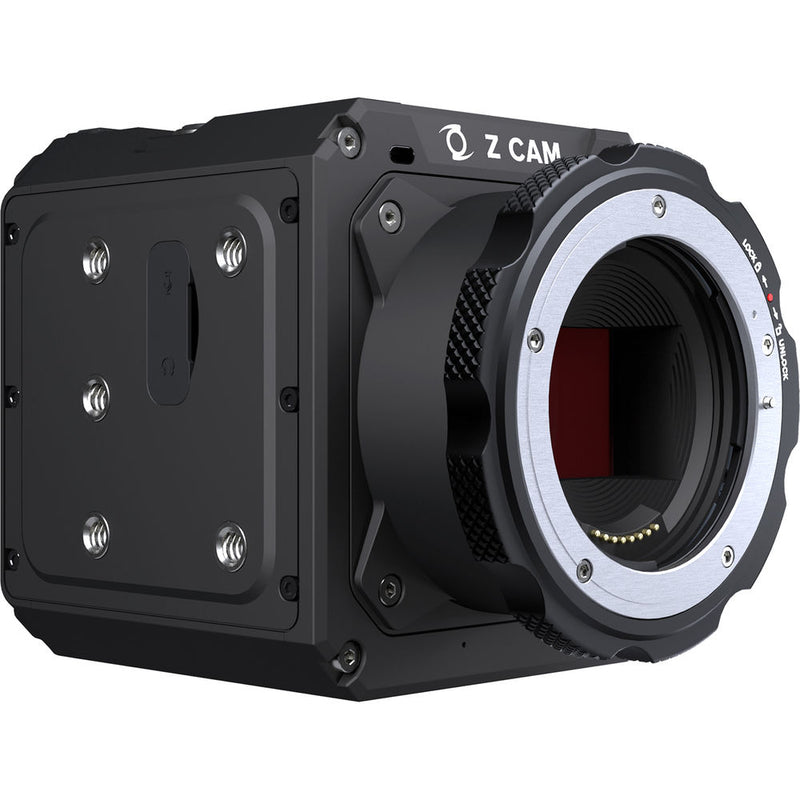

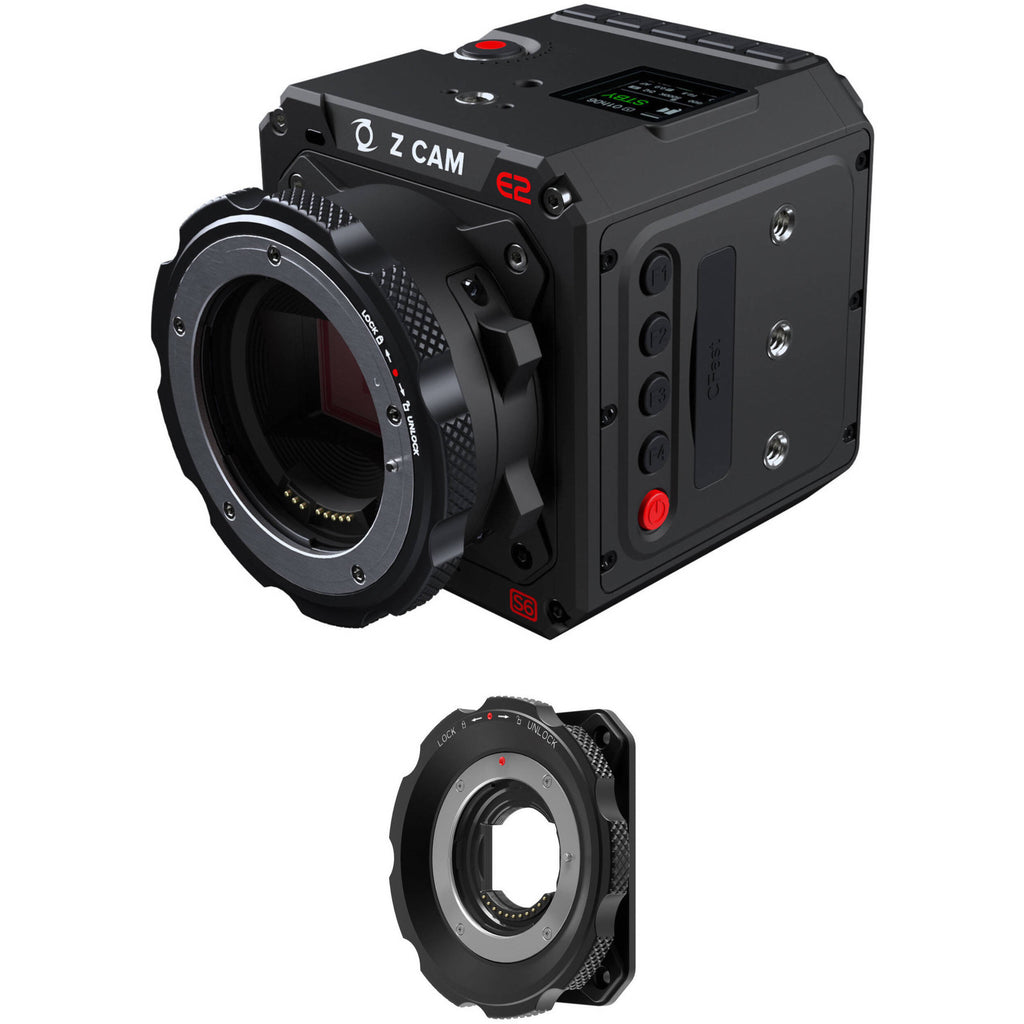

Z CAM E2-S6 Super 35 6K Cinema Camera (EF Mount)

Shoot professional high-definition cinema footage with the Z CAM E2-S6 Super 35 6K Cinema Camera with a Canon EF lens mount. The camera features a Super 35 sensor with 10-bit 4:2:2 color support and nominal 14 stops of dynamic range, supports timecode, shoots up to 6K at up to 60 fps, DCI 4K up to 75 fps, 1080p up to 120 fps, and records data up to 300 Mb/s onto CFast 2.0 media.

Supported recording formats MOV and MP4 using H.265 for 10-bit recording (H.264 supports 8-bit recording), and firmware 0.88 that allows the camera to record in the ZRAW format. The HDMI 2.0 port supports 4K60, 10-bit 4:2:2 video output. Audio is recorded in 24-bit 48 kHz using AAC or PCM (PCM for MOV format only) through its 3.5mm stereo jack or via a separately available XLR connector using its 5-pin LEMO port.

The E2-S6 can be controlled via serial ports, a 2.5mm LANC connector, a USB Type-C port, an Ethernet port, or by the Z Camera iOS app to control the camera via Wi-Fi and to view a live image preview and to configure settings. The camera can record time-lapse, slow motion, and can even live stream via its Gigabit Ethernet port. You can also control it locally by the buttons along the side of the camera.

The E2-S6 can be powered by a separately available battery using the built-in L-series battery mount, or you can power the camera using a separately available power adapter using its 2-pin LEMO port. The camera also features a 12 VDC 2-pin LEMO power output to provide power to separately available accessories.

Firmware 0.88 Firmware 0.88 enables ZRAW recording to the camera. 4K Capture and Recording

• Unburdened by a recording time limit, you can record 6K at up to 60 fps for up to the limit of your recording media's capacity
• CMOS sensor with 14 stops of dynamic range
• The camera supports ZRAW, REC. 709, Z-Log2, FLAT, and HLG
• H.265 (10-bit color) internal recording on CFast 2.0 cards
• 4K60, 10-bit 4:2:2 video output through HDMI 2.0 is supported
• Full-metal housing for efficient heat dissipation

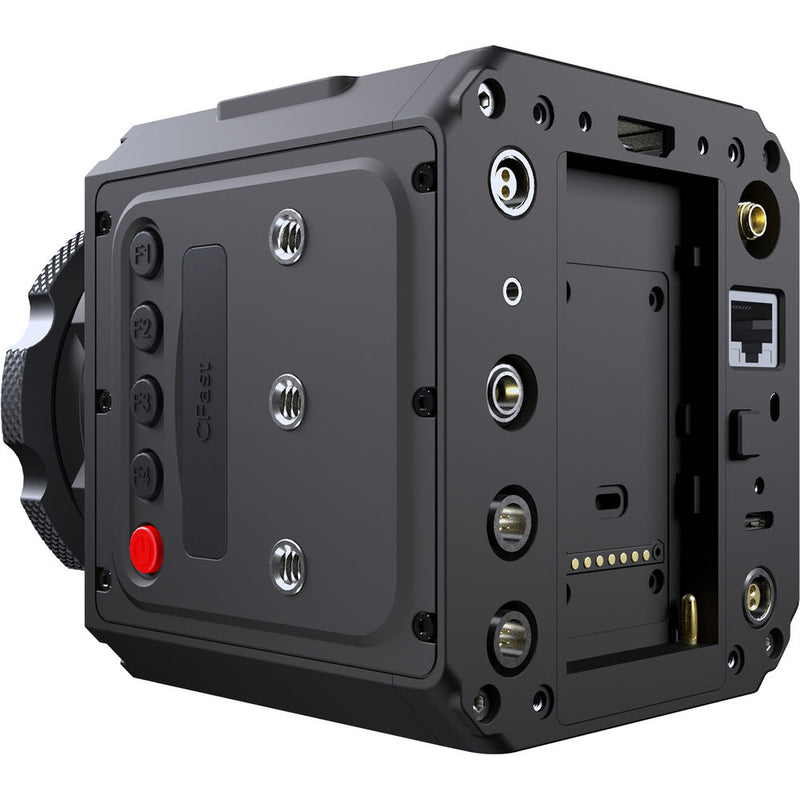

Interfaces and Expandability

• USB 3.0 Type-C for camera control and data transformation only
• Two serial ports for camera control
• Ethernet port for live view, control, and file transfer to a browser or a computer running Z CAM software
• LANC port for remote control including power on/off

iOS App Z Camera is a mobile application for camera live preview and control through 5G or 802.11n Wi-Fi. It allows you to start/stop recording and adjust the camera settings remotely, and also has advanced features on camera live preview. Camera Settings

• White balance: Auto, preset, manual (2300 to 7500K)
• Focus modes: MF, AF, CAF
• Image: Brightness, contrast, saturation, sharpness
• LUT: REC. 709, Z-Log2, FLAT, HLG
• Timecode: Current time, manual input

Camera Body

• Made from aluminum for strength and heat dissipation
• 2-pin LEMO 12 VDC power output
• Powers from optional 2-pin LEMO 12 VDC adapter or optional L-series batteries

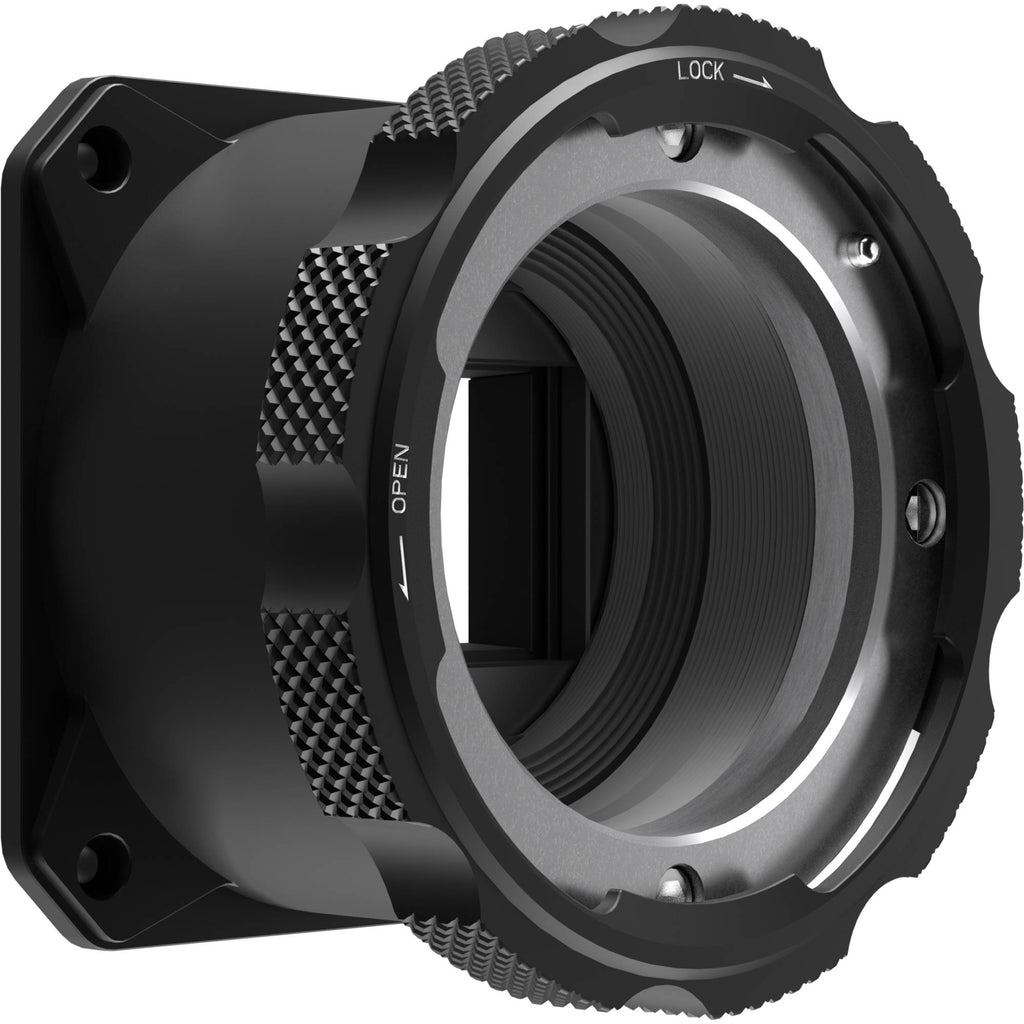

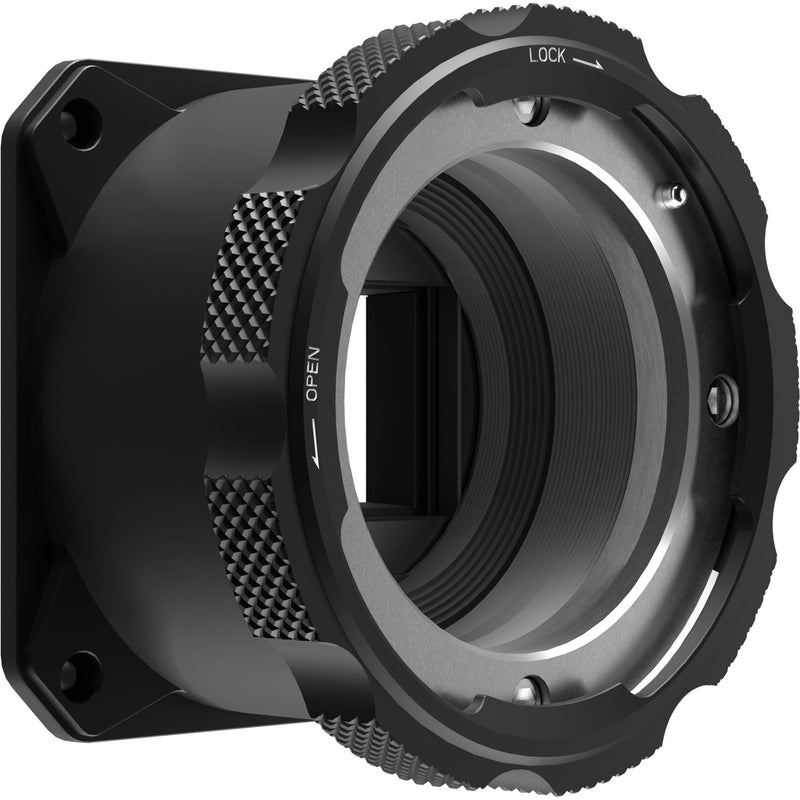

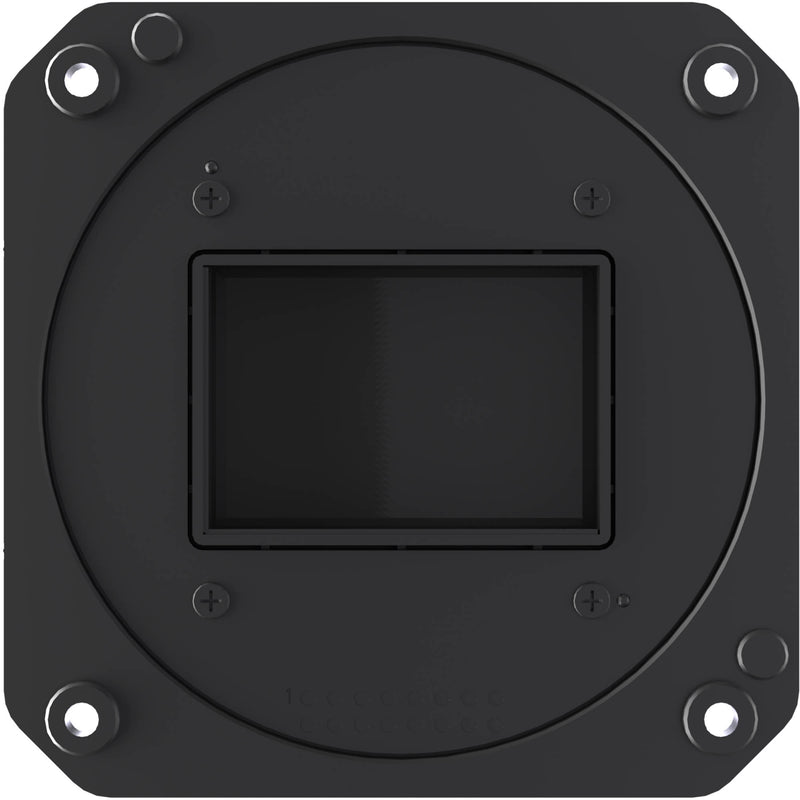

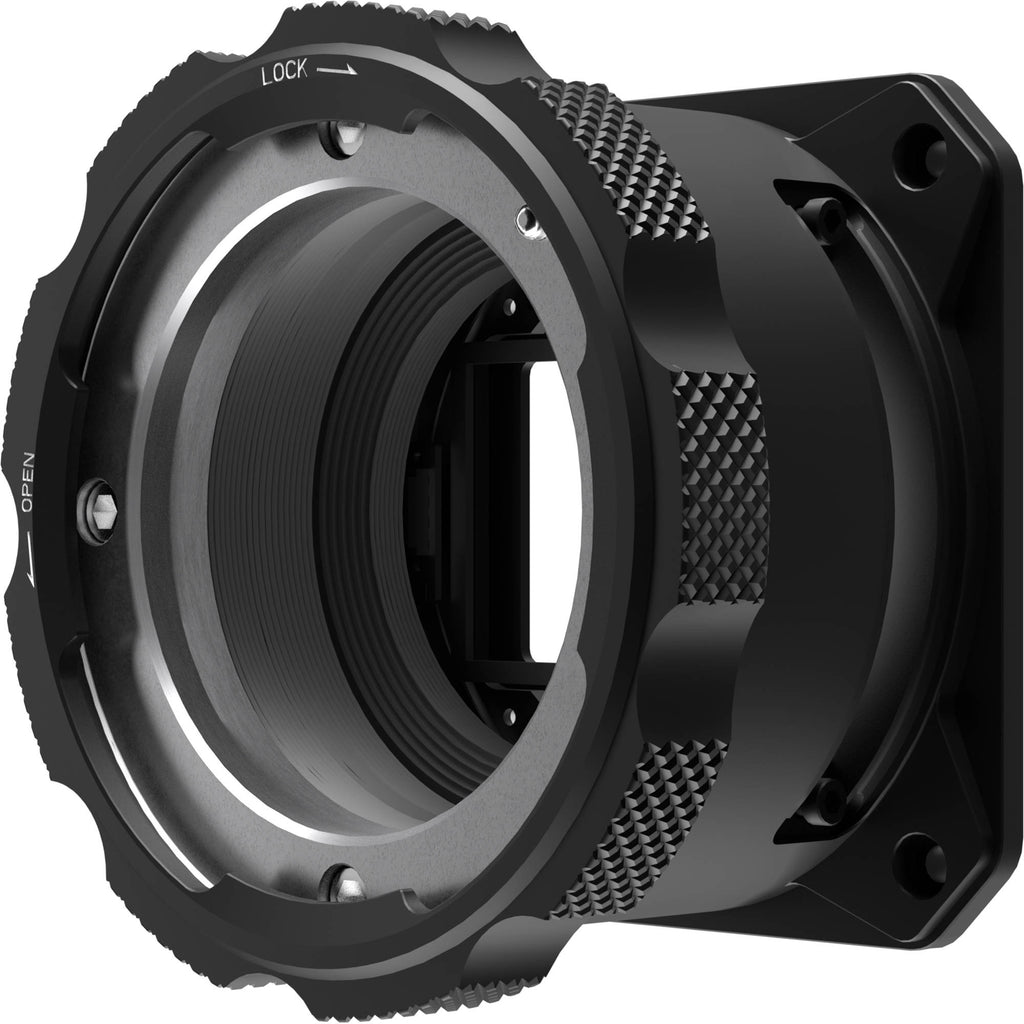

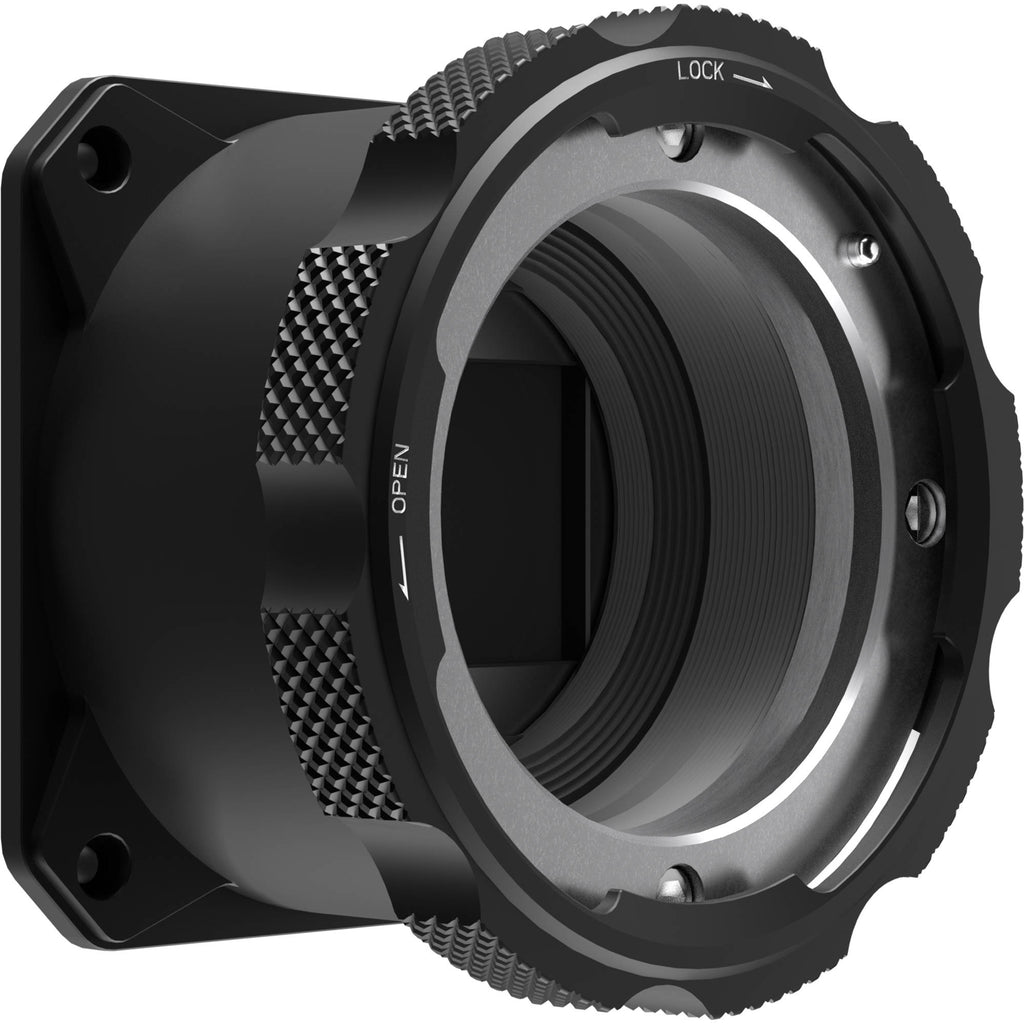

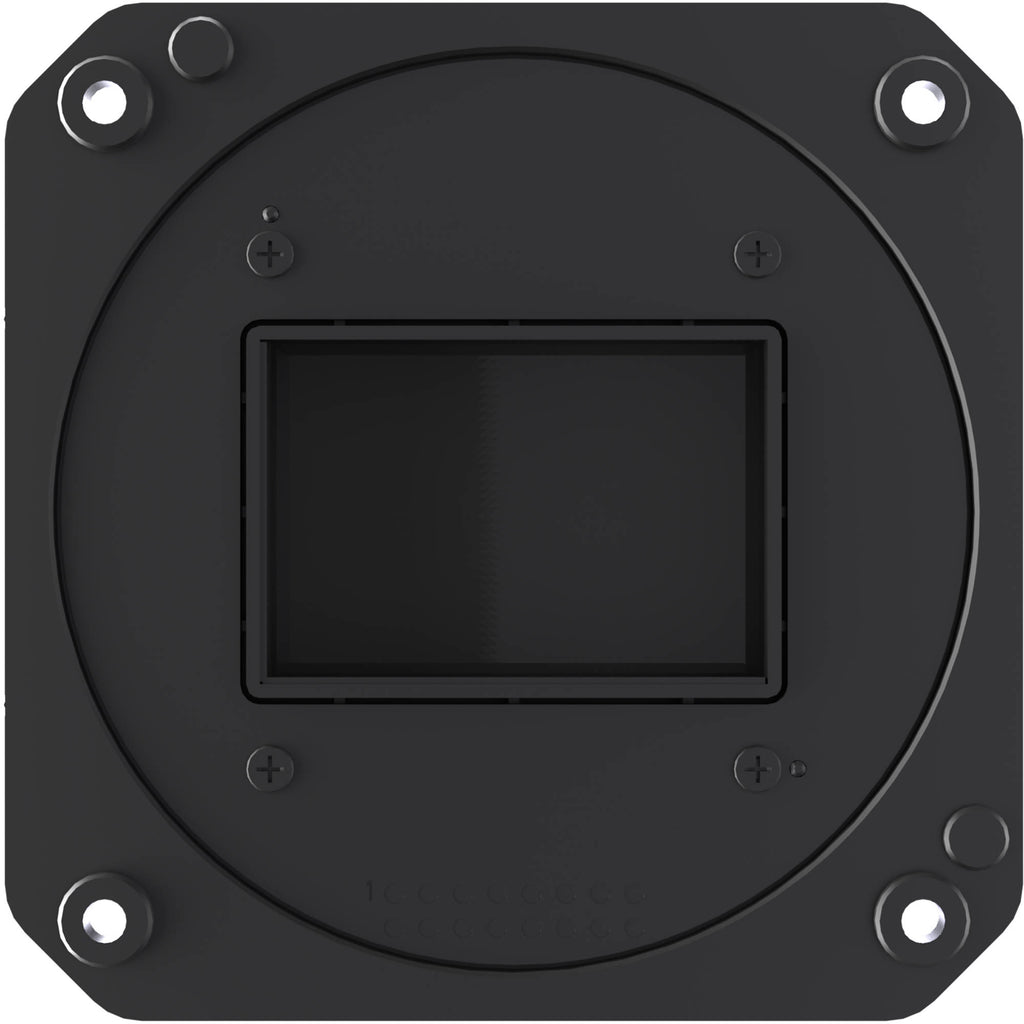

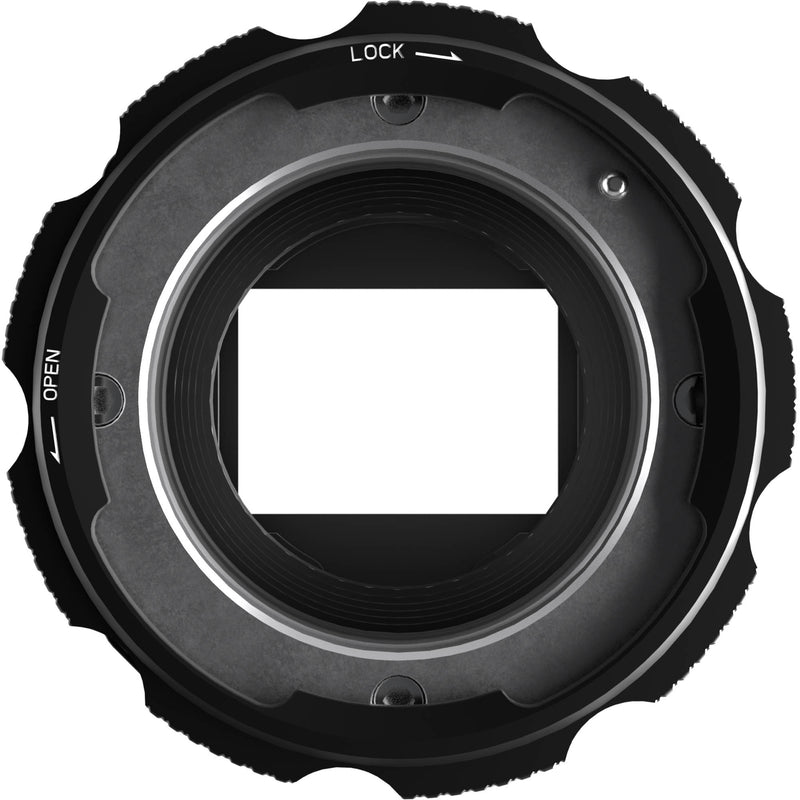

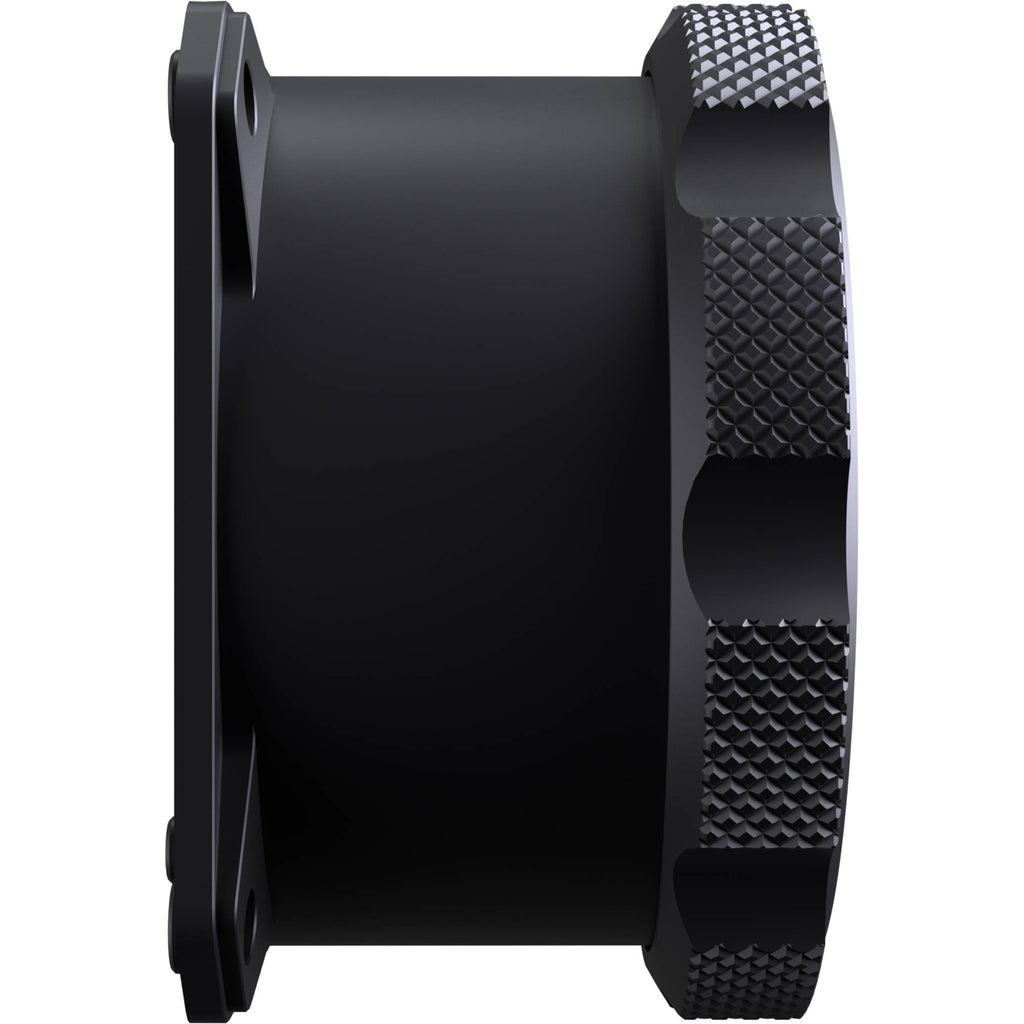

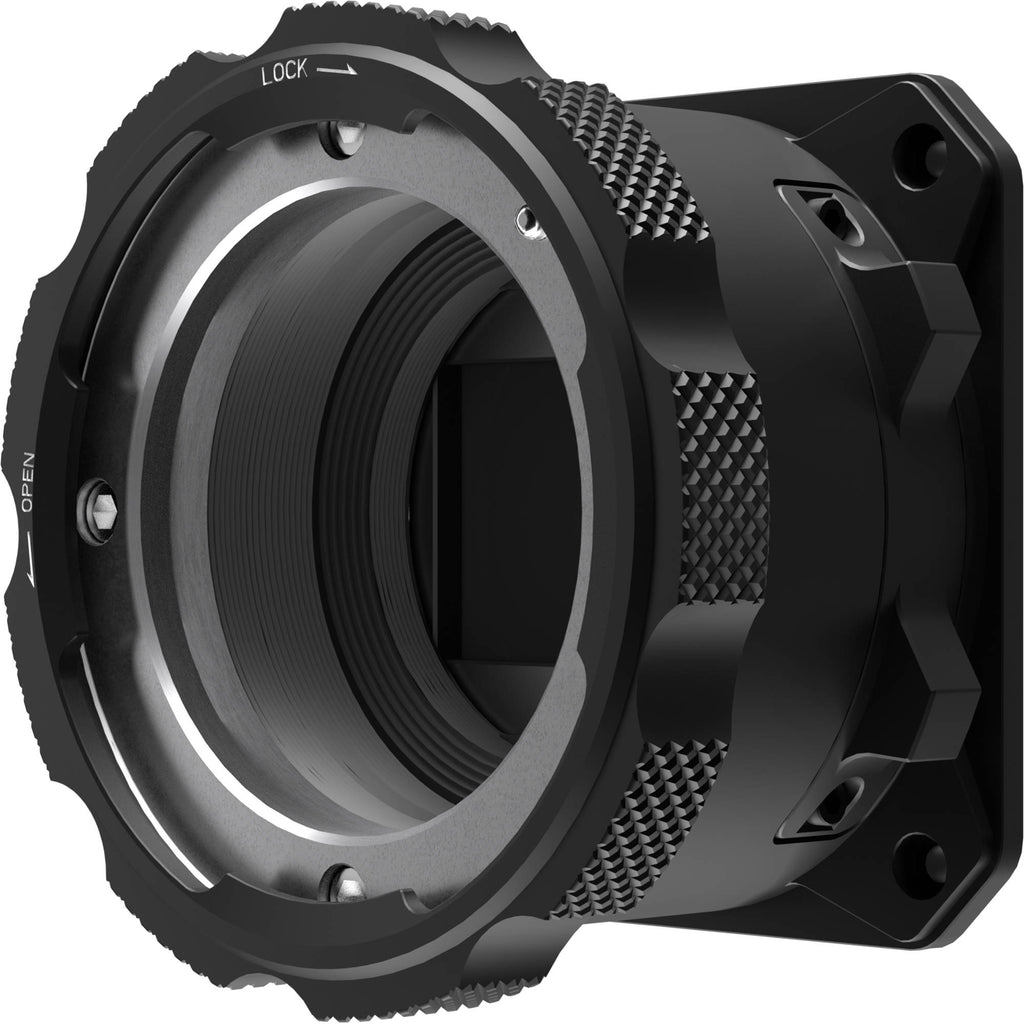

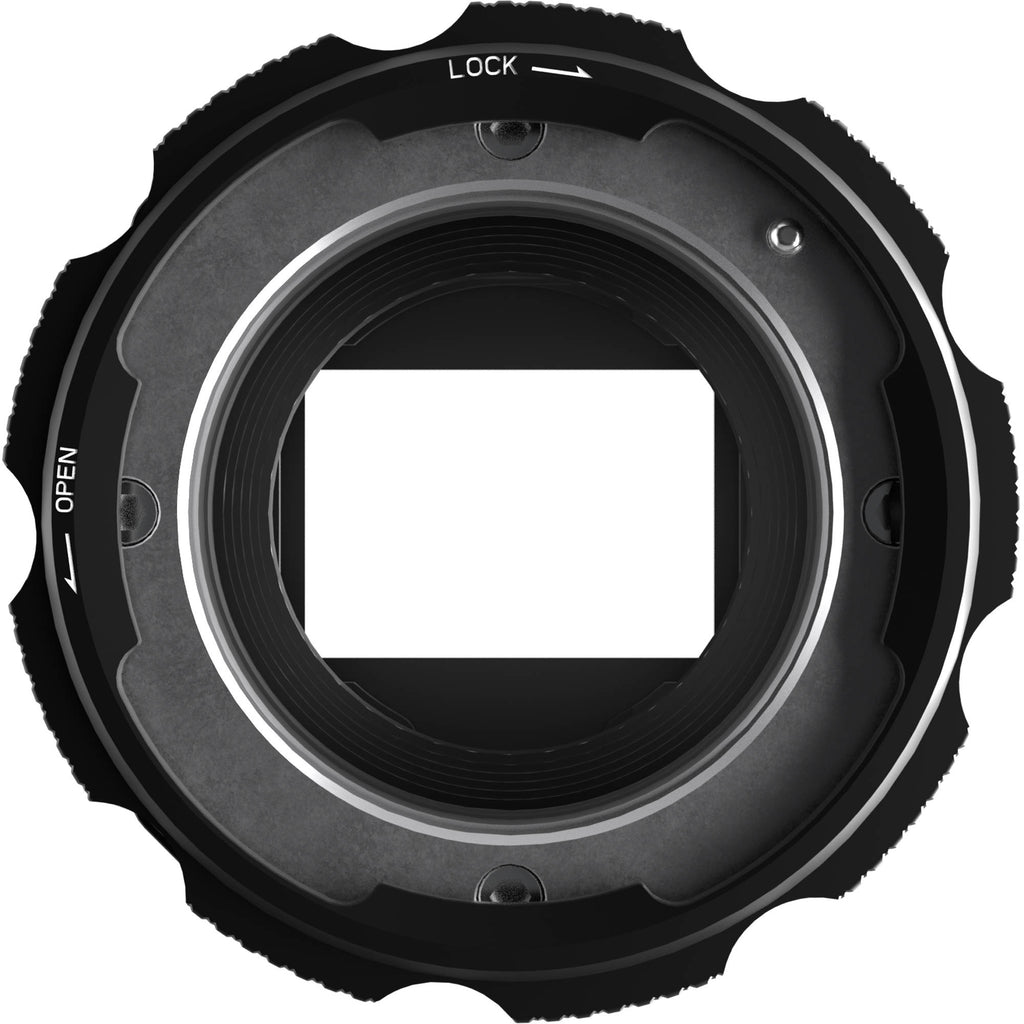

UPC: 841687100214 Z CAM Interchangeable Lens Mount for E2 Flagship Series (PL Mount)

Change out the mount on your E2-S6, E2-F6, or E2-F8 to expand your lens options with this Interchangeable Lens Mount from Z CAM . The Z CAM E2 flagship series E2-S6, E2-F6, and E2-F8 cameras allow you to change out your lens mount with alternate mounts, and this PL mount installs easily with the four included screws. No shims are required to fit this custom mount to your Z CAM camera. An Allen wrench is also included to assist your install.

UPC: 841687109026

Sensor Size	23.4 x 15.67 mm (Super35)
Sensor Type	CMOS
Sensor Resolution	Effective: 26.00 MP
ISO	400 to 125,000 (Expanded) 400 to 1250 (Native)
Advertised Dynamic Range	14 Stops

Lens Mount	Canon EF
Shutter Speed	1/1 to 1/8000 sec
Shutter Angle	1 to 360°
Built-In ND Filter	None
Built-In Microphone Type	Stereo
Recording Media	1 x CFast 2.0 Card Slot
Variable Frame Rates	Up to 120 fps

Raw Recording	Raw 10-Bit: 4096 x 2160 at 30 fps (300 Mb/s)
Recording Modes	H.265/MOV/MP4 4:2:0 10-Bit: 6244 x 4168p up to 30 fps (300 Mb/s)  6144 x 3240p up to 48 fps (300 Mb/s)  6144 x 2592p at 60 fps (300 Mb/s)  5760 x 3240p up to 48 fps (300 Mb/s)  5552 x 4164p up to 30 fps (300 Mb/s)  4992 x 4160p up to 30 fps (300 Mb/s)  4096 x 2160p up to 75 fps (300 Mb/s)  4096 x 1728p up to 100 fps (300 Mb/s)  3840 x 2160p up to 75 fps (300 Mb/s)  1920 x 1080p up to 120 fps (300 Mb/s)  H.264/MOV/MP4 4:2:0 8-Bit: 6244 x 4168p up to 30 fps (300 Mb/s)  6144 x 3240p up to 48 fps (300 Mb/s)  6144 x 2592p at 60 fps (300 Mb/s)  5760 x 3240p up to 48 fps (300 Mb/s)  5552 x 4164p up to 30 fps (300 Mb/s)  4992 x 4160p up to 30 fps (300 Mb/s)  4096 x 2160p up to 75 fps (300 Mb/s)  4096 x 1728p up to 120 fps (300 Mb/s)  3840 x 2160p up to 75 fps (300 Mb/s)  3840 x 1620p up to 90 fps (300 Mb/s)  1920 x 1080p up to 120 fps (300 Mb/s)
Audio Recording	MOV: 2-Channel 24-Bit 48 kHz LPCM Audio MP4: 2-Channel 24-Bit 48 kHz AAC Audio MOV: 2-Channel 24-Bit 48 kHz AAC Audio

Video Output

4:2:2 10-Bit via HDMI: 3840 x 2160p at 60 fps

Video Connectors	1 x HDMI (HDMI 2.0) Output
Audio Connectors	1 x 1/8" / 3.5 mm Stereo Input 1 x 5-Pin LEMO Input 1 x 1/8" / 3.5 mm Stereo Output
Other I/O	1 x USB Type-C Camera Interface Data, Control Input/Output 1 x 2.5 mm LANC Control Input 1 x RJ45 GIG-E 1000BASE-T, LAN Data, Control, Monitor Input/Output 2 x 4-Pin LEMO Camera Interface Control Input/Output
Wireless Interfaces	2.4 GHz, 5 GHz Wi-Fi Control

Display Type	Fixed LCD
Size	1.3"

EVF	Optional, Not Included

Battery Type	Sony L-Series
Power Connectors	1 x 2-Pin LEMO (12 VDC) Input 1 x 2-Pin LEMO (12 VDC) Output

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-4 to 140°F / -20 to 60°C

Accessory Mount	11 x 1/4"-20 Female
Material of Construction	Aluminum
Dimensions	4.81 x 3.91 x 3.59" / 122.25 x 99.25 x 91.2 mm
Weight	2.4 lb / 1090 g

Package Weight	4.58 lb
Box Dimensions (LxWxH)	10.4 x 8.7 x 5.2"

Lens Mount

ARRI PL Mount

Package Weight	1.105 lb
Box Dimensions (LxWxH)	4.6 x 4.3 x 3.2"
