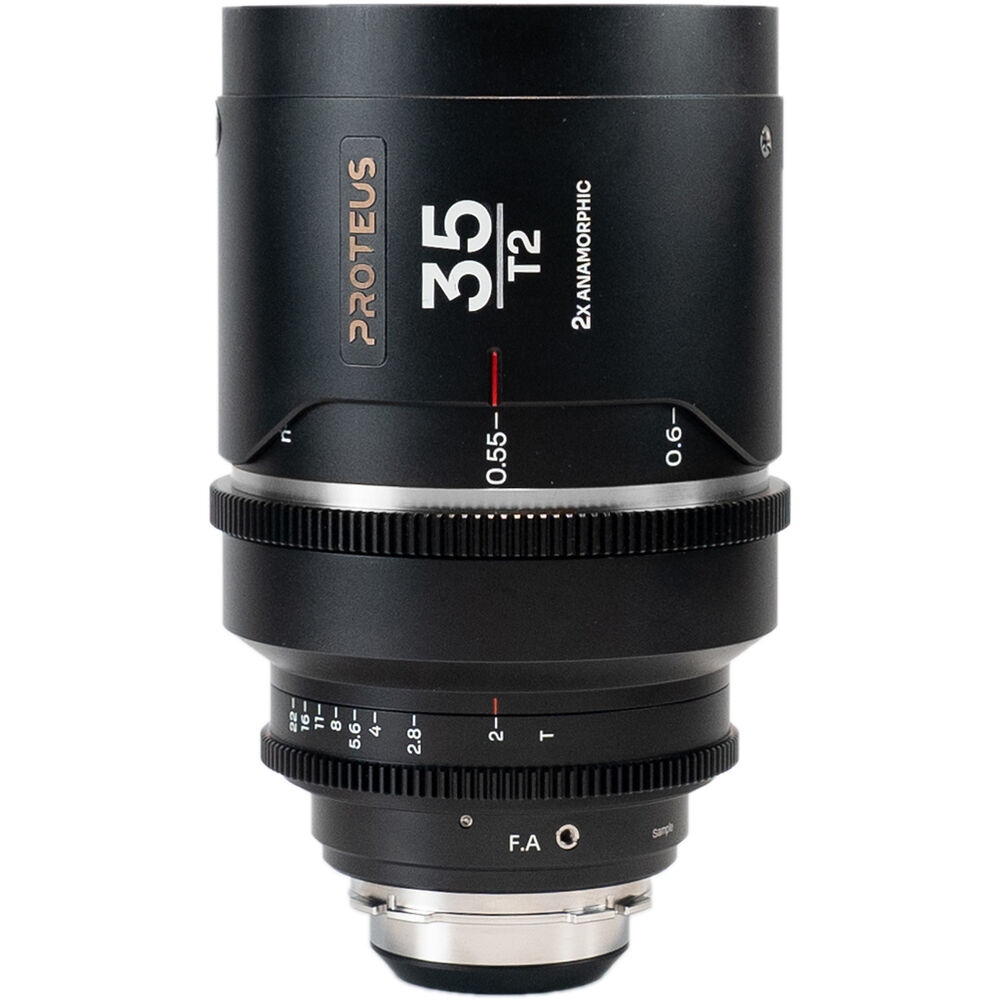

Venus Optics Laowa Proteus 2x Anamorphic 35mm T2 Lens (PL/EF, Feet, Silver Flare)

Roll over image to zoom in

Venus Optics Laowa Proteus 2x Anamorphic 35mm T2 Lens (PL/EF, Feet, Silver Flare)


	₹ 641855.0 includes GST and import duties.
	B2B customers can avail ₹ 97882.89 ITC on this product
	100% Secure Payments \| 100% Genuine product
	The product is eligible for Free Shipping

Brand:	Venus Optics
SKU:	6980920082517
MPN:	VE3520PLEFS

Share this product

Venus Optics Laowa Proteus 2x Anamorphic 35mm... Overview

1Description
2Constant 2x Squeeze Ratio
3Large Aperture
4Sharpness
5Close Focusing Distance
6Pleasant Bokeh
7Silver Anamorphic Flare Color
8Low Focus Breathing
9Sensor Coverage
10Unified Gear Position
110.8 MOD Gears
12Flange Back Adjustment

Cinema Lens Care and Maintenance

By Photo's

Jennifer Hahn

This Laowa Proteus 2x Anamorphic 35mm T2 Lens from Venus Optics is a slender, compact anamorphic lens that captures high-definition video with 2x anamorphic squeeze on cameras with S35+ sensors such as the ALEXA 35 and RED V-RAPTOR. It features a focal length of 35mm, interchangeable PL and EF lens mounts, an aperture range of T2 to T22 for a deep depth of field, 10 iris blades for a shallow depth of field and soft bokeh, and a 2x anamorphic squeeze to capture a vintage, cinema-style anamorphic look. Using an optional 1.4x full-frame expander adapter, Proteus lenses can also cover a full-frame sensor.

The prime lens has a minimum focus distance of 21.6" and offers anamorphic qualities such as high contrast, silver color lens flares, and a 73° horizontal field of view. Other features include measurement markings in feet, 0.8 MOD cine gears on focus and aperture rings, a 114mm outer diameter, and a 105mm front filter thread. The ARRI PL lens mount is interchangeable and can be swapped out for the included EF mount bayonet.

Constant 2x Squeeze Ratio

With a 2x squeeze ratio, you will have a 2.66:1 on a 4:3 sensor and a 2.4:1 on a 6:5 sensor after de-squeeze. It provides room for cropping to a golden 2.39:1 aspect ratio. The 2x squeeze ratio yields an ultra-widescreen cinematic look which is desired by the film industry. The squeeze ratio remains constant at any focusing distance to avoid anamorphic mumps.

Large Aperture

Featuring a T2 aperture, the fast aperture supports filmmakers to shoot in low-light conditions. It also creates a shallow depth of field with a waterfall-like focus roll-off.

Sharpness

Impressive sharpness and contrast at wide-open, Laowa Proteus Series satisfies demanding film production requirements.

Close Focusing Distance

The lens can focus at a minimum distance of 21.6" away from the object, creating sharp close-up cinematic scenes at ease.

Pleasant Bokeh

Elliptical bokeh is produced in the out-of-focus area, which is a signature anamorphic character for the strong cinematic look. The bokeh in 2x squeeze ratio is prominently thinner and longer.

Silver Anamorphic Flare Color

Compared to the more common blue flare, the silver flare is a neutral-colored flare that provides more control over the flare color. Its color changes according to the light source, and it can be relatively subtler and less distracting.

Low Focus Breathing

Both changes in the angle of view and framing are kept at a minimum when adjusting the focus.

Sensor Coverage

Having S35+ sensor coverage, Laowa Proteus supports the ARRI ALEXA 35 sensor in 2.39:1 ratio and RED V-RAPTOR sensor in 7K 6:5 ANA. With an optional 1.4x full-frame adapter, Proteus can cover full-frame sensors with sharpness and image quality.

Unified Gear Position

The unified gear position allows users to switch lenses quickly and without readjustment on the focus gear.

0.8 MOD Gears

Industry-standard 0.8 MOD gears are installed on both the aperture and focus rings.

Flange Back Adjustment

The lens allows users to adjust the back focus easily.

In the Box

Venus Optics Laowa Proteus 2x Anamorphic 35mm T2 Lens (PL/EF, Feet, Silver Flare)
EF-Mount Bayonet
Front Cap
Rear Cap
Hard Case
Limited 3-Year Manufacturer Warranty

Table of Contents

Description
Constant 2x Squeeze Ratio
Large Aperture
Sharpness
Close Focusing Distance
Pleasant Bokeh
Silver Anamorphic Flare Color
Low Focus Breathing
Sensor Coverage
Unified Gear Position
0.8 MOD Gears
Flange Back Adjustment

Venus Optics Laowa Proteus 2x Anamorphic 35mm... Specs

Focal Length	35mm
Maximum Aperture	T2
Minimum Aperture	T22
Lens Mount	ARRI PL
Horizontal Squeeze (Anamorphic)	2x
Lens Format Coverage	Super35/APS-C
Image Circle	25.9 mm
Focus Scales	Metric, Imperial
Optical Design	17 Elements in 14 Groups
Filter Thread	105 mm
Minimum Focus Distance	From Unspecified Point in Lens: 21.7" / 55 cm
Diaphragm Blades	10
Image Stabilization	No
Dimensions (W x H)	7.2 x 4.7" / 182 x 119.6 mm
Weight	5.3 lb / 2.4 kg

Packaging Info

Package Weight	12.77 lb
Box Dimensions (LxWxH)	14.9 x 12.1 x 8.4"
